Engine Views




Harness Routing Views

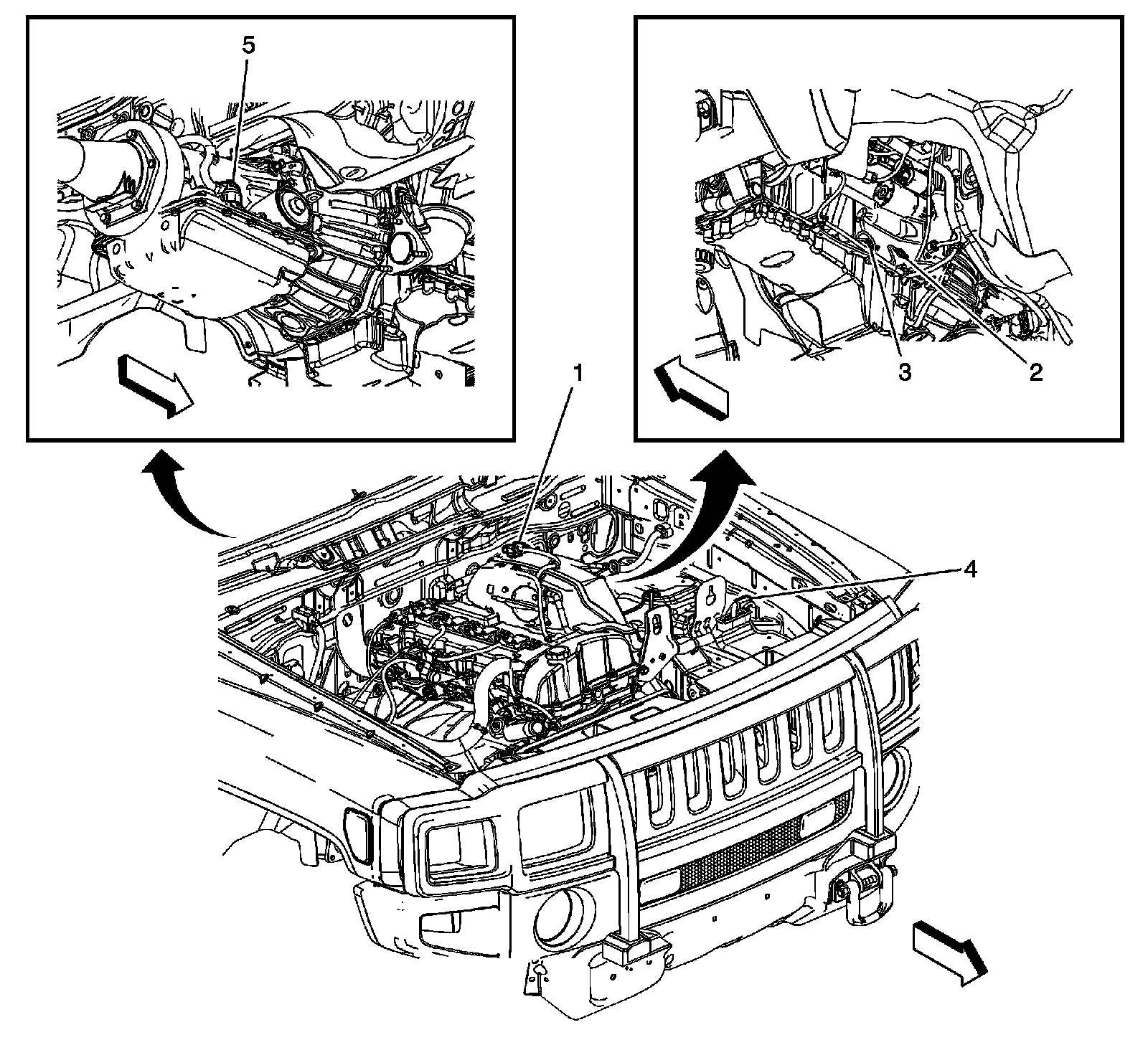

Engine Harness LLR




1 - X101
2 - G102
3 - G103
4 - X125
5 - X175
