Electronic Traction Control Switch Replacement

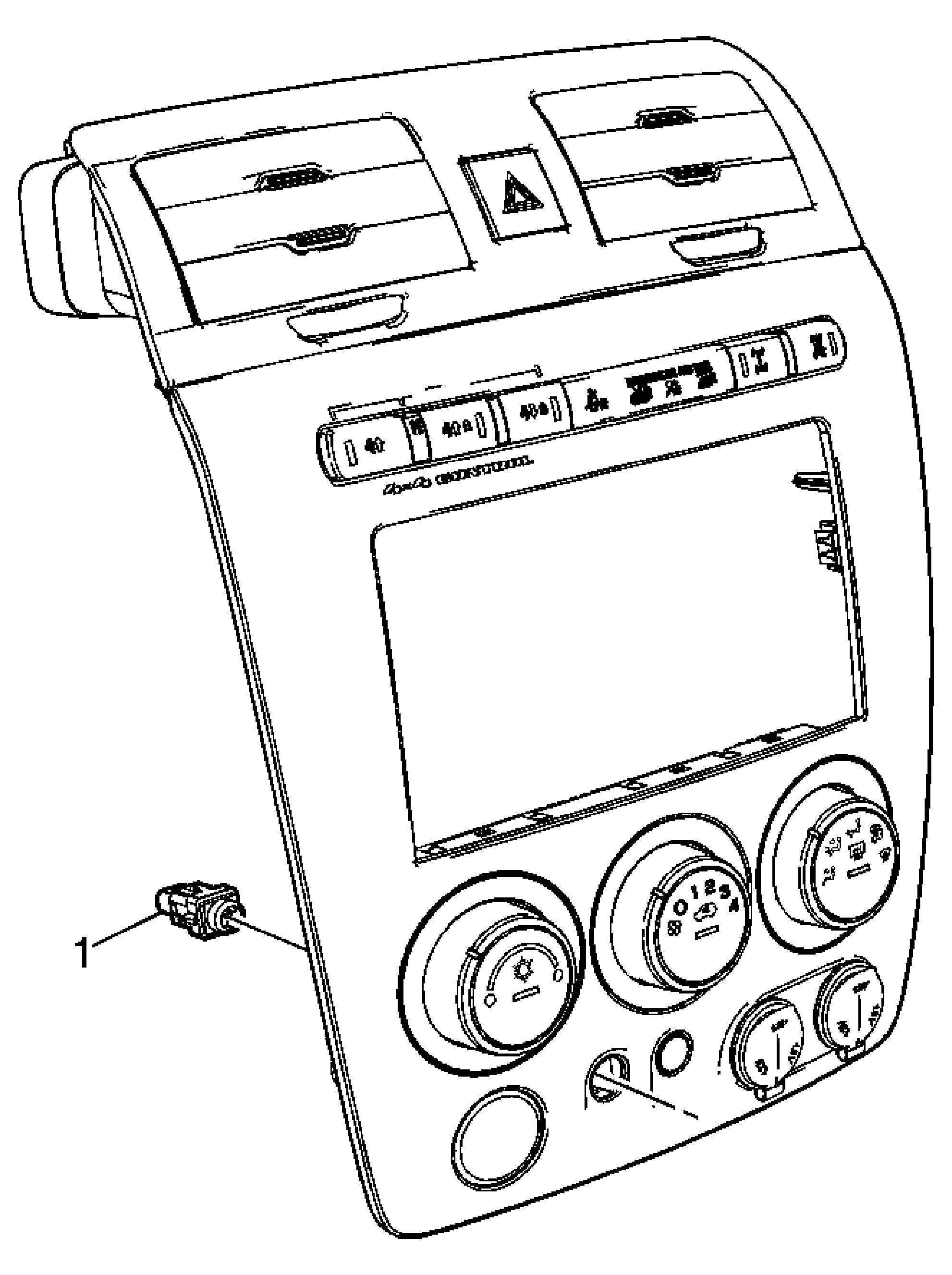

Fig 1: Electronic Traction Control Switch
GM2320617Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the instrument panel center trim panel. Refer to Instrument Panel Center Trim Panel Replacement (Left Hand Drive) or Instrument Panel Center Trim Panel Replacement (Right Hand Drive) .
1 Electronic Traction Control Switch

Procedure

  1. Squeeze the tabs in order to release the switch from the trim panel.
  2. Disconnect electrical connector.
