Ground Views

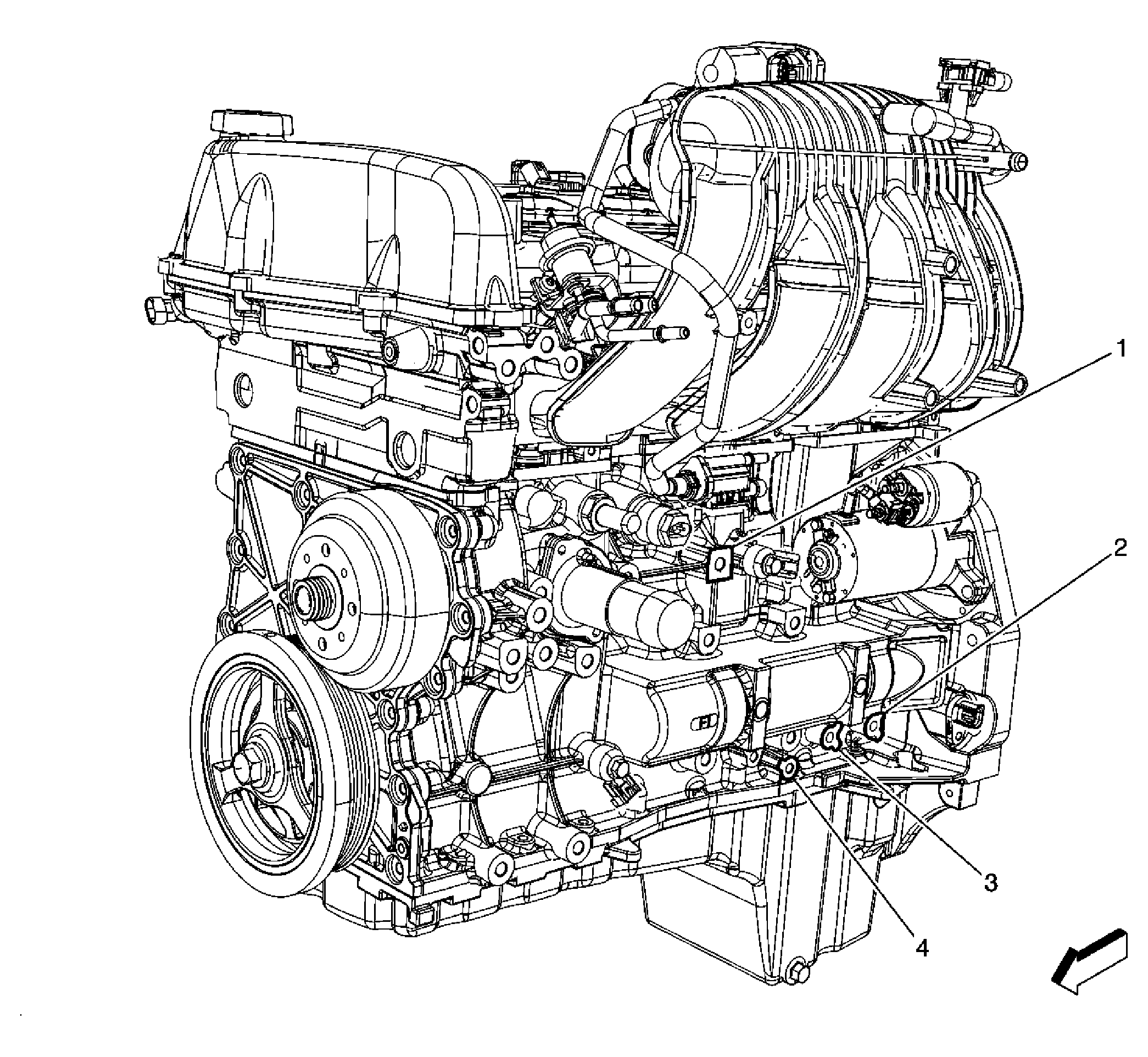

Fig 1: Grounds G102, G103, G104, and G110 (LLR)
GM2357095Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G104
2 G102
3 G110
4 G103

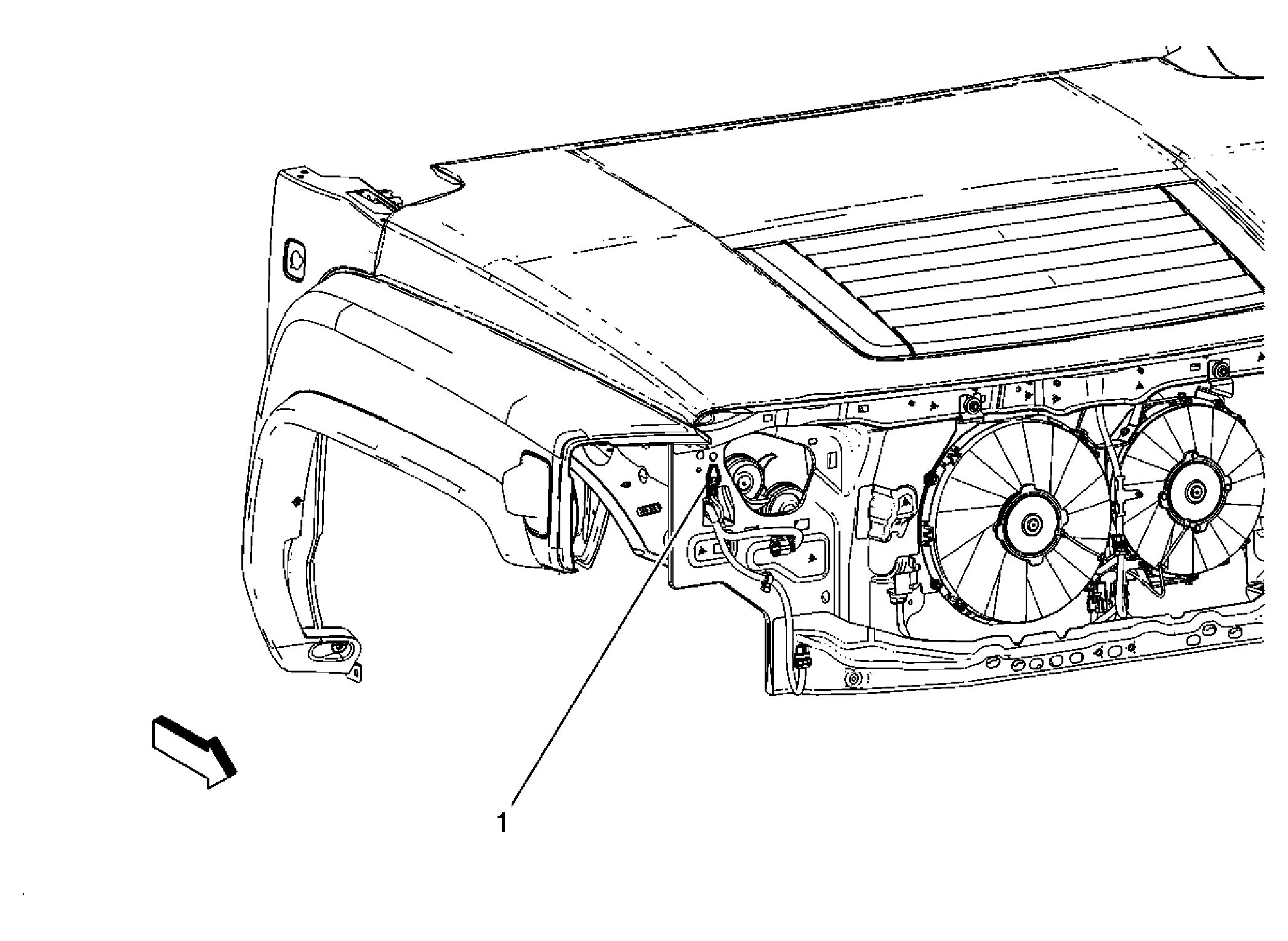

Fig 2: G107 (V08)
GM2376680Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G107

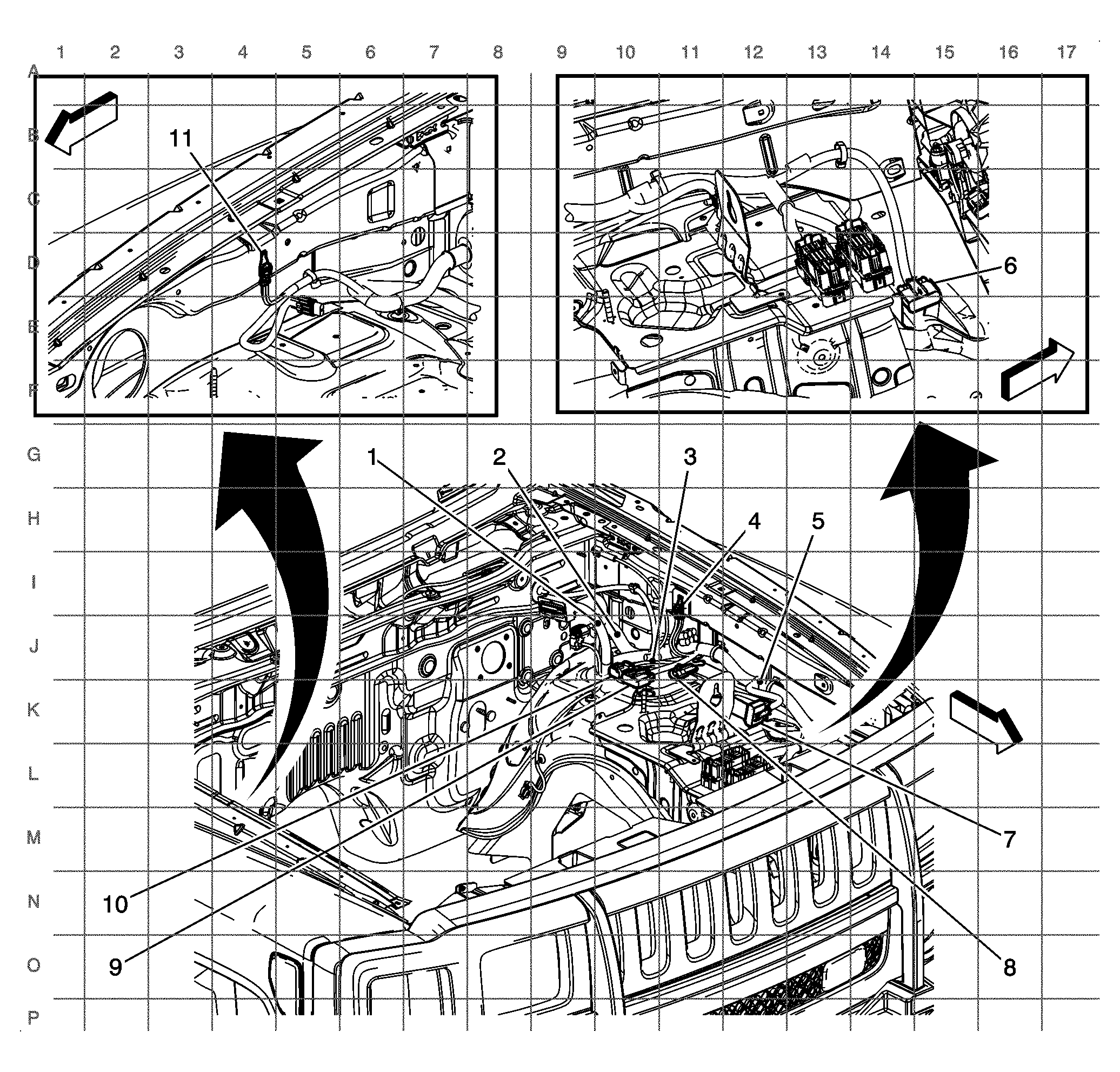

Fig 3: Body Harness Routing - Engine Compartment
GM1916013Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J110
2 J141
3 J142
4 G105
5 J143
6 X115
7 X125
8 X130
9 X150
10 X155
11 G106

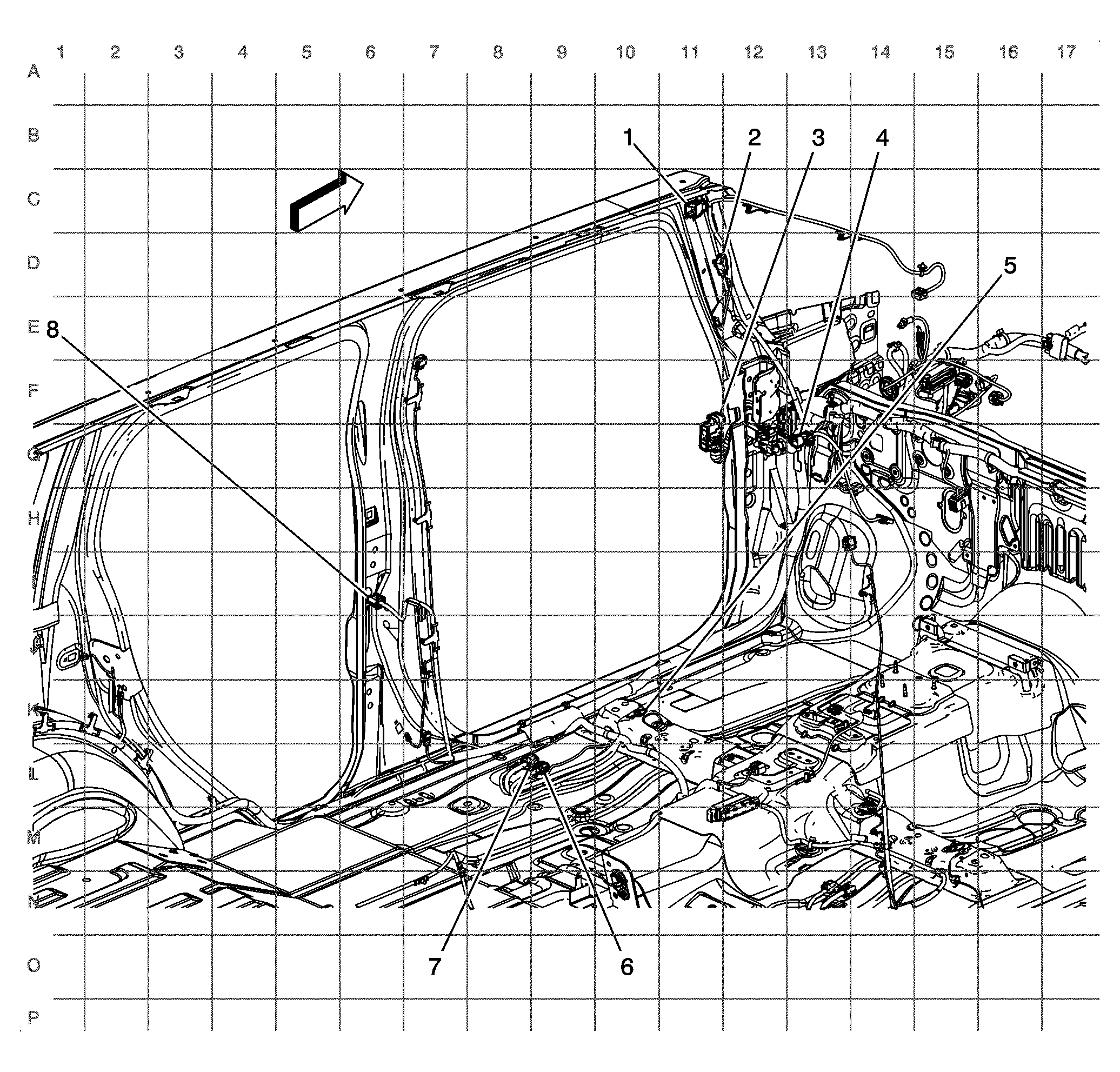

Fig 4: Body Harness Routing - Left (Left Hand Drive)
GM1916857Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X330
2 X335 (CF5 or UE1)
3 X600
4 X275
5 G300
6 X307 (AG1)
7 X308
8 X800

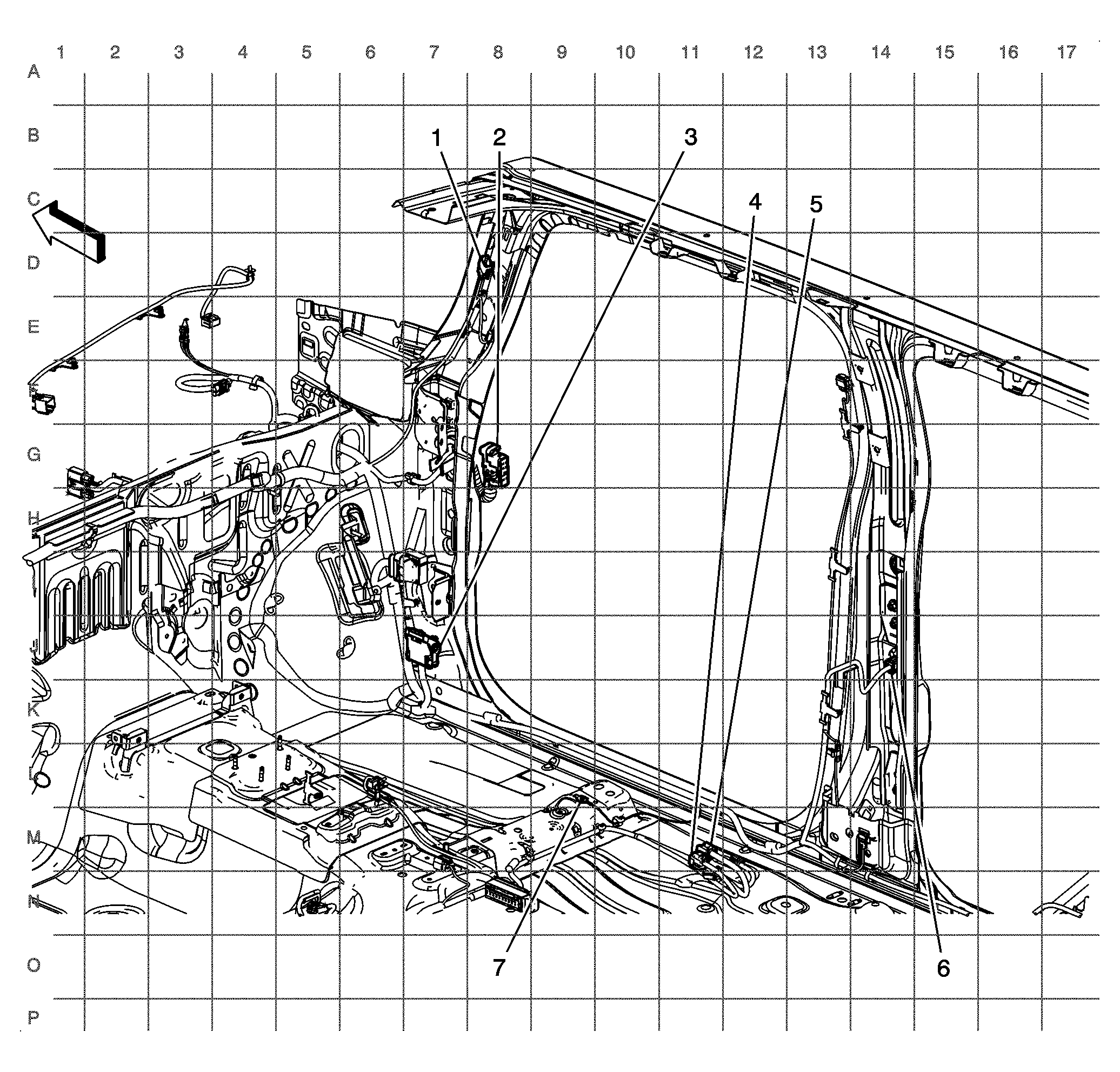

Fig 5: Body Harness Routing - Right (Left Hand Drive)
GM1917011Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X350
2 X500
3 X204
4 X315
5 X320
6 X700
7 G320

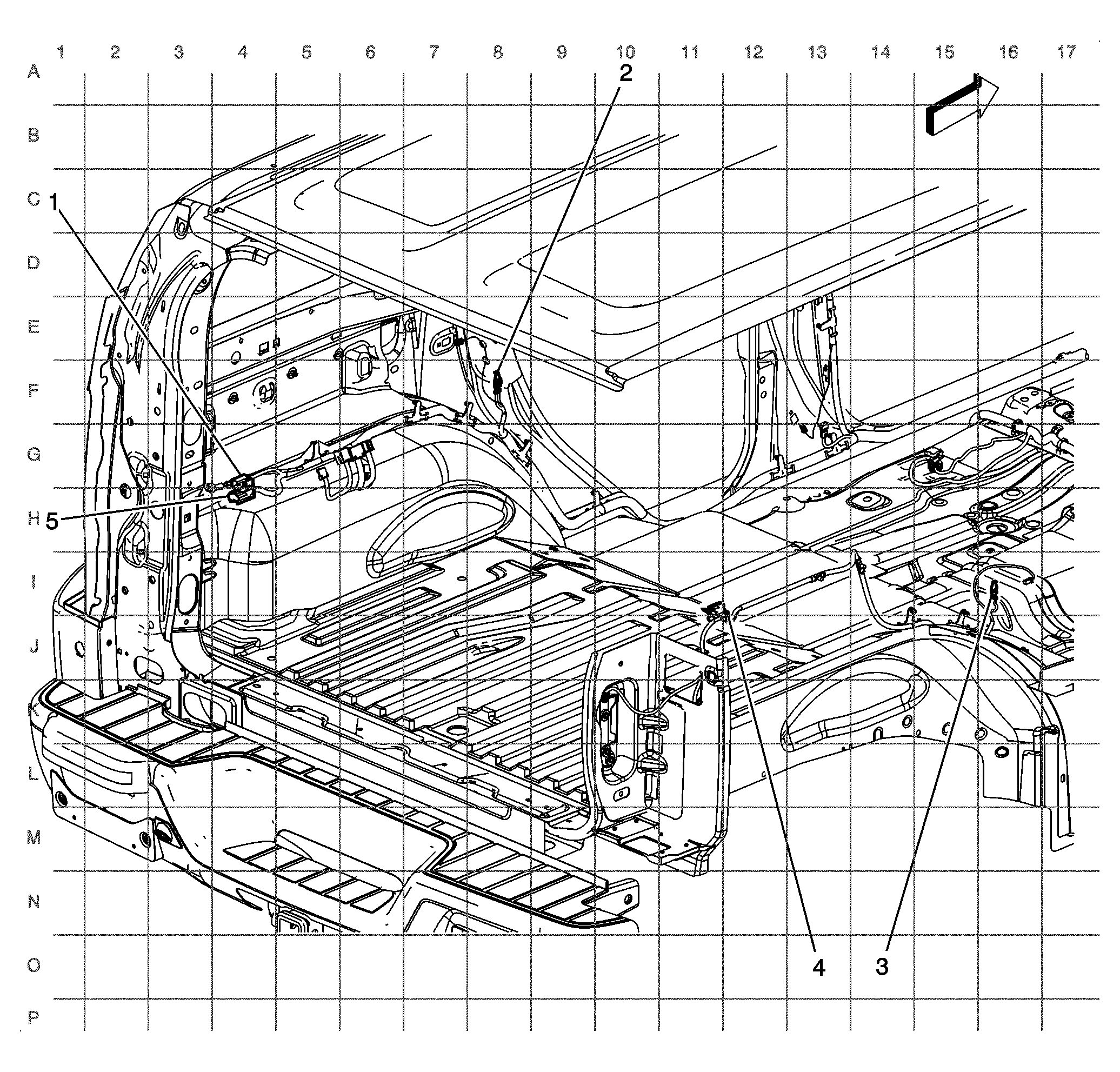

Fig 6: Body Harness Rear (SUV)
GM1917563Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X410
2 G345 and G350
3 G340
4 X430
5 X450
