SIR Identification Views
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

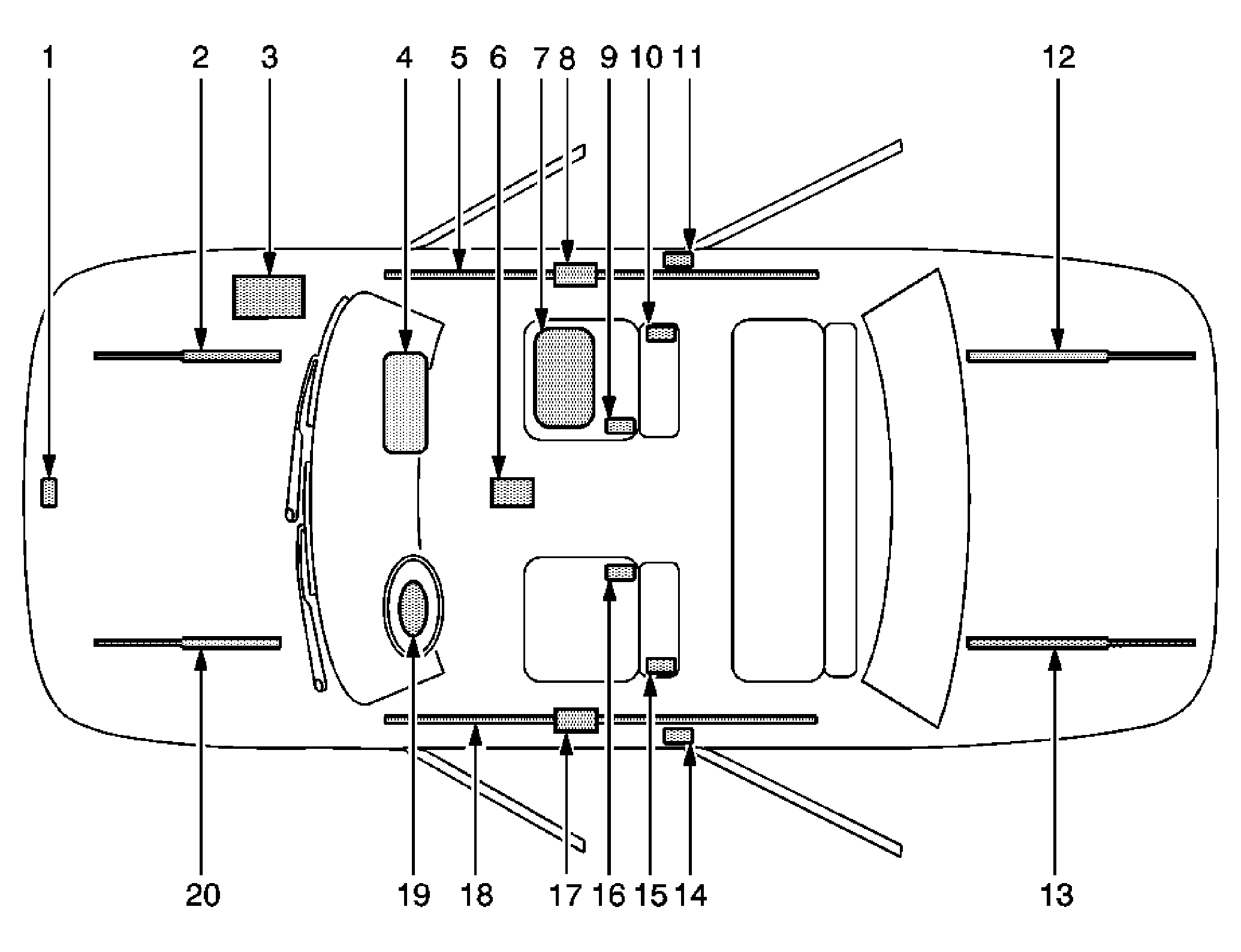

The SIR Identification Views shown below illustrate the approximate location of all SIR components available for the vehicle. This will assist in determining the appropriate SIR Disabling and Enabling for a given service procedure, refer to SIR Disabling and Enabling .
| Callout | Component Name |
|---|---|
| 1 | Front End Sensor -Located on the front of the vehicle in the engine compartment |
| 2 | Front Hood Assist Rod-A gas shock located under the front hood on the passenger side |
| 3 | Vehicle Battery-Located under the hood on the right side |
| 4 | I/P Air Bag-Located at the top right under the instrument panel |
| 5 | Right Roof Rail Air Bag-Located under the headliner, extending from the passenger front windshield pillar to the passenger rear windshield pillar |
| 6 | Sensing and Diagnostic Module (SDM)-Located underneath the vehicle carpet under the center console |
| 7 | Passenger Presence System-Located under the passenger seat trim cover |
| 8 | Inflator Module for Right Roof Rail Air Bag-Located above front passenger door opening near center pillar |
| 9 | Seat Belt Pretensioner-Located on the inboard side of the passenger seat |
| 10 | RF Side Impact Air Bag-Located on the seat back of passenger seat |
| 11 | Side Impact Sensor (SIS)-Located under the center pillar trim near the bottom |
| 12 | Rear Compartment Lid Assist Rod-A gas shock is located under the rear trunk lid on the passenger side |
| 13 | Rear Compartment Lid Assist Rod-A gas shock is located under the rear trunk lid on the driver side |
| 14 | Side Impact Sensor (SIS)-Located under the center pillar trim near the bottom |
| 15 | LF Side Impact Air Bag-Located on the seat back of driver seat |
| 16 | Seat Belt Pretensioner-Located on the inboard side of the driver seat |
| 17 | Inflator Module for Left Roof Rail Air Bag-Located above front driver door opening near center pillar |
| 18 | Left Roof Rail Air Bag-Located under the headliner, extending from the driver front windshield pillar to the driver rear windshield pillar |
| 19 | Steering Wheel Air Bag-Located on the steering wheel |
| 20 | Front Hood Assist Rod-A gas shock located under the front hood on the driver side |
