Inflatable Restraint Front End Sensor Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

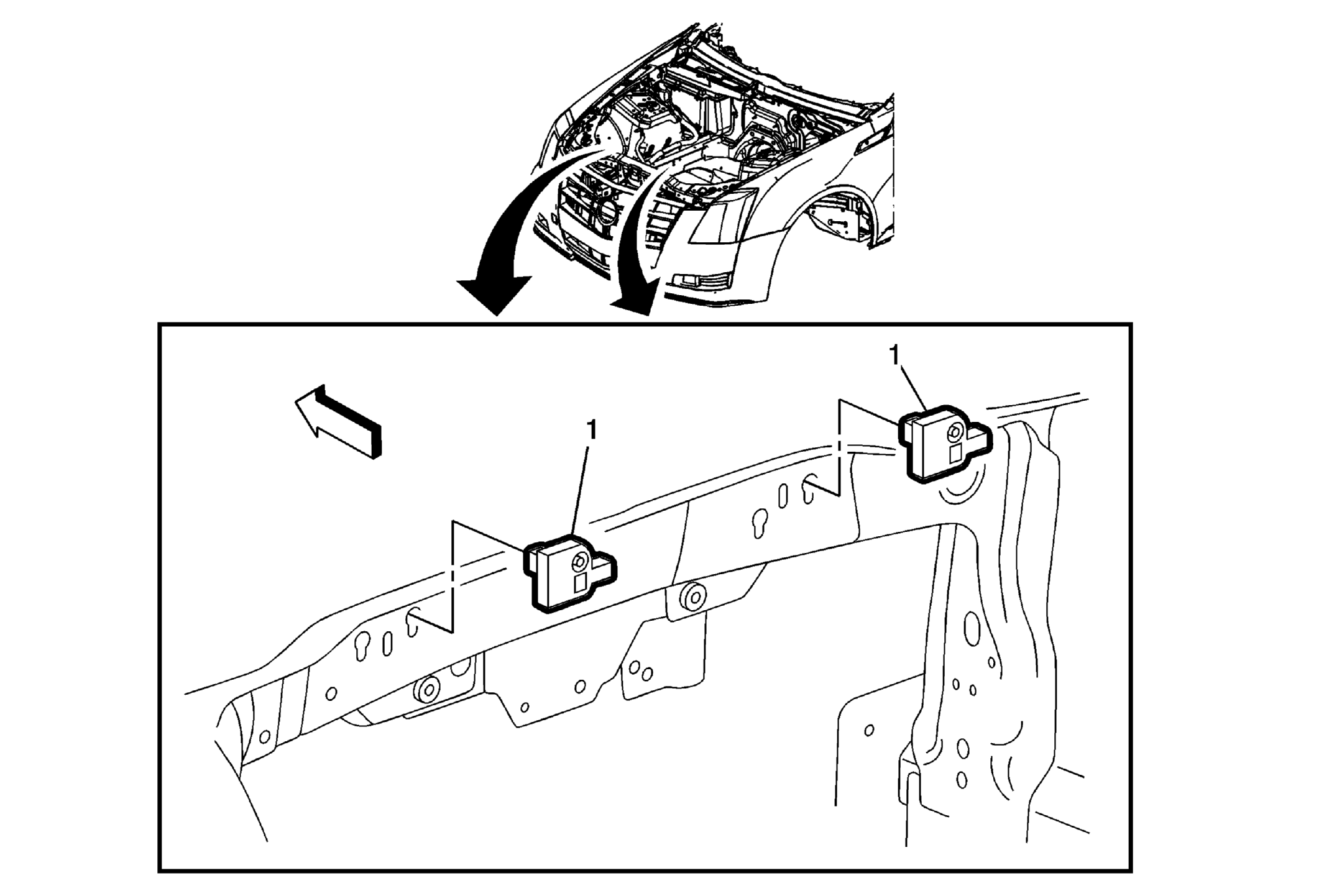

Fig 1: Inflatable Restraint Front End Sensor Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to SIR Caution . Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the upper air baffle and deflector.
1	Inflatable Restraint Front End Sensor Mounting Bolt (Qty: 4, 2 per sensor) NOTE: Refer to Fastener Notice . Tighten: 11 N.m (97 lb in)
2	Connector Position Assurance (CPA) Connector
3	Inflatable Restraint Front End Sensor
