Roof Side Rail Inflatable Restraint Module Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

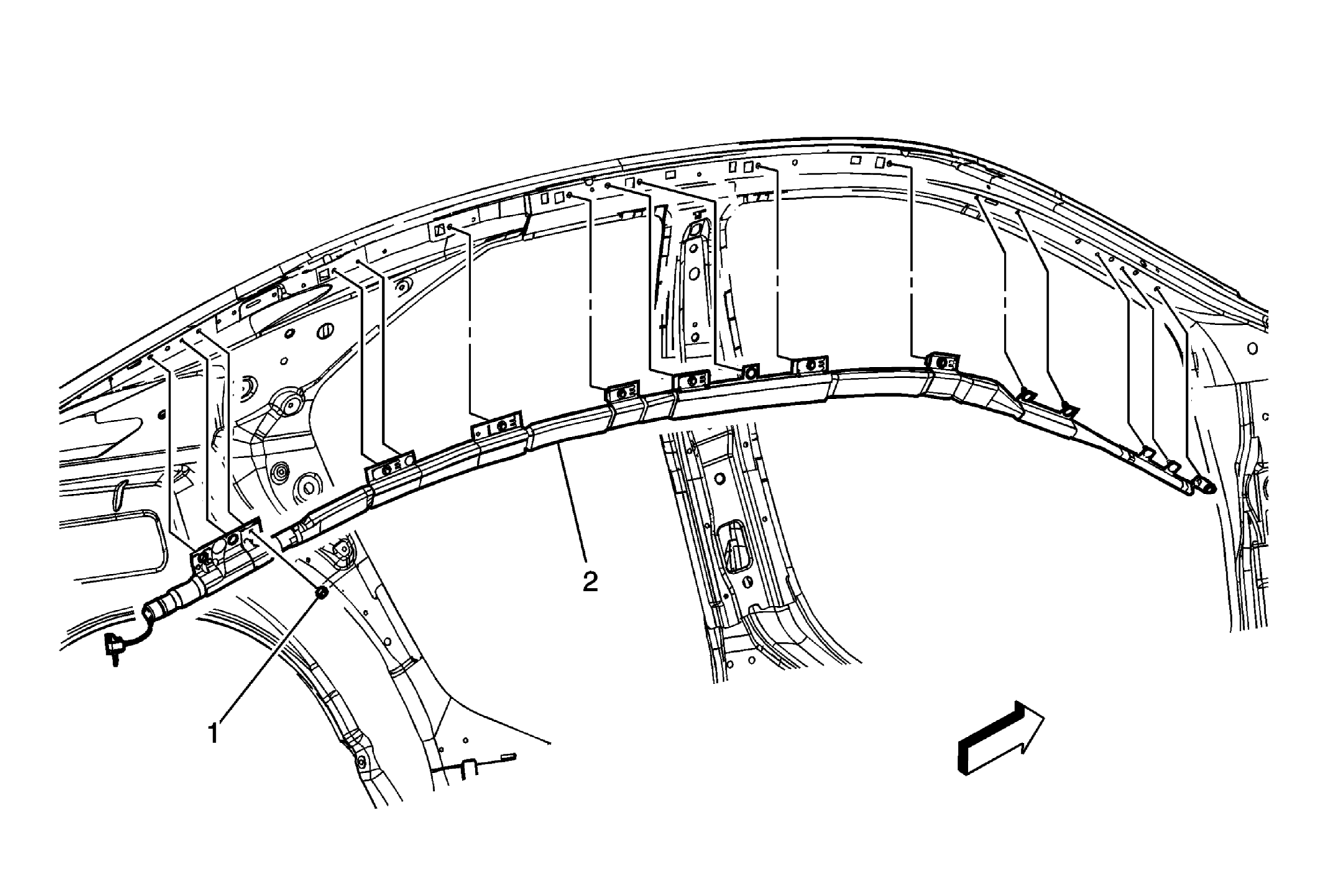

Fig 1: Roof Side Rail Inflatable Restraint Module Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: In order to prevent SIR deployment, personal injury, or unnecessary SIR system repairs, do not strike the door or the door pillar in the area of the side impact sensor (SIS). Turn OFF the ignition and remove the key when performing service in the area of the SIS. CAUTION: Refer to SIR Caution . CAUTION: Refer to SIR Inflator Module Handling and Storage Caution . Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling . Lower the side of the headliner. Refer to Headlining Trim Panel Replacement .
1	Roof Side Rail Inflatable Restraint Module Electrical Connector
2	Roof Side Rail Inflatable Restraint Module Push-In Electrical Connector
3	Roof Side Rail Inflatable Restraint Module Electrical Harness Bolt NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
4	Roof Side Rail Inflatable Restraint Module Integral Bolts (Qty: 8) Tighten: 9 N.m (80 lb in)
5	Roof Side Rail Inflatable Restraint Module Integral Retainers (Qty: 7)
6	Roof Side Rail Inflatable Restraint Module Assembly
