Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

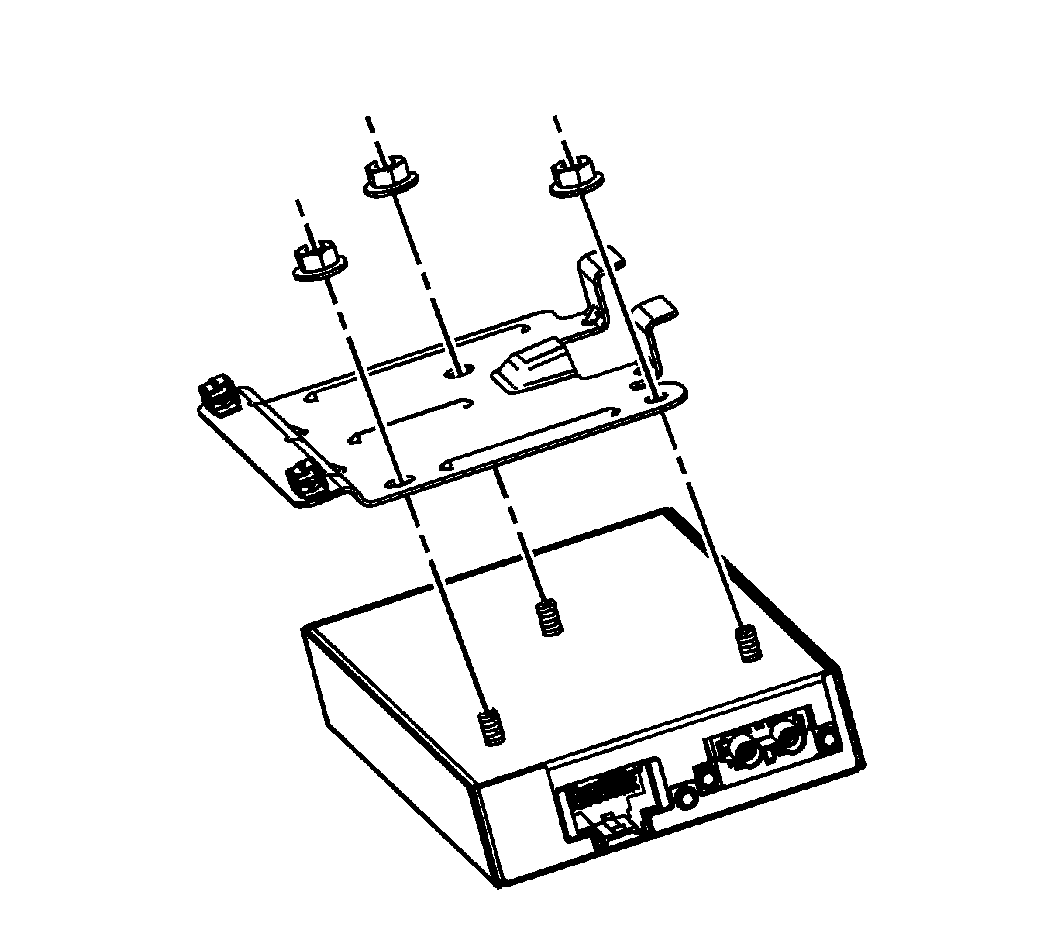

Fig 1: View Of Receiver & Mounting Bracket

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

If replacing the receiver, install the receiver to the mounting bracket and install the retaining nuts.
Tighten: Tighten the nuts to 3 N.m (26 lb in).

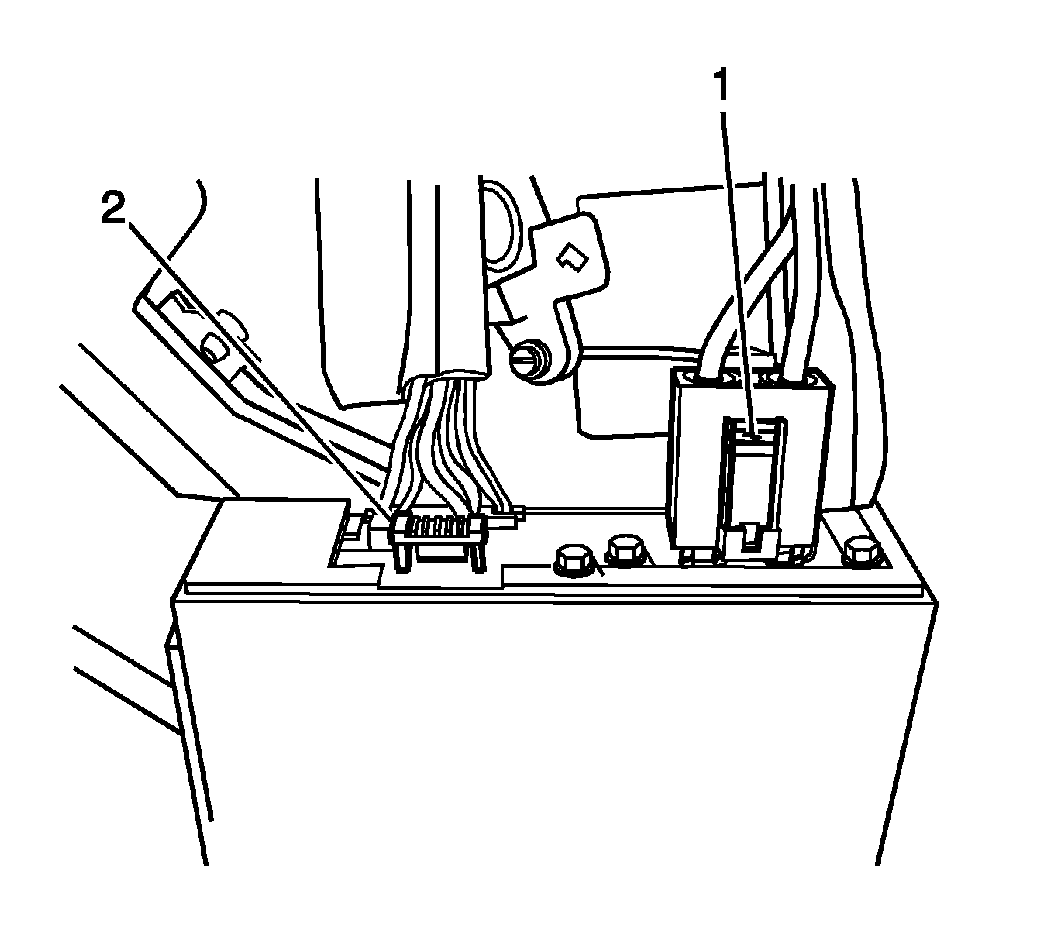

Fig 2: View Of Electrical Connector Release Lever & CPA

Courtesy of GENERAL MOTORS CORP.

Position the receiver to the I/P.
Connect the receiver electrical connectors.
Install the CPA (2) to the electrical connector.

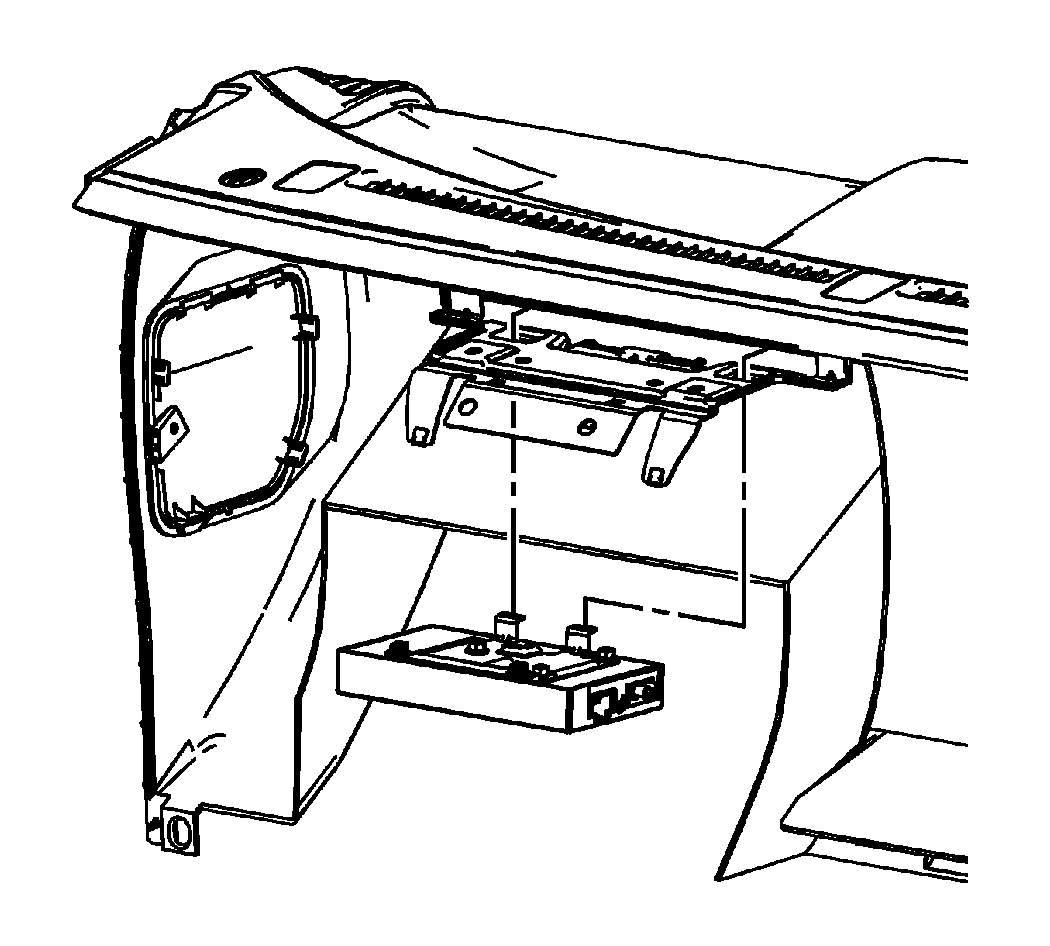

Fig 3: View Of Digital Radio Receiver

Courtesy of GENERAL MOTORS CORP.

Install the receiver to the I/P.

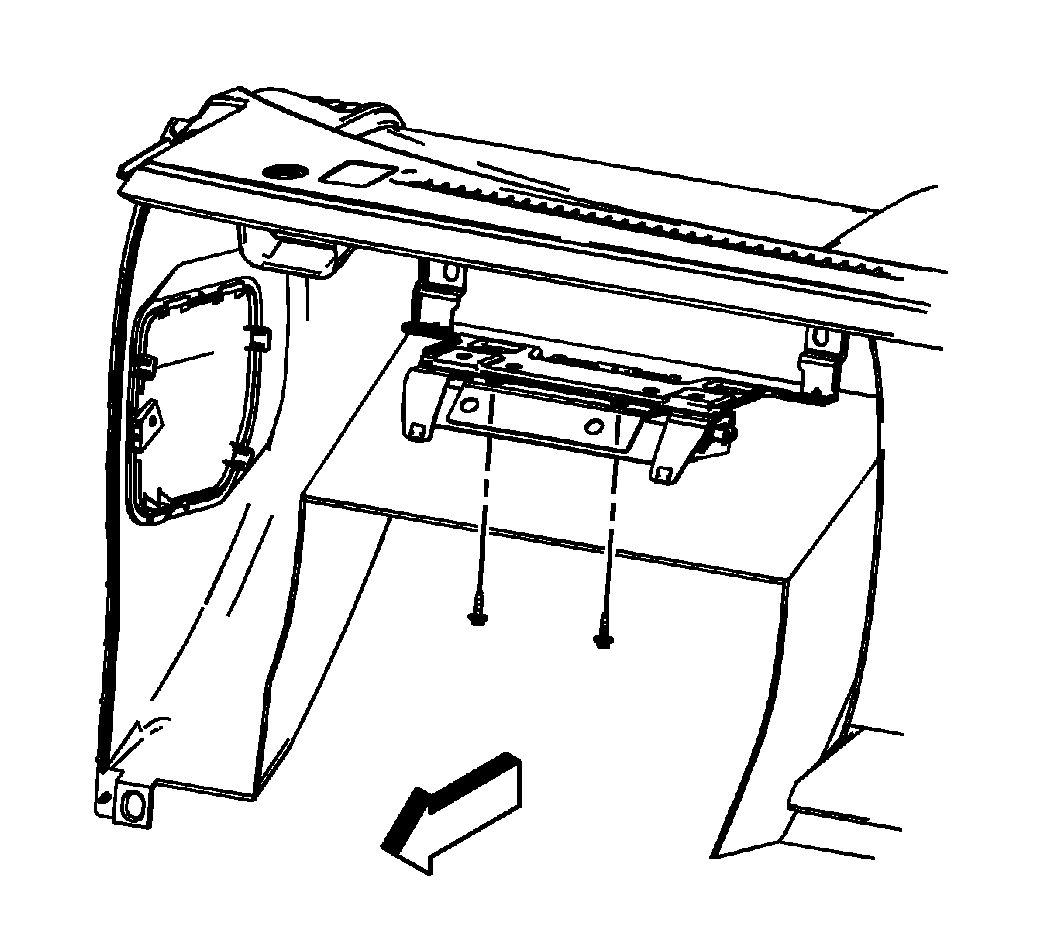

Fig 4: View Of Digital Radio Receiver Retaining Screws

Courtesy of GENERAL MOTORS CORP.

Install the screws retaining the digital radio receiver to the I/P structure.
Tighten: Tighten the screws to 3 N.m (27 lb in).

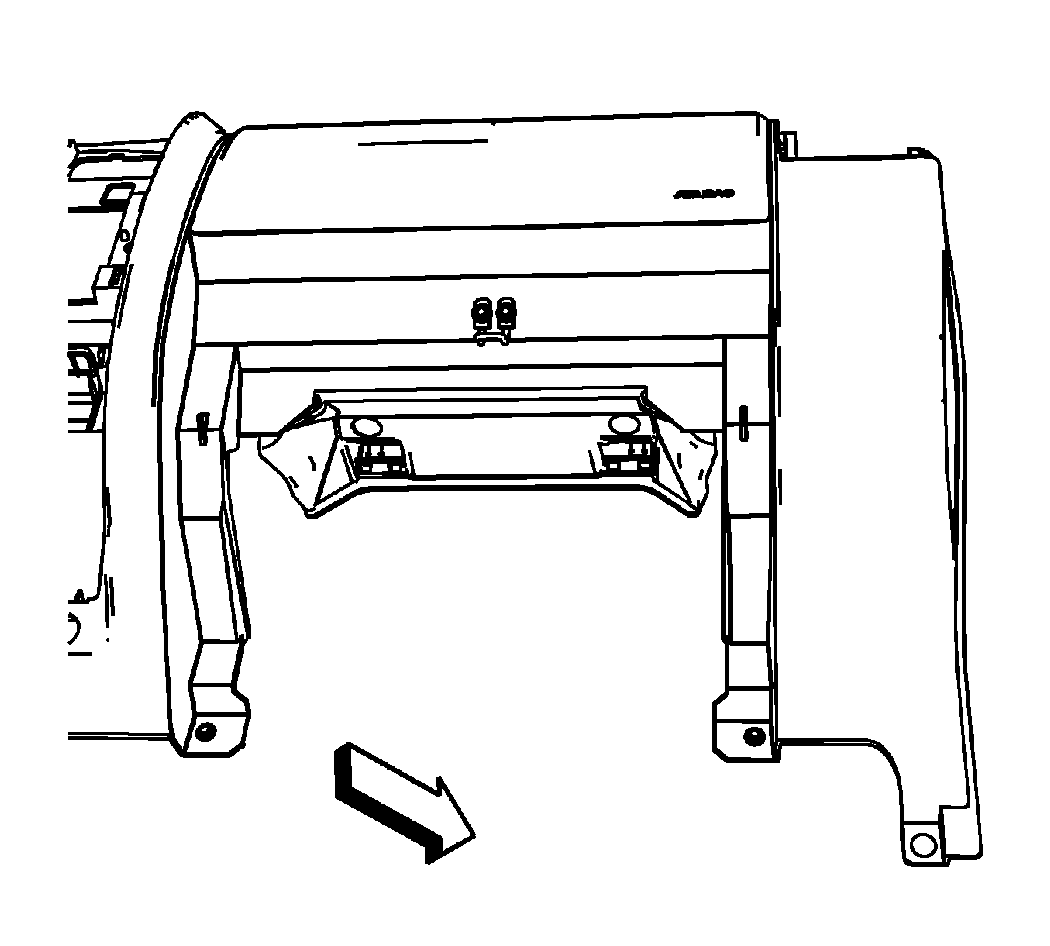

Fig 5: View Of Service Panel

Courtesy of GENERAL MOTORS CORP.

Close the service panel located above the I/P compartment door.
Install the I/P compartment door. Refer to Instrument Panel Compartment Door Replacement .
Install the I/P access cover.
Perform the setup procedure for the digital radio receiver. Refer to Control Module References .
