Video System Schematics

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

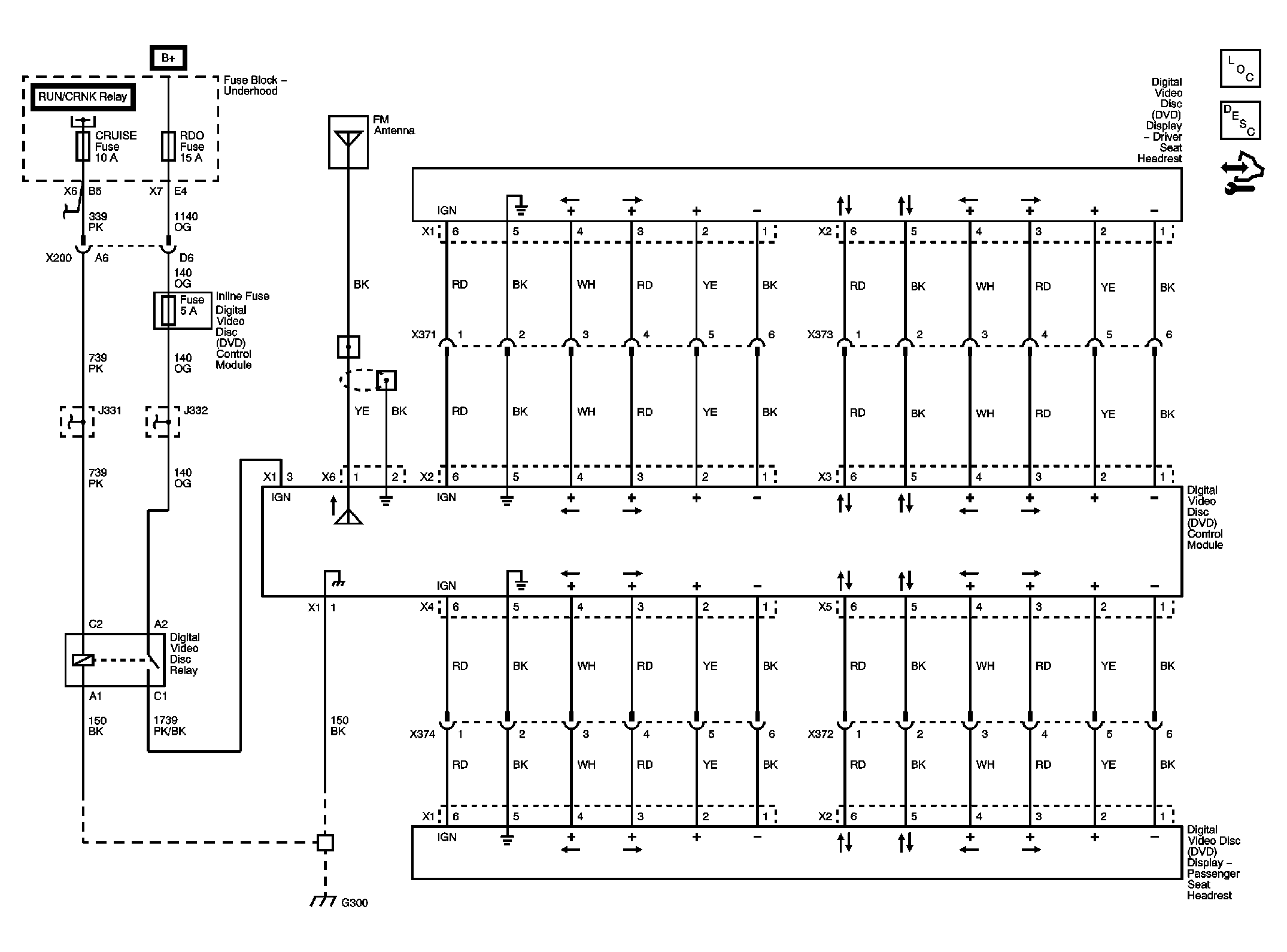

Fig 1: Headrest DVD (SPO Accessory)
GM2279666Courtesy of GENERAL MOTORS CORP.
