Shift Lock Control Schematics

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

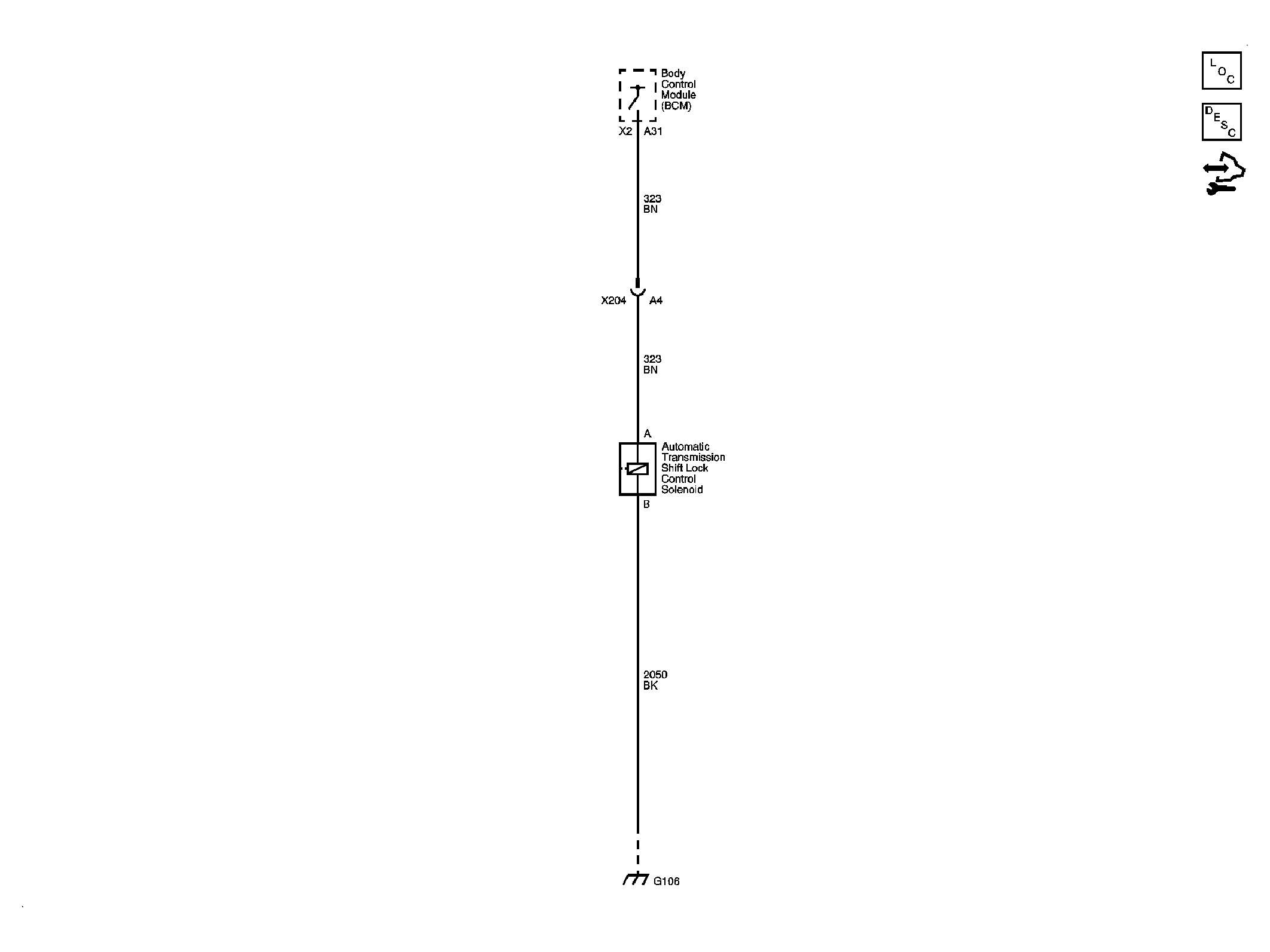

Fig 1: Shift Lock Control
GM2242737Courtesy of GENERAL MOTORS CORP.
