Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

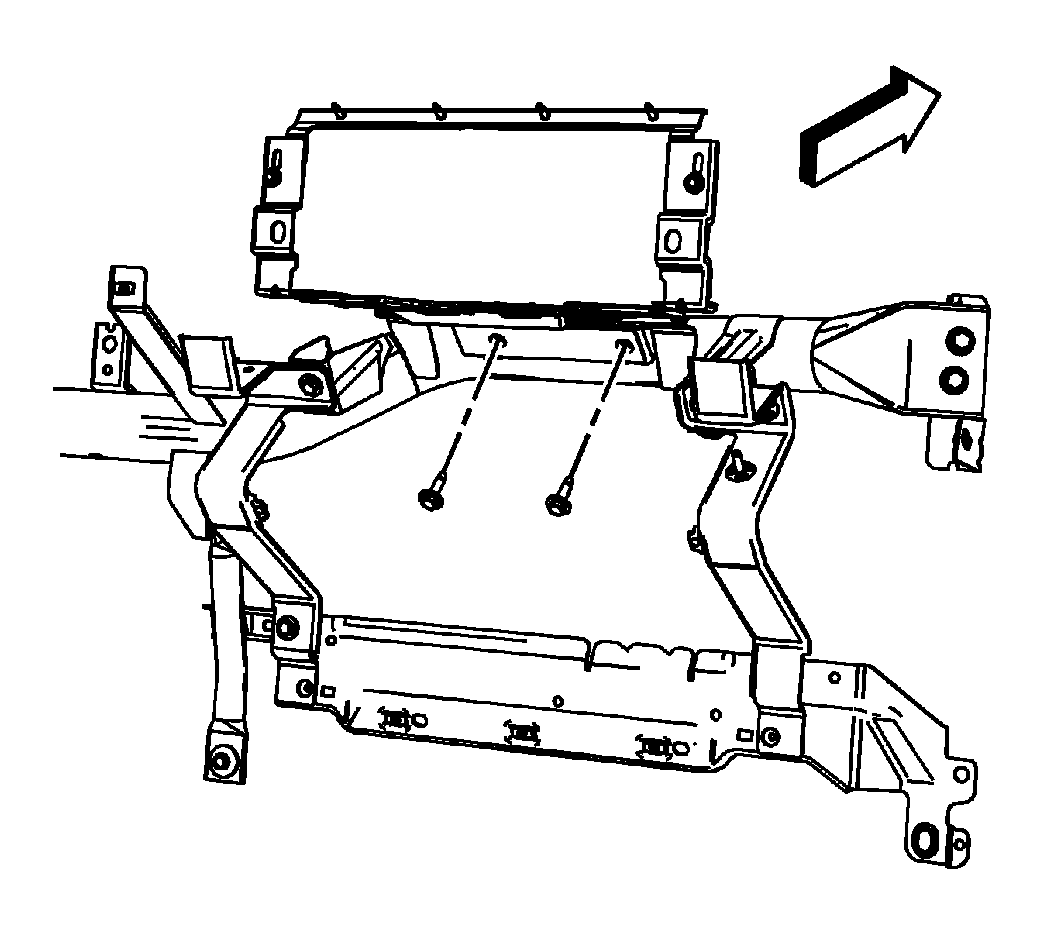

Fig 1: View Of PSIR Bracket

Courtesy of GENERAL MOTORS CORP.

If replacing the PSIR bracket, install the PSIR bracket to the I/P structure.

Fig 2: View Of PSIR Bracket To I/P Structure Fasteners

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the 2 fasteners retaining the PSIR bracket to the I/P structure.
Tighten: Tighten the fasteners to 9 N.m (80 lb in).
Install the I/P assembly. Refer to Instrument Panel Assembly Replacement .

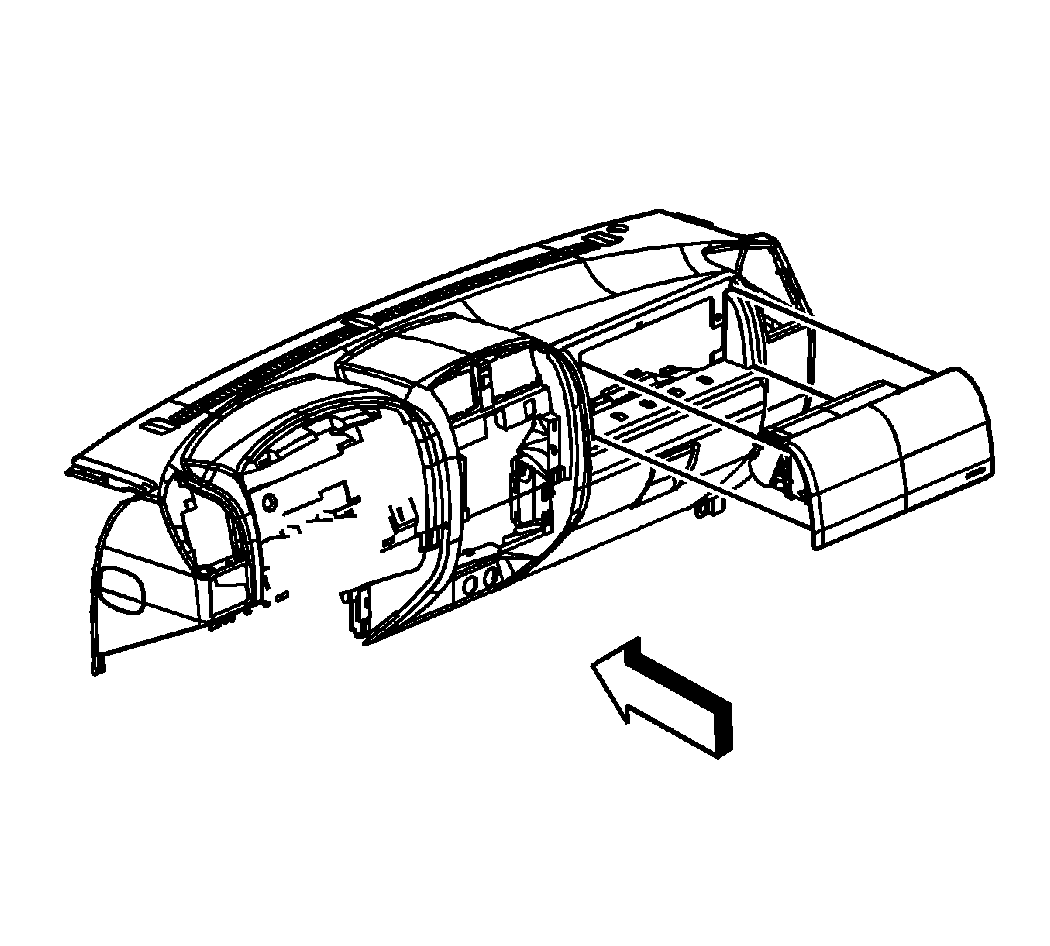

Fig 3: View Of PSIR Module

Courtesy of GENERAL MOTORS CORP.

Position the PSIR inflator module to the front of the I/P and connect the electrical connector.
Connect the CPA.
Install the PSIR inflator module to the I/P.

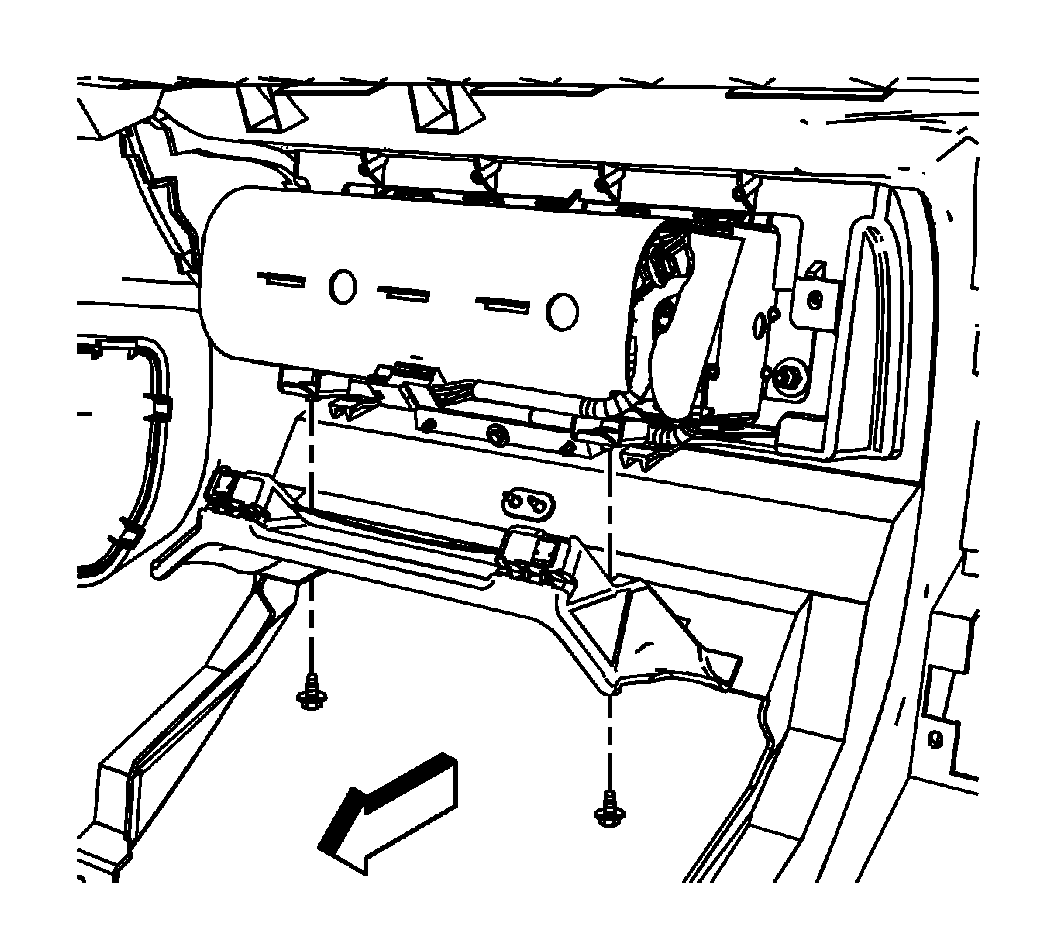

Fig 4: View Of PSIR Inflator Module Fasteners

Courtesy of GENERAL MOTORS CORP.

Partially Install the 2 lower fasteners retaining the PSIR module to the I/P structure.

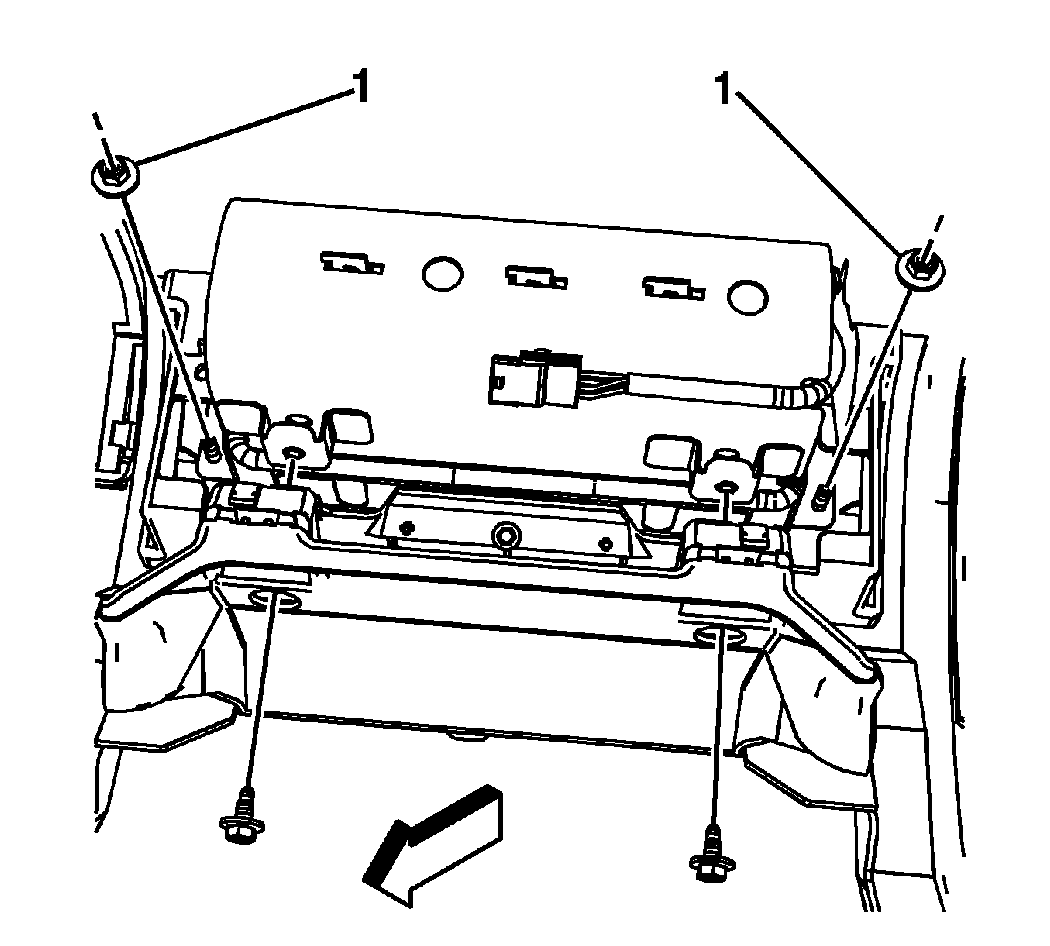

Fig 5: View Of PSIR Module Retaining Nuts

Courtesy of GENERAL MOTORS CORP.

Install the 2 side retaining nuts (1) to the PSIR inflator module.
Tighten: Tighten the 4 PSIR fasteners until fully driven, seated and not stripped.
Install the digital radio receiver, if equipped. Refer to Digital Radio Receiver Replacement .
Install the radio. Refer to Radio Replacement .
Install the I/P accessory trim panel. Refer to Instrument Panel Accessory Trim Plate Replacement .
Install the right air outlet. Refer to Instrument Panel Outer Air Outlet Replacement - Right Side .
Install the right access cover to the I/P end cap.
Enable the SIR System. Refer to SIR Disabling and Enabling .
Install the I/P compartment door. Refer to Instrument Panel Compartment Door Replacement .
