Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

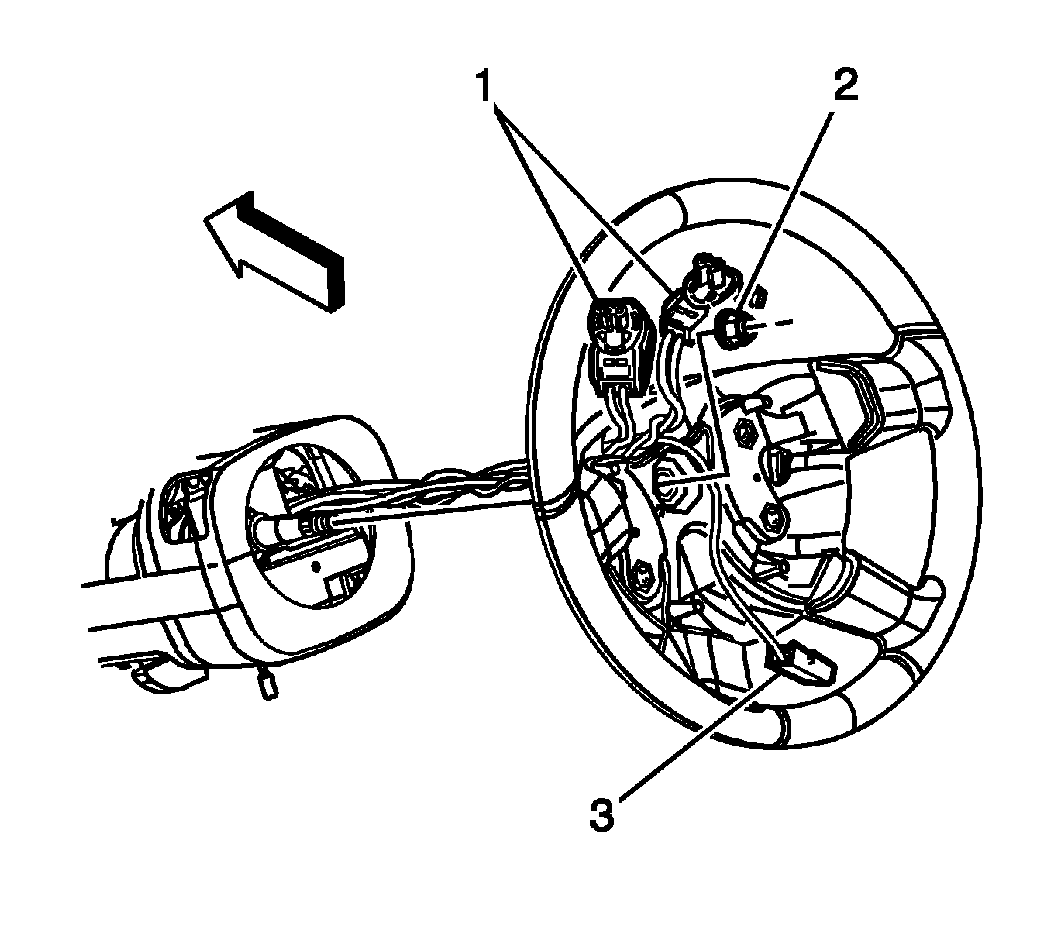

    Fig 1: View Of Steering Wheel Electrical Connectors
    GM1373038Courtesy of GENERAL MOTORS CORP.
  1. Position the inflatable restraint module to the steering wheel.
  2. Connect the electrical connectors (1) to the inflatable restraint steering wheel module.
  3. Connect the horn electrical connector (3).

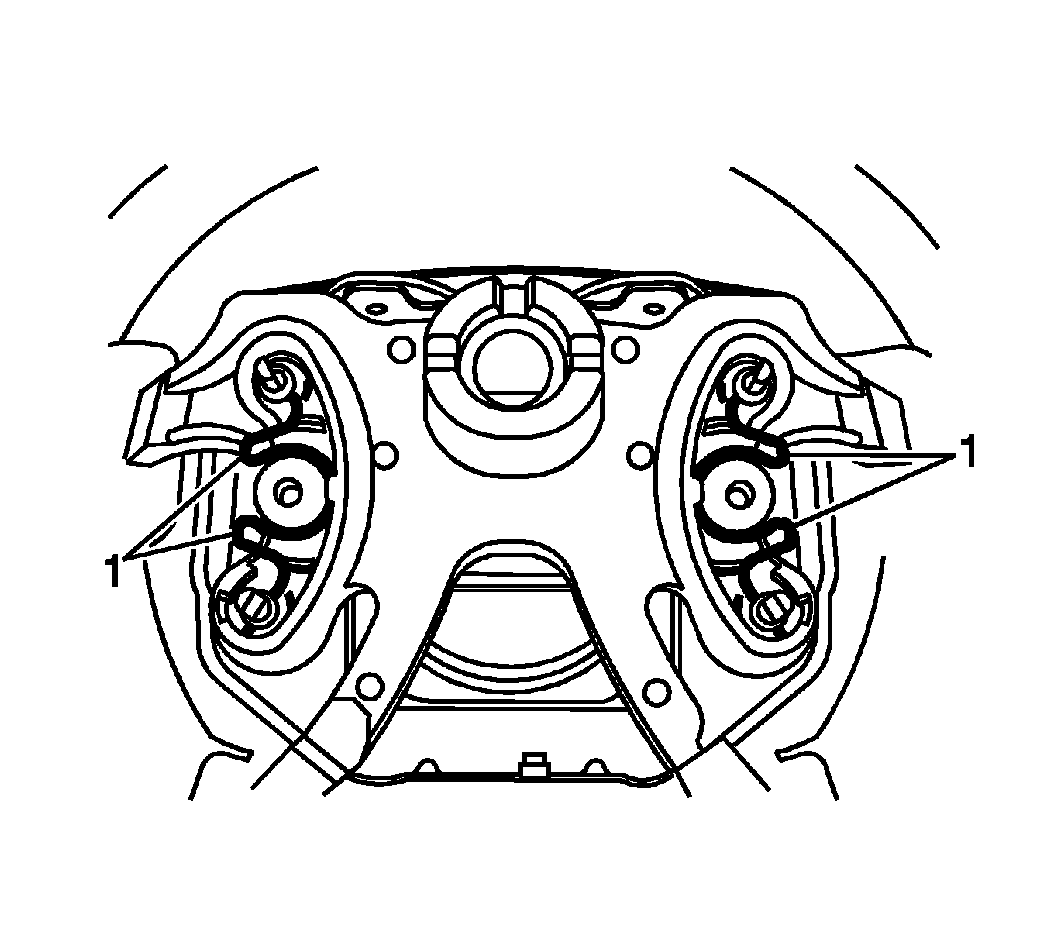

    4. Fig 2: View Of Leaf Spring Fasteners
    GM1373043Courtesy of GENERAL MOTORS CORP.
  4. Position the 4 alignment posts of the inflatable restraint module to the holes that are located on the steering wheel housing.
  5. Push the inflatable restraint module into the steering wheel to engage and latch the leaf spring fasteners (1).
  6. After installation, pull up on the sides of the inflatable restraint module to ensure the leaf spring fasteners are engaged.
  7. Enable the inflatable restraint steering wheel module. Refer to SIR Disabling and Enabling .
