Ground Views

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

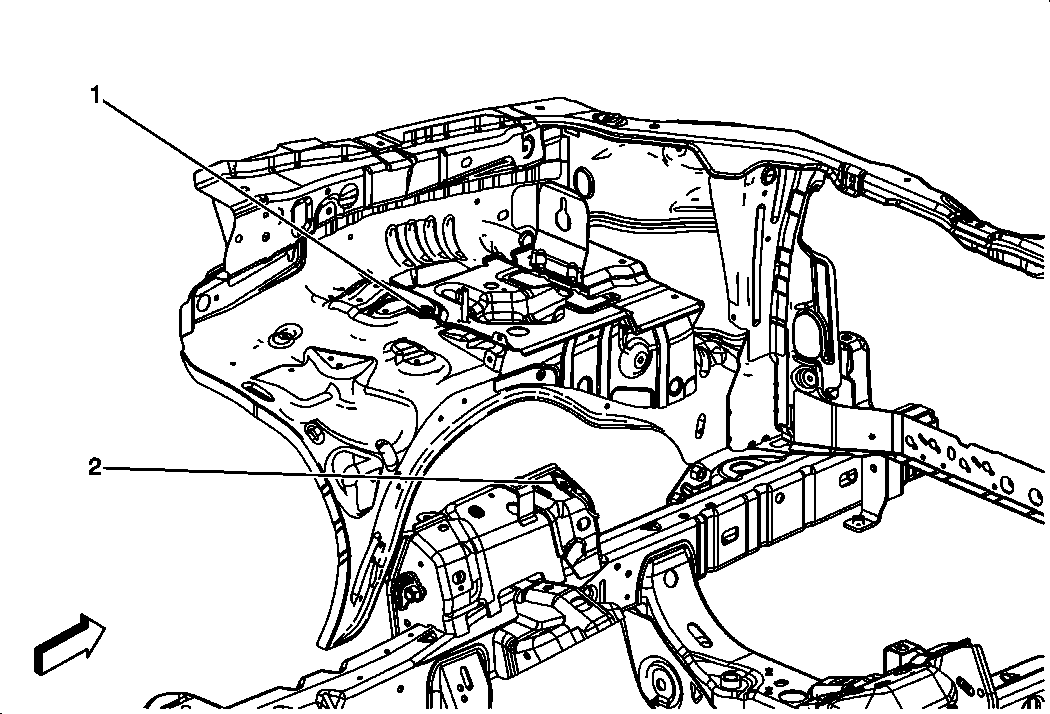

Fig 1: Grounds G100, G102, and G103 (LH9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G100 and G103
2	G102

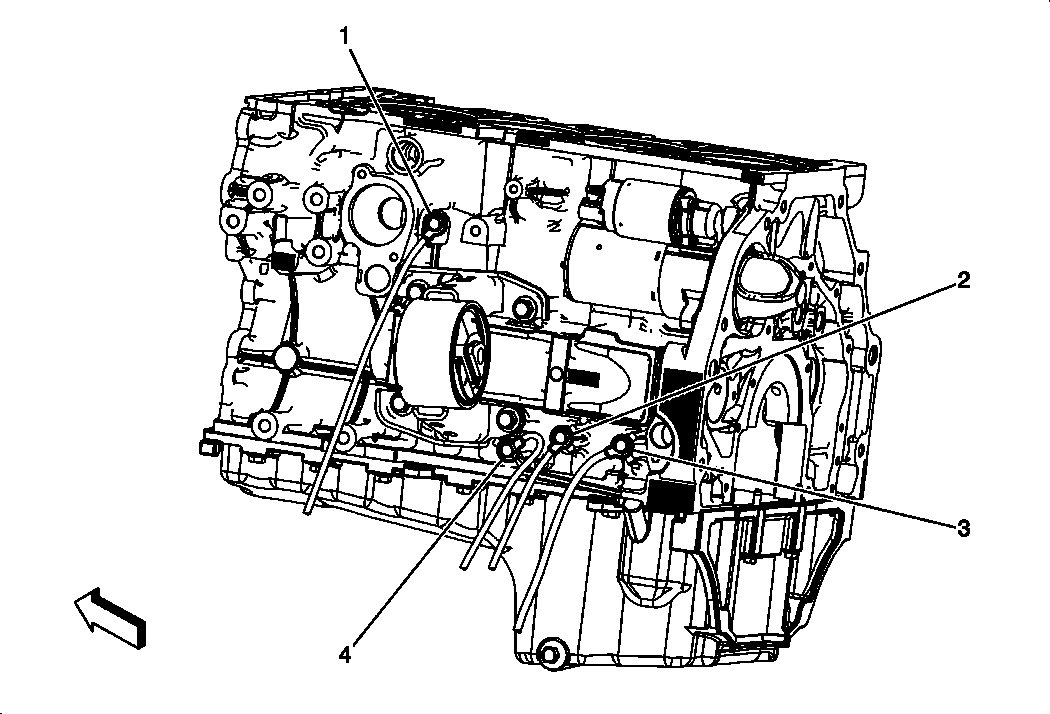

Fig 2: Grounds G100, G101, G102, and G103 (LLR)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G100
2	G103
3	G102
4	G101

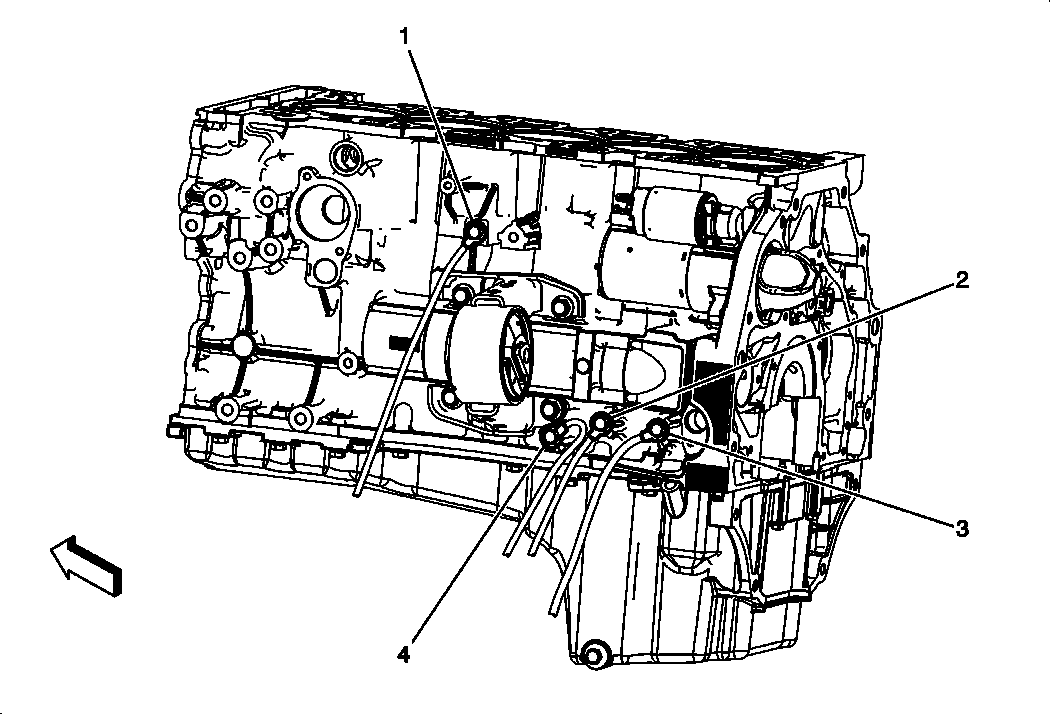

Fig 3: Grounds G100, G101, G102, and G103 (LLV)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G100
2	G103
3	G102
4	G101

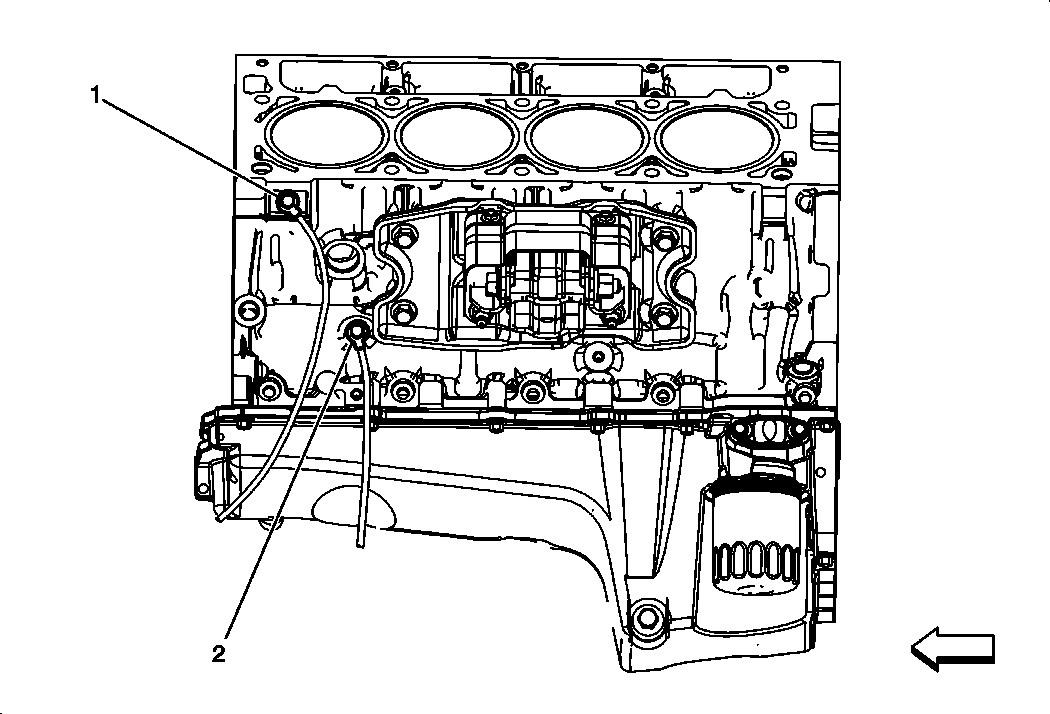

Fig 4: Grounds G104, and G107 (LH9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G104
2	G107

Fig 5: Grounds G104, and G107 (LLR or LLV)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G104
2	G107

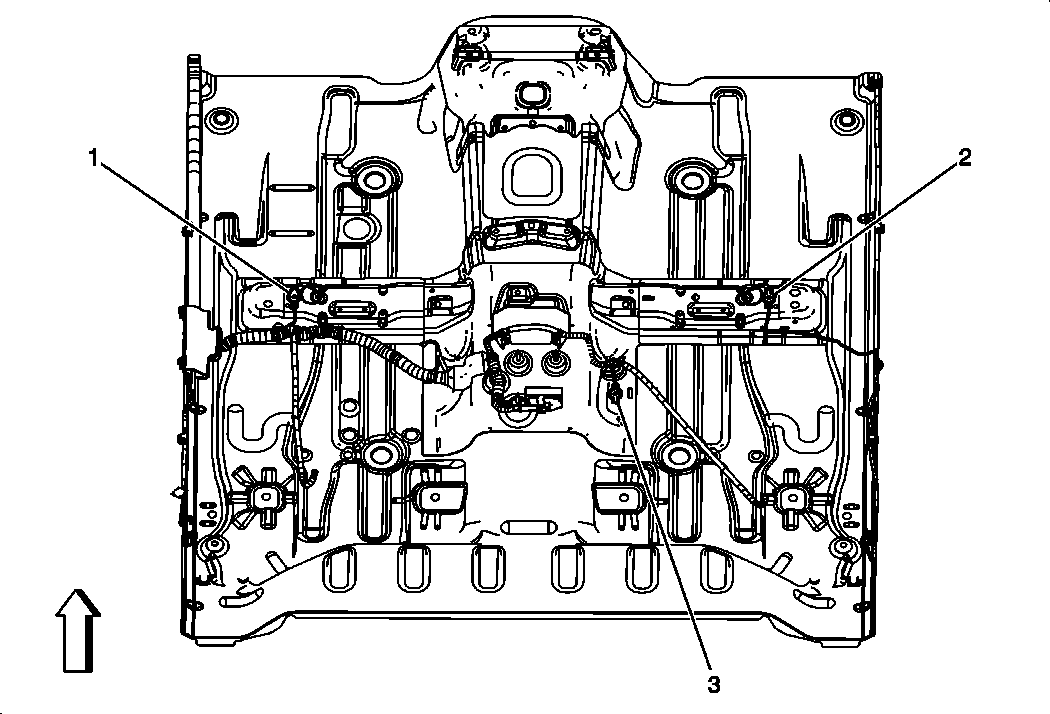

Fig 6: Grounds G300, G301, and G302

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G300
2	G301
3	G302

Fig 7: Ground G400 (UY7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G400
