Removal Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Refer to Brake Fluid Irritant Warning .

CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Caution .

Turn the ignition switch to the OFF position.
Remove the brake pressure modulator valve (BPMV). Refer to Brake Pressure Modulator Valve Replacement .

Fig 1: EBCM Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the electronic brake control module (EBCM) bolts (1).
Discard the bolts.

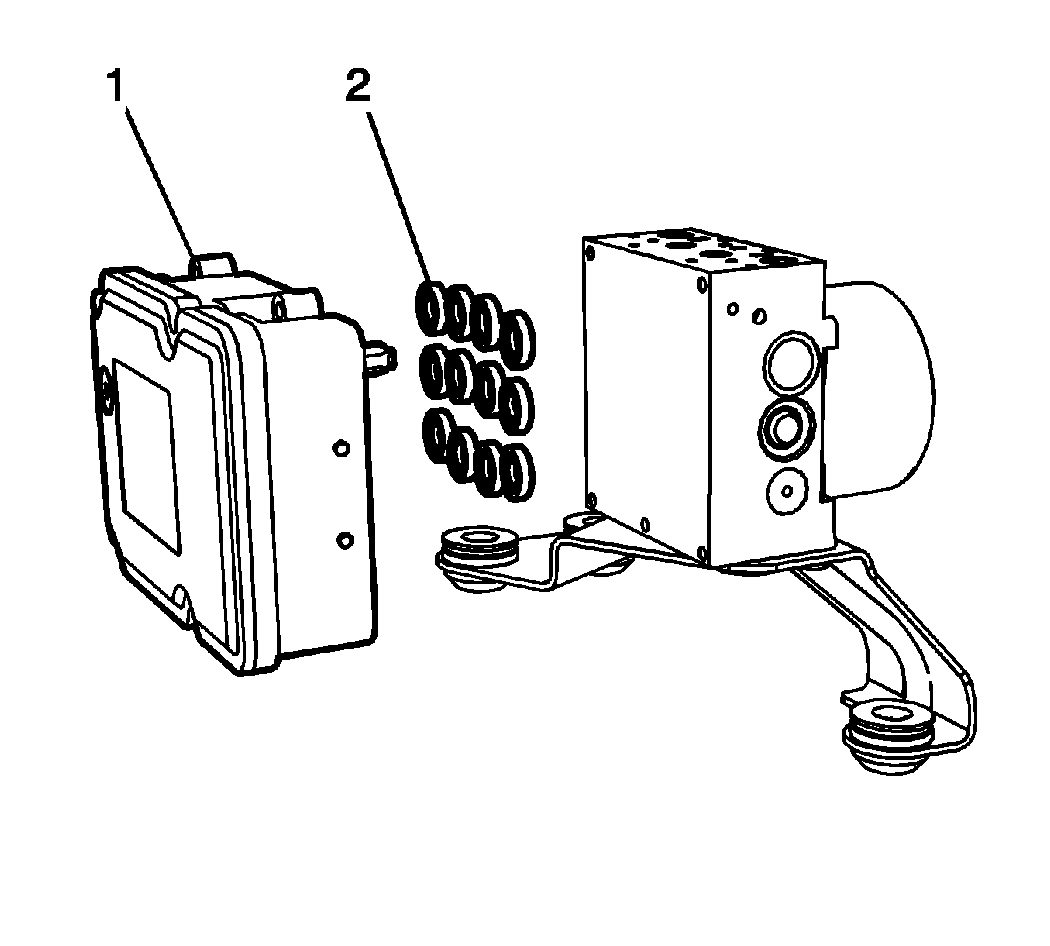

Fig 2: Separating EBCM

Courtesy of GENERAL MOTORS CORP.

Carefully separate the EBCM (1) from the BPMV.
Remove the 12 EBCM to BPMV seals (2).
