Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

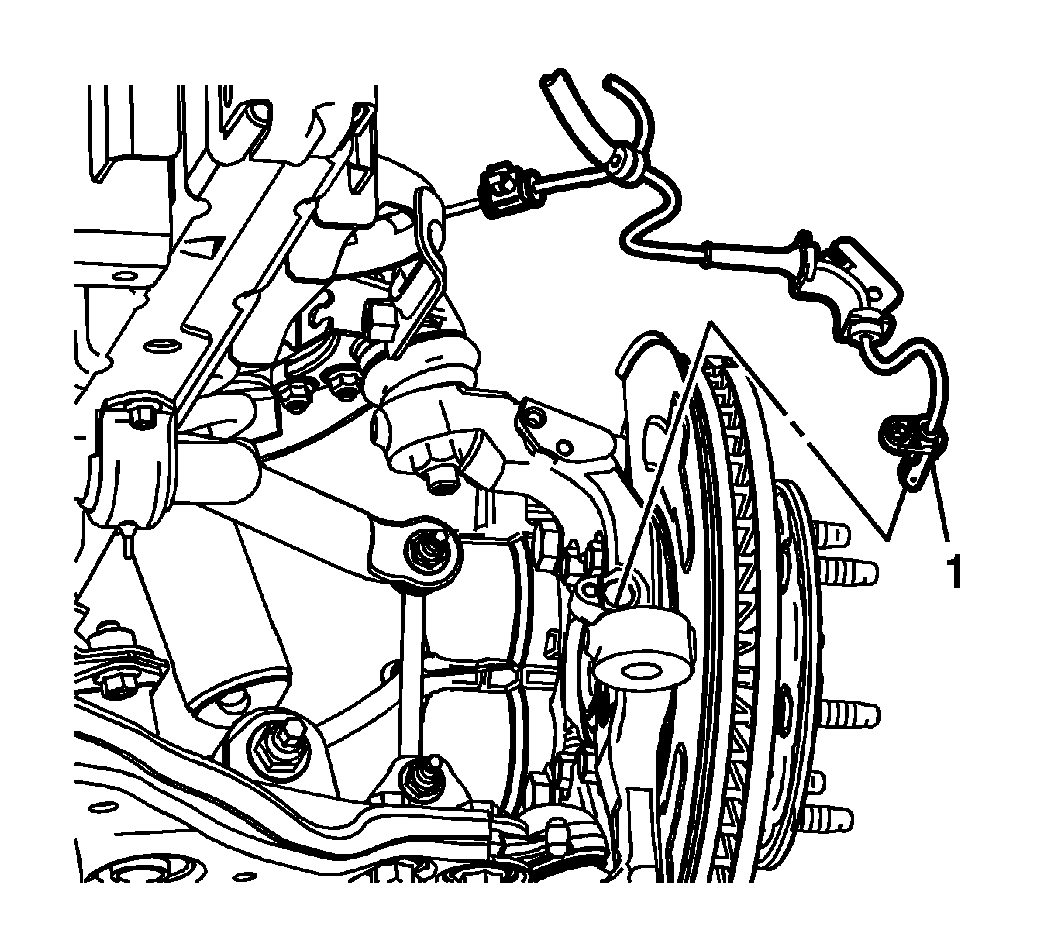

Fig 1: Wheel Speed Sensor

Courtesy of GENERAL MOTORS CORP.

Install the wheel speed sensor to the suspension knuckle.

CAUTION: Refer to Fastener Caution .

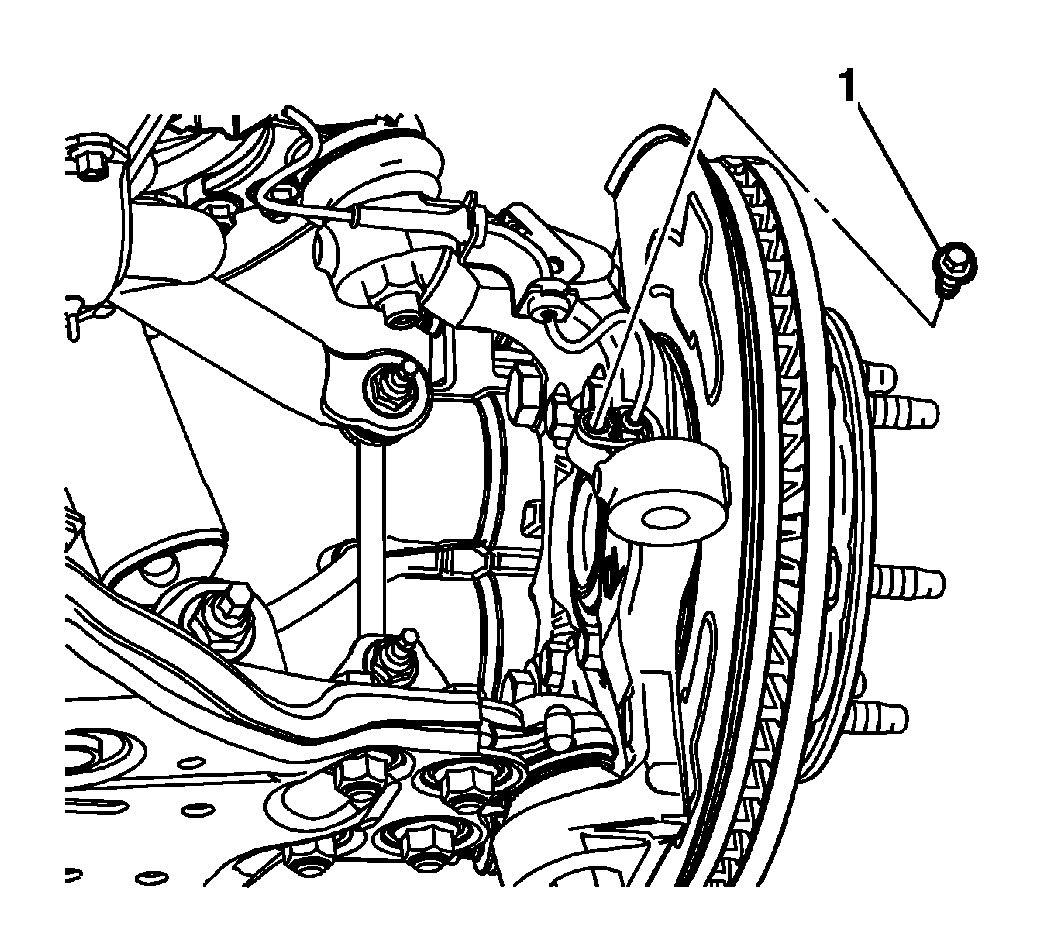

Fig 2: Wheel Speed Sensor Bolt

Courtesy of GENERAL MOTORS CORP.

Install the wheel speed sensor bolt (1) and tighten to 8 N.m (71 lb in).

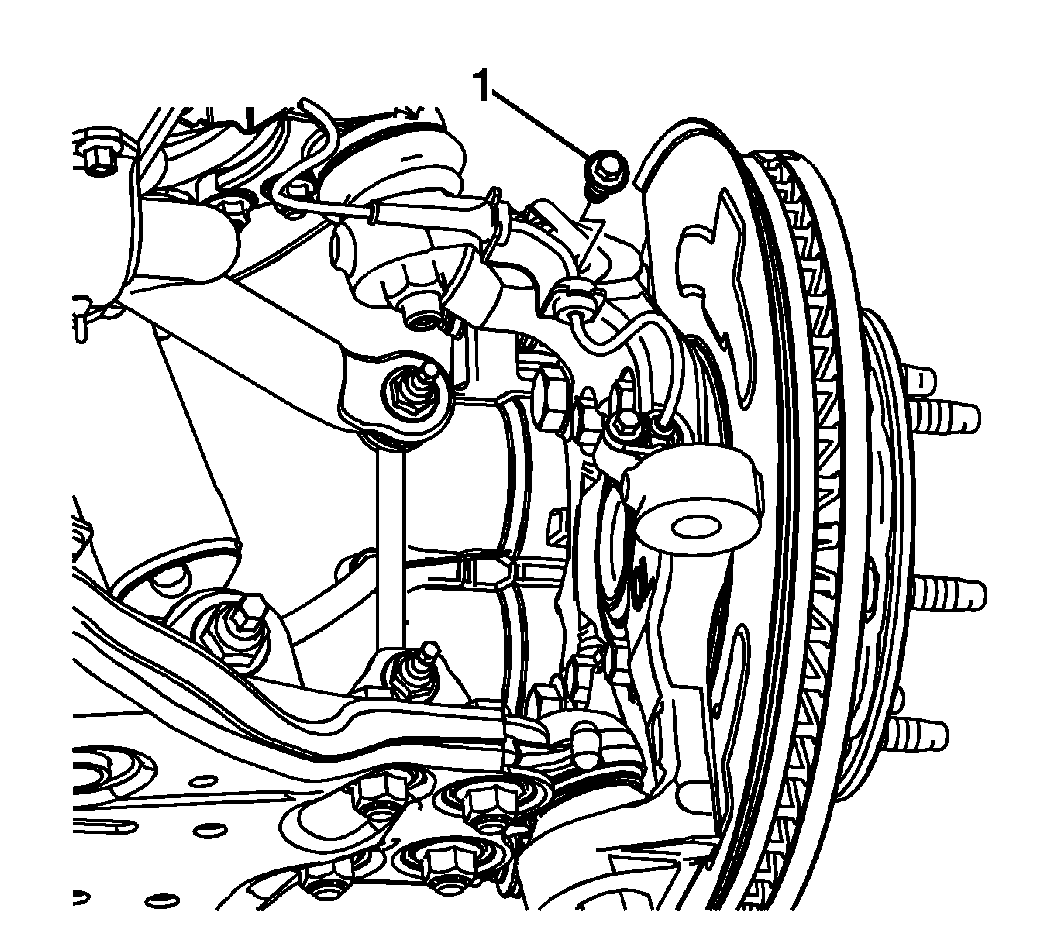

Fig 3: Wheel Speed Sensor Harness Bracket Bolt

Courtesy of GENERAL MOTORS CORP.

Install the wheel speed sensor harness bracket bolt (1) and tighten to 9 N.m (80 lb in).

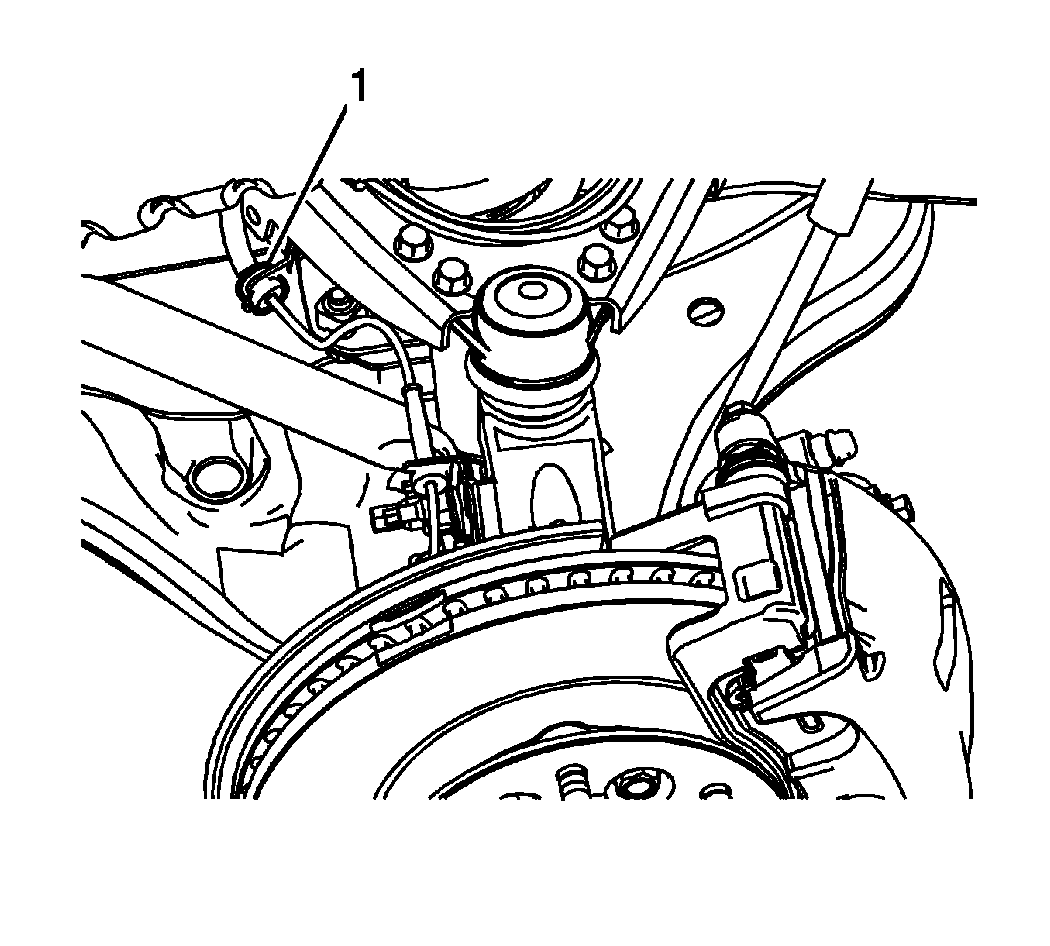

Fig 4: Wheel Speed Sensor Harness Grommet

Courtesy of GENERAL MOTORS CORP.

Install the wheel speed sensor harness grommet (1) to the mounting bracket.

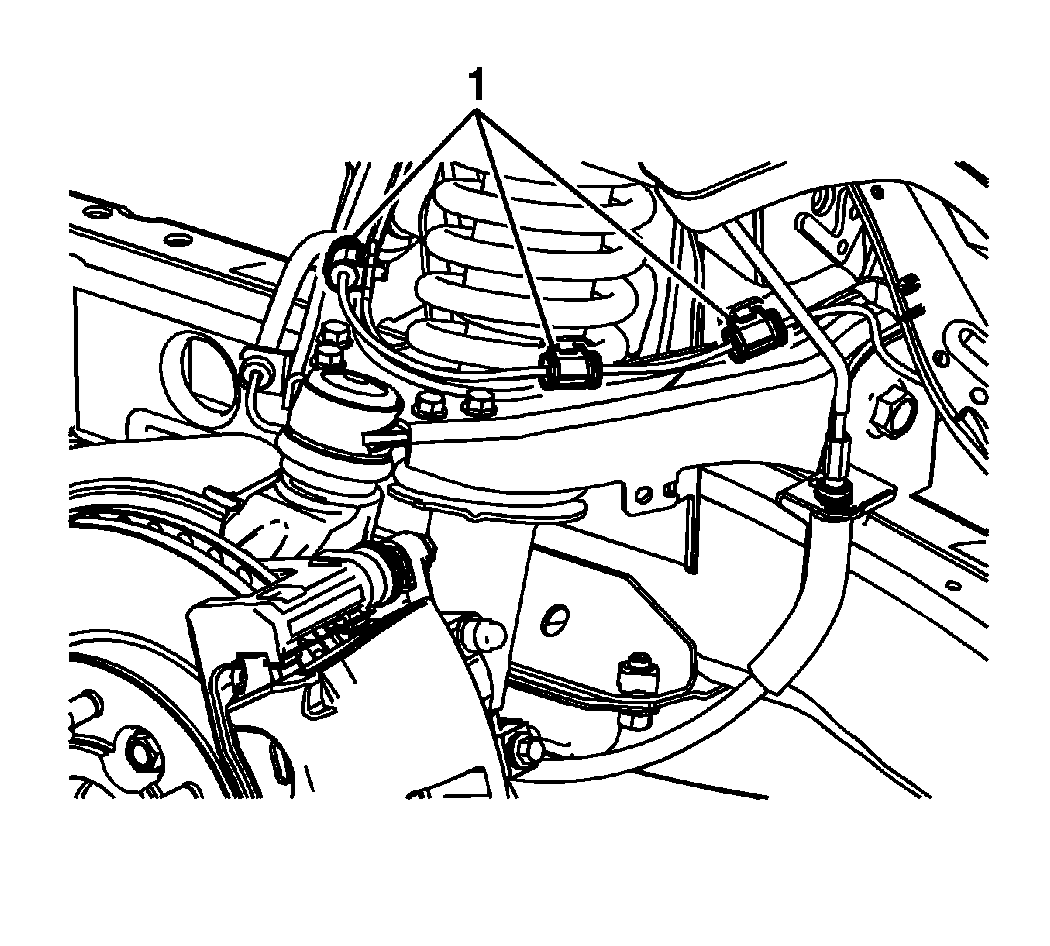

Fig 5: Wheel Speed Sensor Harness Clips

Courtesy of GENERAL MOTORS CORP.

Install the wheel speed sensor harness clips (1) to the suspension upper control arm.

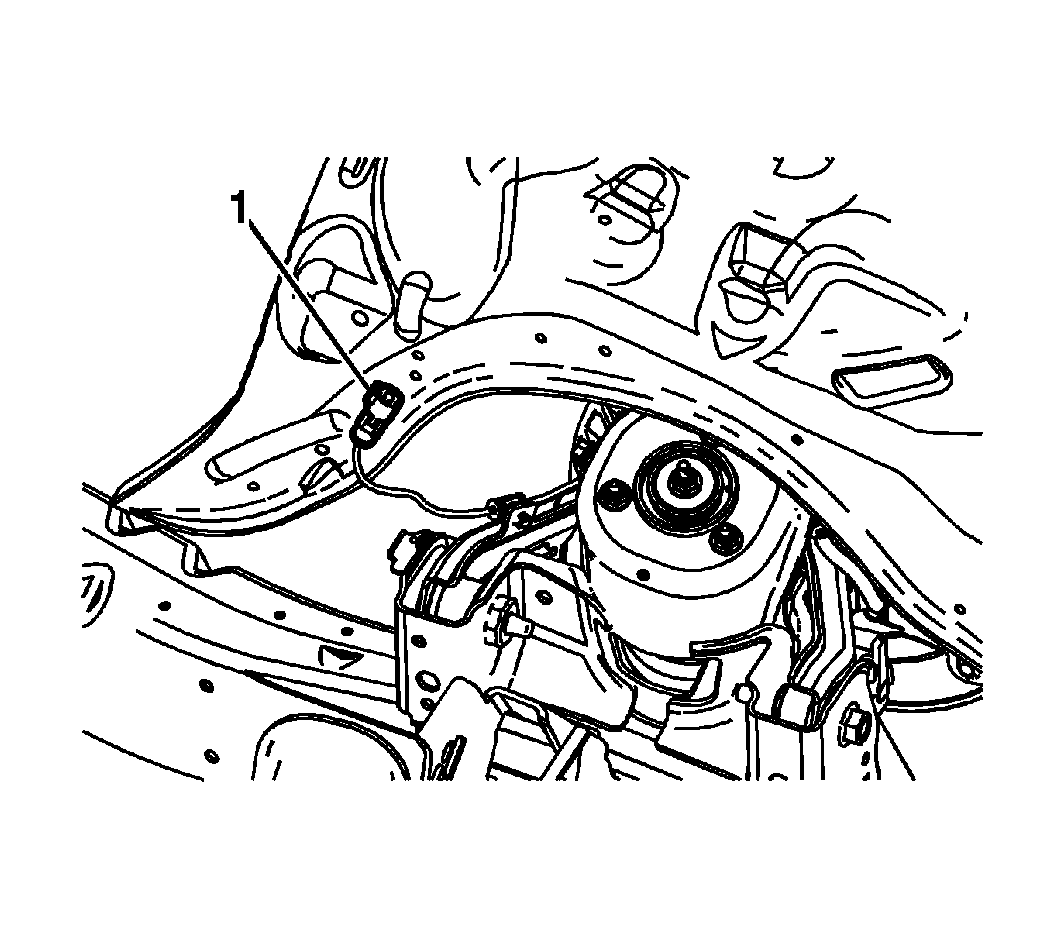

Fig 6: Wheel Speed Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Install the wheel speed sensor harness connector to the wheelhouse.
Connect the wheel speed sensor electrical connector (1).
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Perform the Diagnostic System Check - Vehicle .
