Air Bag




Component Connector End Views

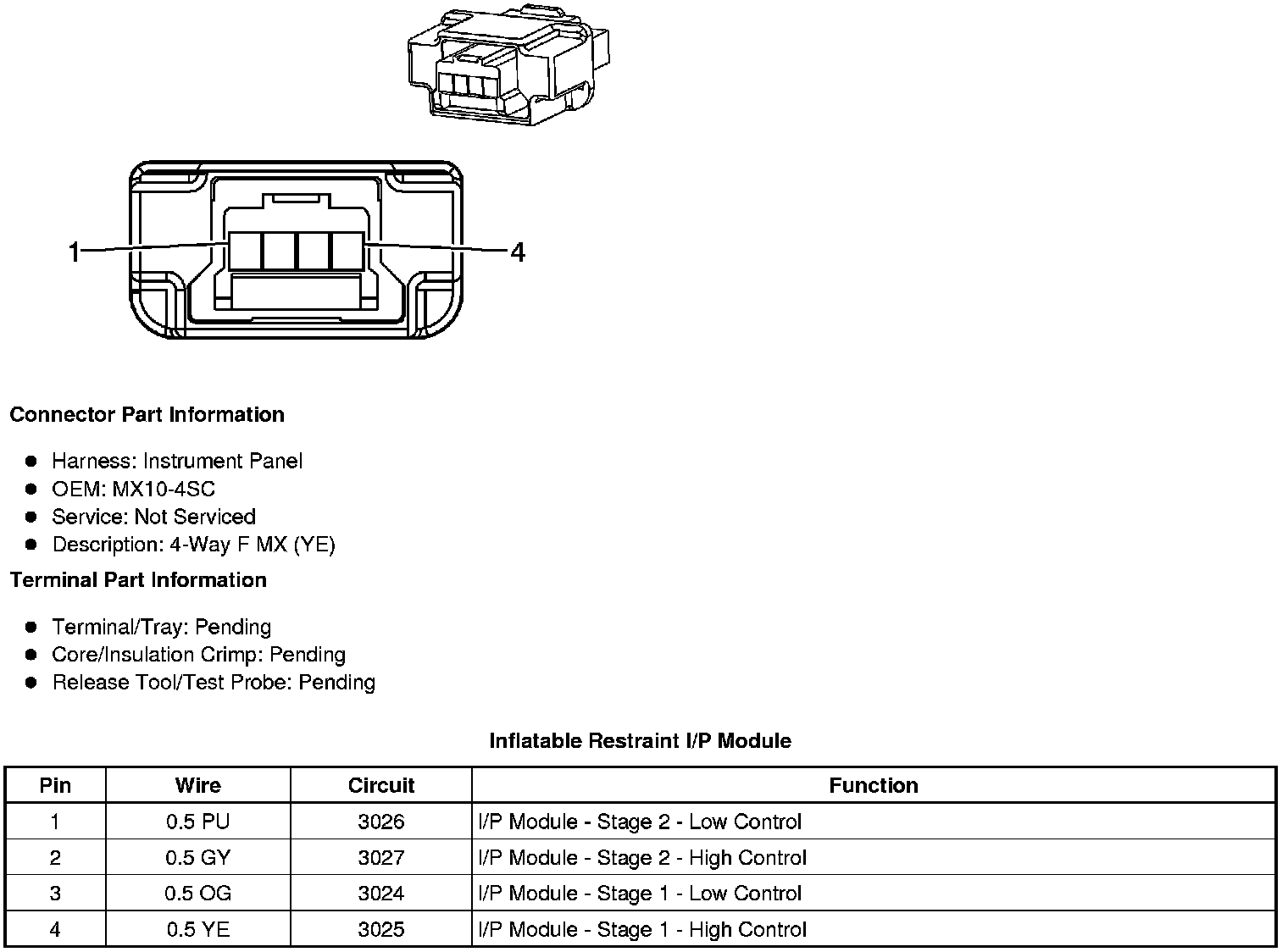

Inflatable Restraint I/P Module





Inflatable Restraint Roof Rail Module - Left (ASF)





Inflatable Restraint Roof Rail Module - Right (ASF)

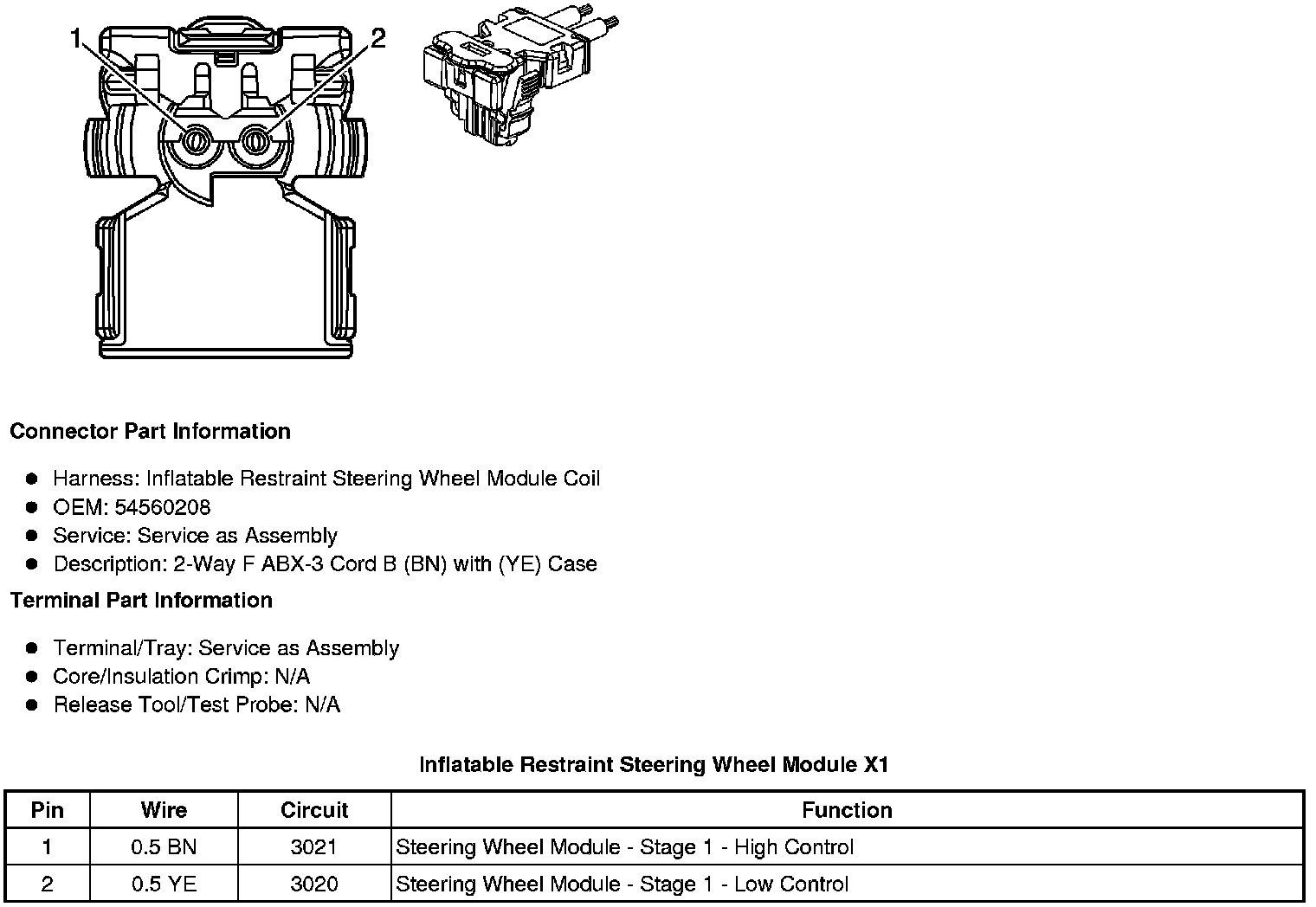

Inflatable Restraint Steering Wheel Module X1

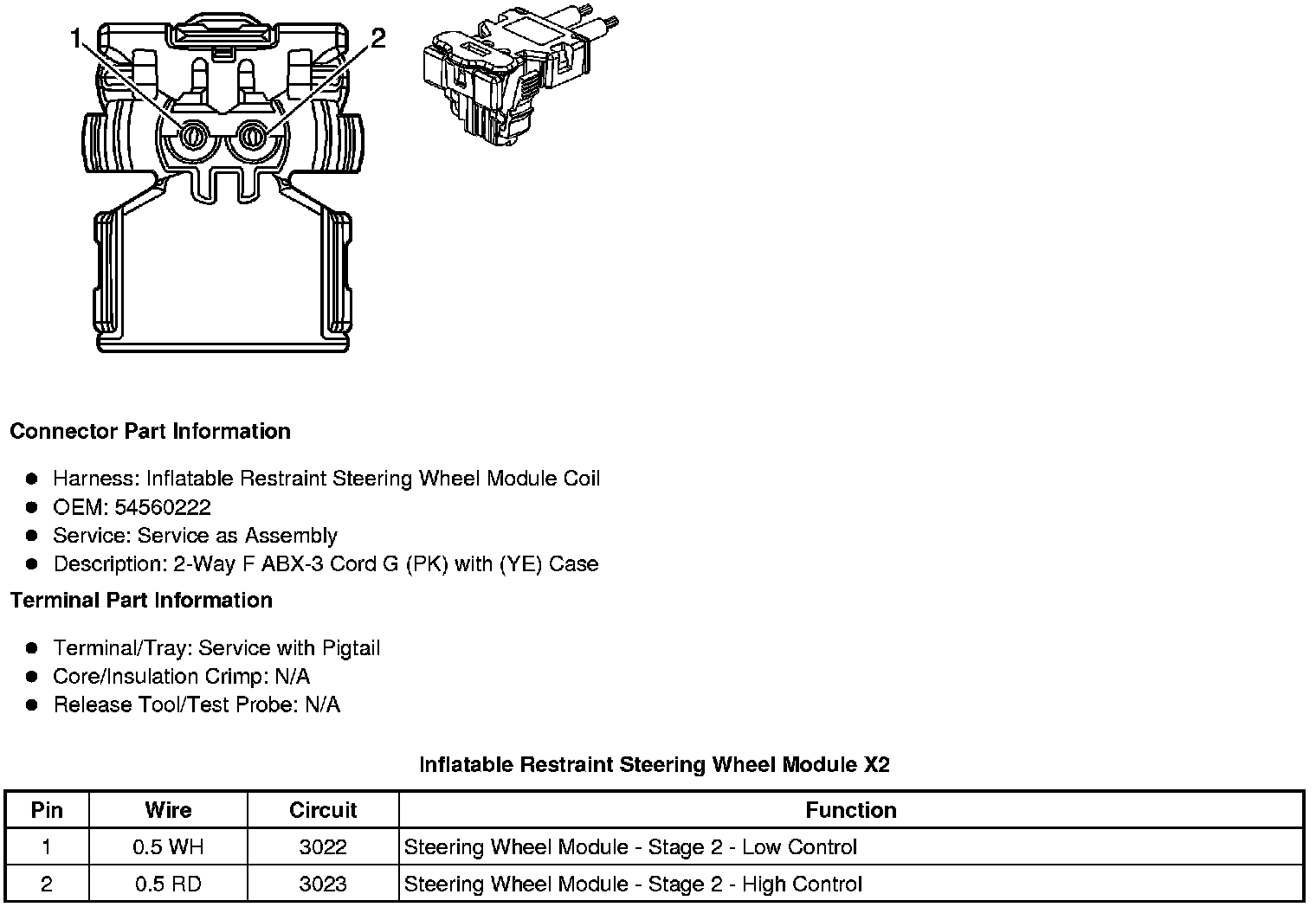

Inflatable Restraint Steering Wheel Module X2
