Door Switch




Component Connector End Views

Door Jamb Switch - Left Front

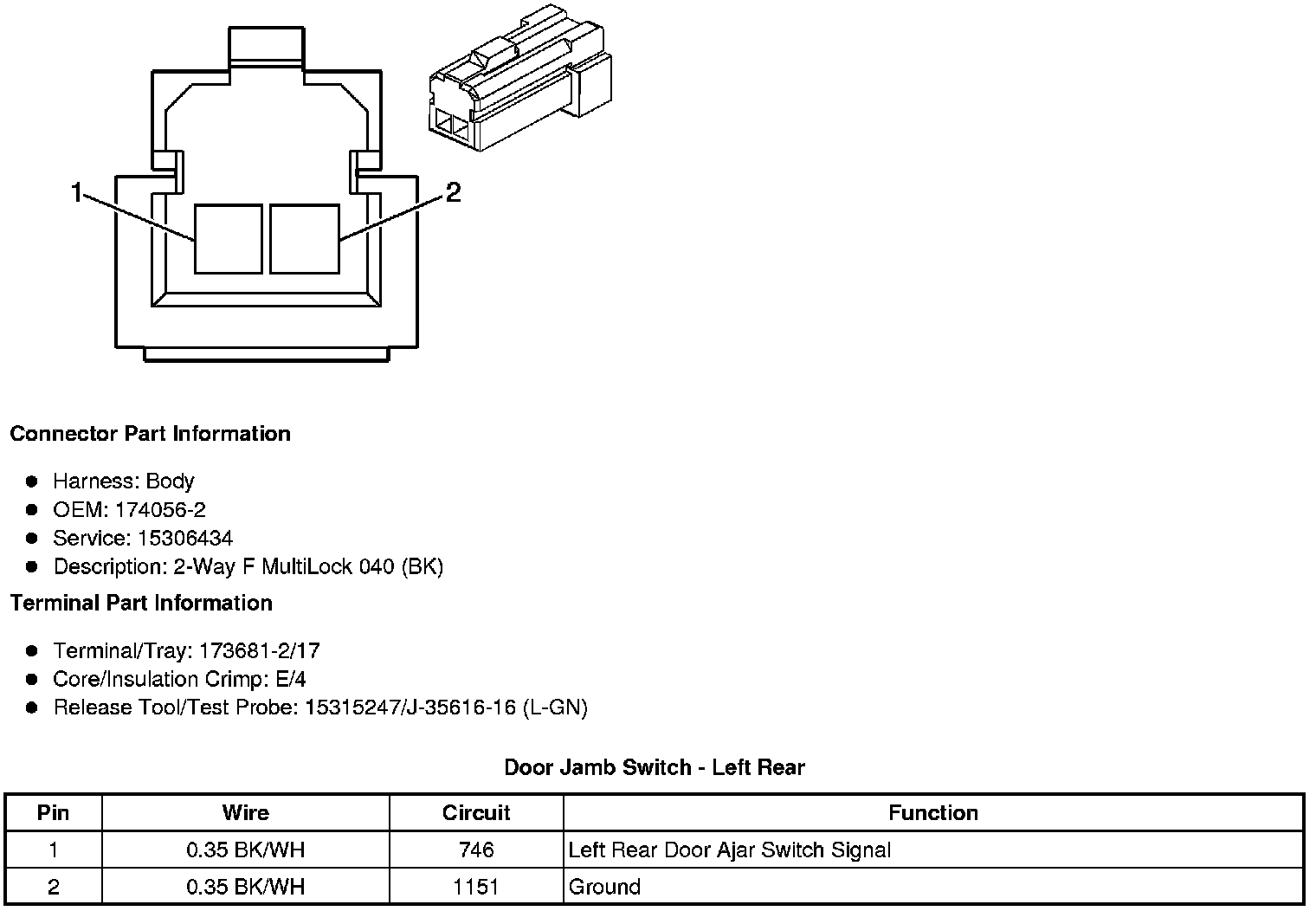

Door Jamb Switch - Left Rear





Door Jamb Switch - Right Front





Door Jamb Switch - Right Rear
