Transmission Temperature Sensor/Switch, A/T

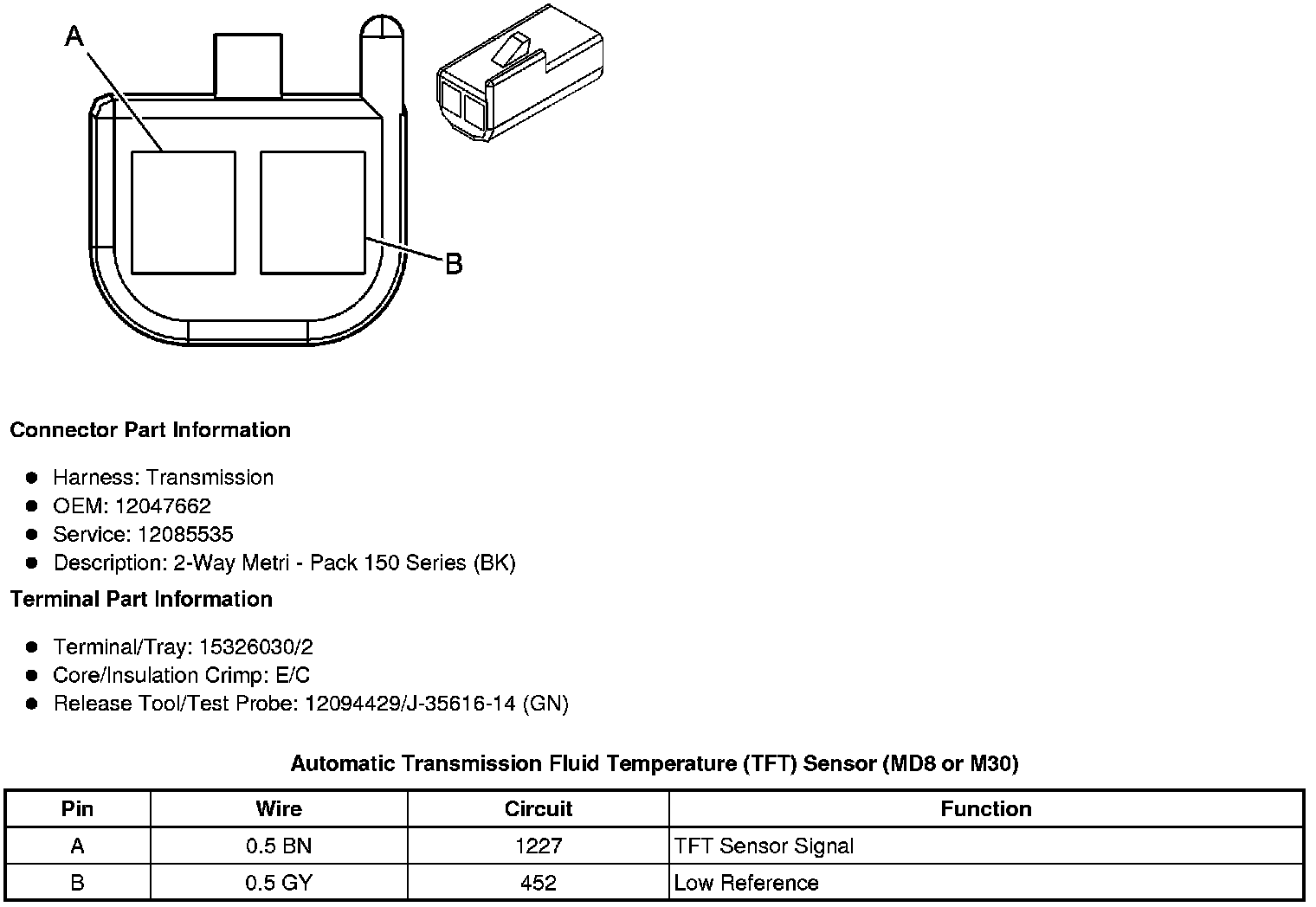

Component Connector End Views

Automatic Transmission Fluid Temperature (TFT) Sensor (MD8 or M30)
