Serial Data Power Mode

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

On vehicles that have several control modules connected by serial data circuits, one module is the power mode master (PMM). On this vehicle the PMM is the Body Control Module (BCM). The BCM uses 3 signals from the ignition switch. These are the Ignition 0, Ignition 1, and Accessory.

To determine the correct power mode the BCM uses:

The state of these signals
The sequence of switch closures received by the BCM
The status of the engine run flag

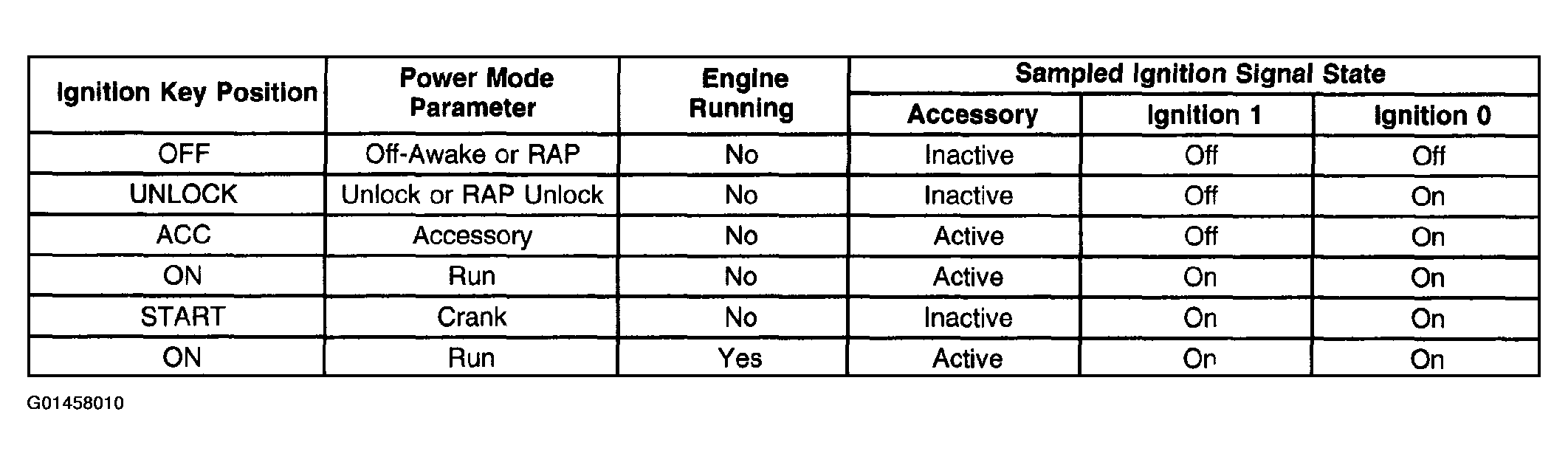

The chart indicates the power modes detected and transmitted by the BCM:

Fig 1: Correct Ignition Switch Inputs Specifications

Courtesy of GENERAL MOTORS CORP.
