Hi-Scan Pro Software Update Procedure (00-00-001)

HI-SCAN PRO SOFTWARE UPDATE PROCEDURE

TECHNICAL SERVICE BULLETIN

DESCRIPTION

This bulletin details the procedure for updating the Hi-Scan Pro Software Cards. New software for the Hi-Scan and for reprogramming vehicle Engine Control Modules (ECM) and Transaxle Control Modules (TCM) will be provided periodically via the Hyundai Service Web Site (www.hmaservice.com) and HDS CDROM updates.

PROCEDURE

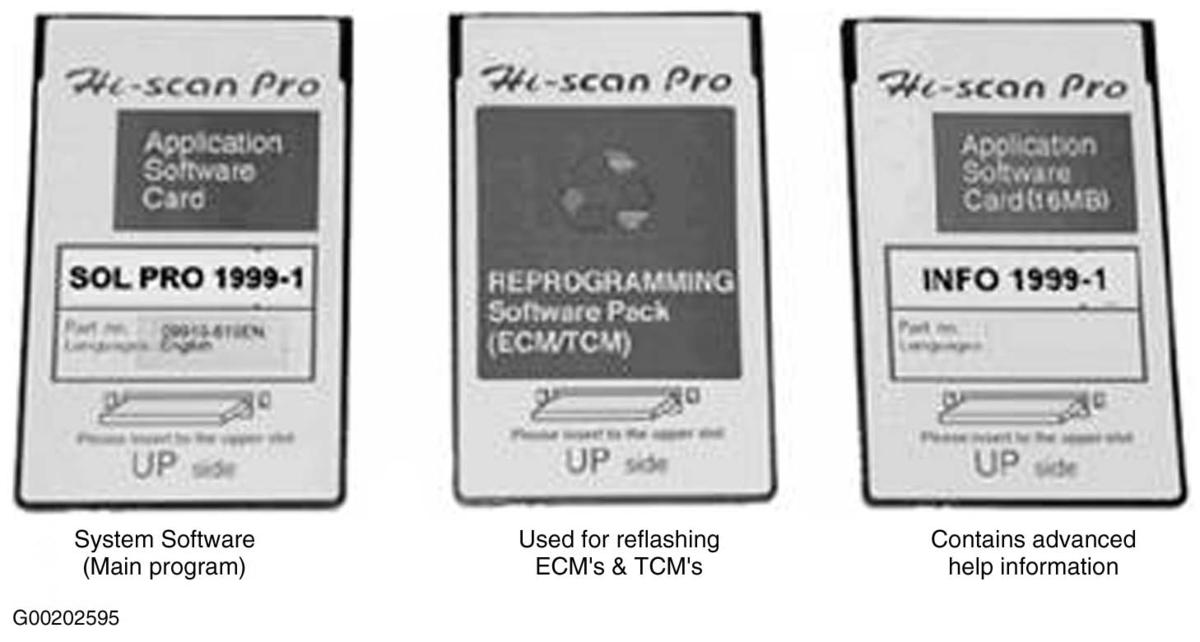

Three software cards are included in the Hi-Scan kit:

• The "SOL" card contains the main program that operates the Hi-Scan; reading codes and data.
• The "Reprogramming" card is used for reprogramming ECMs and TCMs for campaigns and field fixes.
• The "INFO" card contains additional diagnostic tips and information that are not on the standard SOL card.
  Fig 1: Software Card Selections

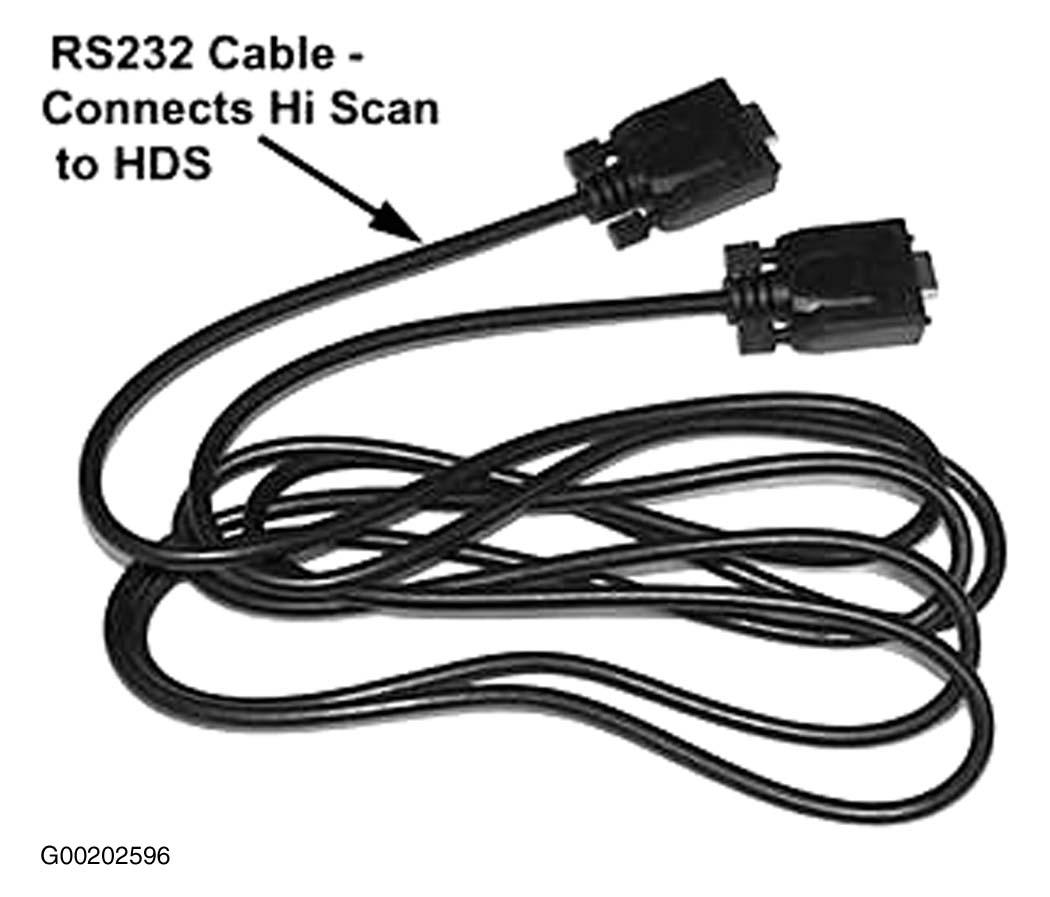

An RS232 communication cable is included in the Hi-Scan kit. This cable is used to connect the Hi-Scan to the HDS for data transfer.

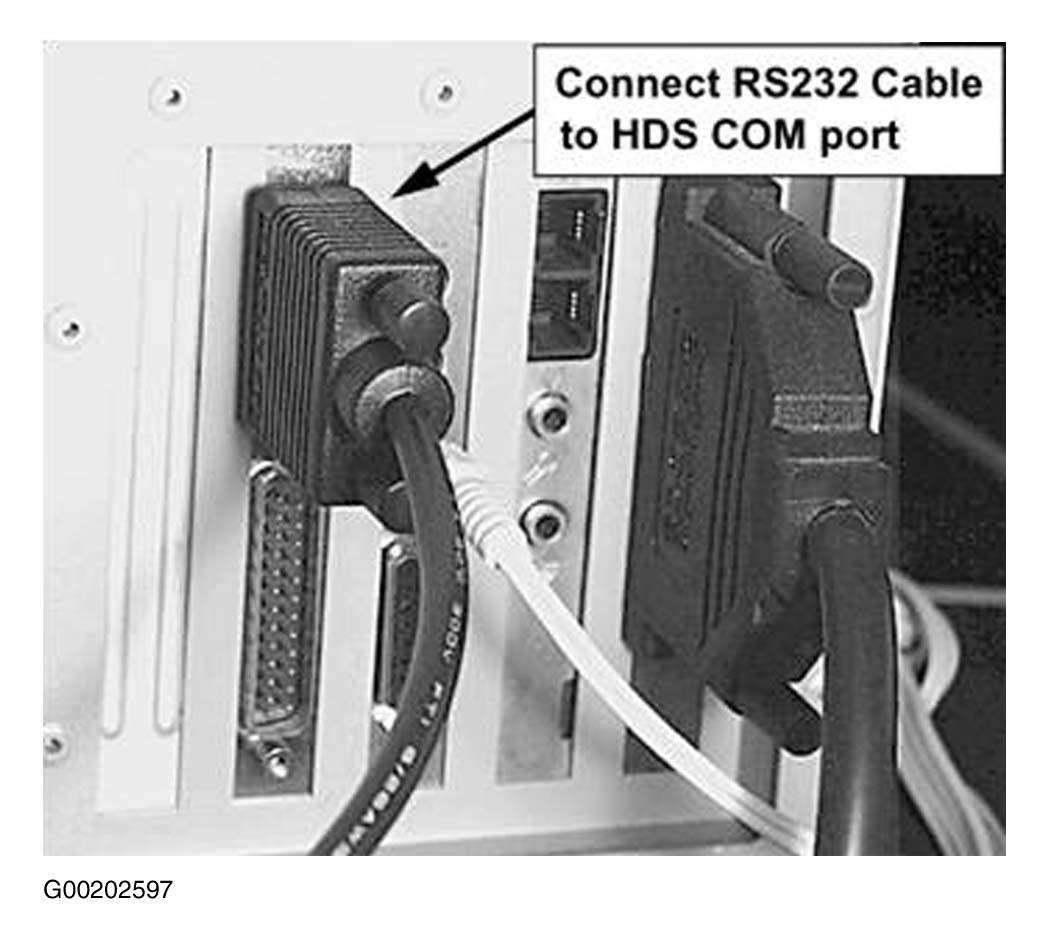

1. Connect the RS232 cable to the 9-pin COM port on the back of HDS.
   Fig 3: Com Port Connection

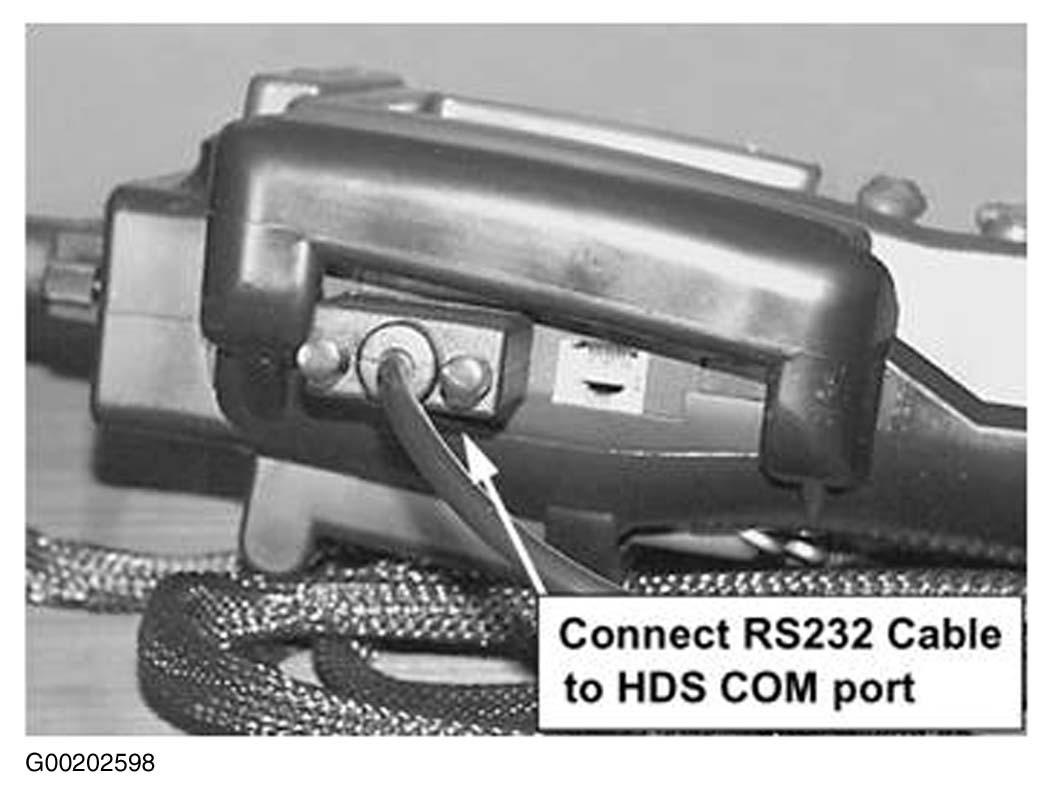

2. Connect the other end of the RS232 cable to the COM port on the left side of the Hi-Scan.
   Fig 4: Port Connection

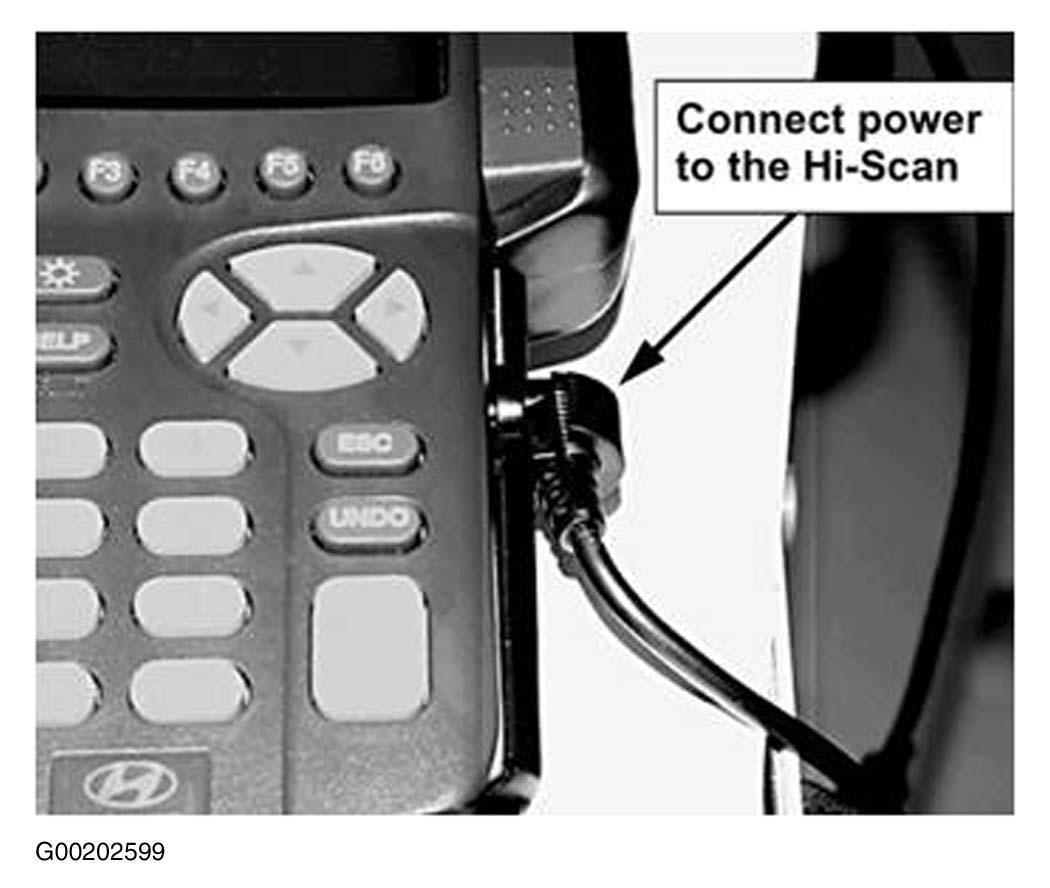

3. Provide power to the Hi-Scan using the cigarette lighter power adapter.
   Fig 5: Power Adapter


4. Insert only the software card you wish to update into the Hi-Scan.
   Fig 6: Software Card

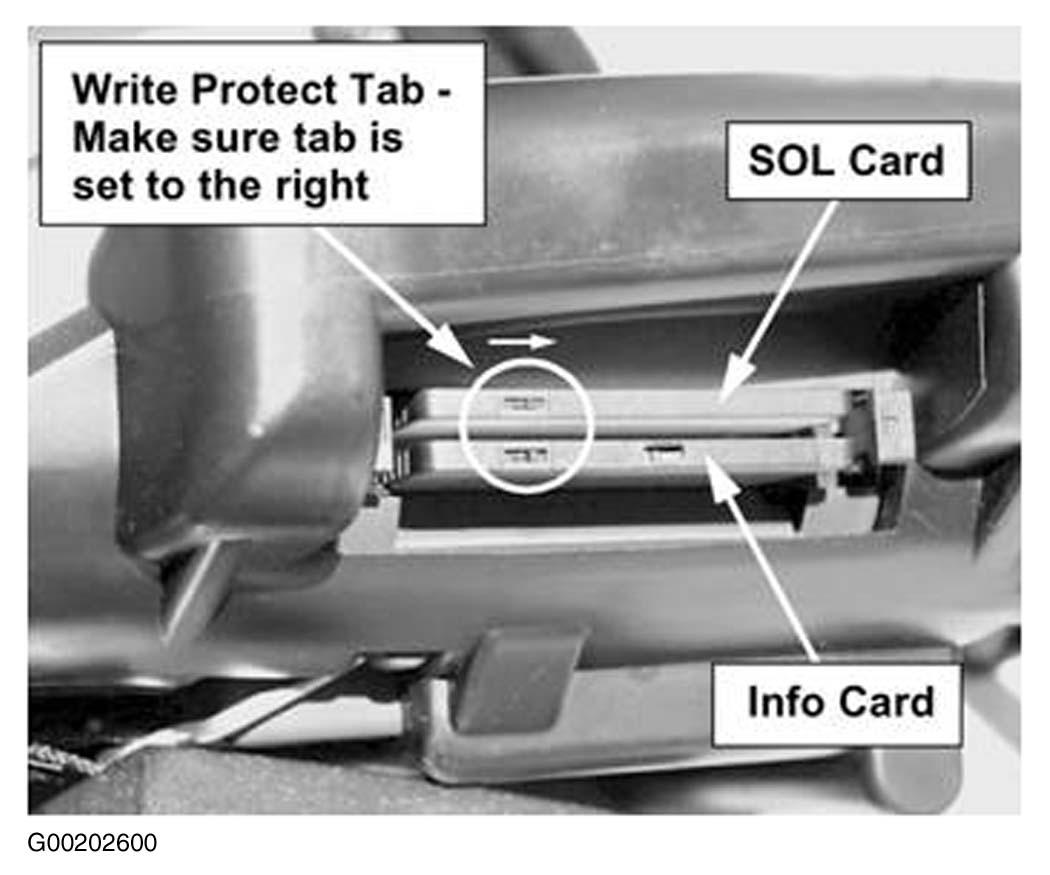

5. Make sure the "Write Protect Tab" is set to the right. Setting the tab to the right enables new software to be written to the card.

   If the tab is to the left, an error will occur during the update process.

   NOTE: It is OK to leave the INFO card in the Hi-Scan while updating either the SOL or Reprogramming cards.

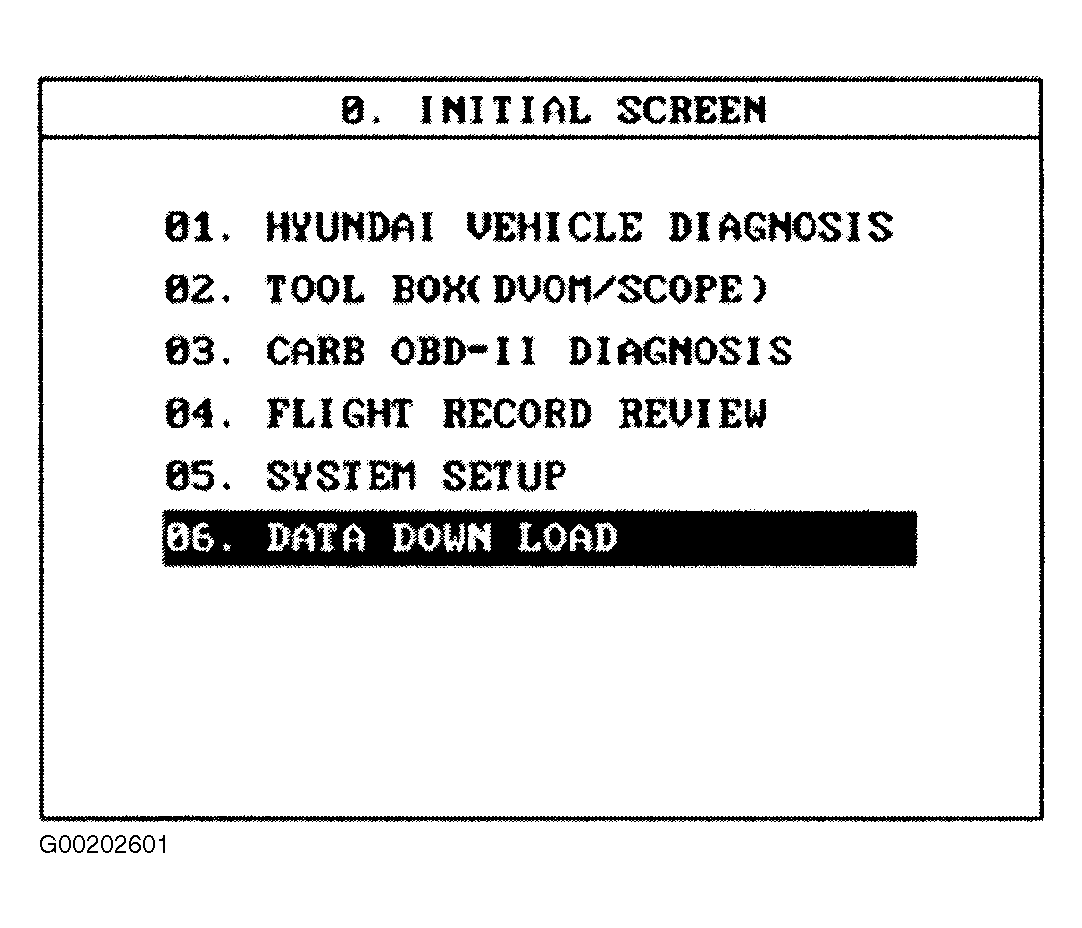

6. Turn the Hi-Scan ON and select "Data Down Load" from the main menu.
   Fig 7: Initial Screen Data Download

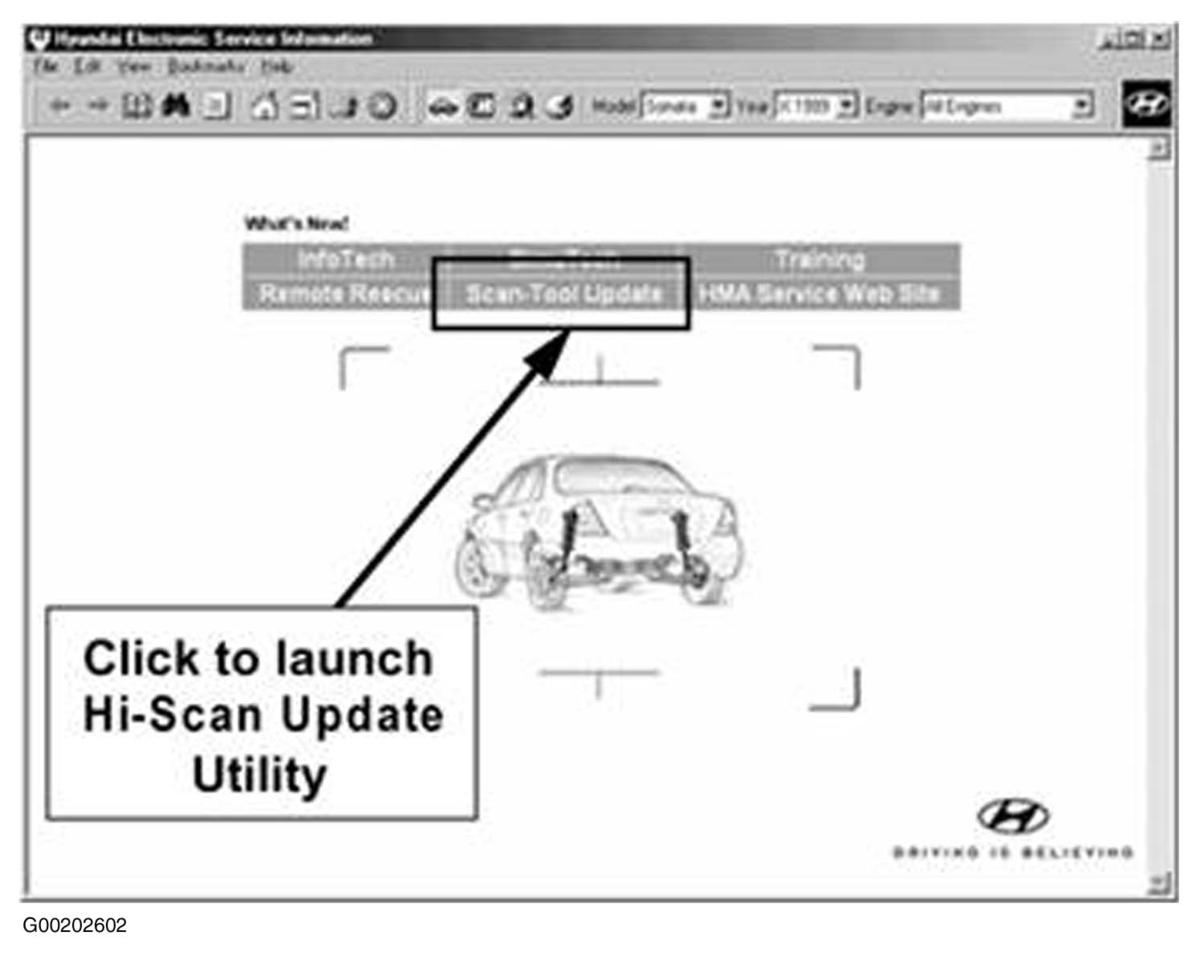

7. From the HDS Info-Tech home screen, click the "Scan-Tool Update" button to launch the update utility.
   Fig 8: Scan-Tool Update Button

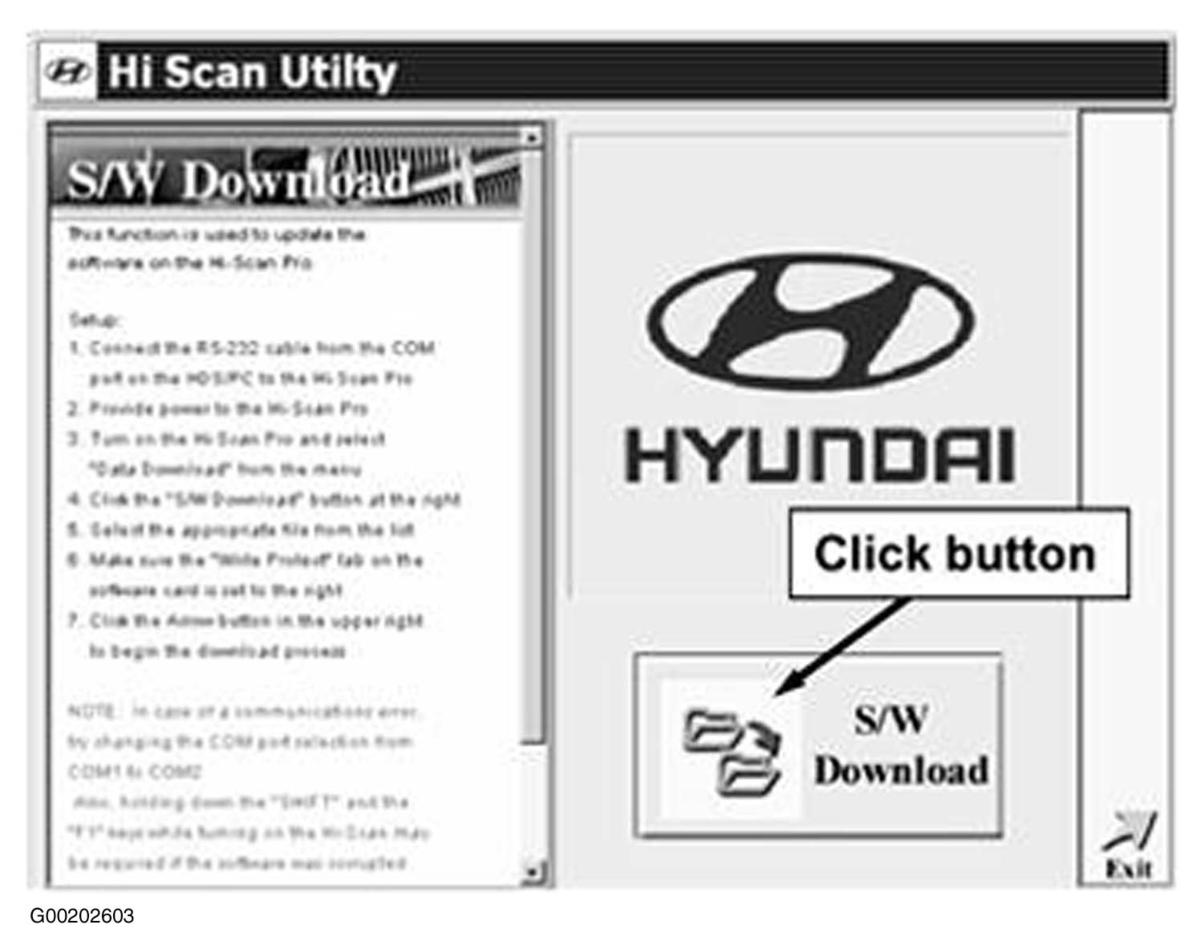

8. Note the brief instructions on the left of the screen and click the "S/W Download"
   Fig 9: S/W Download Button

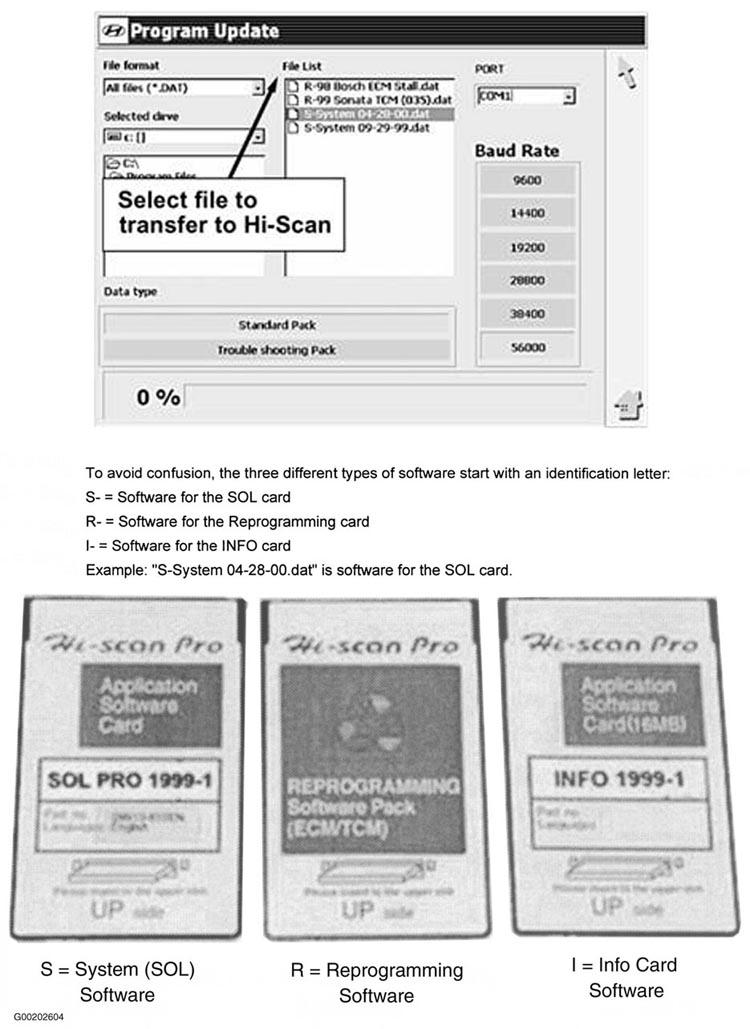

9. Select the new software from the "File List".
   Fig 10: File List Selection

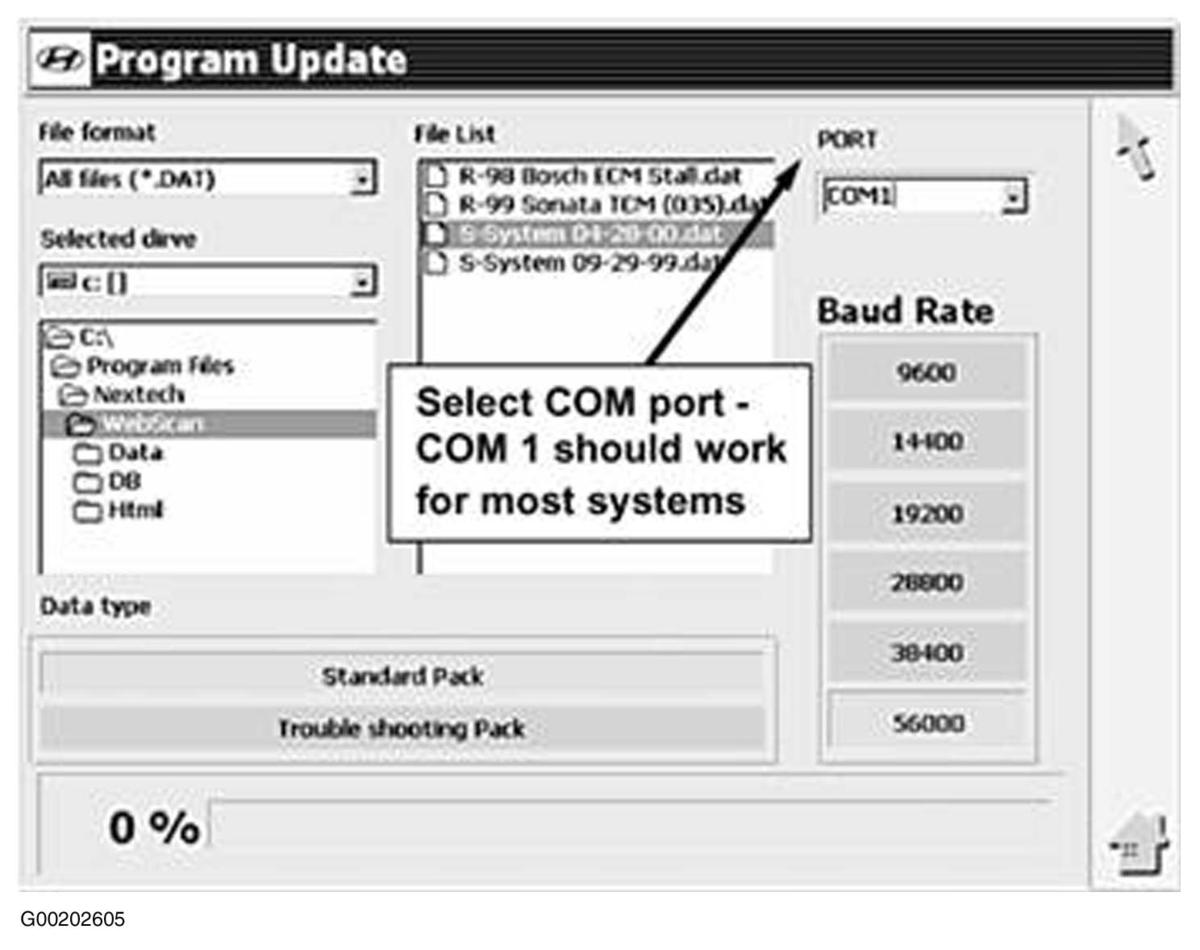

10. Select the proper "Port" setting.
    Fig 11: Port Setting Selection



    COM1 is the default setting and should work for most systems.

    If the program does not transfer the software to the Hi-Scan, try changing the "Port" setting to COM2.

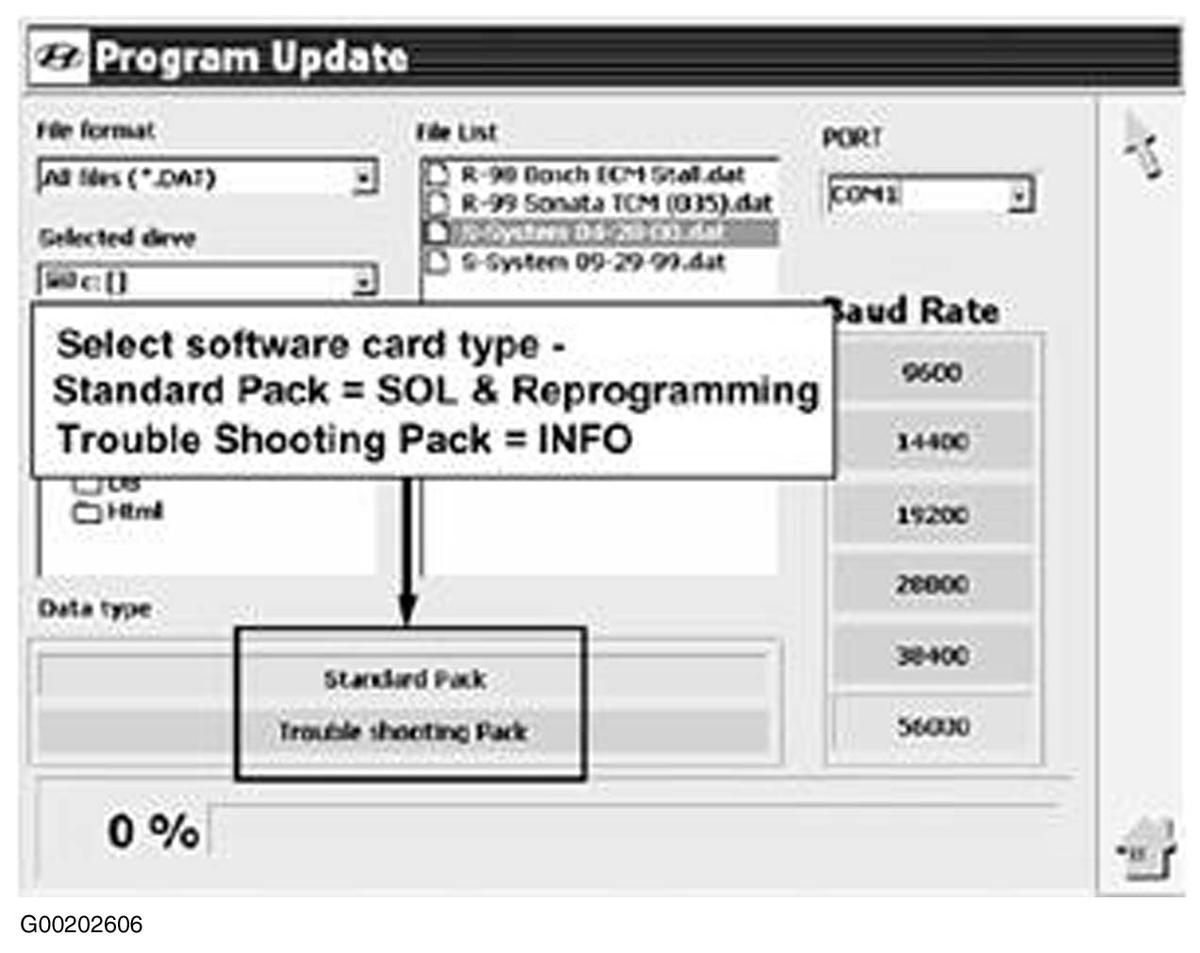

11. Select the proper "Data Type"
    1. "Standard Pack" is the default setting and is used when updating the SOL and Reprogramming software cards.
    2. "Trouble Shooting Pack" is used only for updating the INFO software card.
    3. COM1 is the default setting and should work for most systems.
    Fig 12: Data Type Setting Selection



    If the program does not transfer the software to the Hi-Scan, try changing the "Port" setting to COM2.

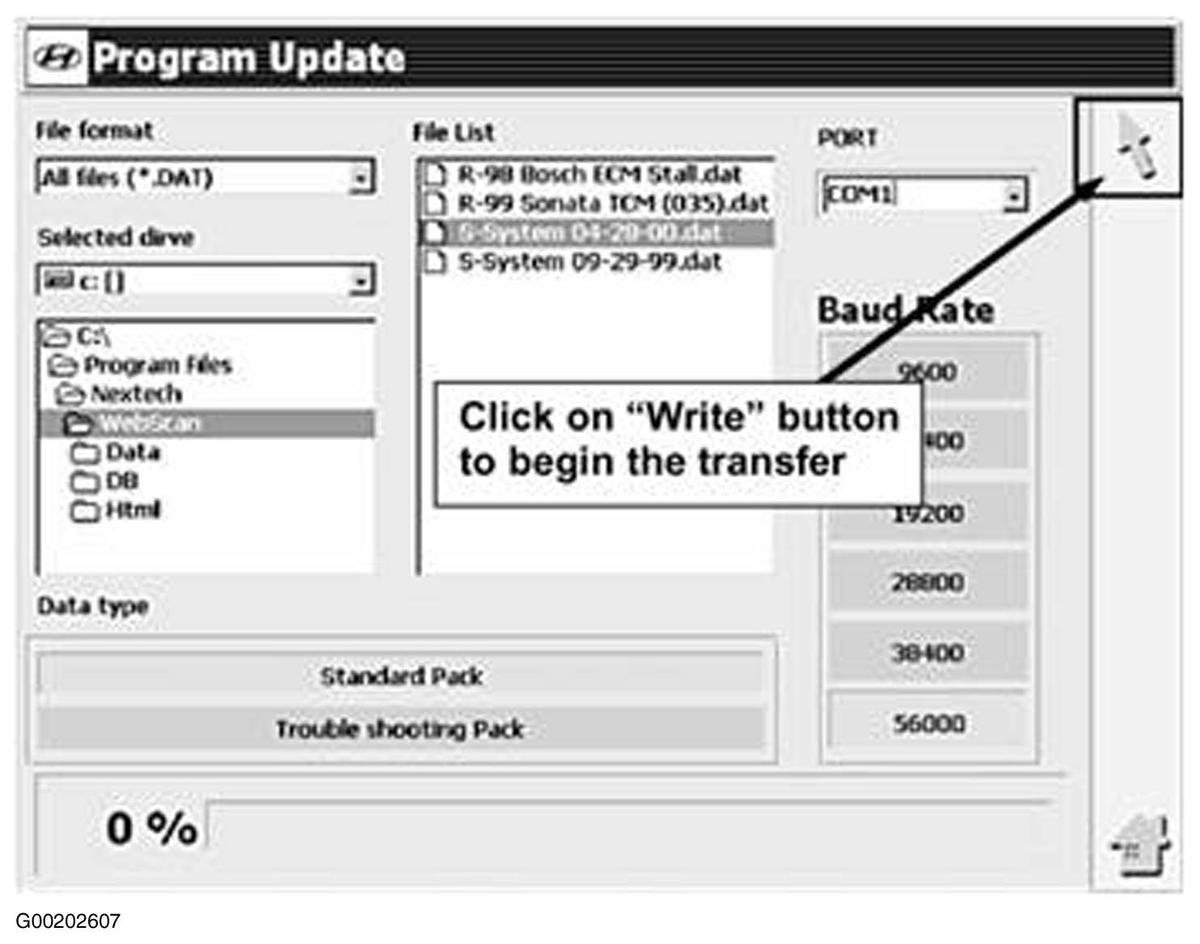

12. Click the "Write" button to start the download process.
    Fig 13: Write Button Selection

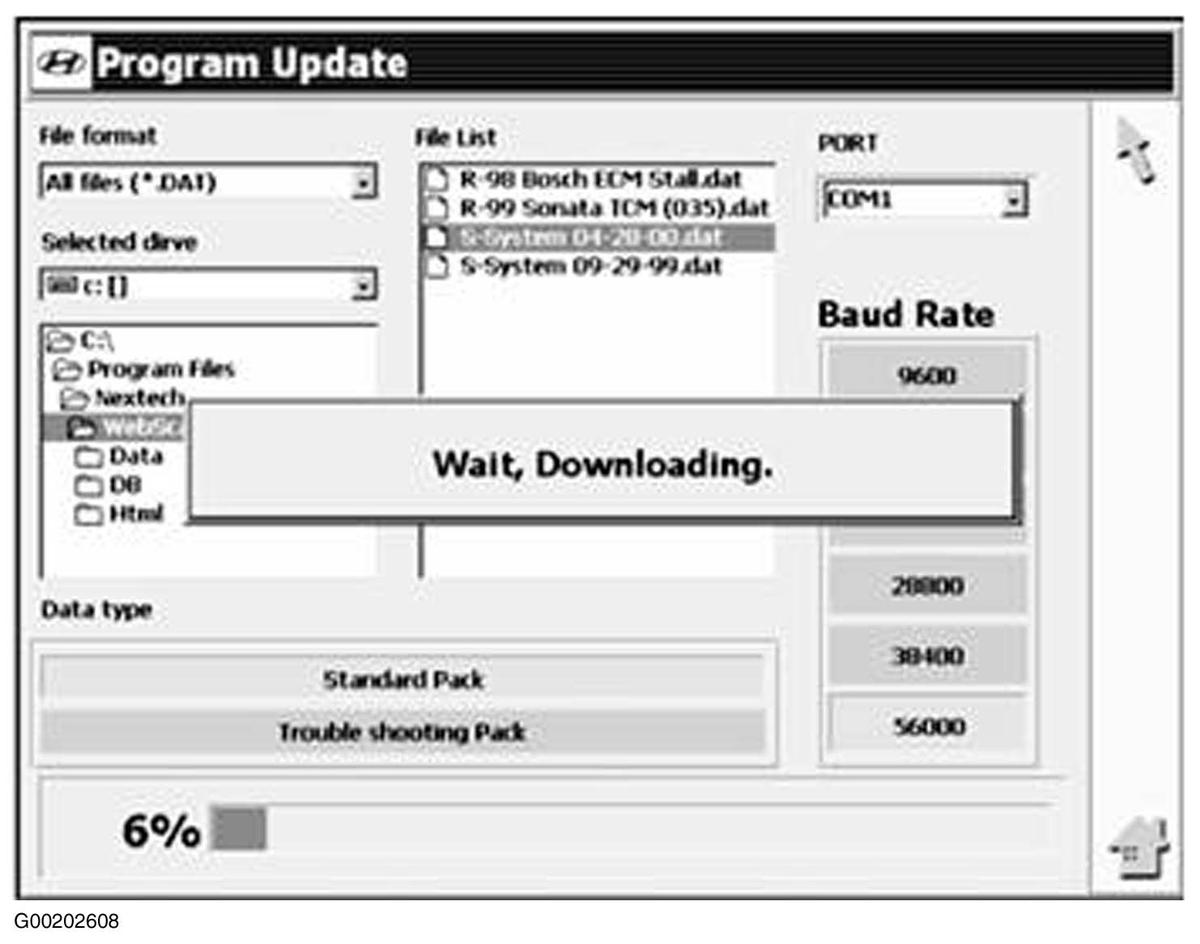

13. The progress meter at the bottom indicates the percent complete.

    It will take approximately 5 minutes for the file to download to the Hi-Scan.

    Fig 14: Progress Meter

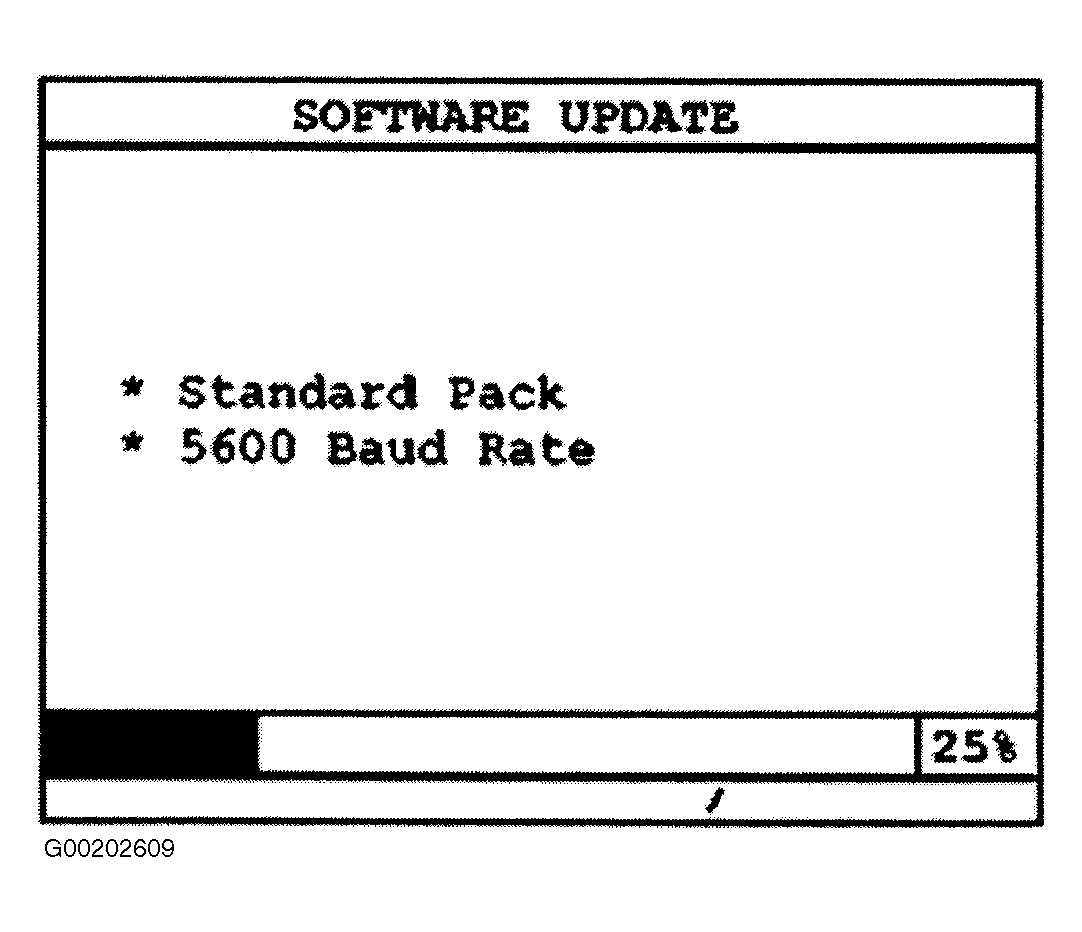

14. The Hi-Scan screen also displays the download progress.
    Fig 15: Hi-Scan Progress Screen

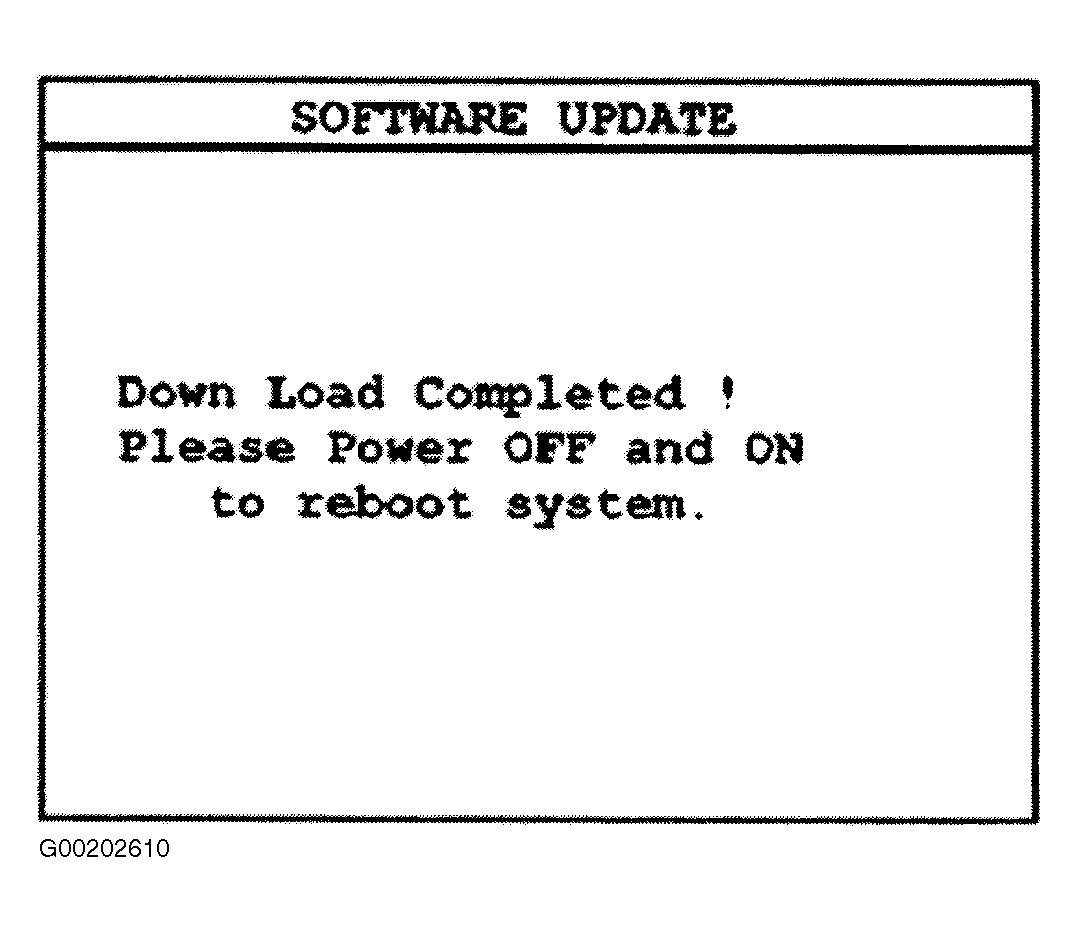

15. After the file has finished downloading, turn the Hi-Scan OFF and then back ON to use the new software.
    Fig 16: Hi-Scan Down Load Complete Screen


    NOTE: If for any reason the download process is interrupted before completion, the software on the software card may become corrupted. Indications of a corrupted card or blank card are a flashing screen and beeping when the Hi-Scan is turned ON.

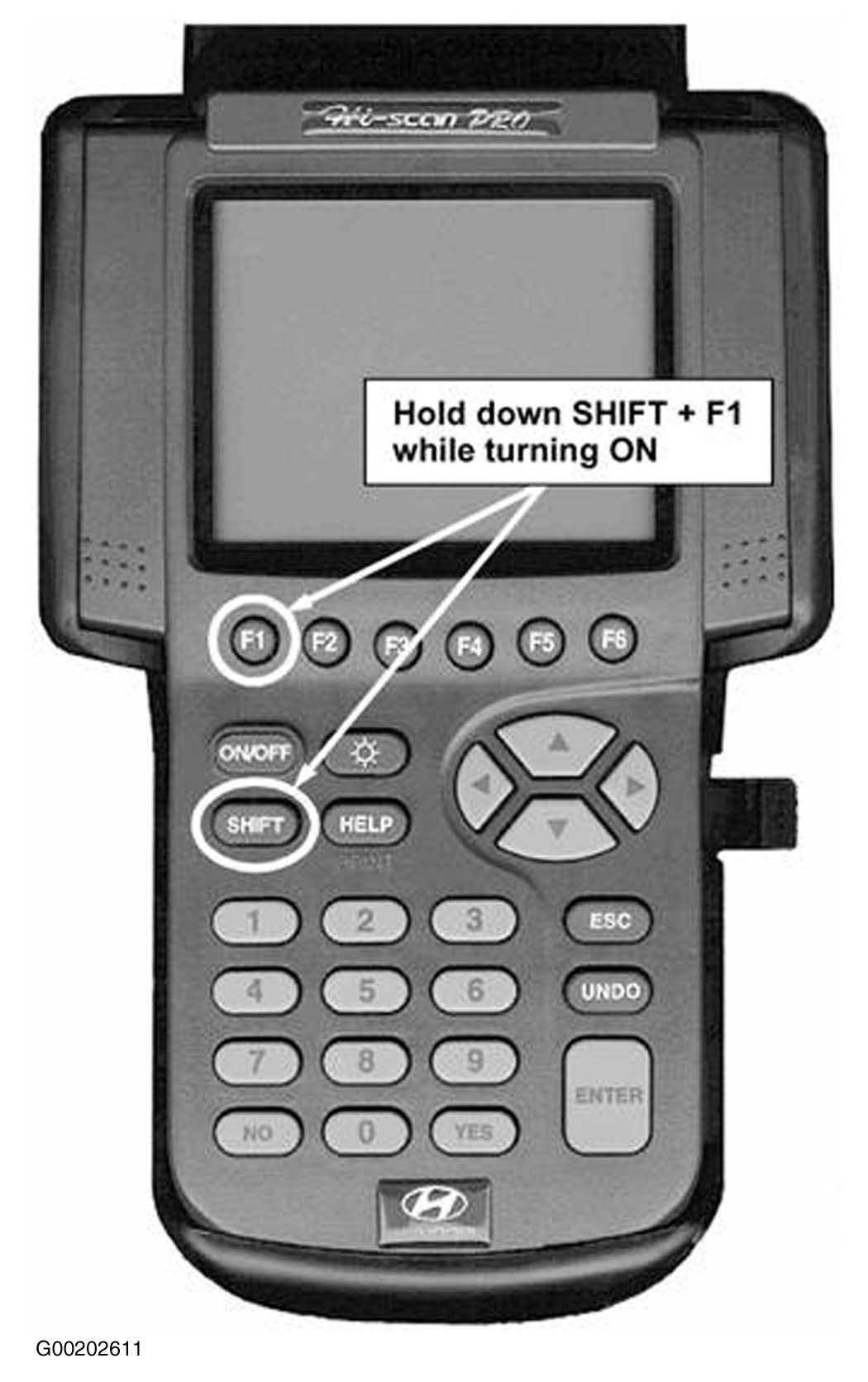

    NOTE: To restore the corrupted software card, hold down the "Shift" and "F1" keys on the Hi-Scan while pushing the ON button. This puts the Hi-Scan into Software Download mode immediately. Try the download process again as shown starting at step 1.

    Fig 17: Corrupted Card Restore Keys

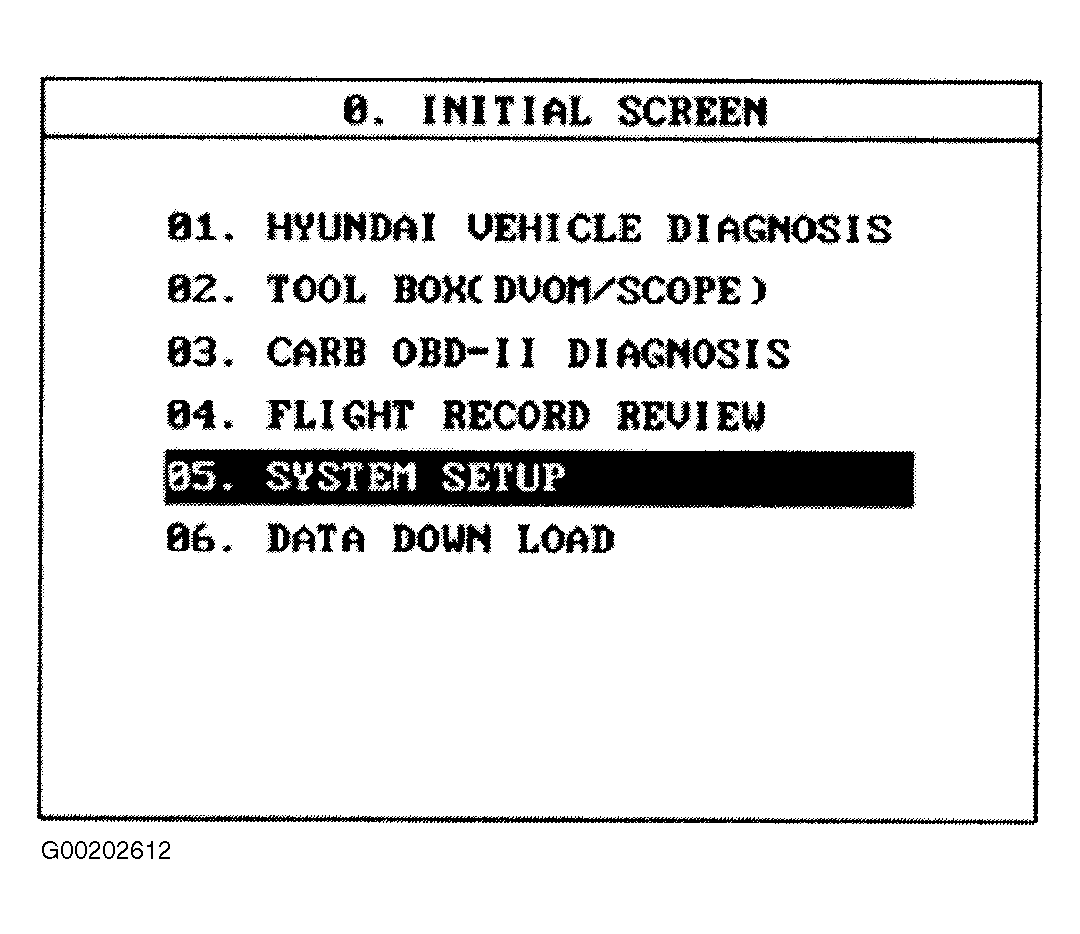

16. To check the software version, select "System Setup".
    Fig 18: System Setup Key

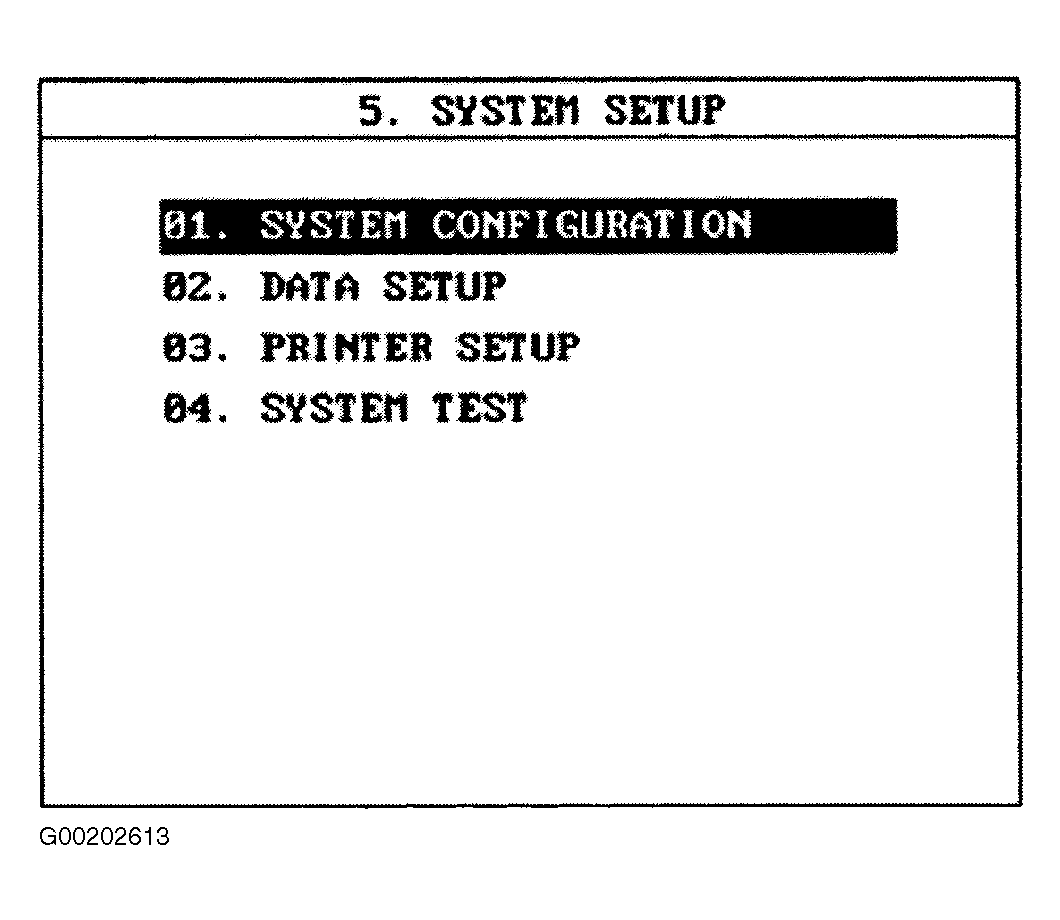

17. Then select "System Configuration"
    Fig 19: System Configuration Selection

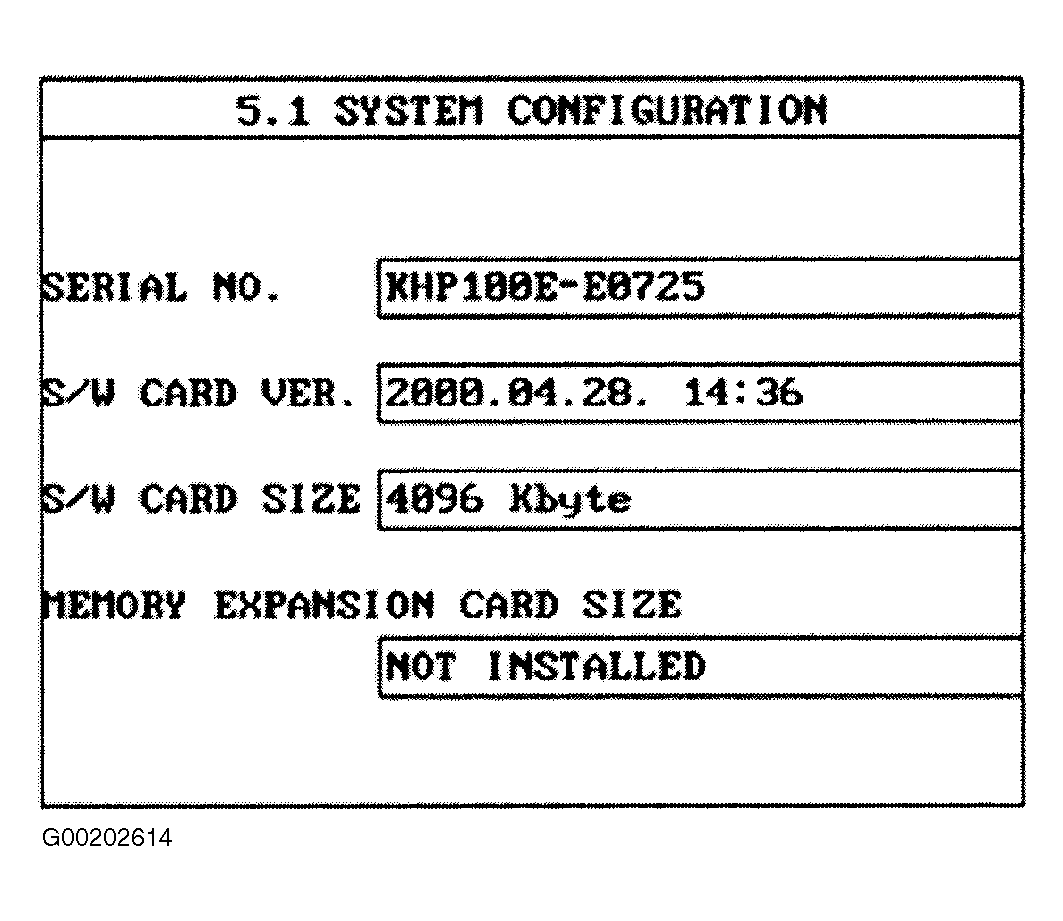

18. The "S/W Card Ver." shows the current software version
    Fig 20: S/W Card Version Selection
