Timer/Control Unit, Accessory Control

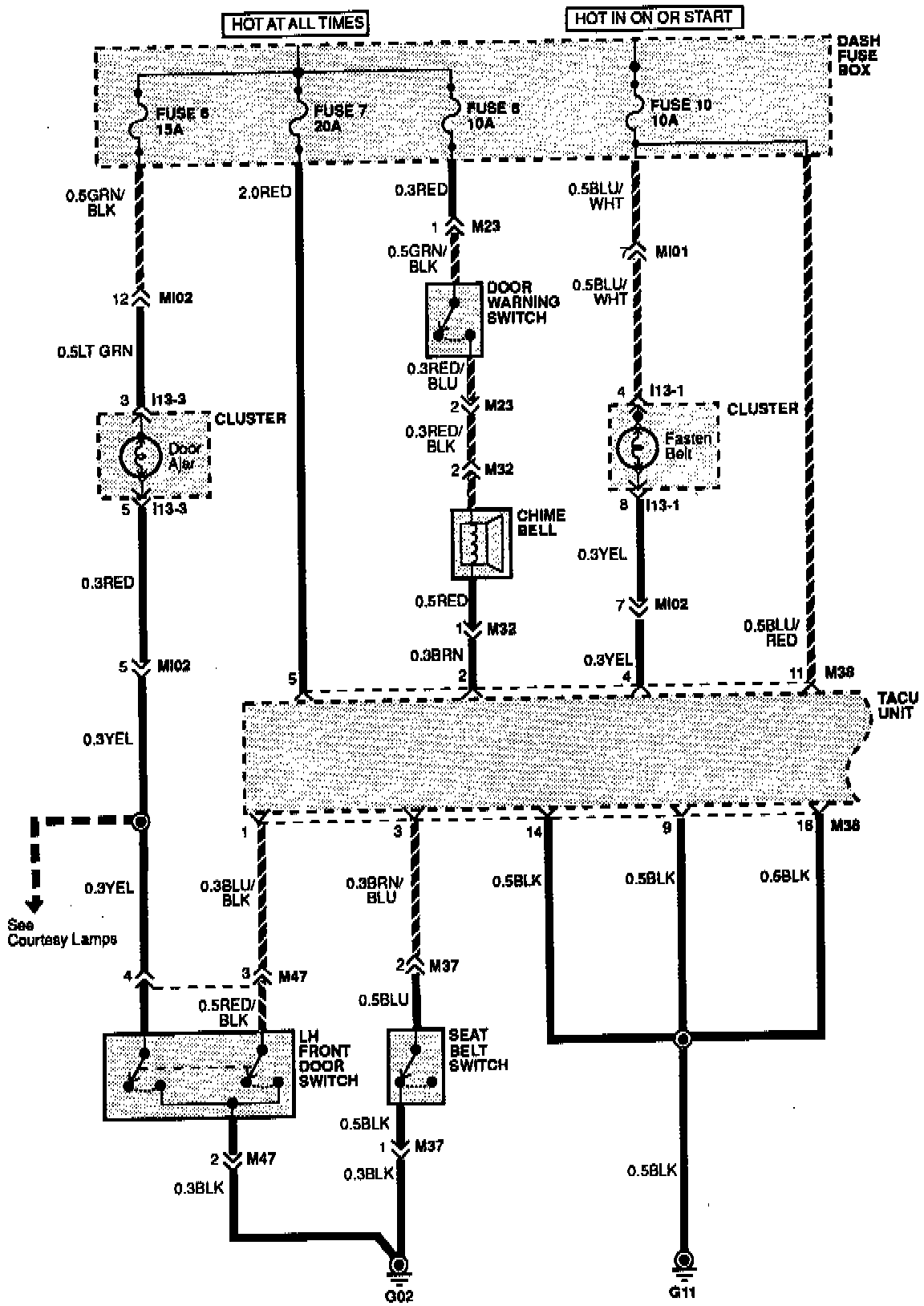

Time Alarm Control Unit (T.A.C.U.):

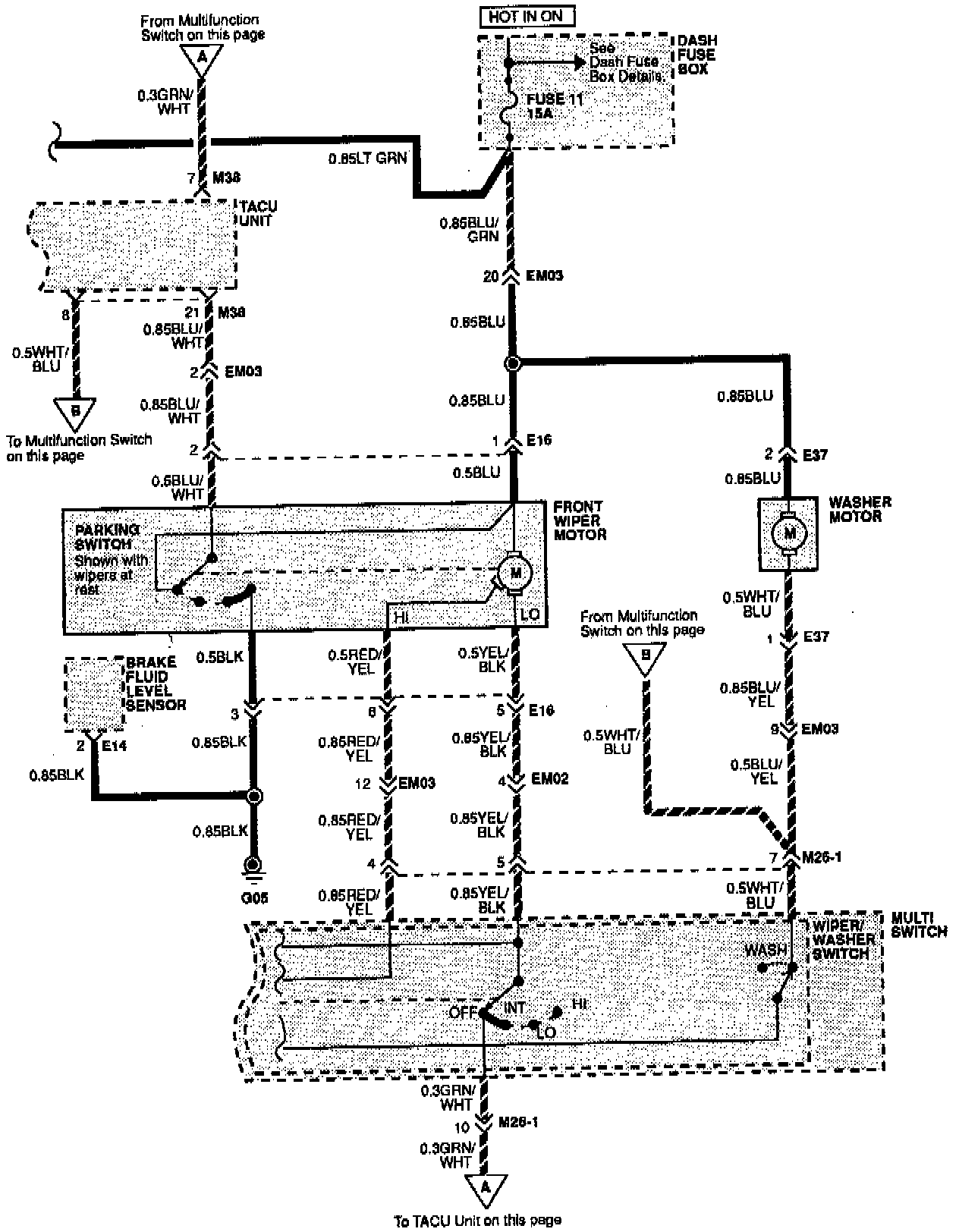

Time Alarm Control Unit (T.A.C.U.):

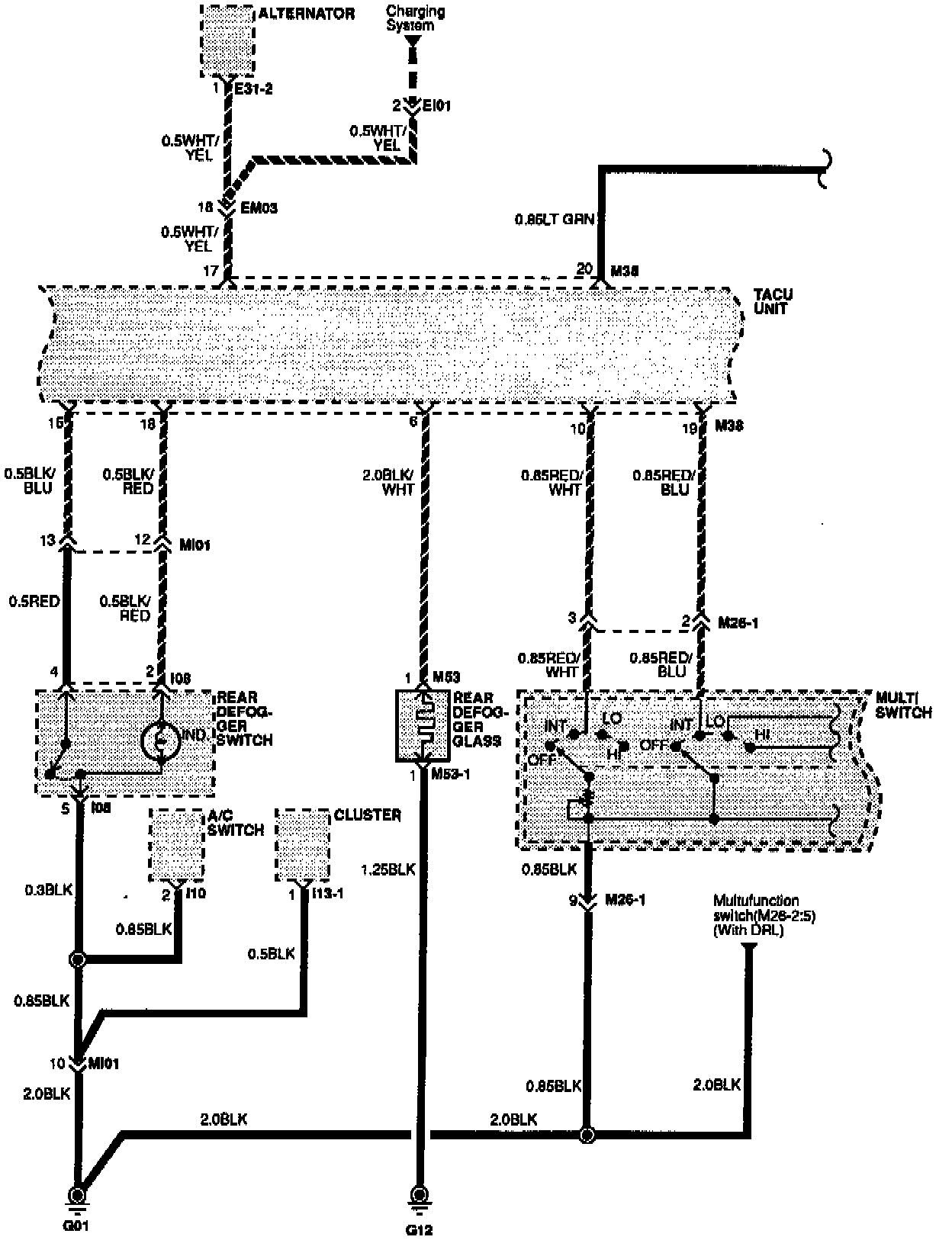

Time Alarm Control Unit (T.A.C.U.):
