Fig. 5 Accessing Trouble Codes Using Voltmeter:

1. Connect a suitable voltmeter between ground and ASC terminal of diagnosis check connector, Fig. 7.

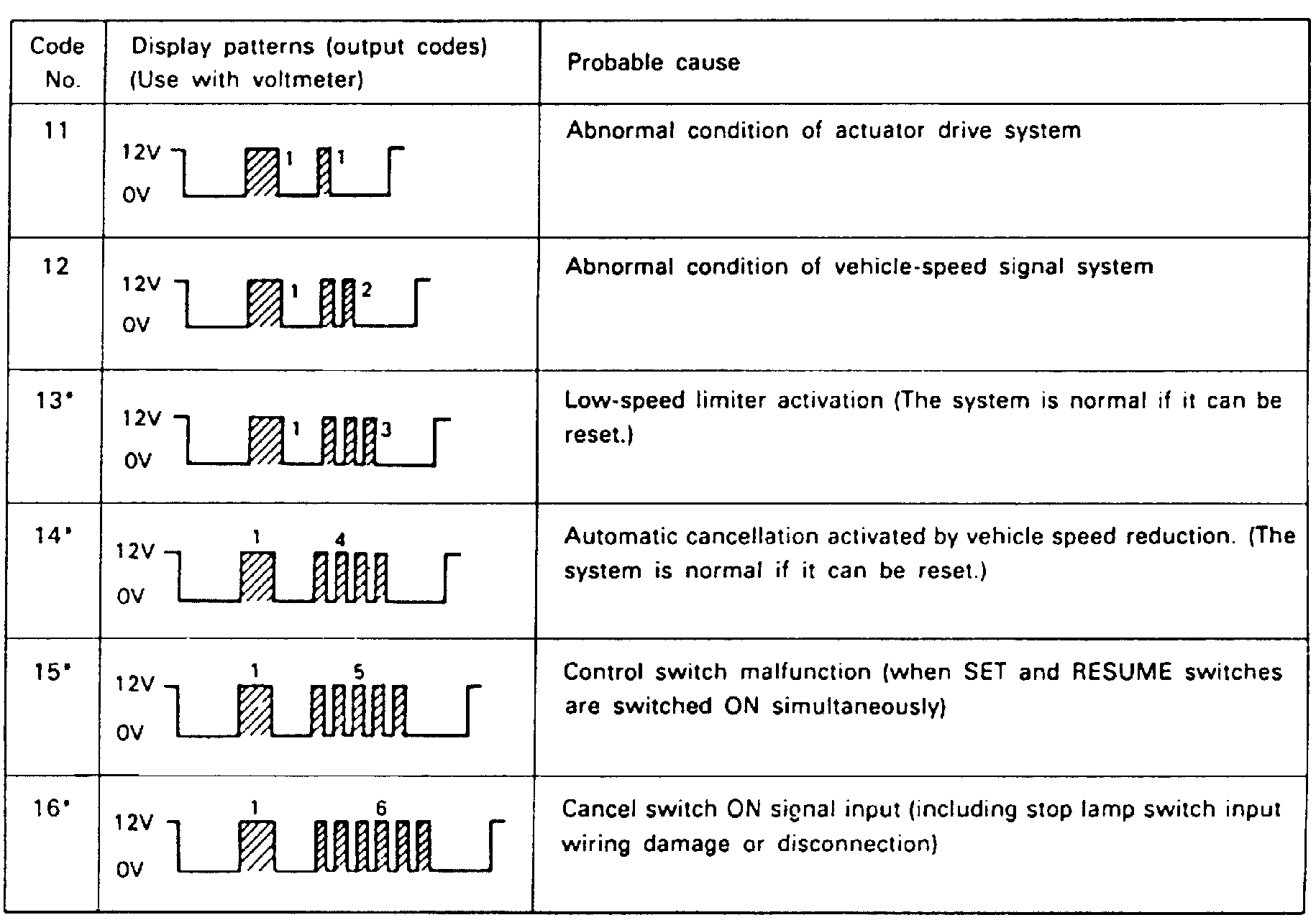

Fig. 5 Speed Control Diagnosis Display Patterns & Codes:

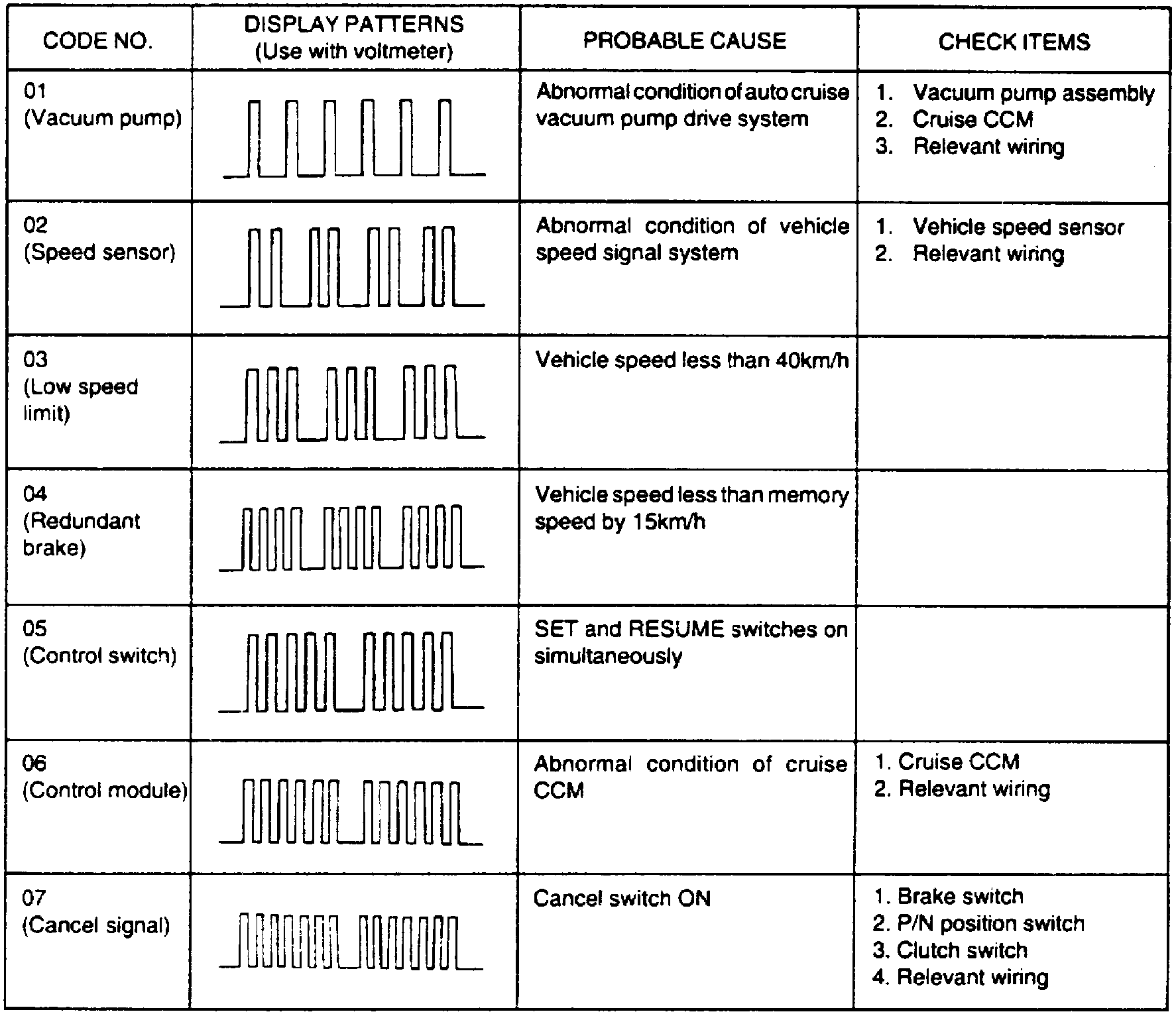

Fig. 6 Speed Control Diagnosis Display Patterns & Codes:

2. If diagnosis codes are displayed, refer to Fig. 5 and 6 for system diagnosis.
