Compressor HVAC: Service and Repair

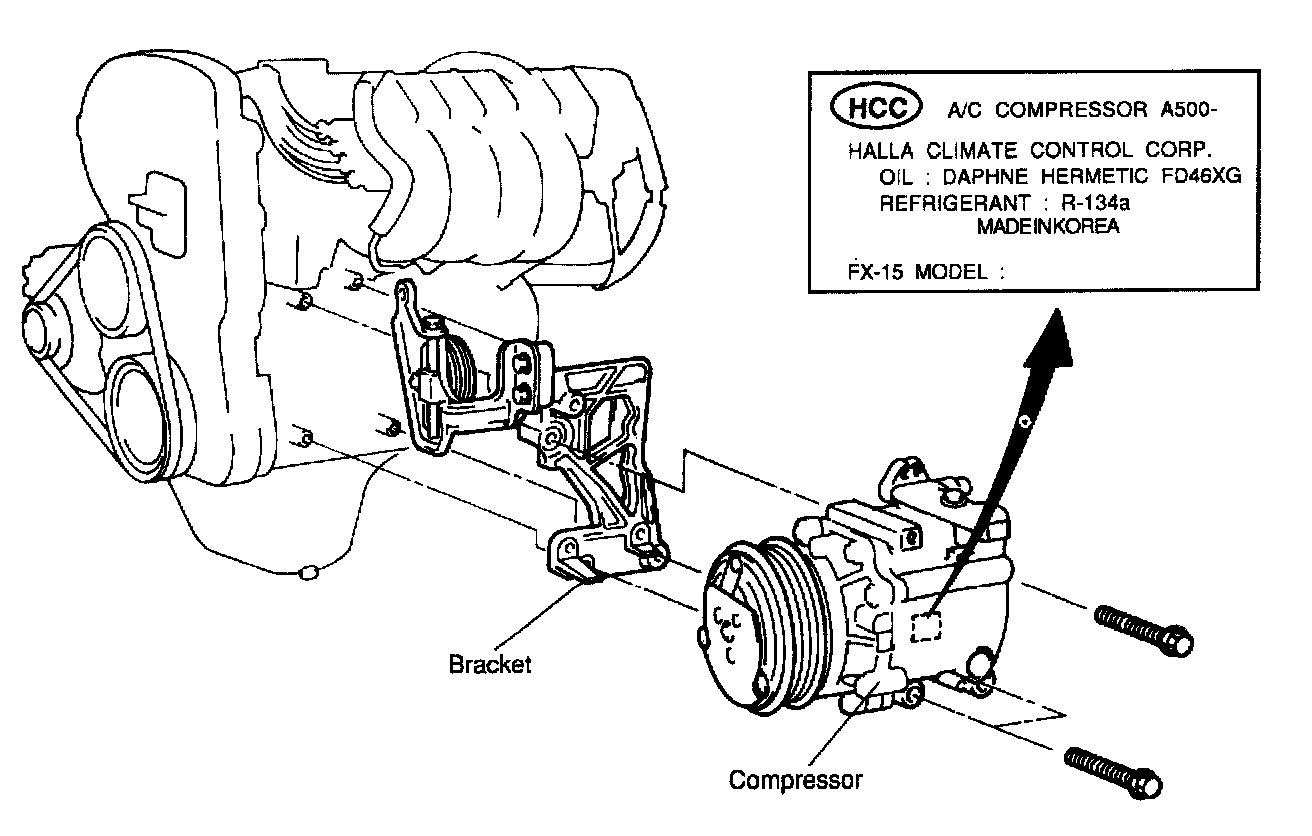

REMOVAL AND INSTALLATION
1. Loosen the tension pulley and then remove the V belt.
2. Discharge the refrigerant.
3. Disconnect the magnetic clutch.
4. Remove the discharge hose and suction hose.
5. Remove the compressor.
6. Installation is the reverse of removal.
