System Relay: Locations

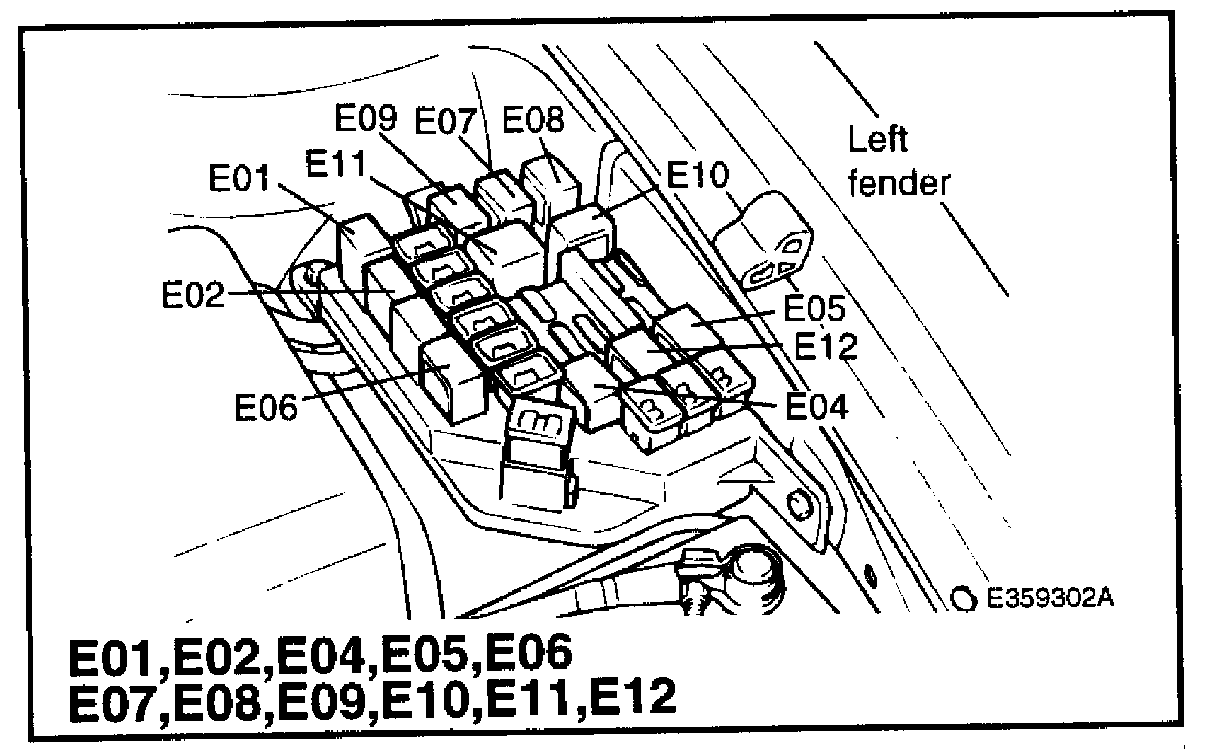

Engine Compartment Fuse/Relay Box:

E01 -
E02 - DRL relay
E04 - Start relay
E05 - Condenser fan relay
E06 - Headlamp relay
E07 - Radiator fan relay
E08 - A/C relay
E09 - Front fog lamp relay
E10 - Tail lamp relay
E11 - Blower relay
E12 - Horn relay
