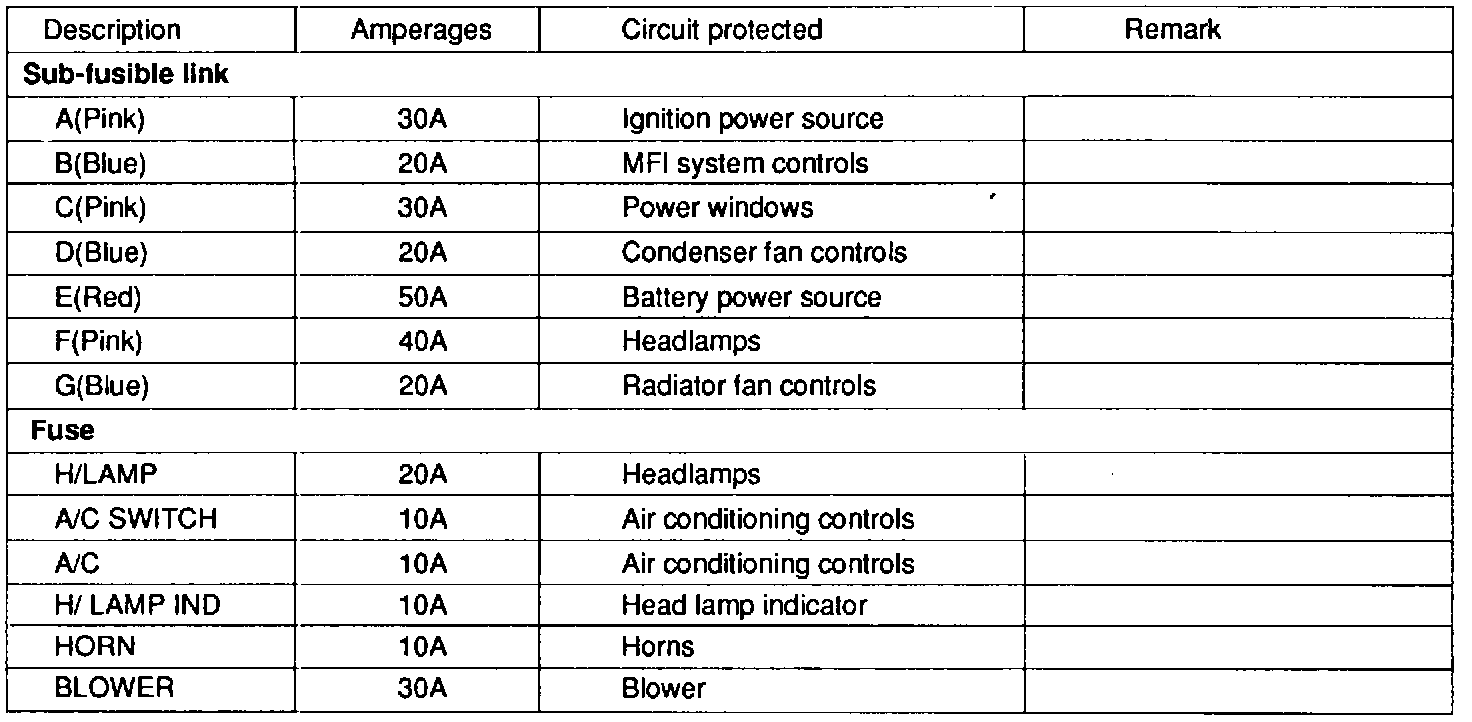

Engine Compartment Fuse/Relay Box

Engine Compartment Relay Box - Layout:






Engine Compartment Relay Box - Circuit:
