Jacking & Hoisting: Hoist

CAUTION: Follow hoist manufacturer's instructions. DO NOT allow hoist or adapters to contact suspension, exhaust or steering components.

Adapters must be placed at 4 contact points. See Fig 1. Position adapters so they are centered on contact area. All 4 contact points must contact adapters.

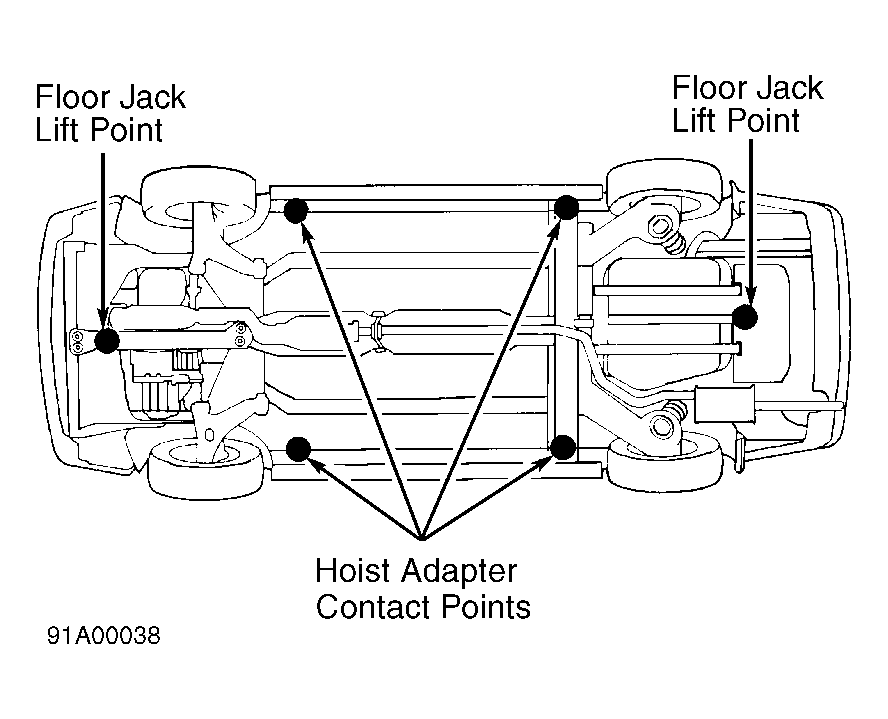

Fig 1: Lifting Points
G91A00038Courtesy of HYUNDAI MOTOR CO.
