Component Location

Emission-related components are shown in illustration. See Fig 1 .

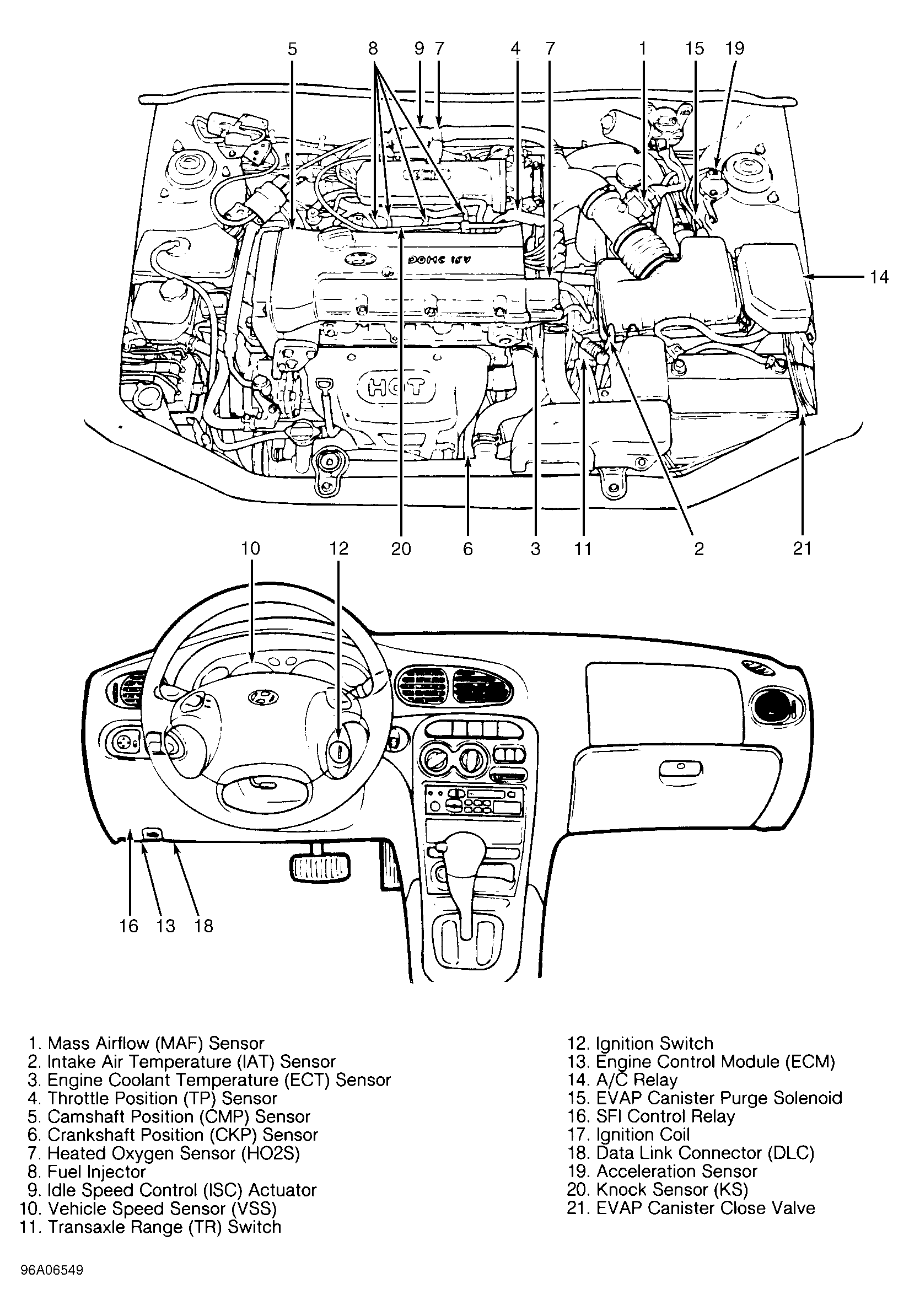

Fig 1: Identifying Emission-Related Components (Elantra)
G96A06549Courtesy of HYUNDAI MOTOR CO.
