Cylinder Block Specifications

SERVICE SPECIFICATIONS
Cylinder Bore 82.00 - 82.03 mm (3.2283 - 3.2295 inch)
Out-Of-Roundness And Taper Of Cylinder Bore Less Than 0.01 mm (0.0004 inch)
Clearance With Piston 0.02 - 0.04 mm (0.0008 - 0.0016 inch)

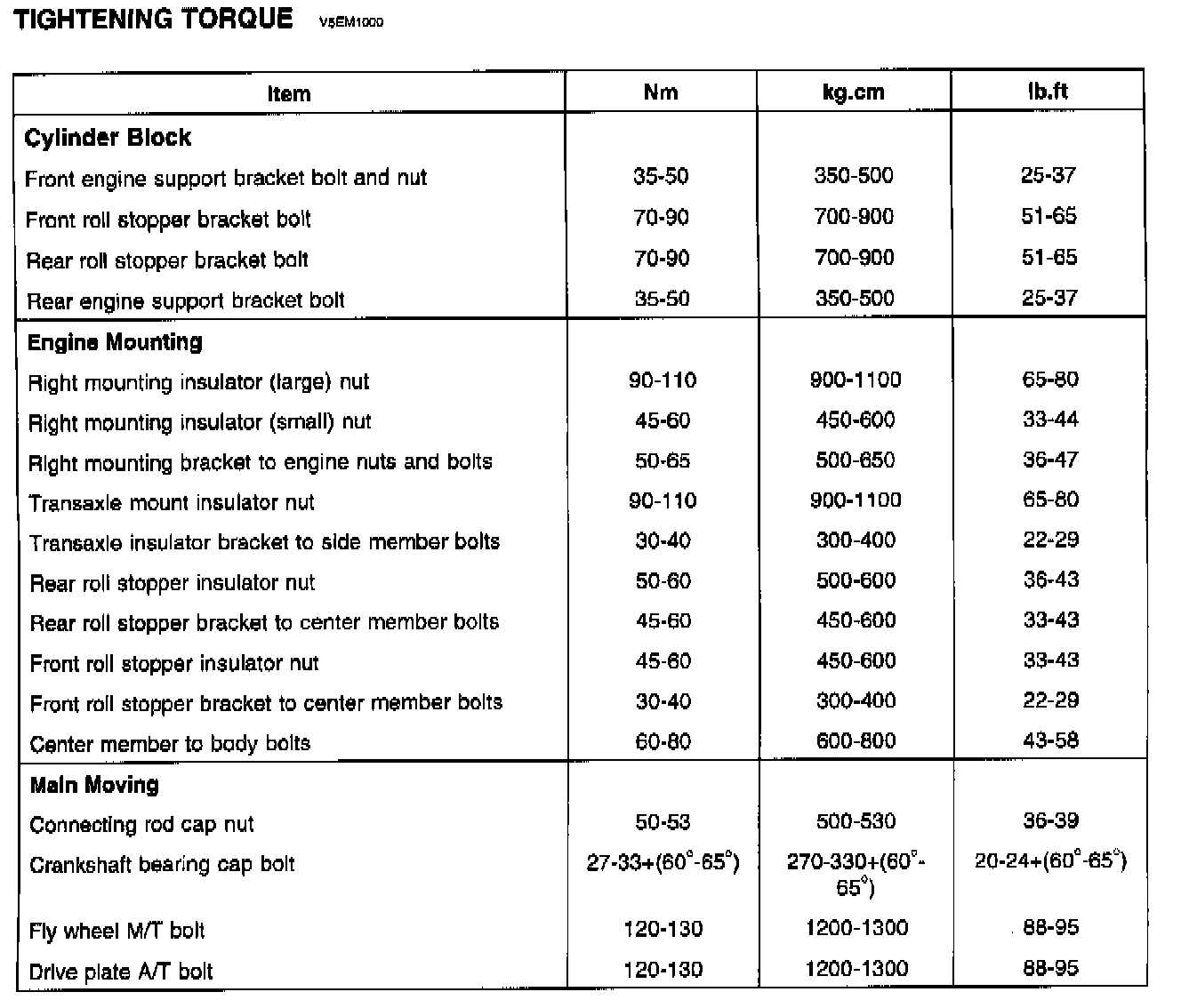

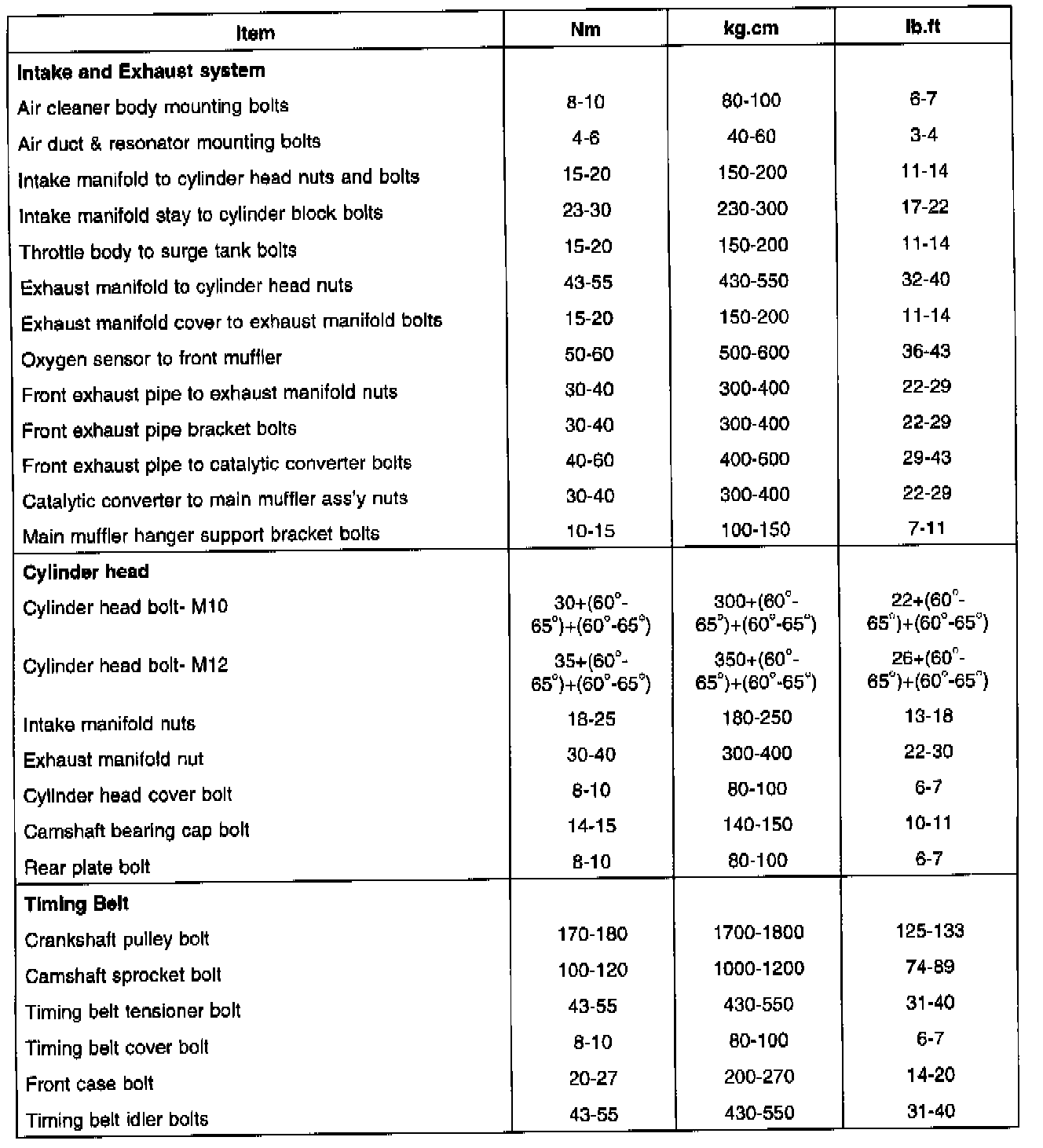

TIGHTENING SPECIFICATIONS





Part 1 of 5





Part 2 of 5





Part 3 of 5





Part 4 of 5





Part 5 of 5

Crankshaft Bearing Cap Bolt
Torque 48 Nm + (60° - 65°) (35 ft. lbs. + (60° - 65°)







Drive Plate Bolt (Flex Plate)
Torque 120 - 130 Nm (88 - 95 ft. lbs.)
