Hyundai
>>
1997
>>
Sonata GL L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>
A/C Compressor Controls (Manual)
>>
M52 - MC01
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

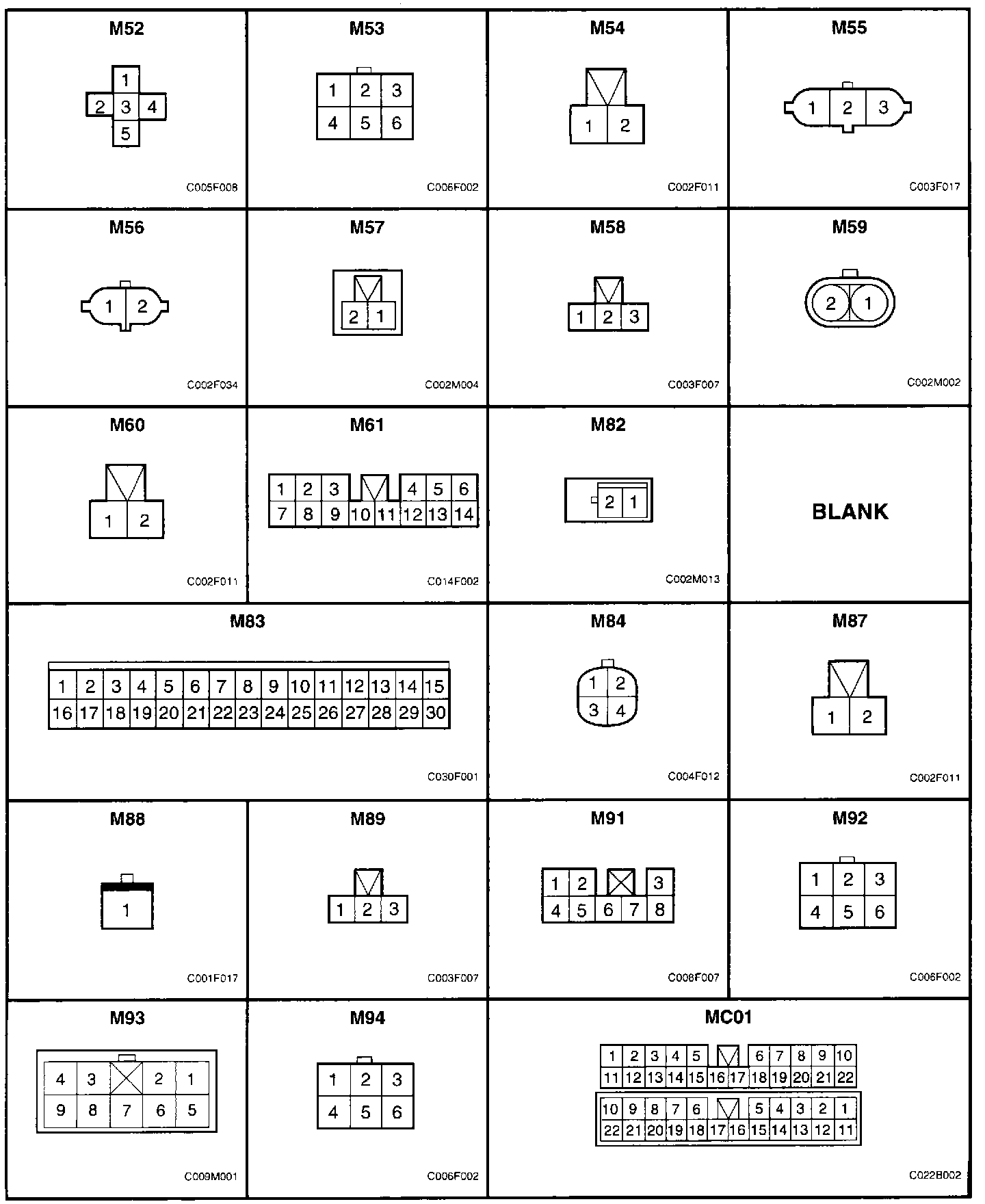

M52 - MC01
M52 To MC01:
