Hyundai
>>
1997
>>
Sonata L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>
A/C Compressor Controls (Manual)
>>
C84 - C101-3
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

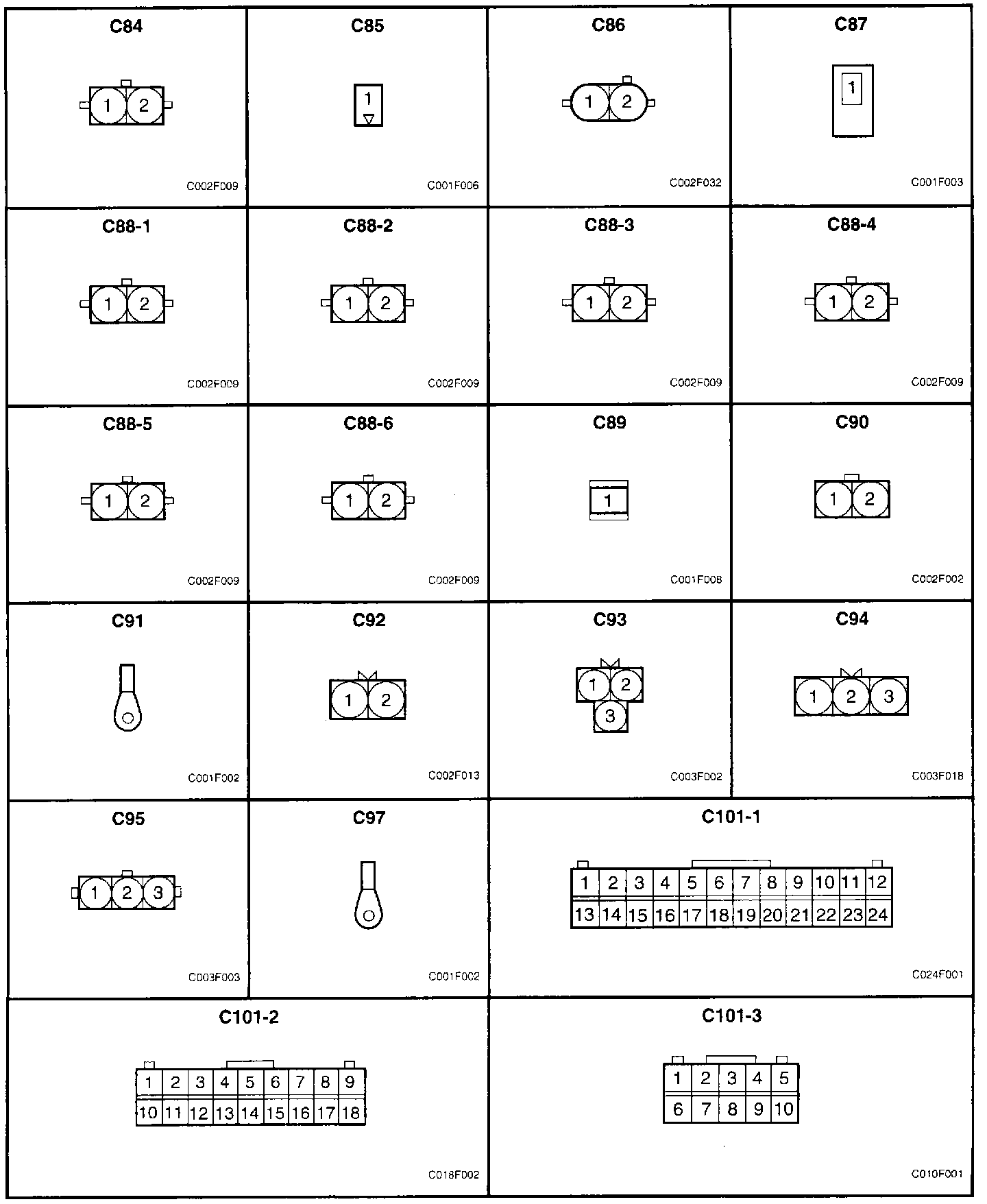

C84 - C101-3
C84 To C101-3:
