Camshaft Position Sensor: Testing and Inspection

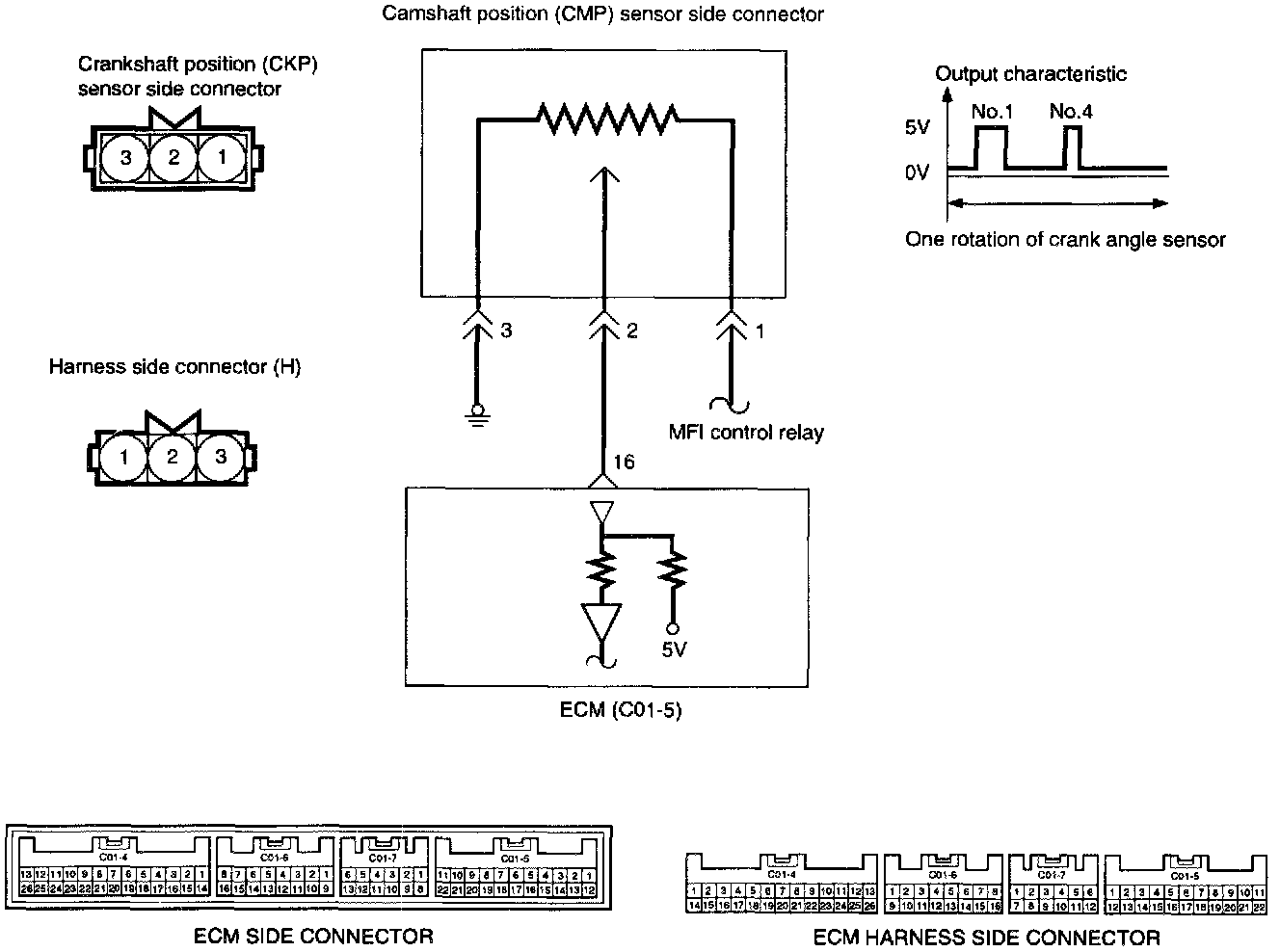

CIRCUIT DIAGRAM

TROUBLESHOOTING HINTS
If the camshaft position sensor does not operate correctly, correct sequential injection is not made so that the engine may stall or run irregularly at idle or fail to accelerate normally











HARNESS INSPECTION PROCEDURES

TROUBLESHOOTING HINTS
If the camshaft position sensor does not operate correctly, correct sequential injection is not made so that the engine may stall or run irregularly at idle or fail to accelerate normally.
