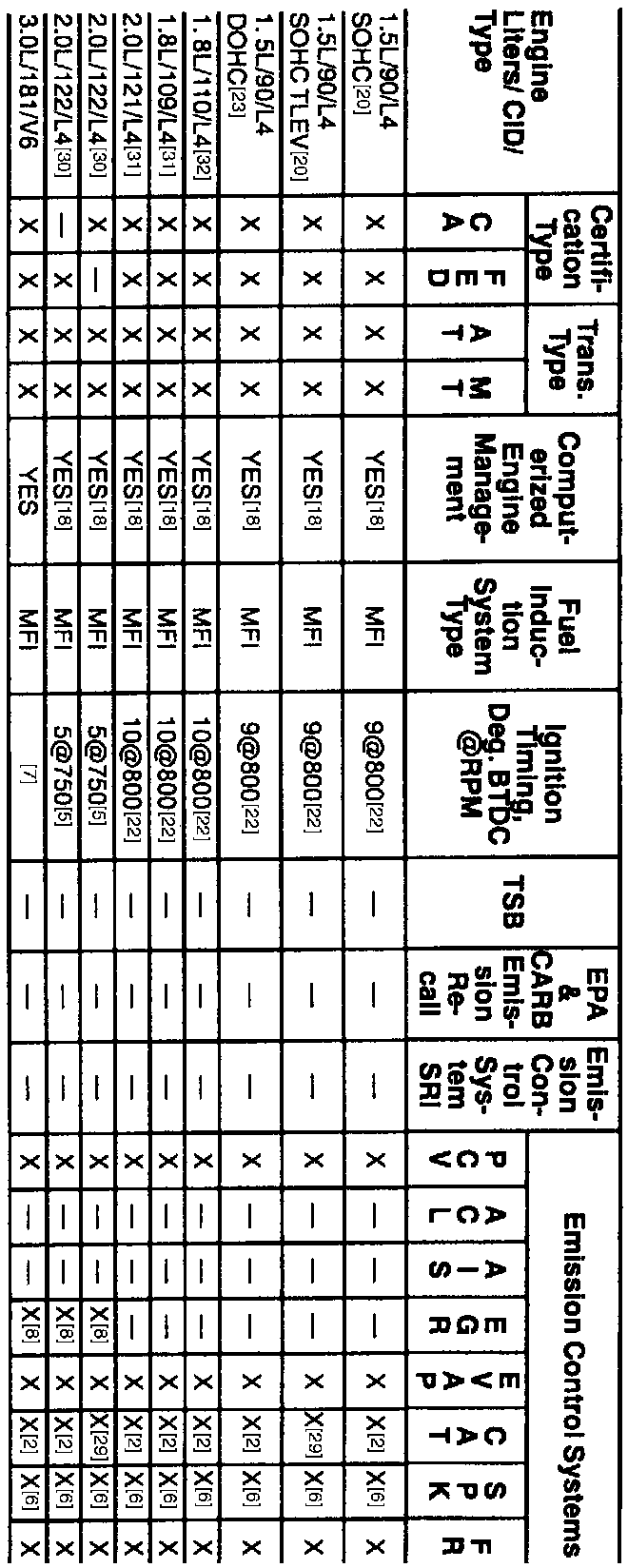

Powertrain Management: Application and ID

��
A:

Footnotes:

X - Equipped

- Not Equipped

2 - Type TWC; number of catalytic converters, 1.

5 - Timed at No. 1 cylinder w/jumper wire connected between ignition timing adjustment connector & ground.

6 - EI (Electronic Ignition).

7 - Refer to the emission control information label.

8 - Electronically controlled EGR.

16 - Two HO2S.

18 - MFI system.

20 - Accent.

22 - PCM controlled.

23 - Accent GT.

29 - Type TWC & MCC; number of catalytic converters, 2.

30 - Sonata.

31 - Tiburon.

32 - Elantra.
