Circuit Testing

MANIFOLD DIFFERENTIAL PRESSURE (MDP) SENSOR
The MDP sensor converts the pressure of intake manifold caused by exhaust gas to voltage and input it to the ECM. The ECM judges the condition of the EGR by this signal EGR incoming. If there is abnormal condition, the engine warning light is turned on to notify the driver.

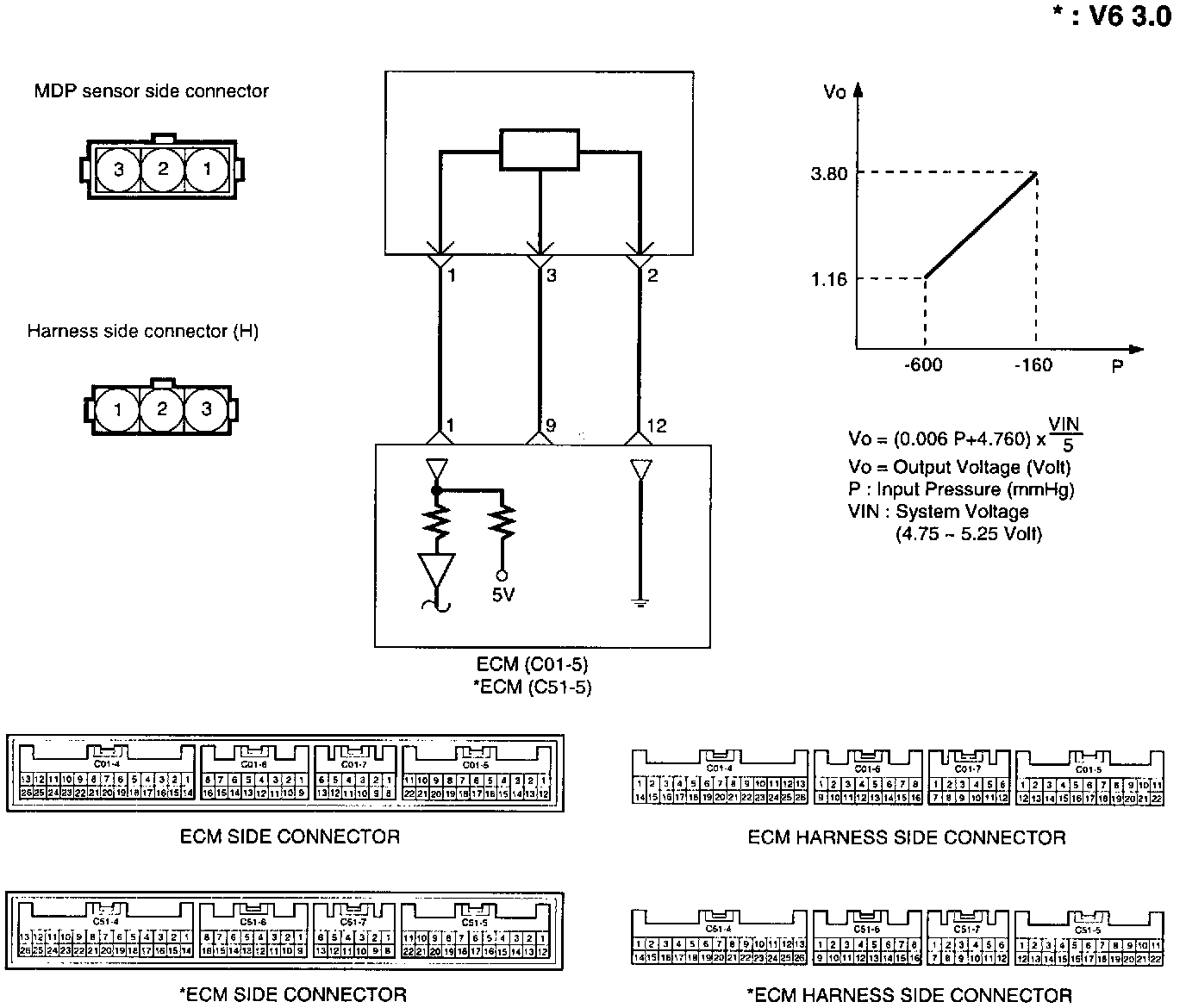

CIRCUIT DIAGRAM










HARNESS INSPECTION
