Removal and Installation

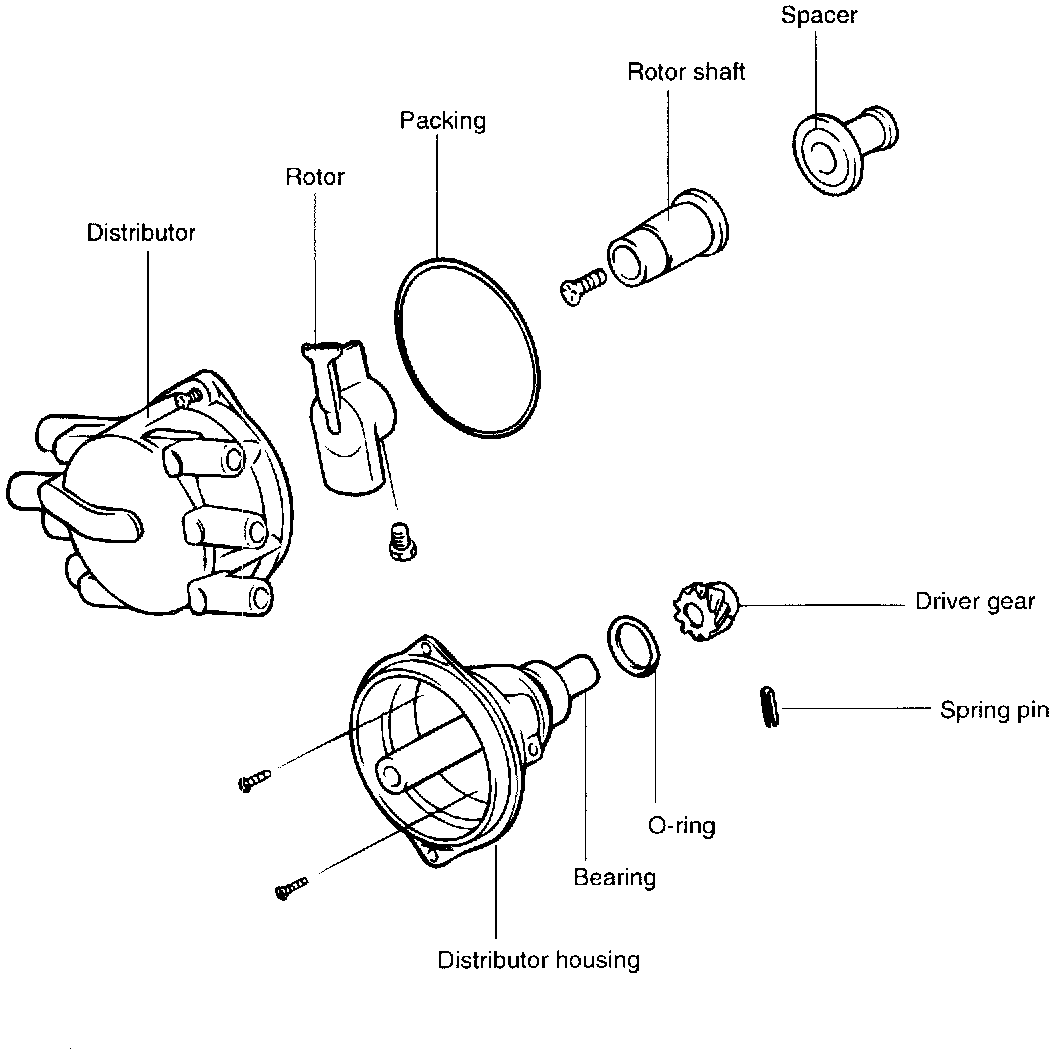

COMPONENTS

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the two distributor cap retaining bolts and move the cap to one side.
3. Remove the distributor mounting nut and the distributor assembly.

INSTALLATION
1. Turn the crankshaft so that the No. 1 cylinder is at top dead center.




2. Align the distributor housing and gear mating marks.




3. Install the distributor in the engine while aligning the groove of the distributors installation flange with the center of the distributor installation stud.
