Vehicle Overview

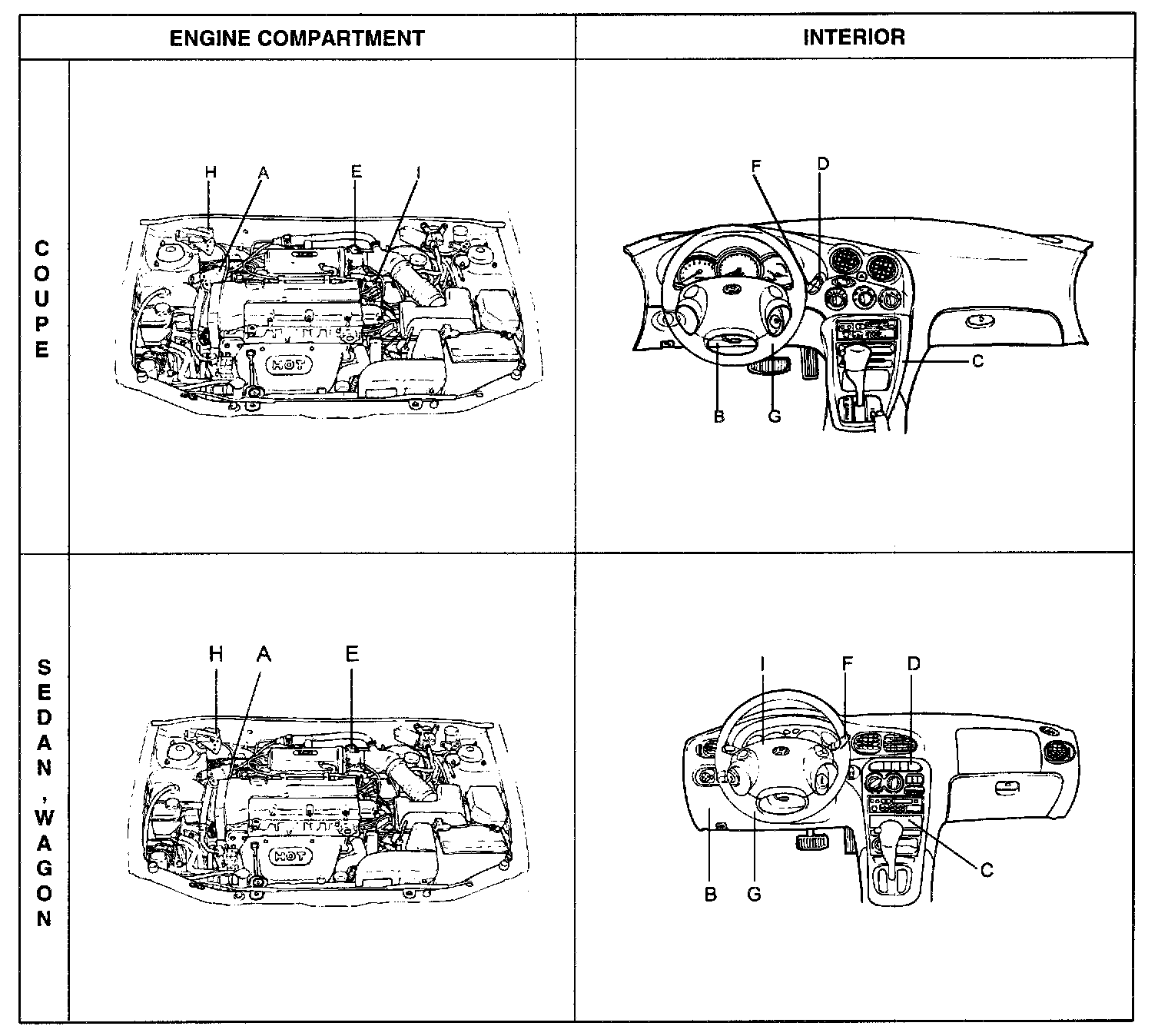

Body Views

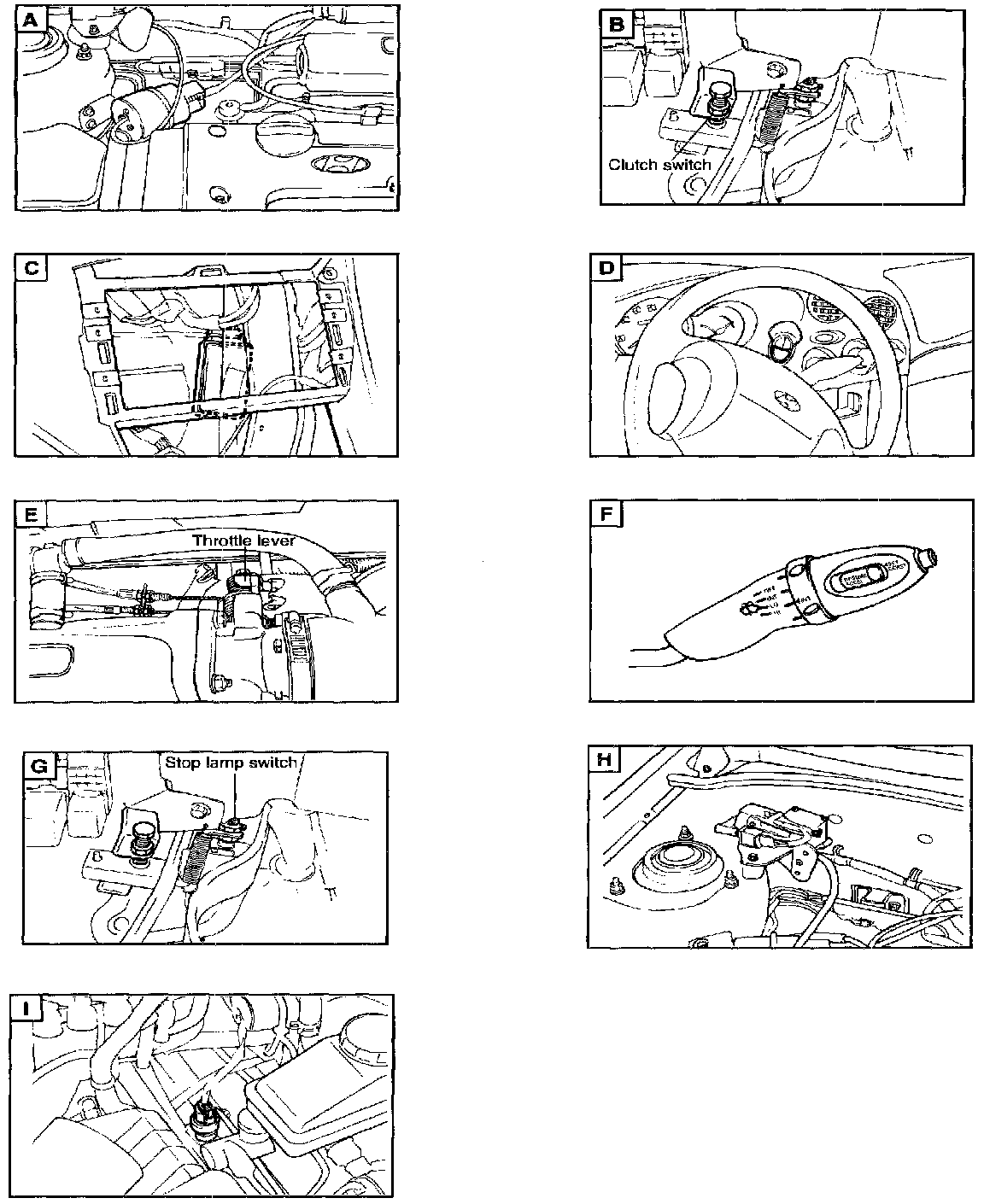

Component Views

NAME SYMBOL
Actuator A
Clutch switch B
Cruise control module C
Cruise main switch D
Pulley assembly E
Speed control switch (in multi function switch) F
Stop lamp switch G
Vacuum motor H
Vehicle sensor I
