Timer/Control Unit, Accessory Control

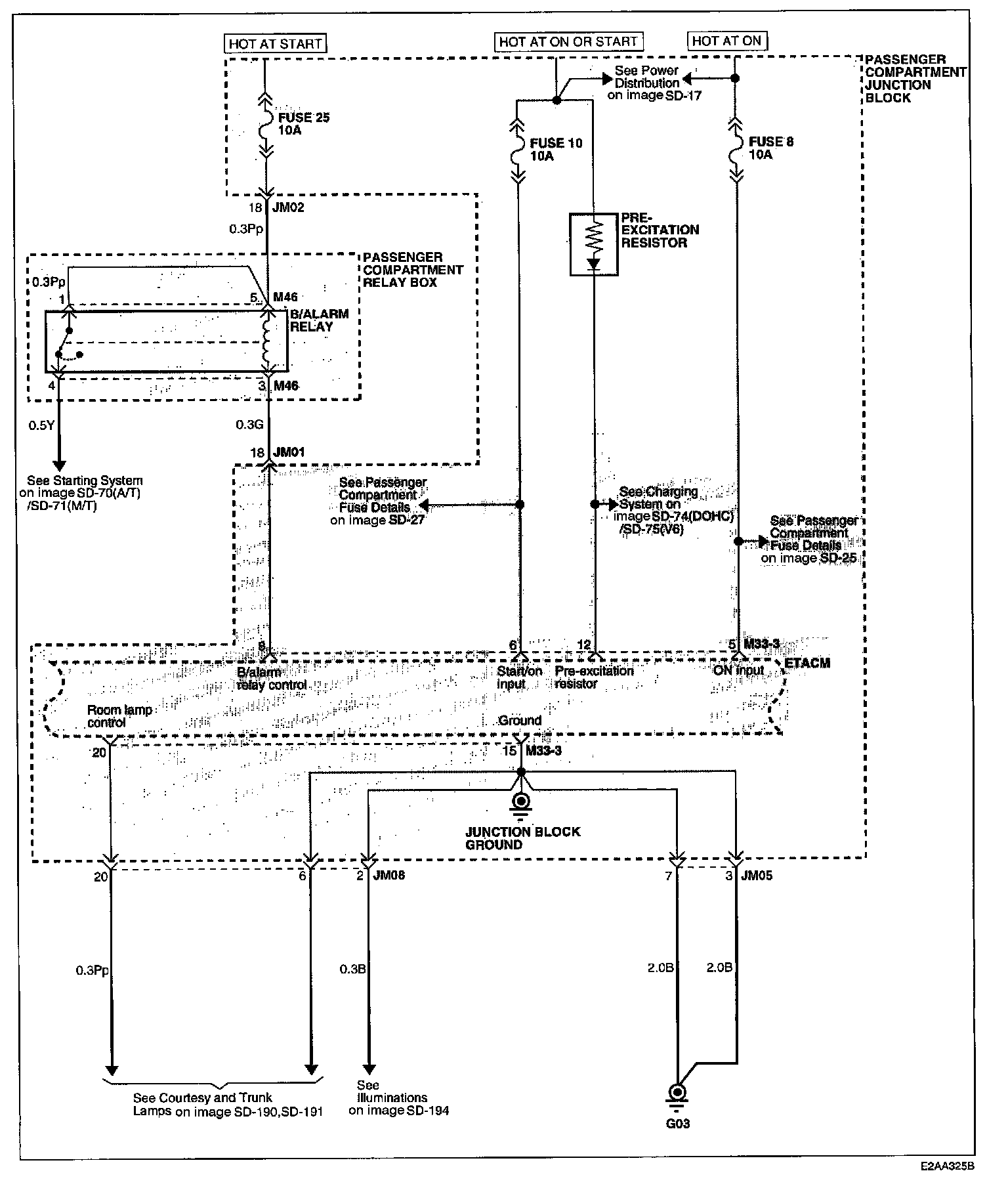

Image SD-132:

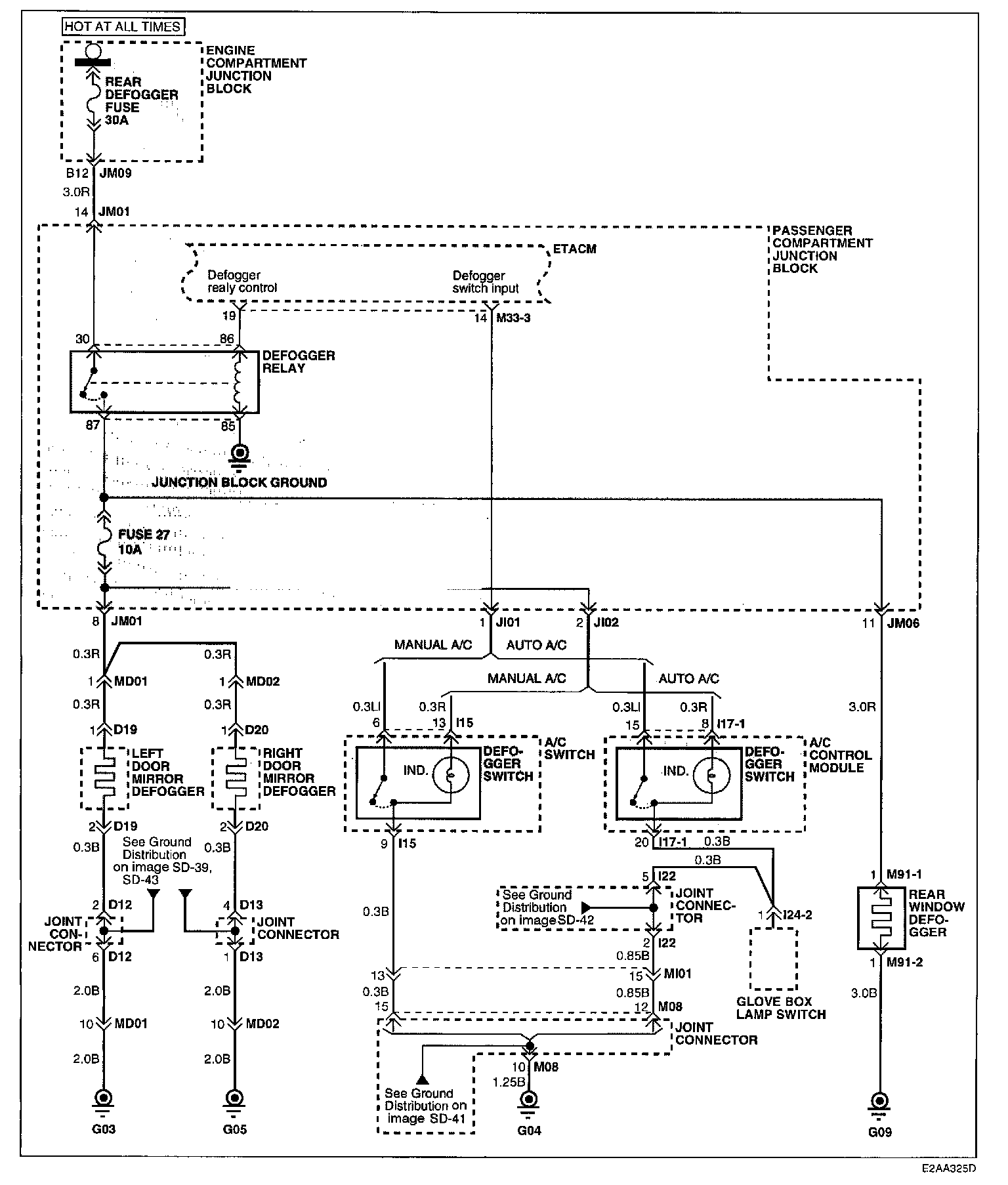

Image SD-133:

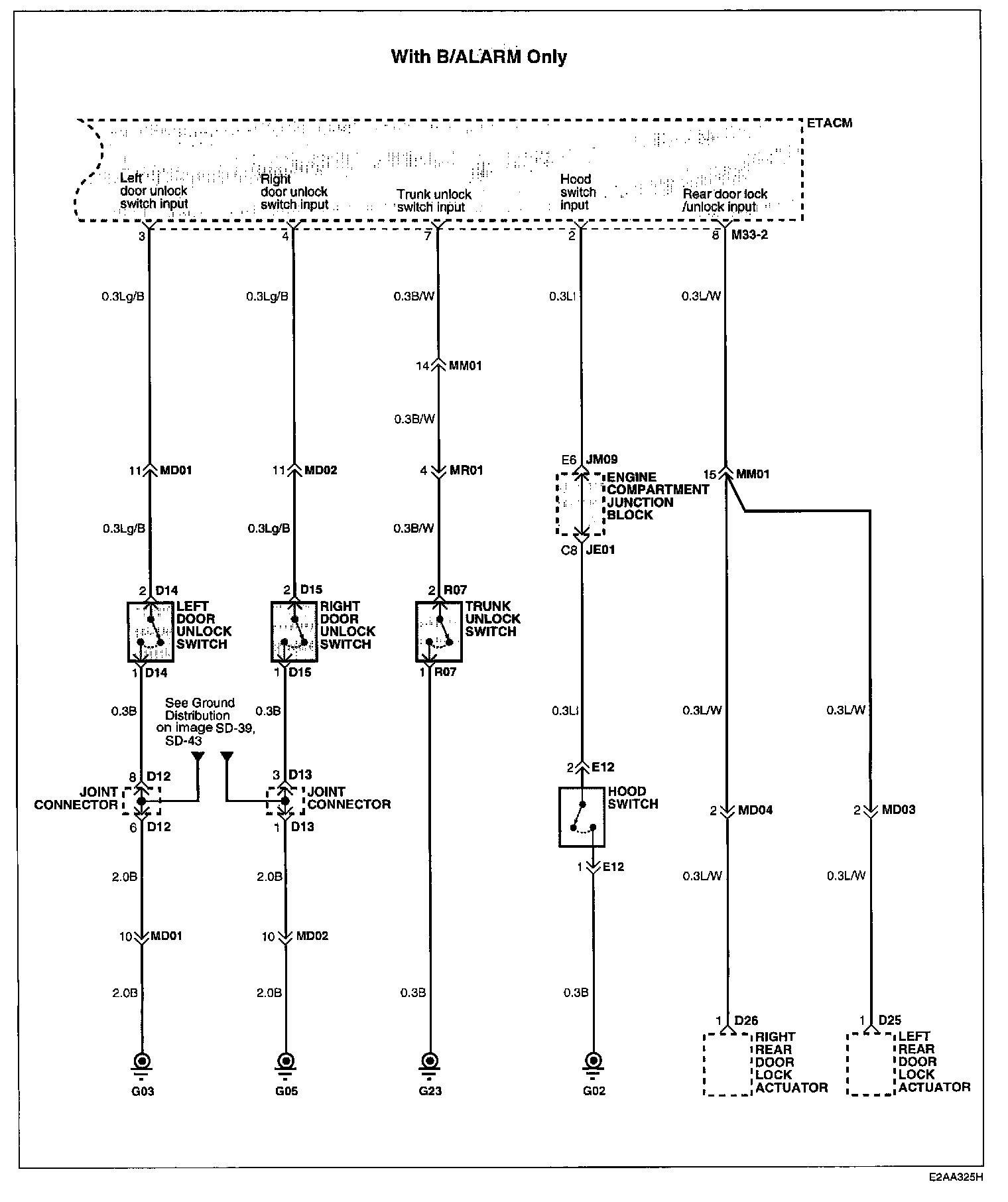

Image SD-134:

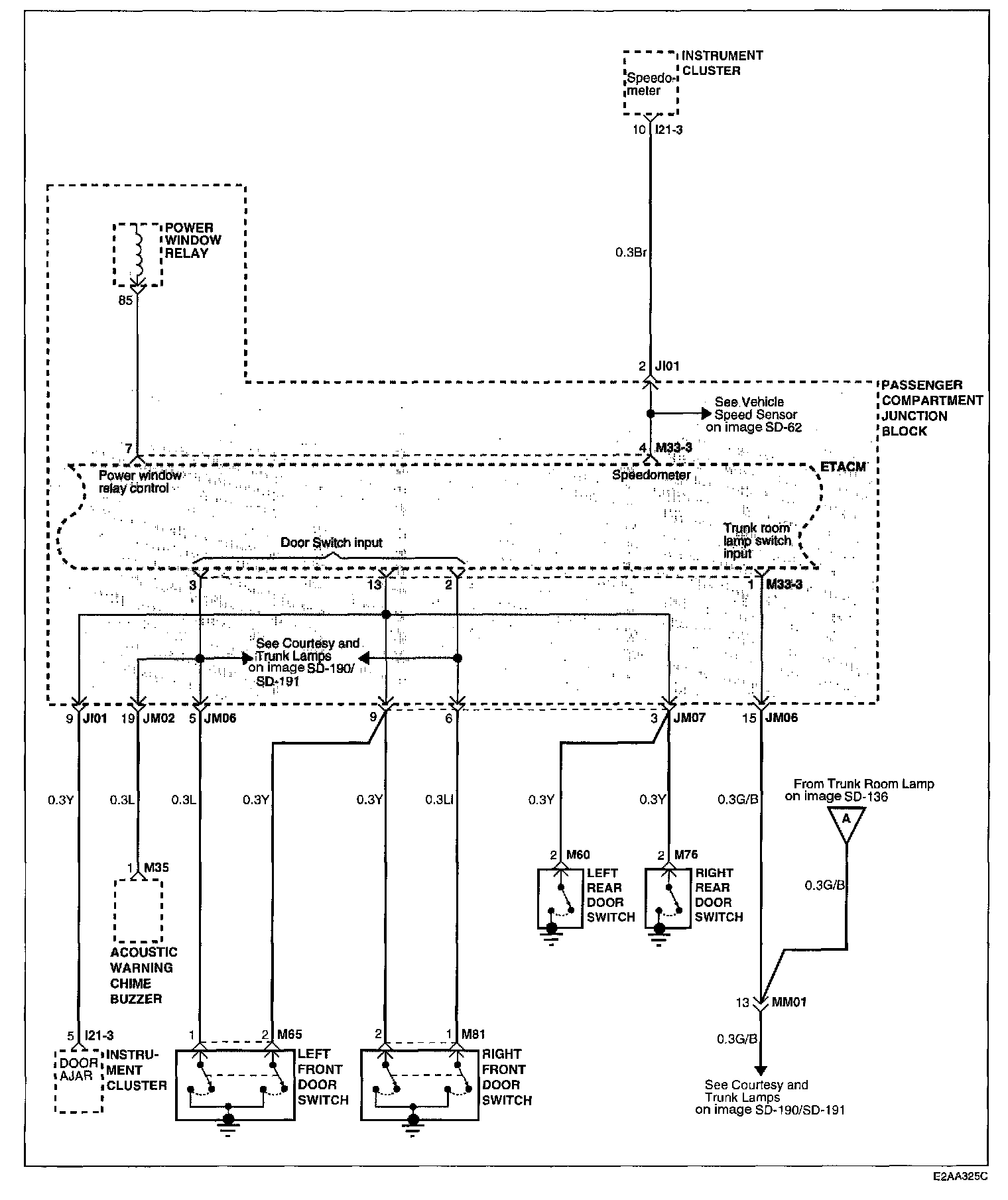

Image SD-135:

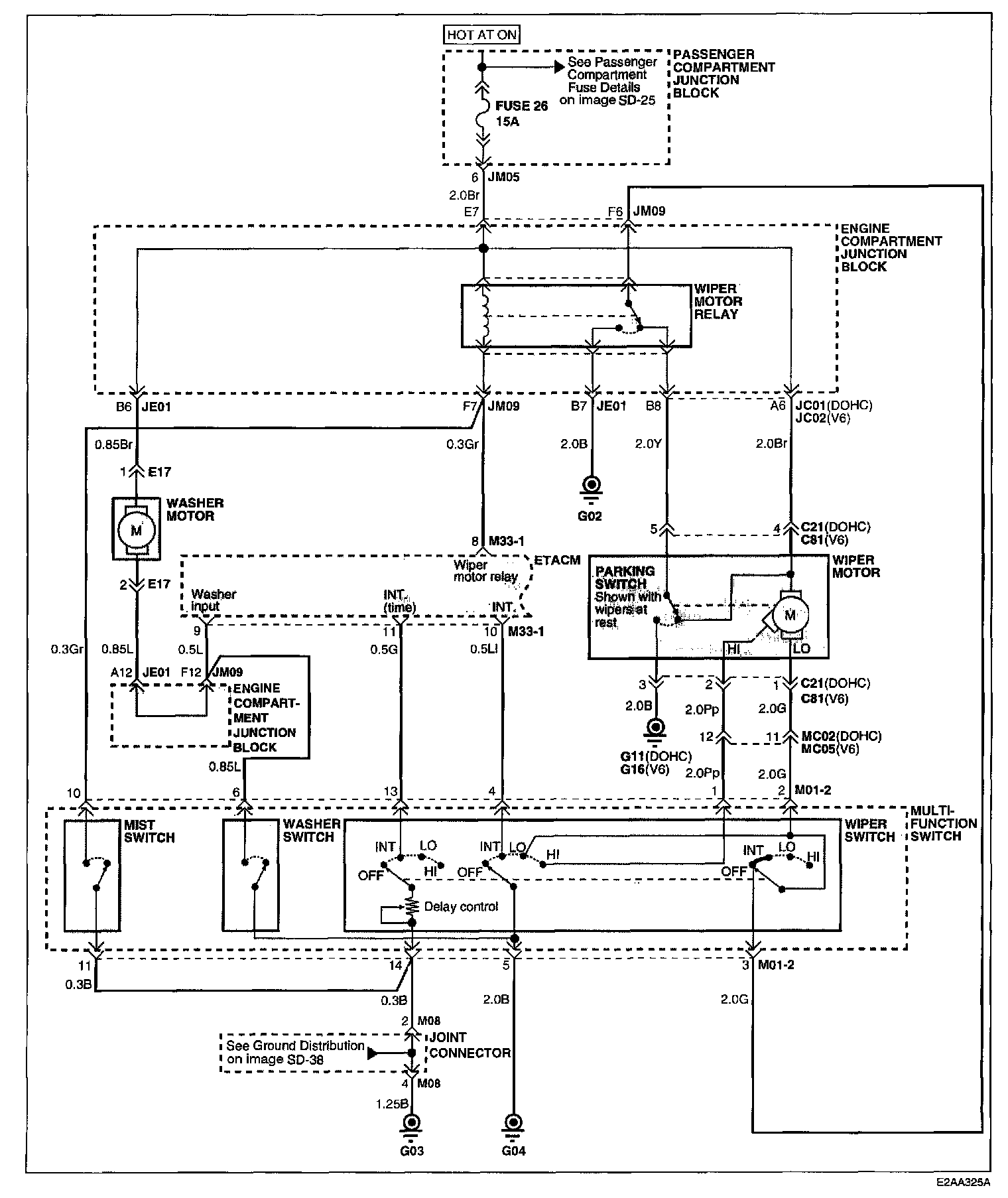

Image SD-136:

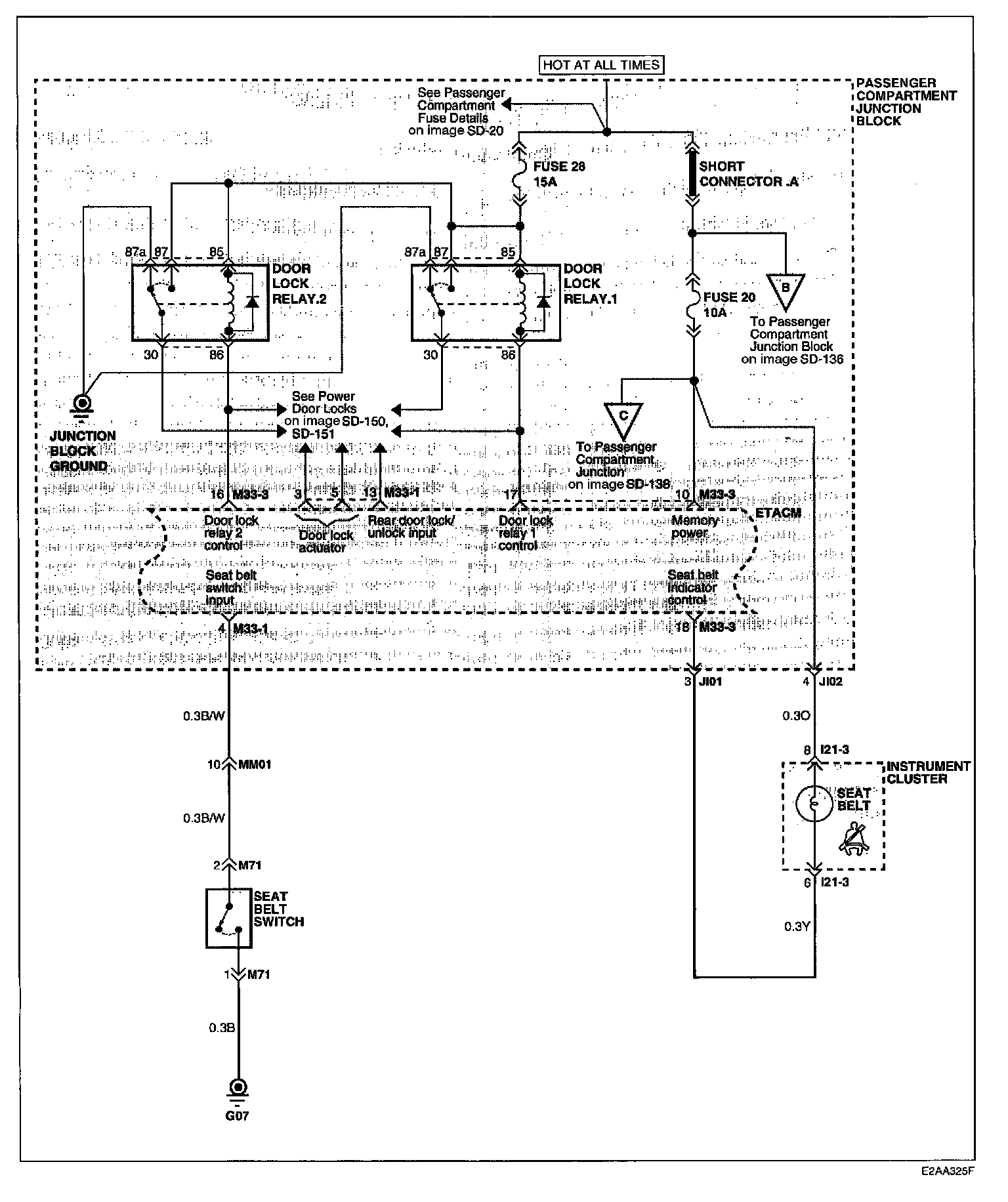

Image SD-137:

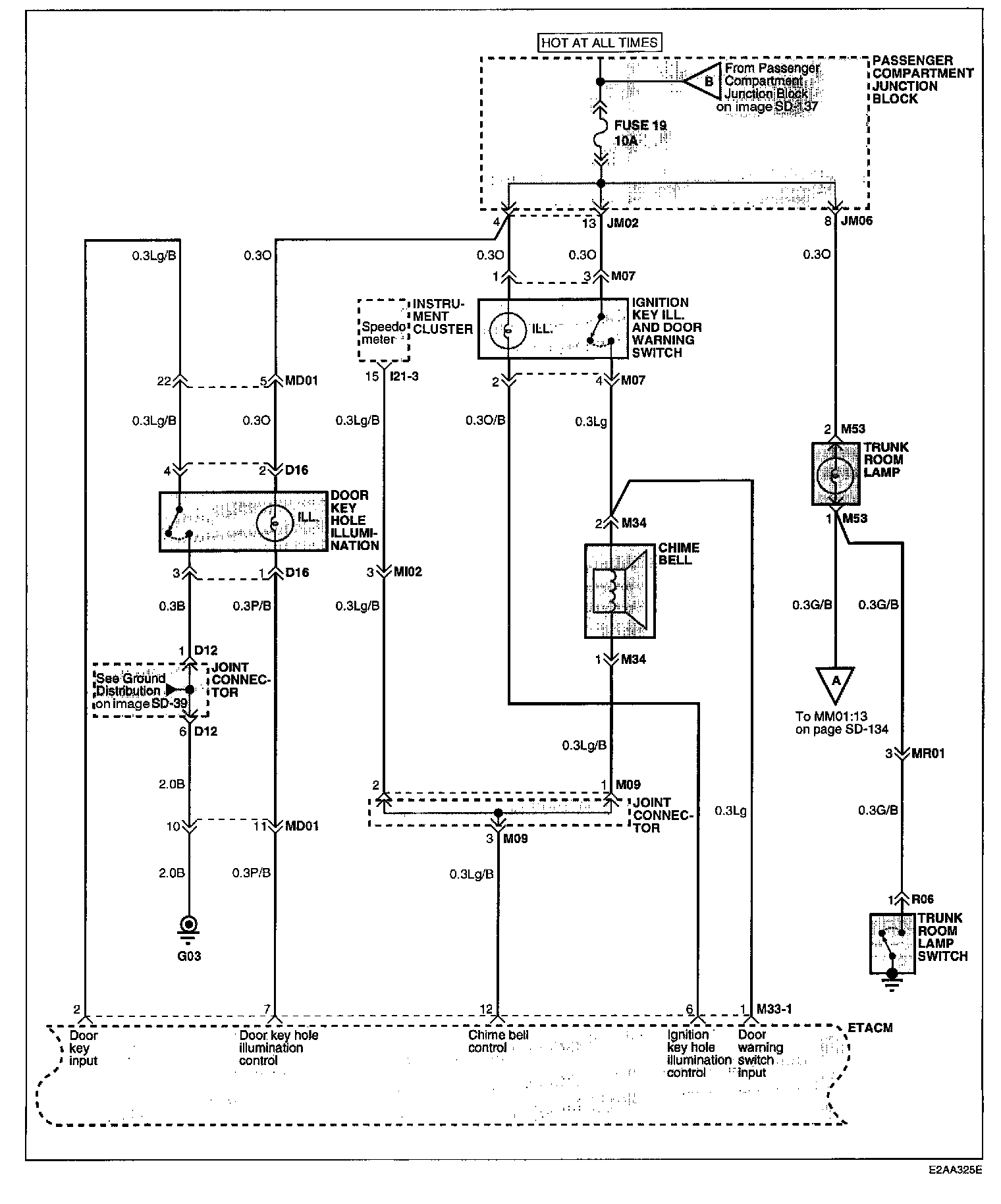

Image SD-138:

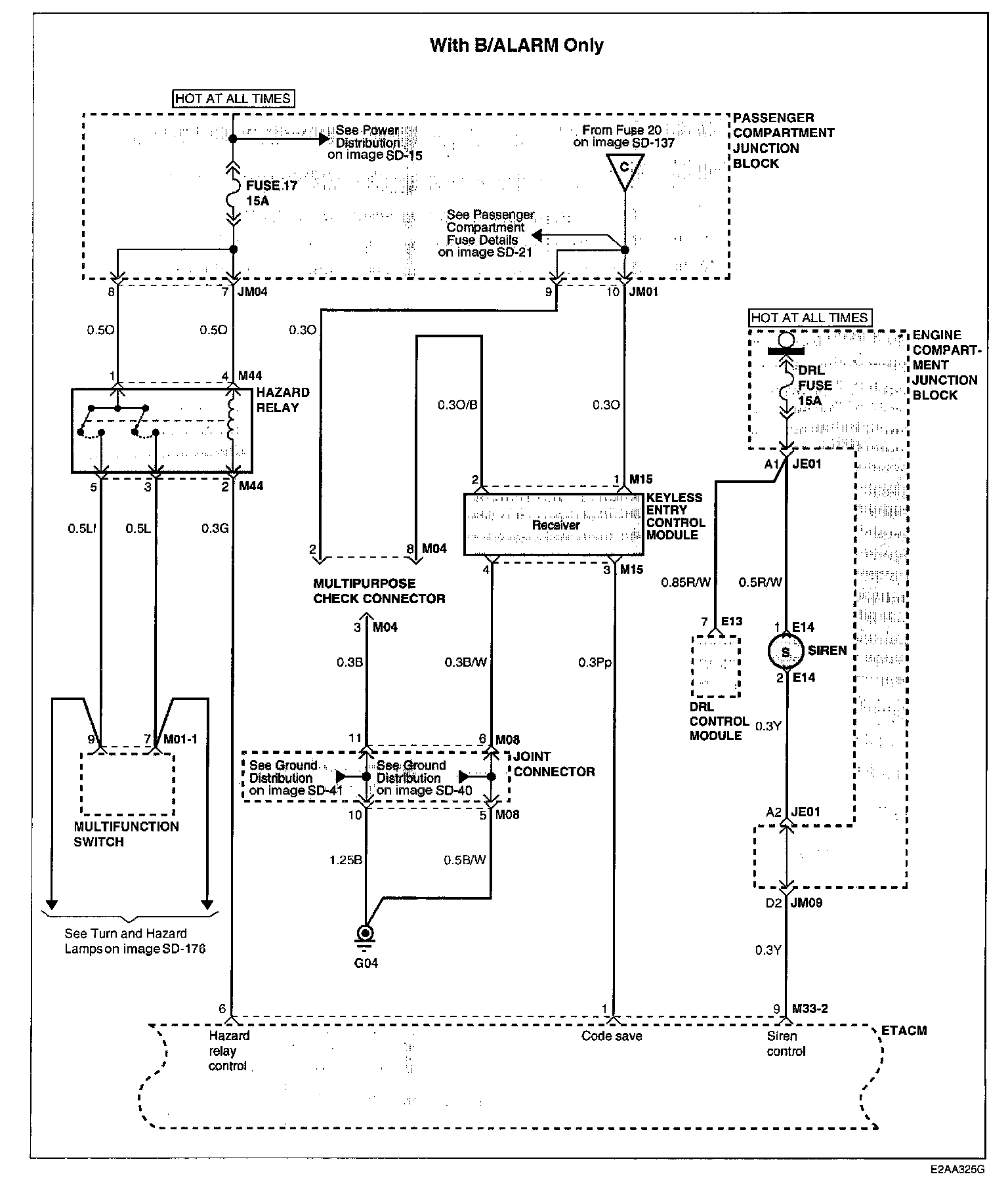

Image SD-139:
Schematic Diagrams
Connector Configurations Are Found In The Diagram Section Of The Vehicle. Diagrams
Connector Locations Are Found In The Locations Section Of Vehicle.
Locations
