Transaxle Range Switch & Control Cable

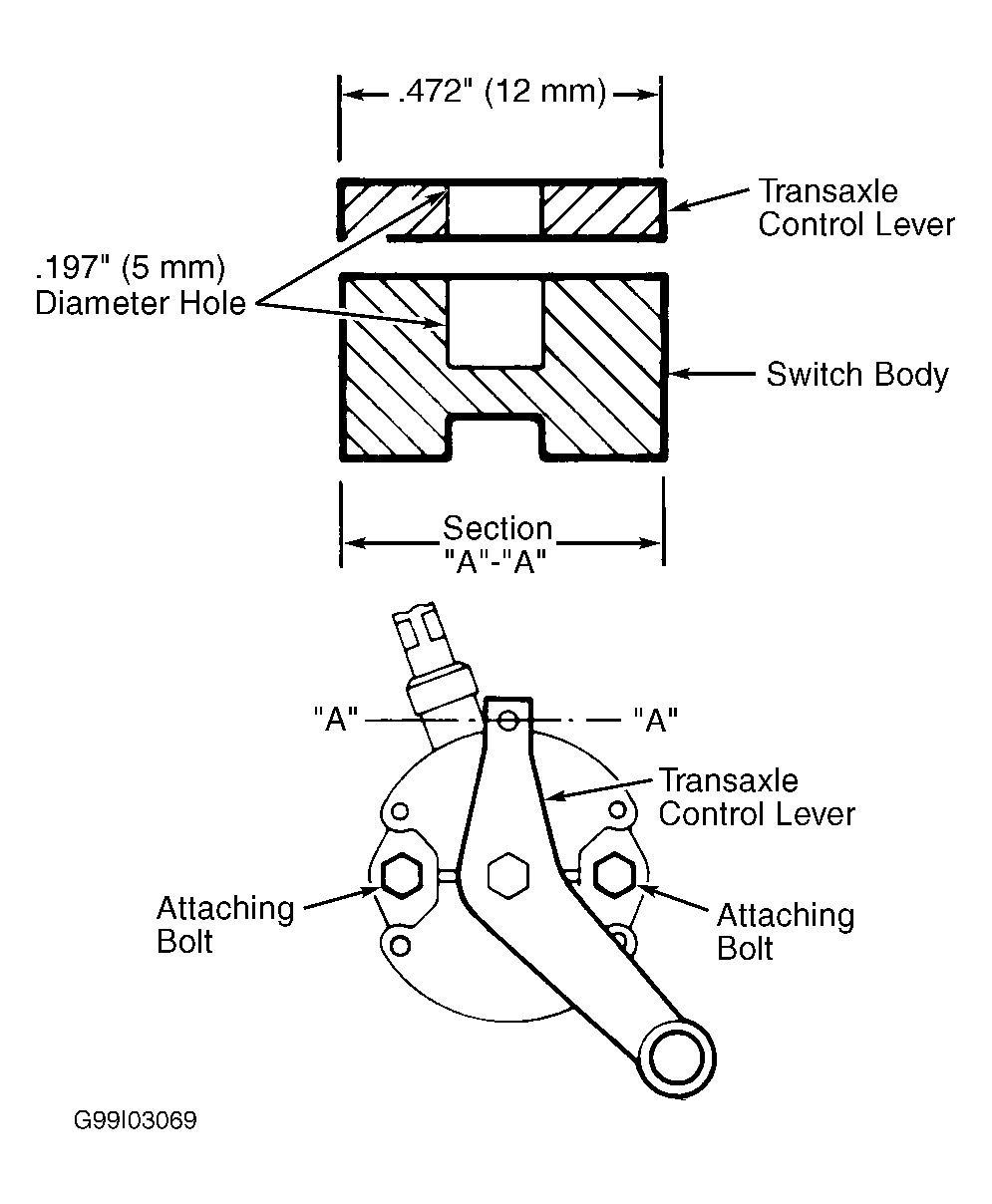

- Place gearshift lever in "N" position. Loosen control cable adjusting nuts at transaxle control lever, to allow slack in control cable. Loosen transaxle range switch bolts, and turn switch until .472" (12.00 mm) wide end of control lever aligns with .472" (12.00 mm) flange on switch body, or until .197" (5.00 mm) diameter hole in lever and switch line up. See Fig 1
.
- Tighten transaxle range switch bolts to specification. See TORQUE SPECIFICATIONS
. Ensure transaxle control lever and gearshift lever handle are both in "N" position. Adjust cable adjusting nuts to remove slack in control cable. Ensure gearshift lever operates smoothly. Drive vehicle to ensure transaxle shifts into each gear position selected.
