Electrical Diagrams

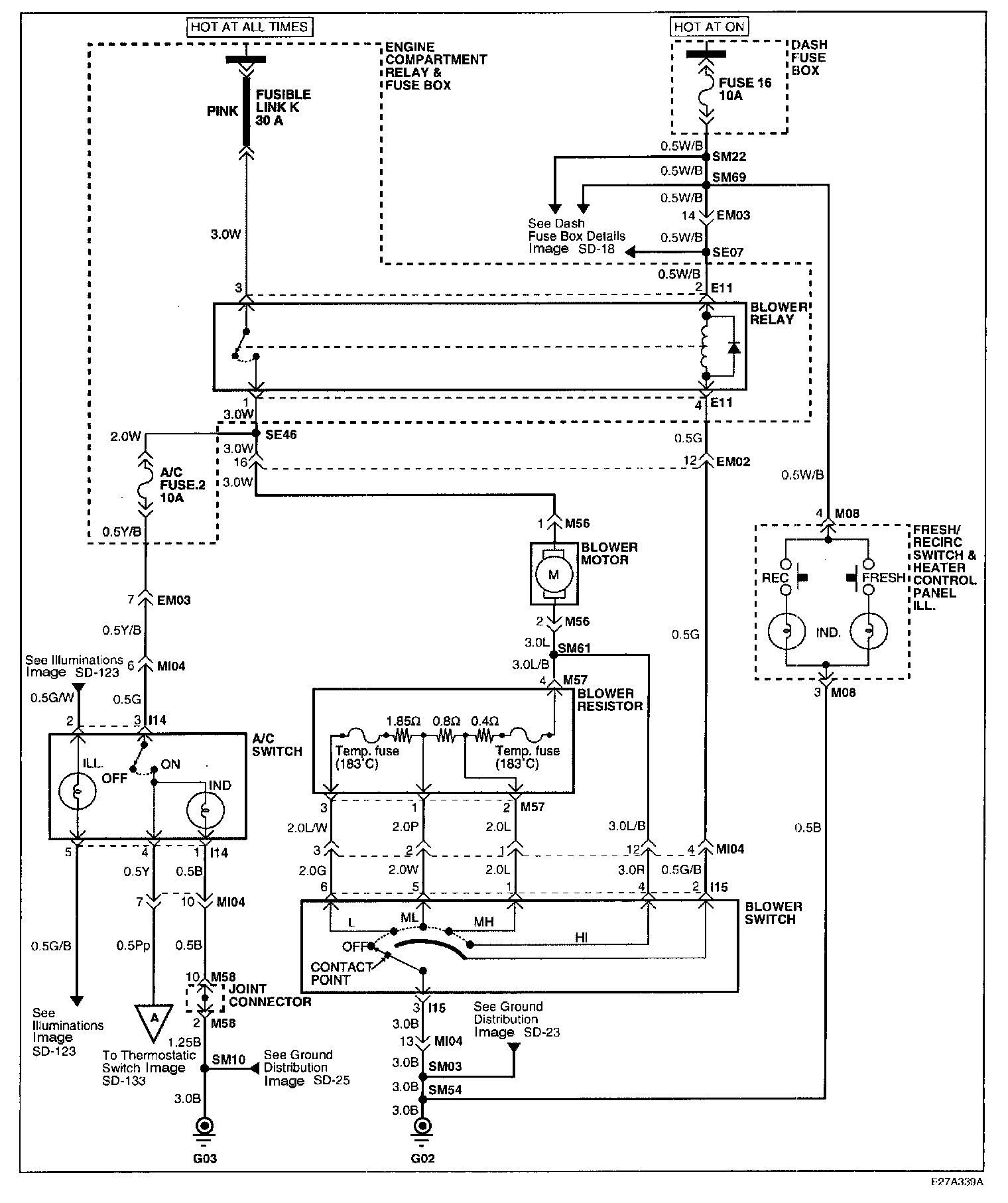

Image SD - 132:

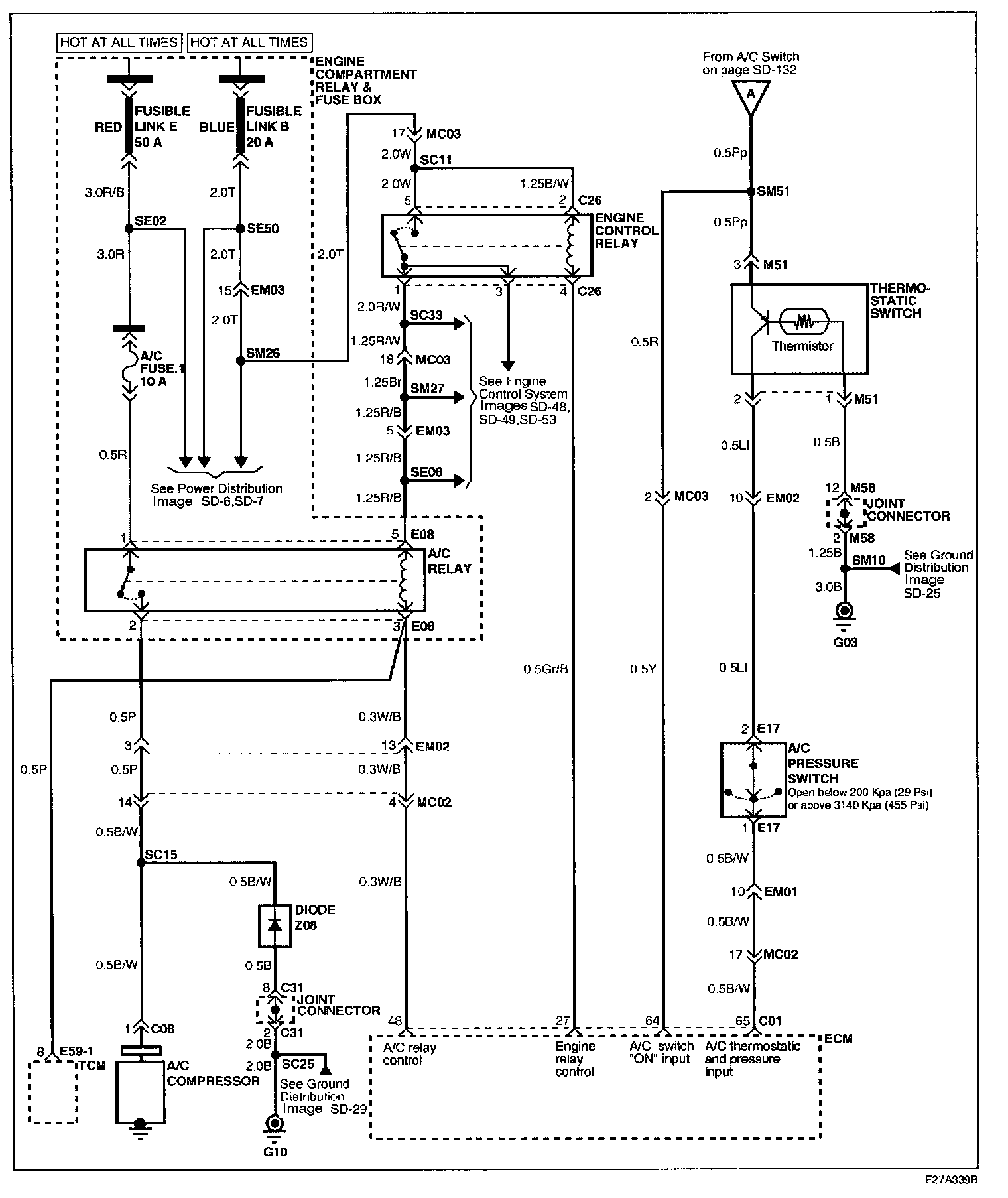

Image SD - 133:




Schematic Diagrams

Connector Configurations Are Found In The Diagram Section Of The Vehicle.

Connector Locations Are Found In The Locations Section Of Vehicle.
