Computers/Controls - OBDII DTC List

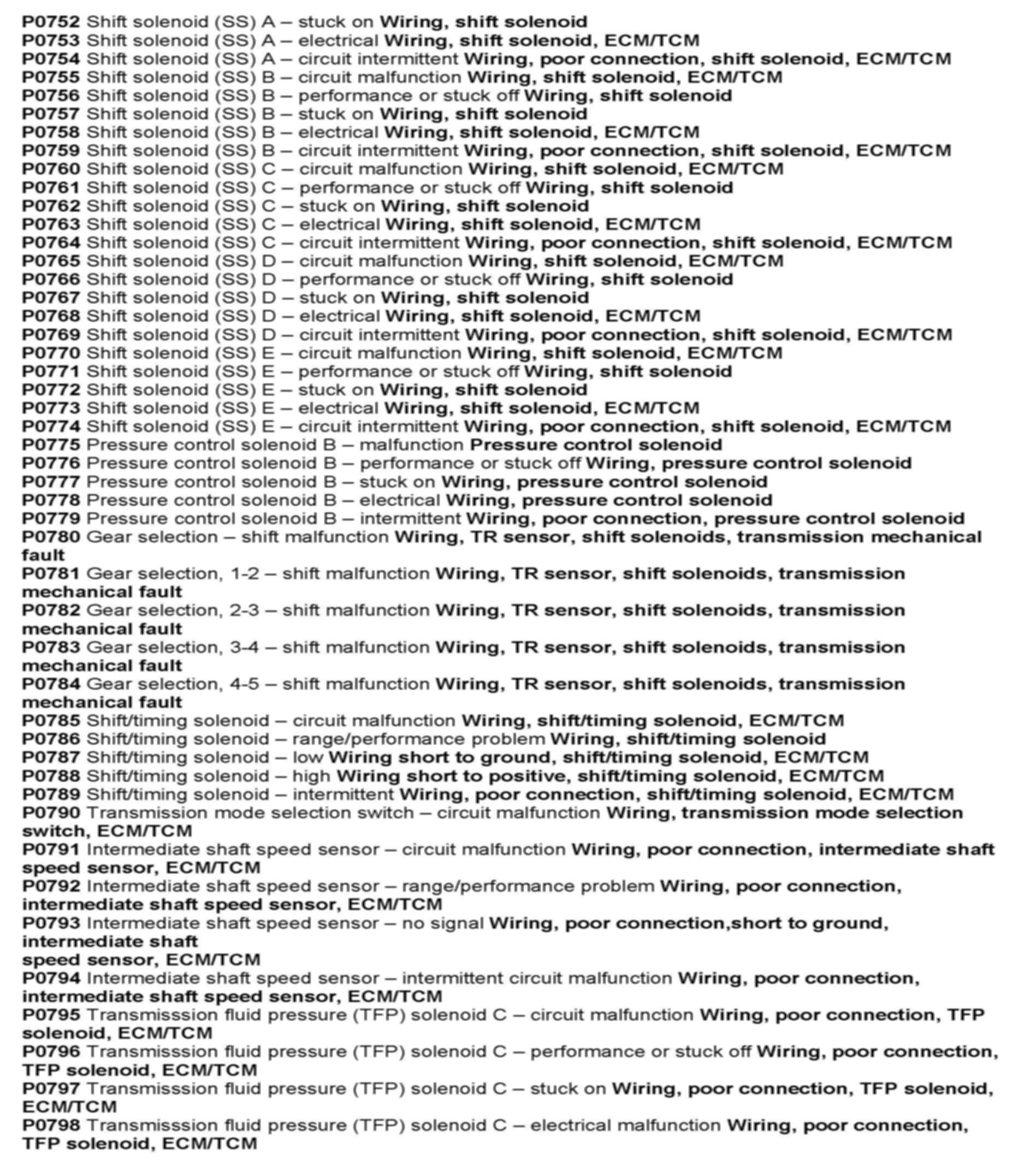

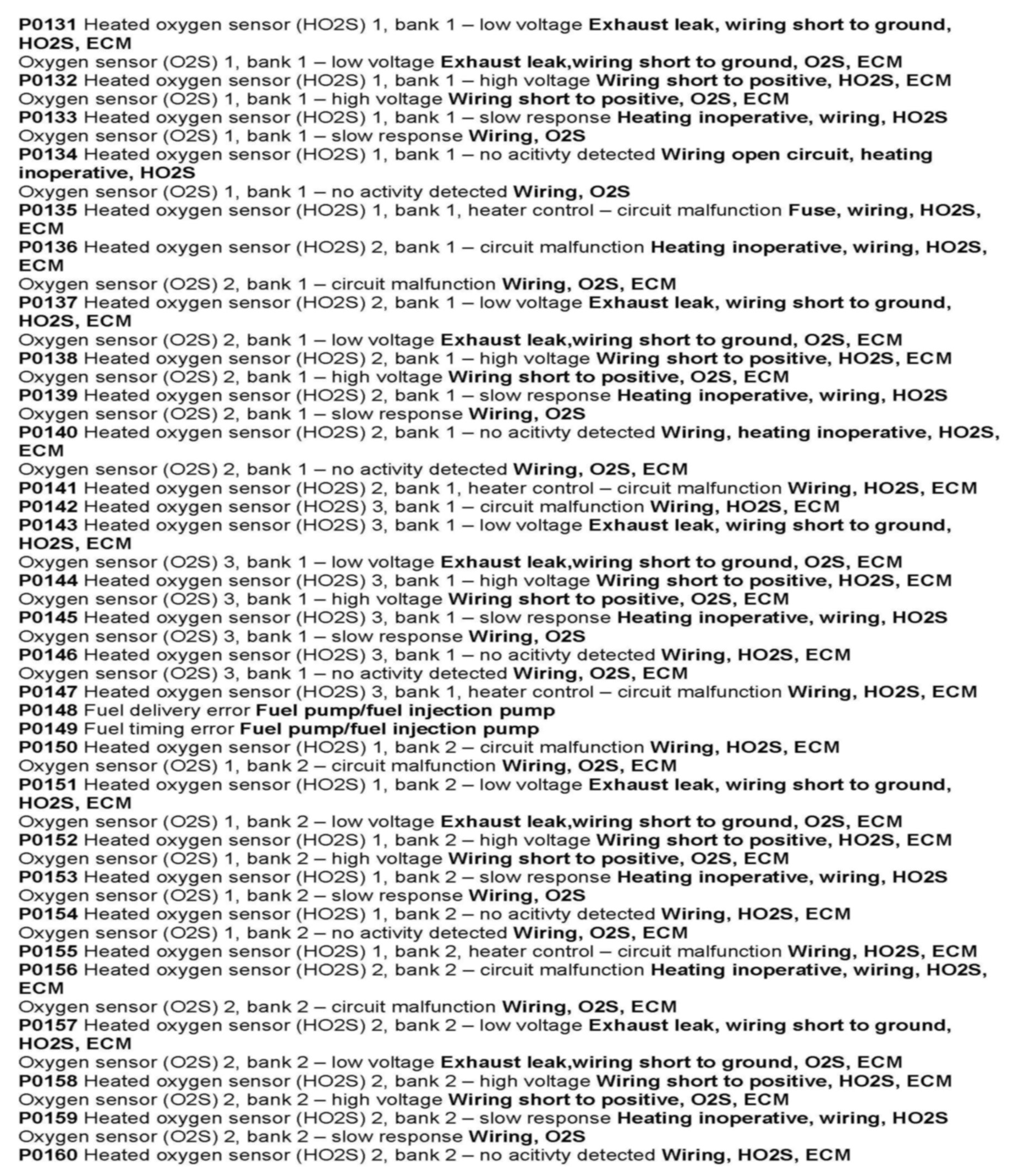

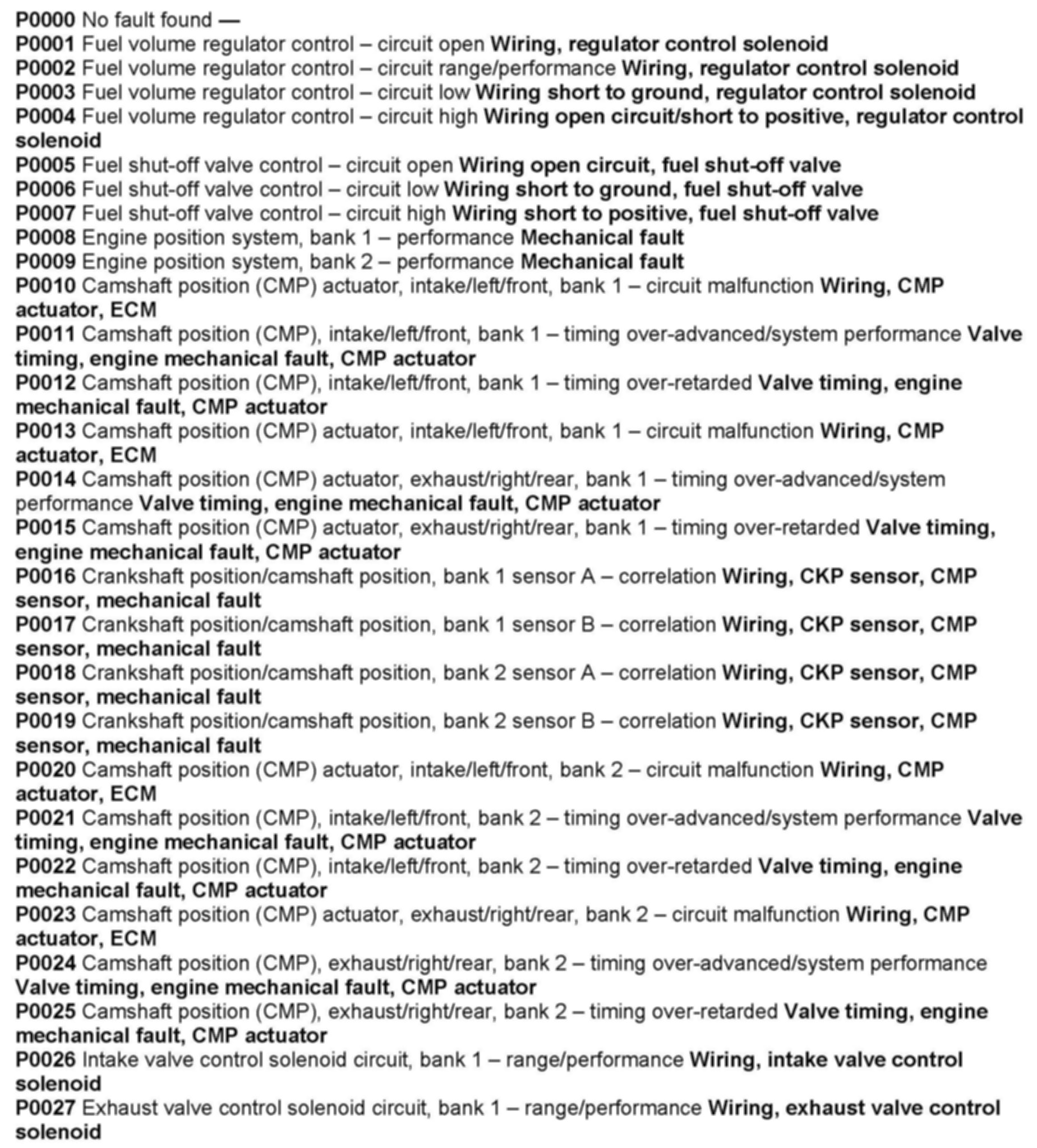

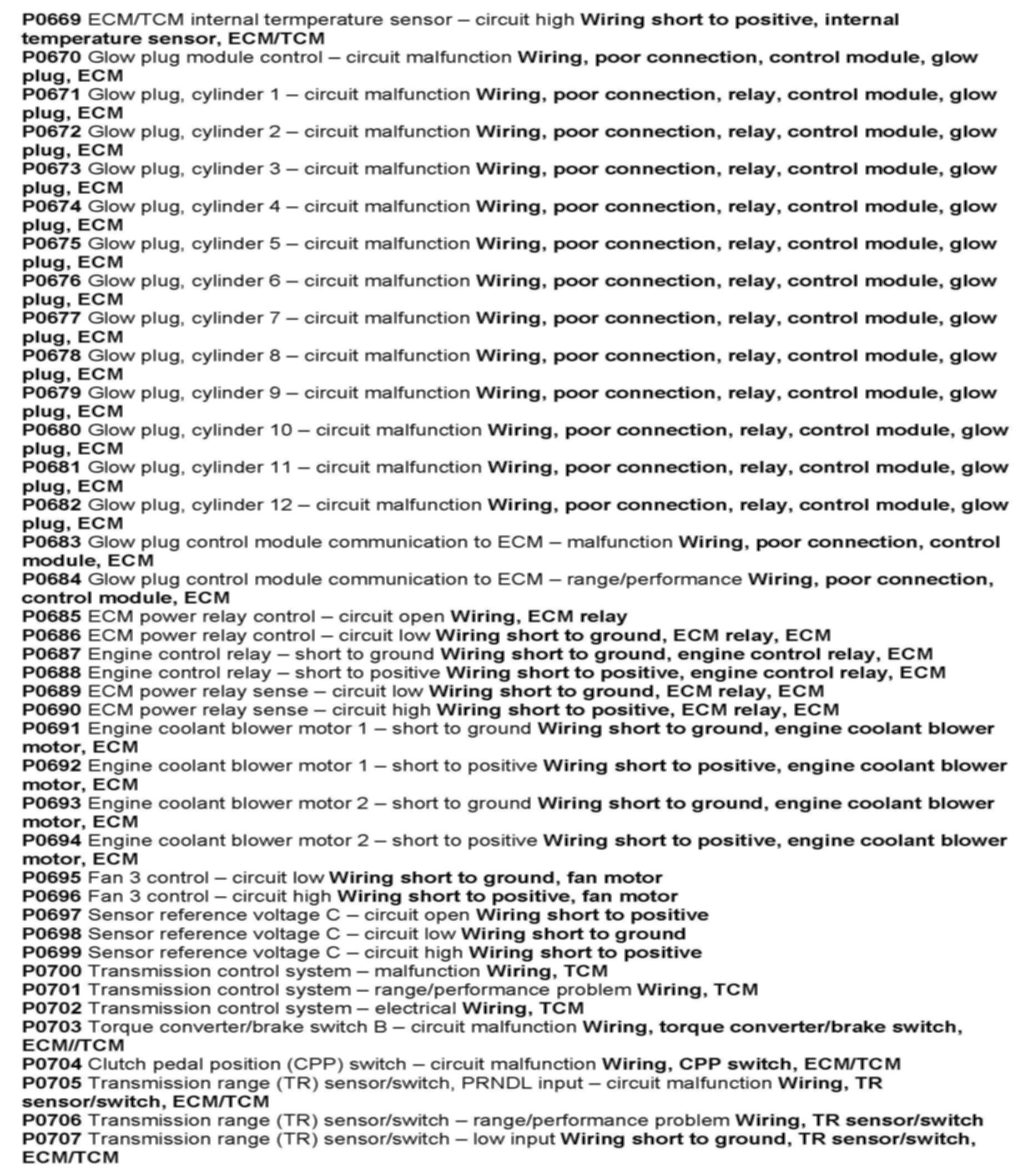

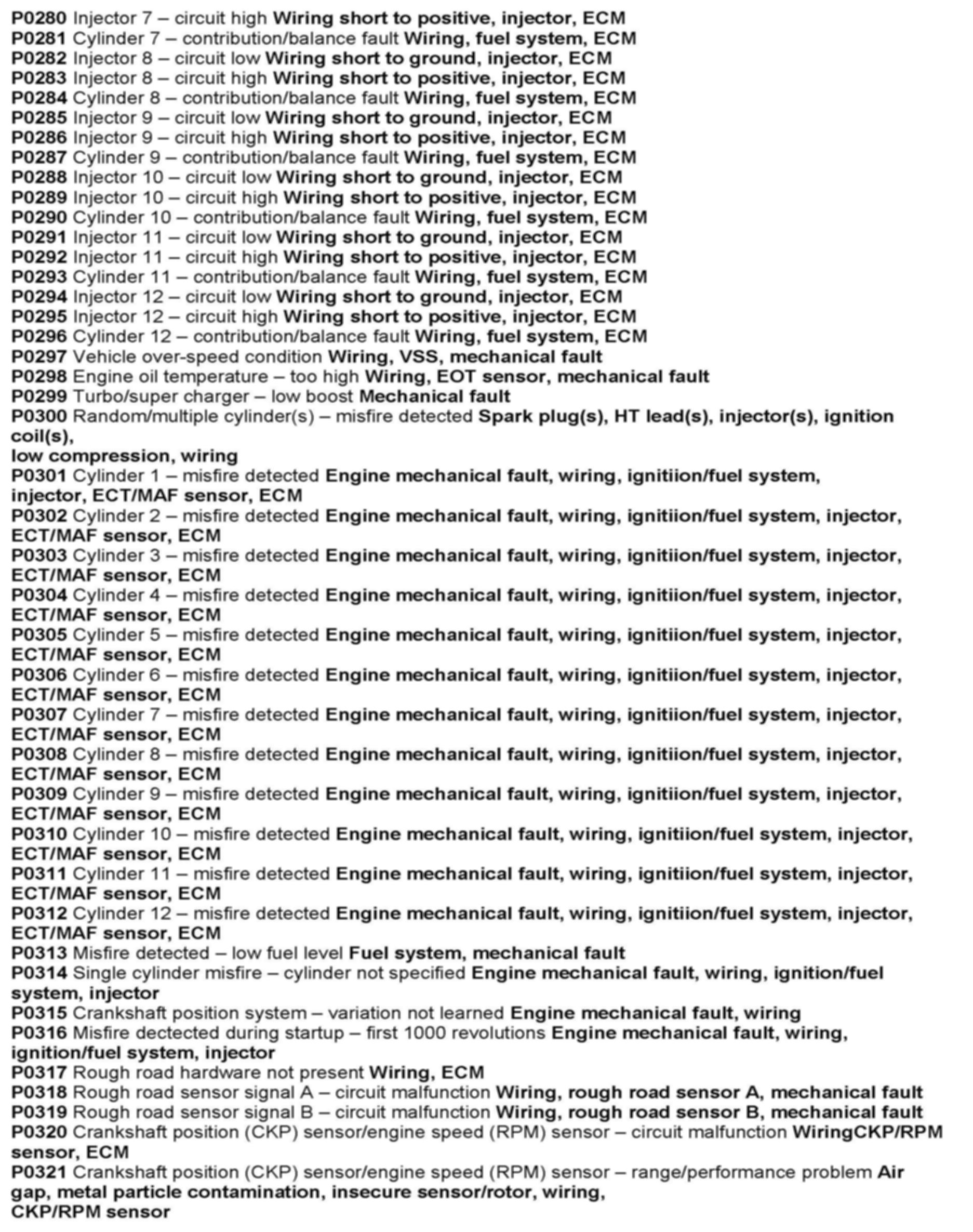

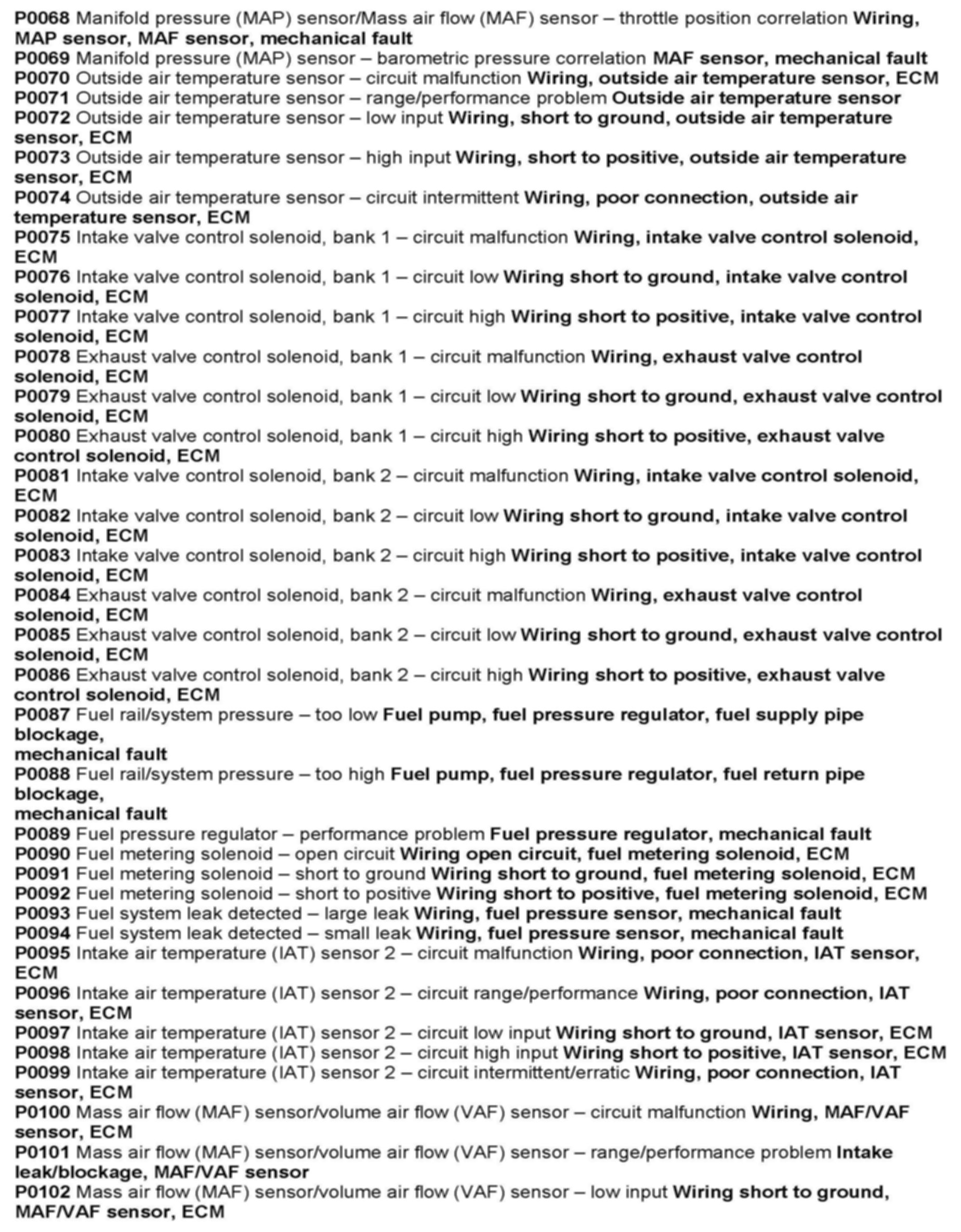

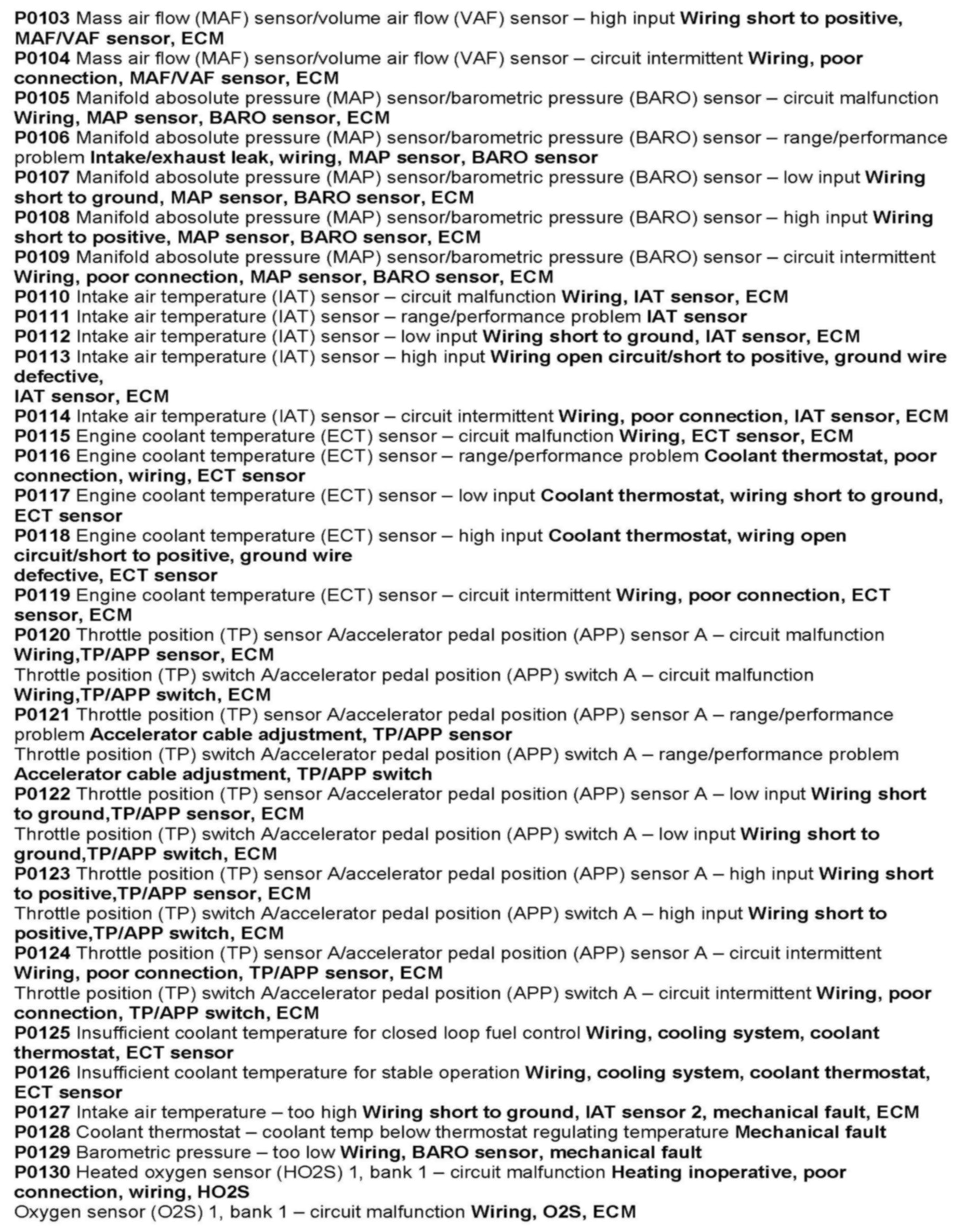

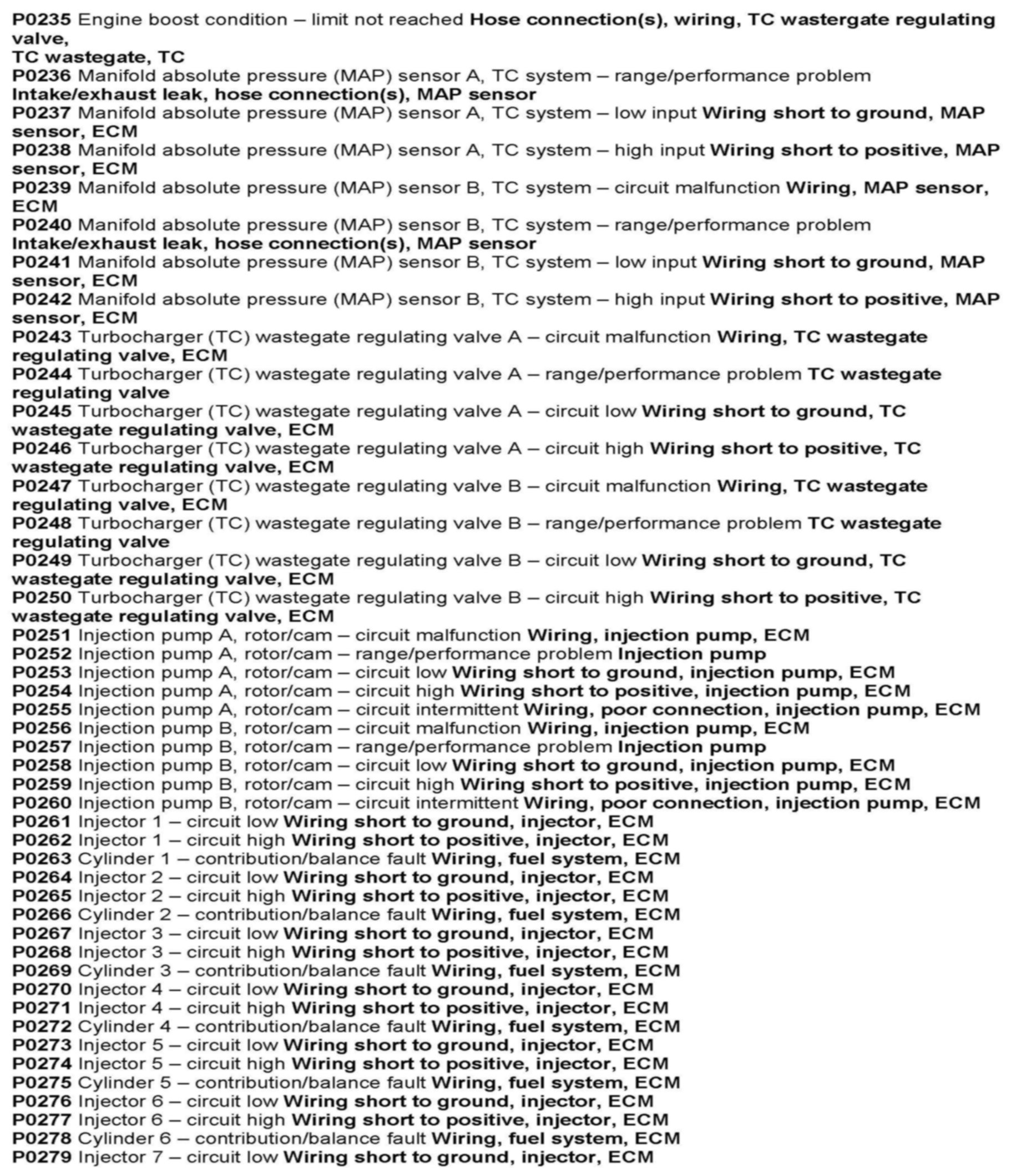

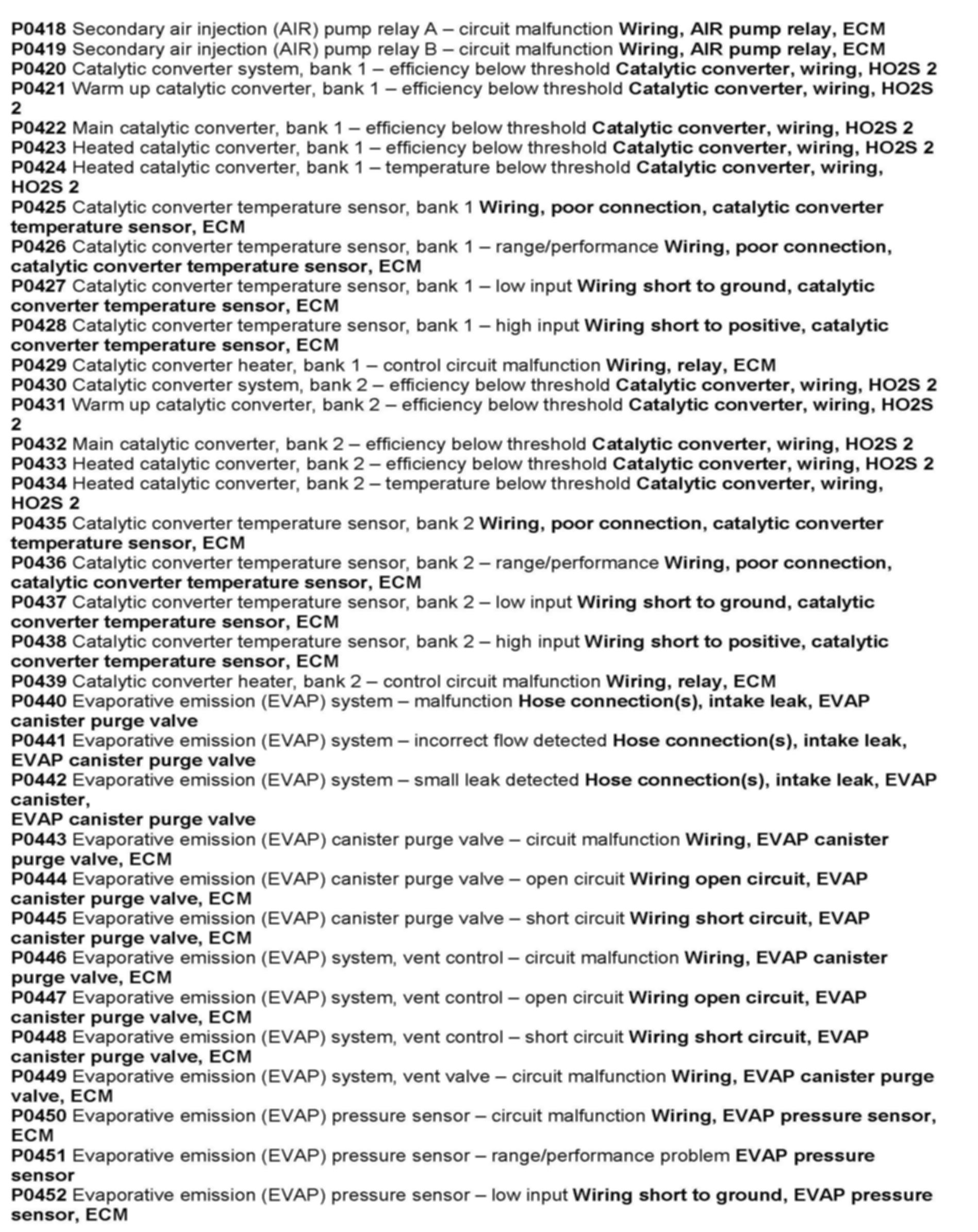

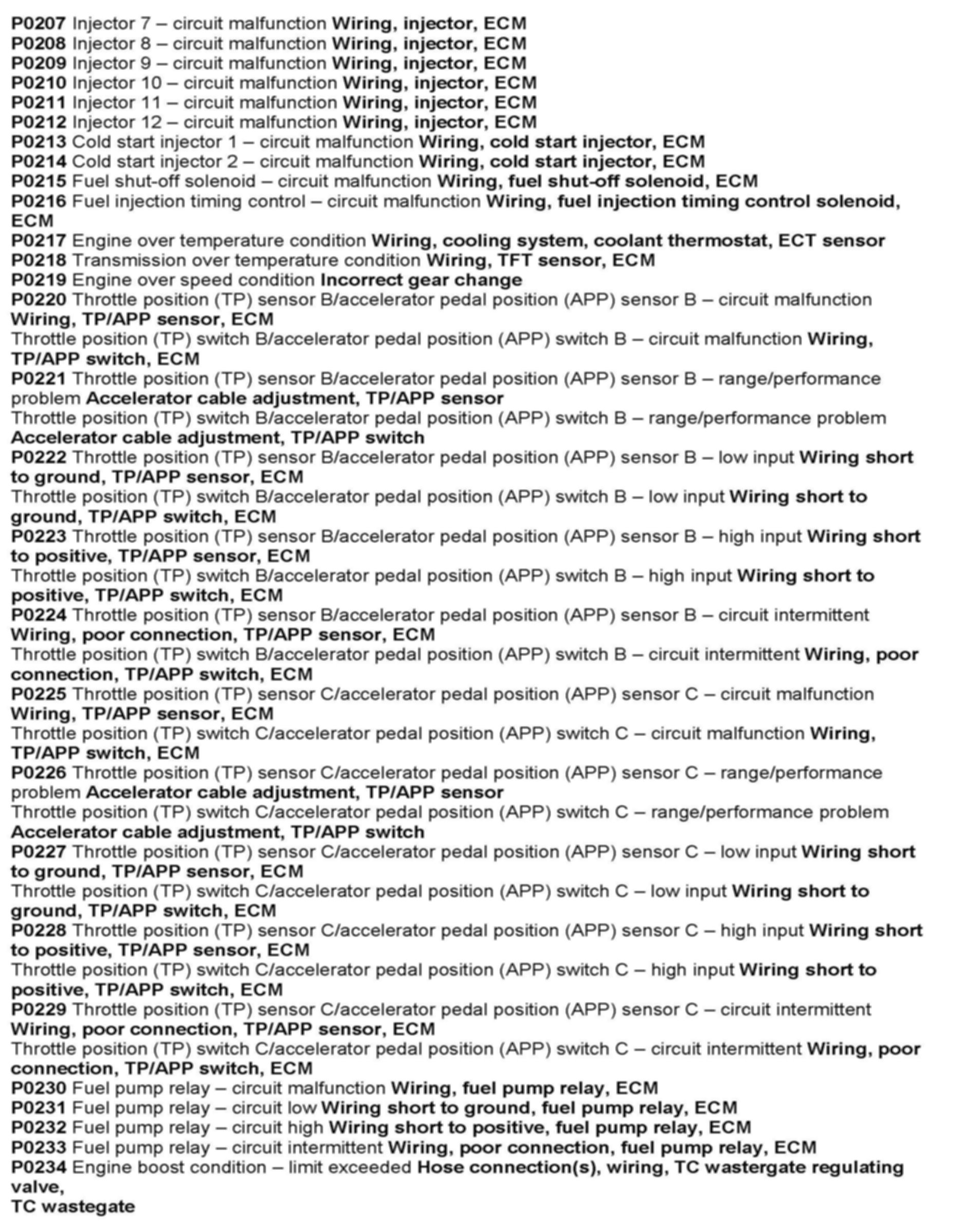

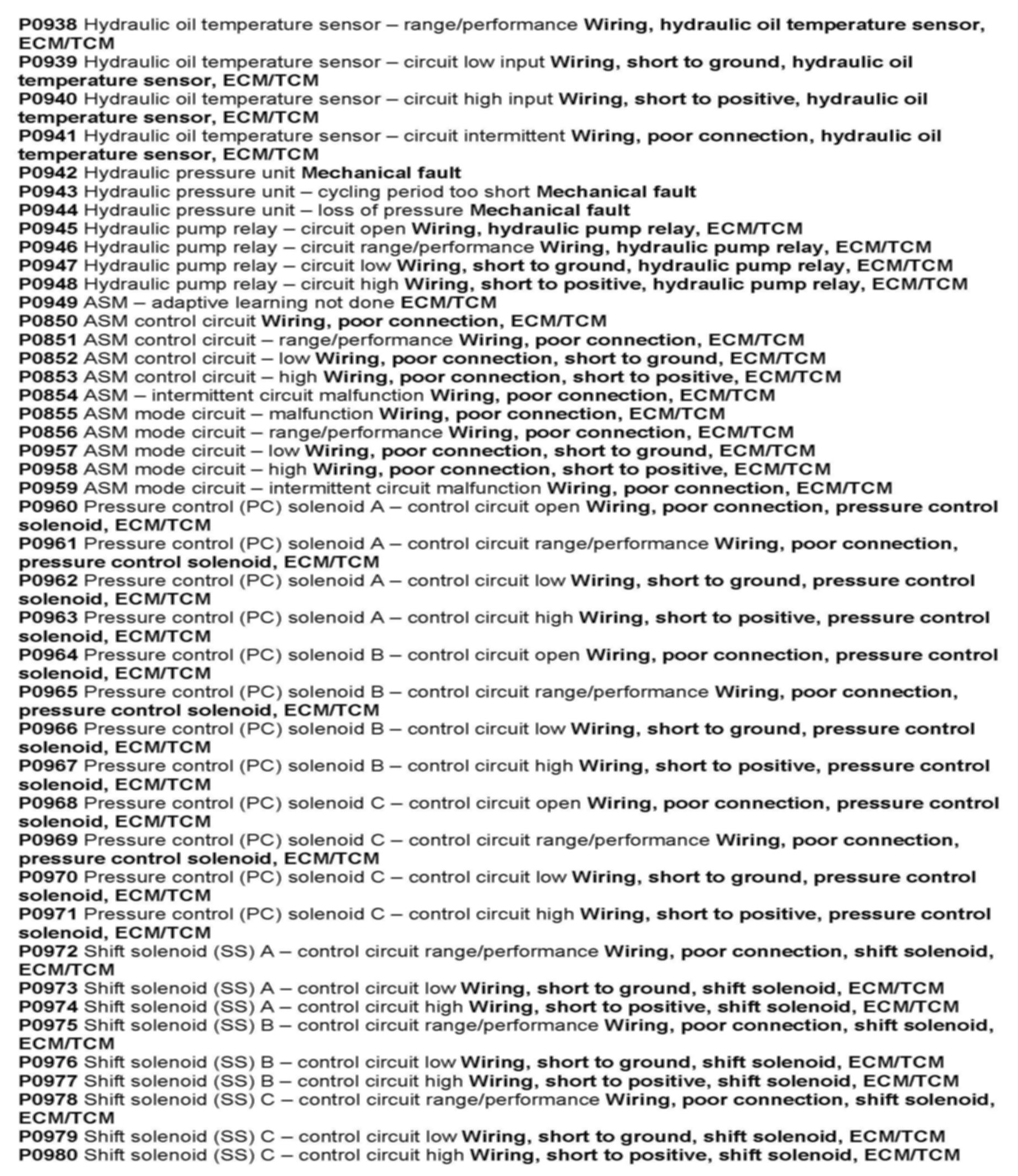

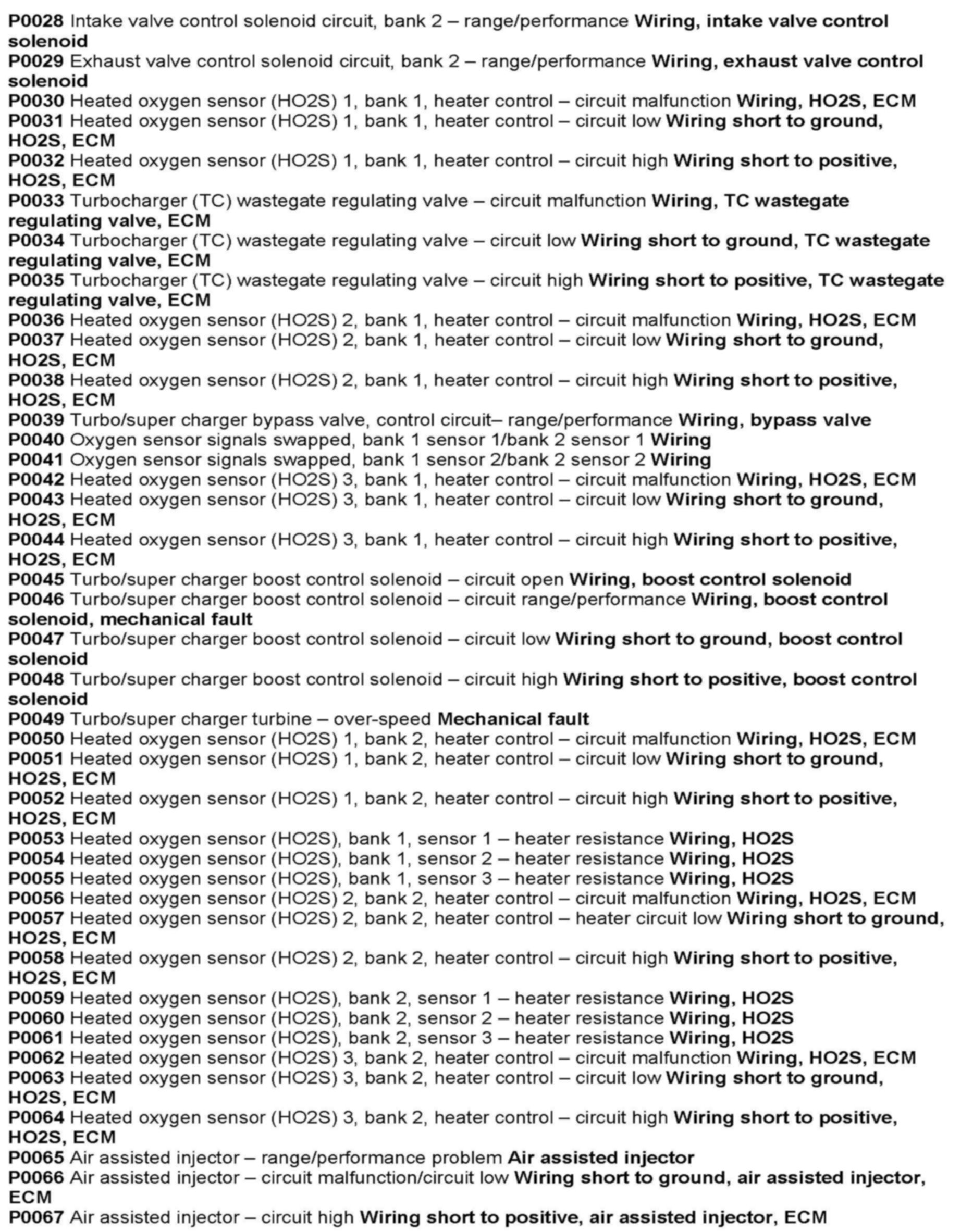

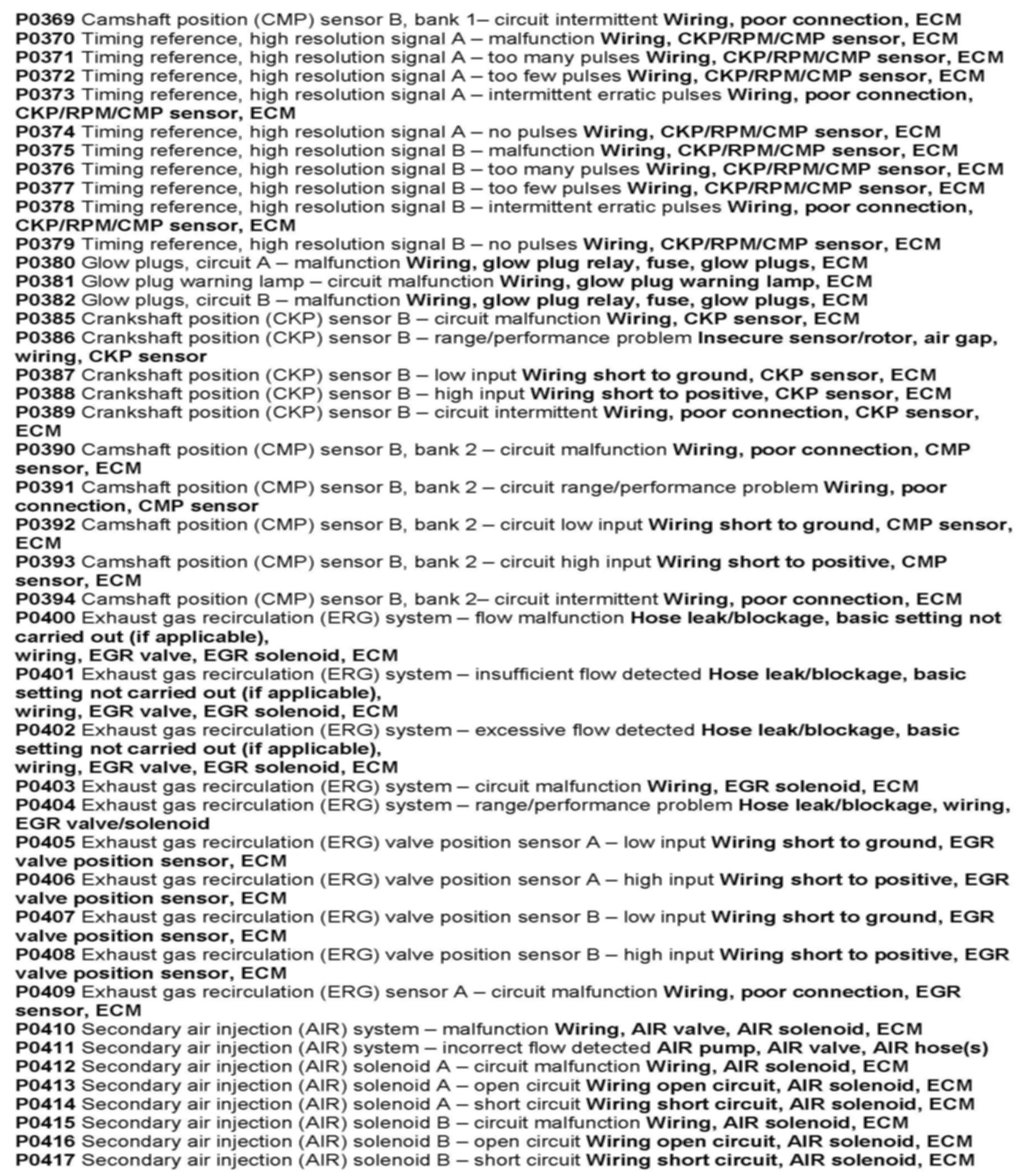

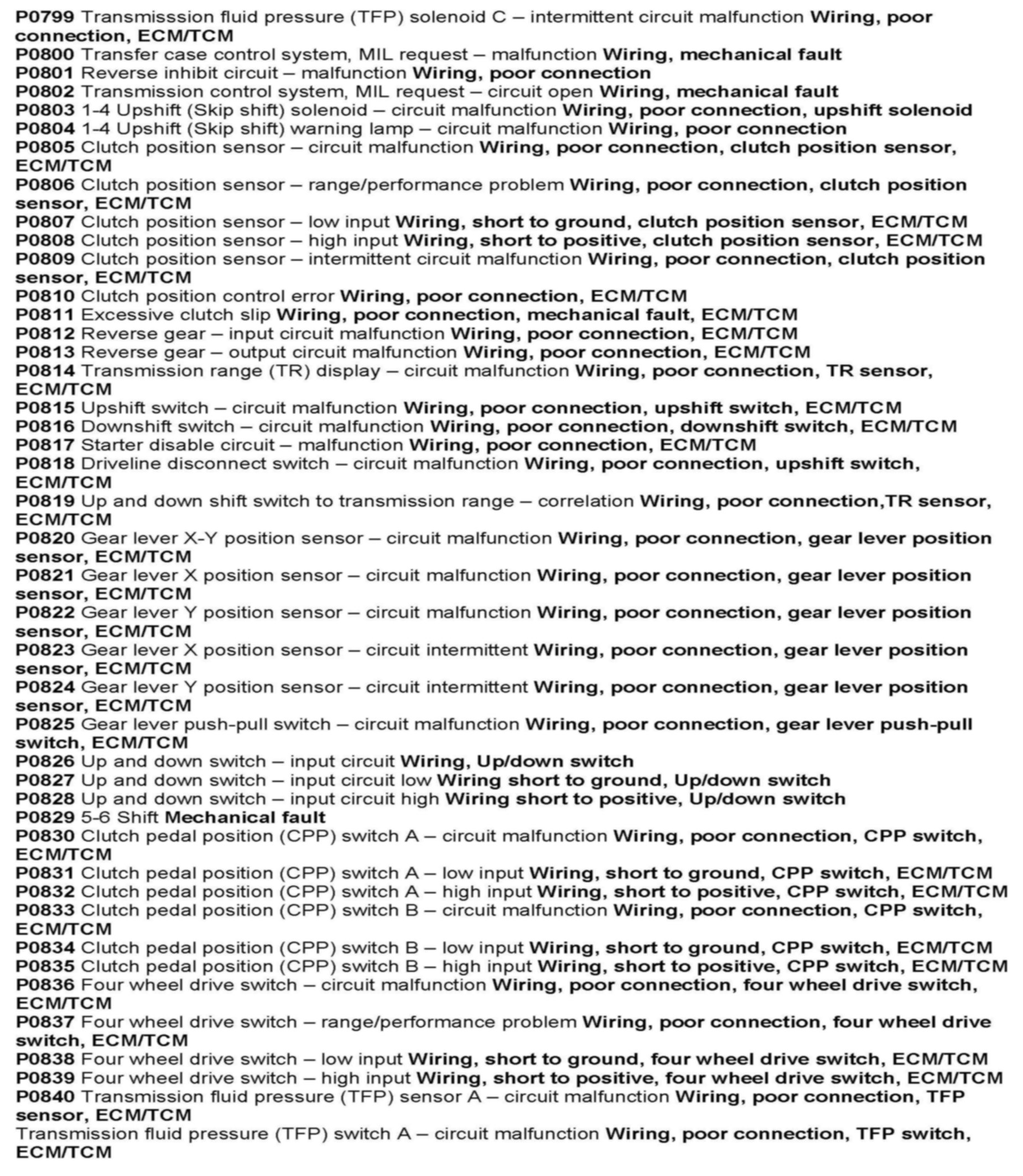

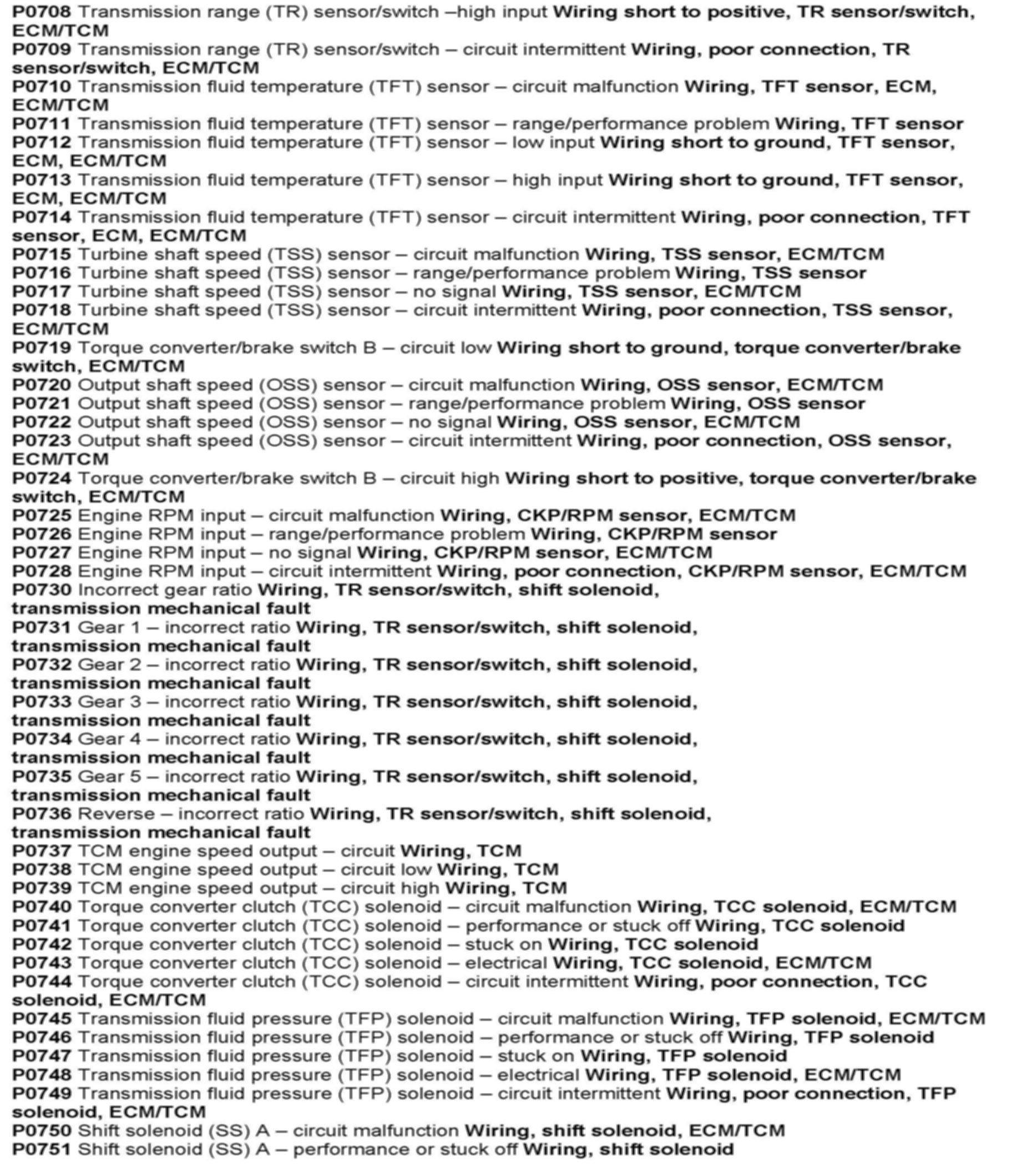

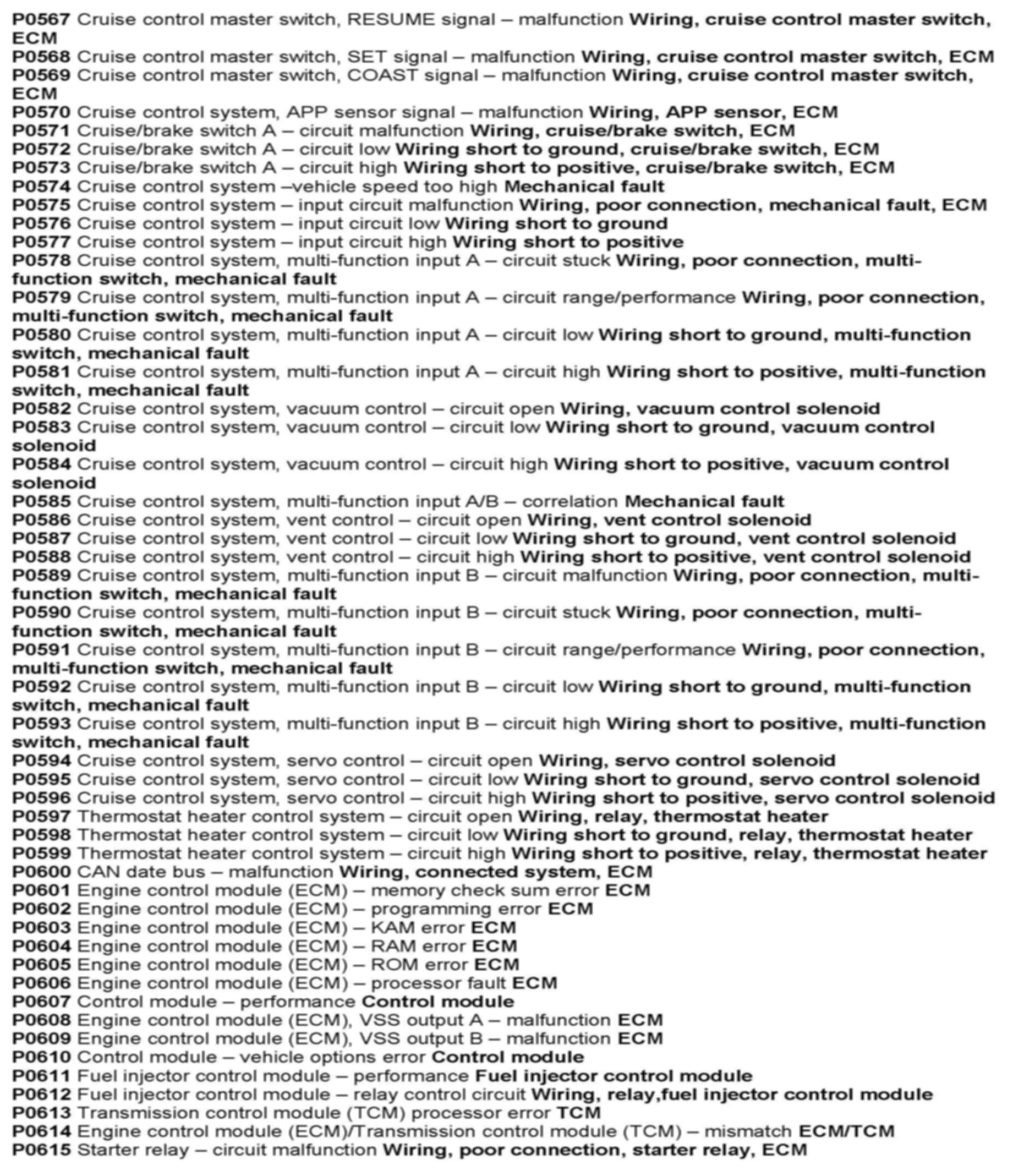

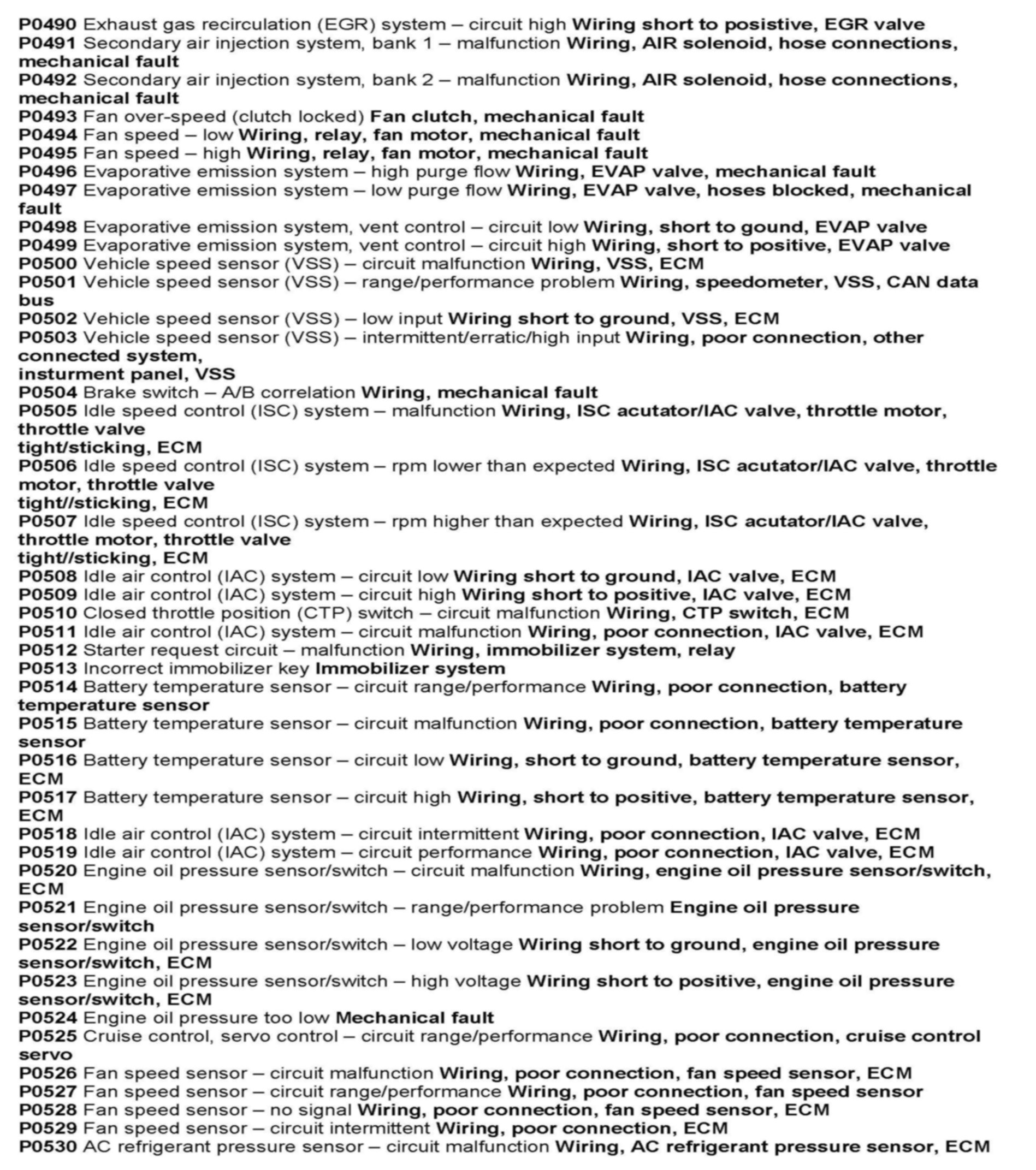

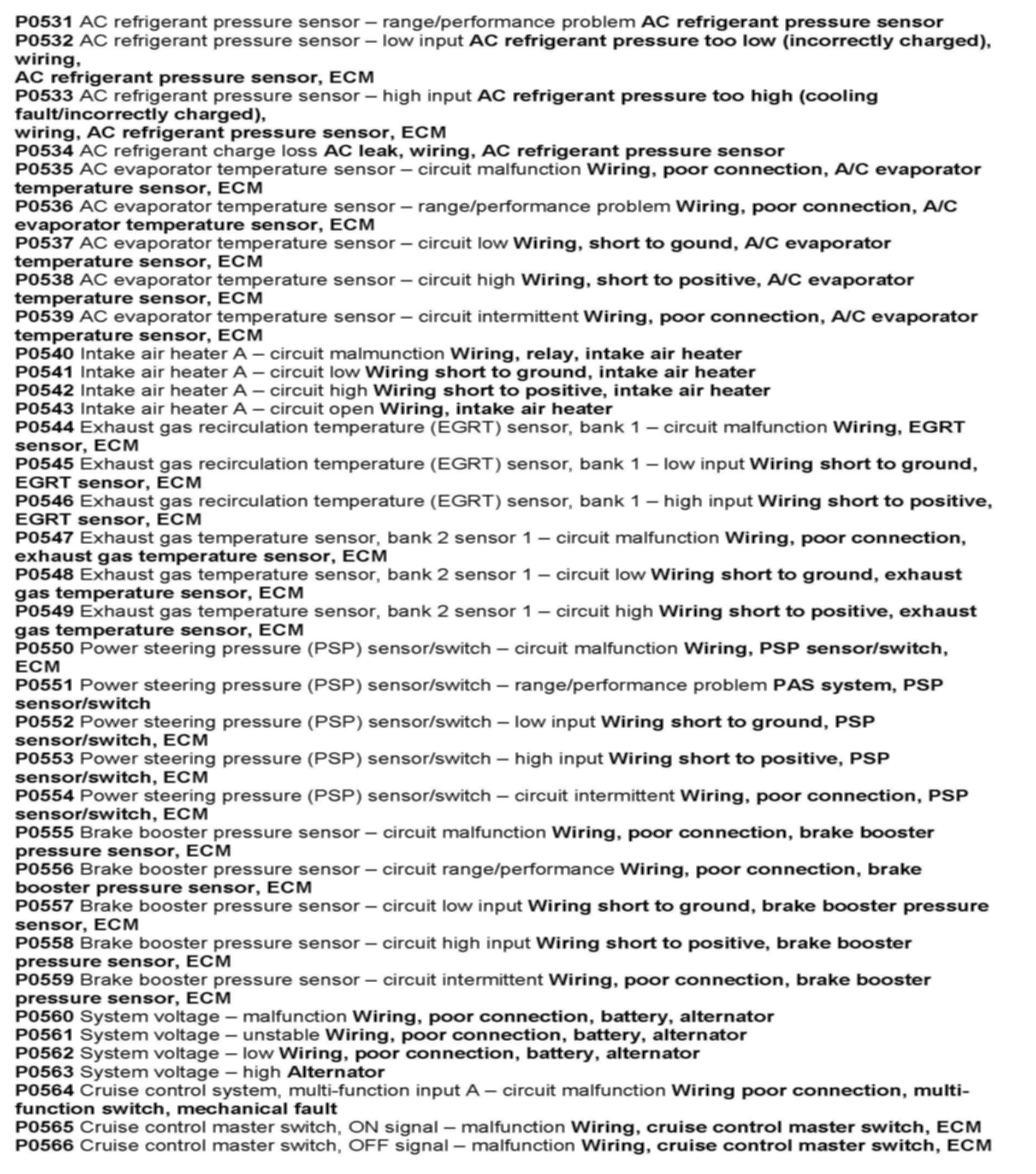

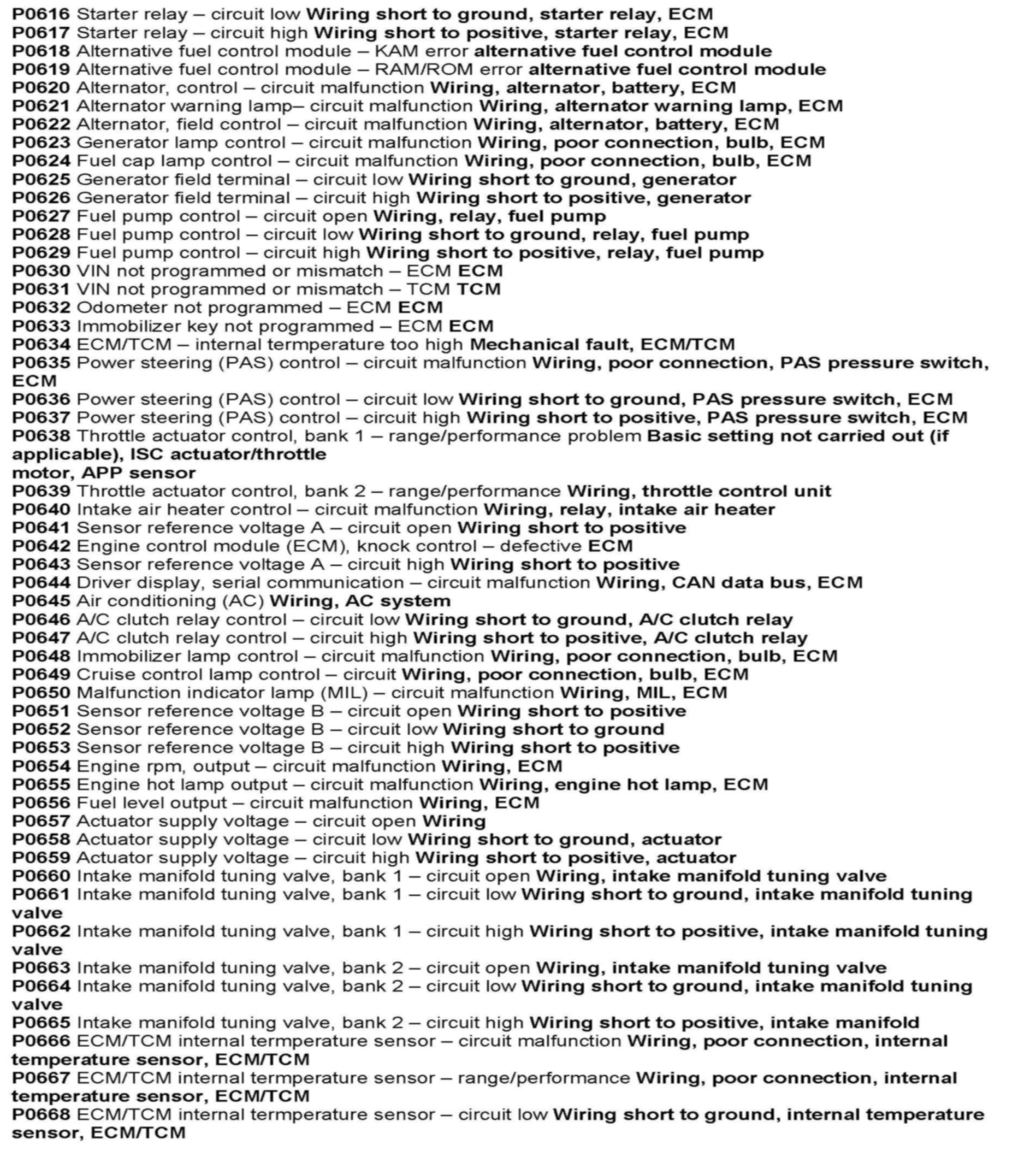

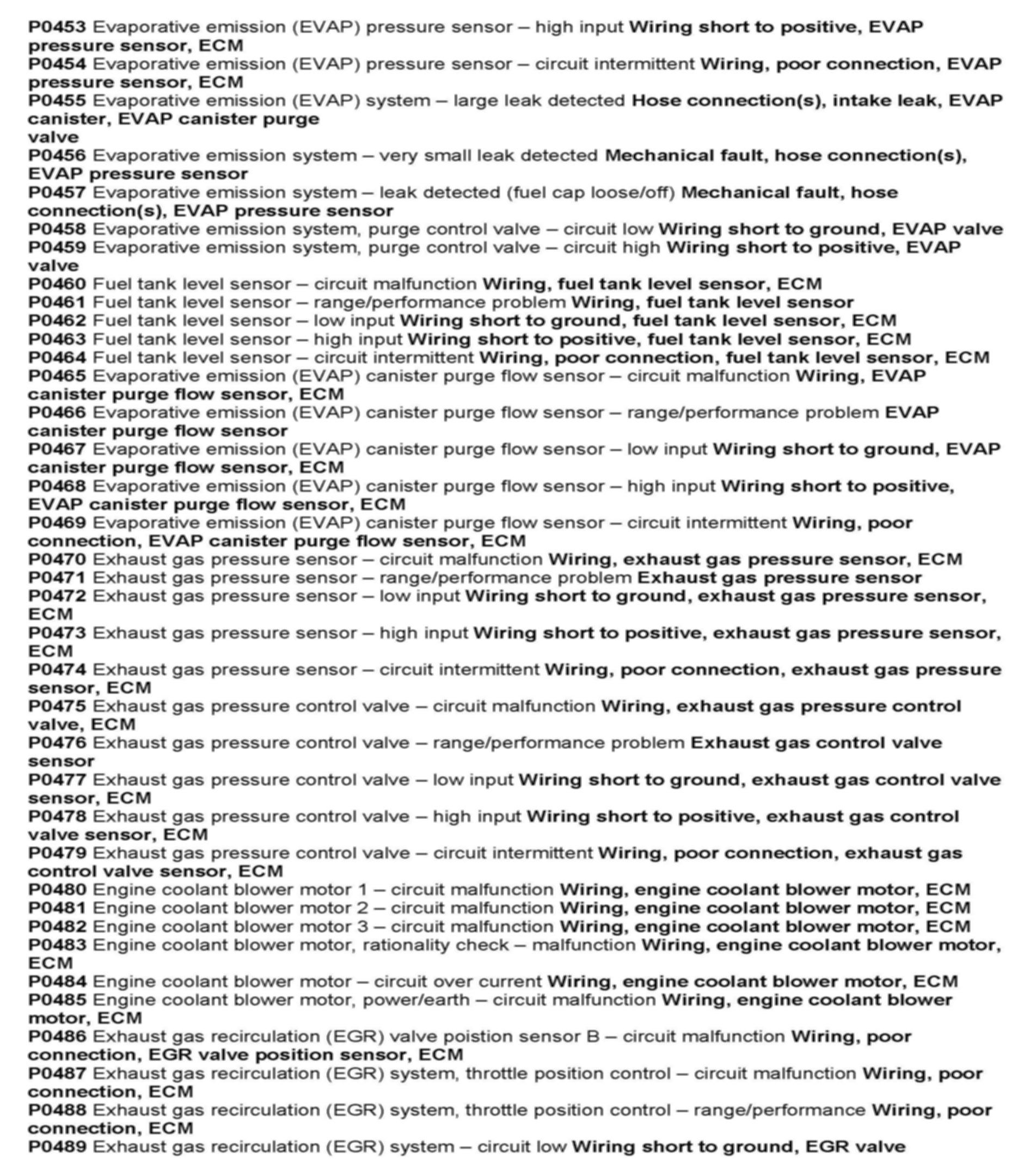

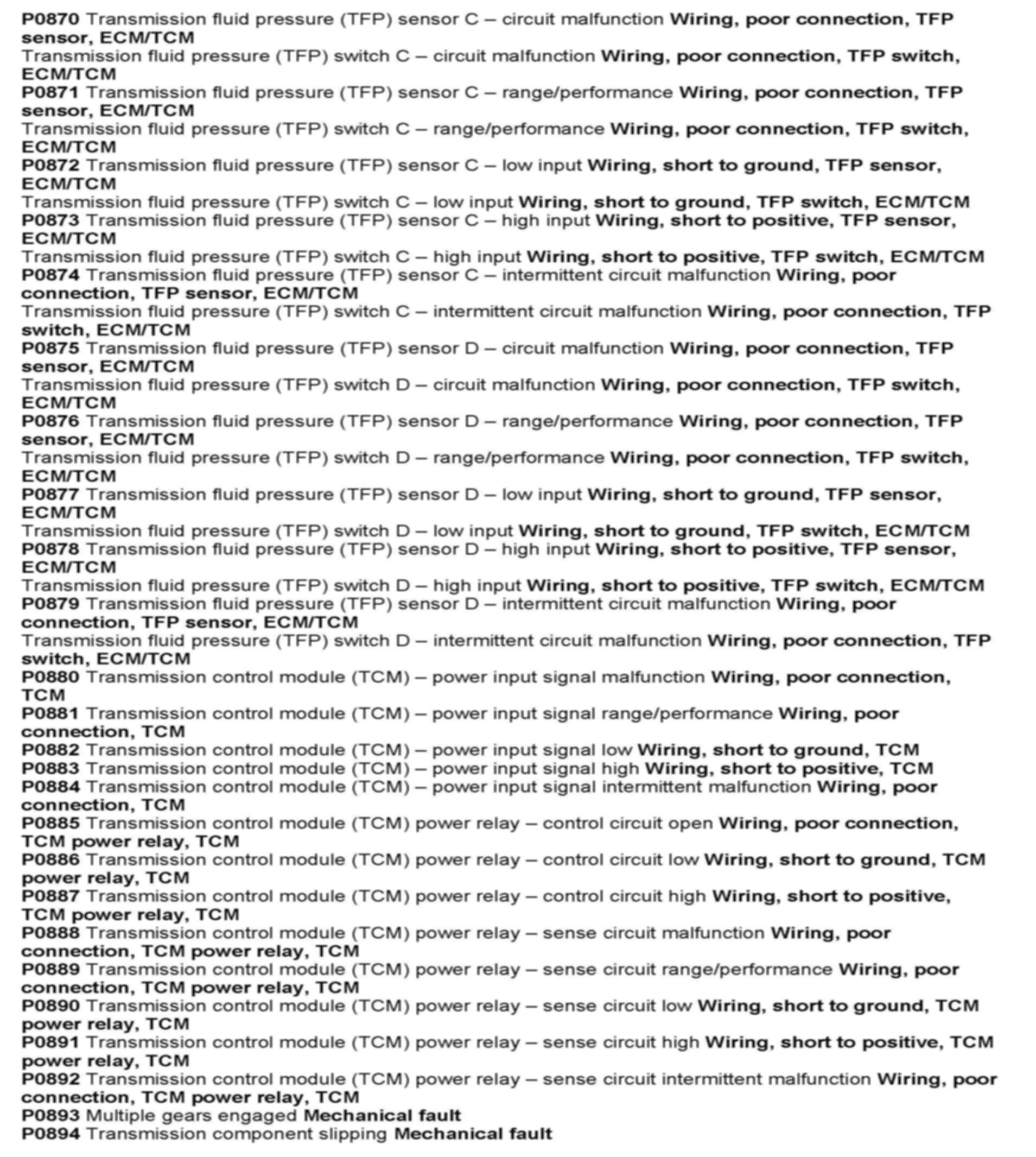

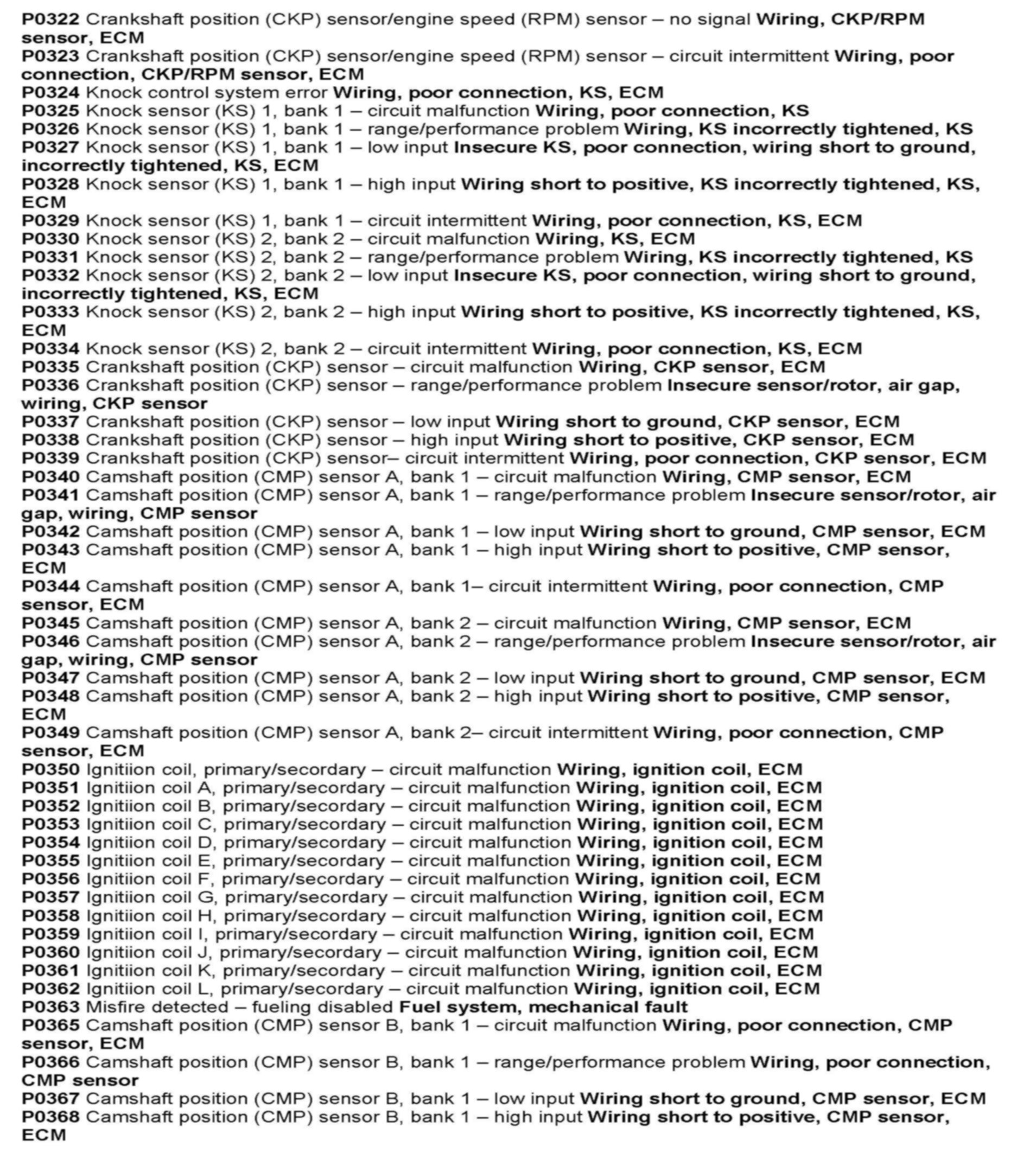

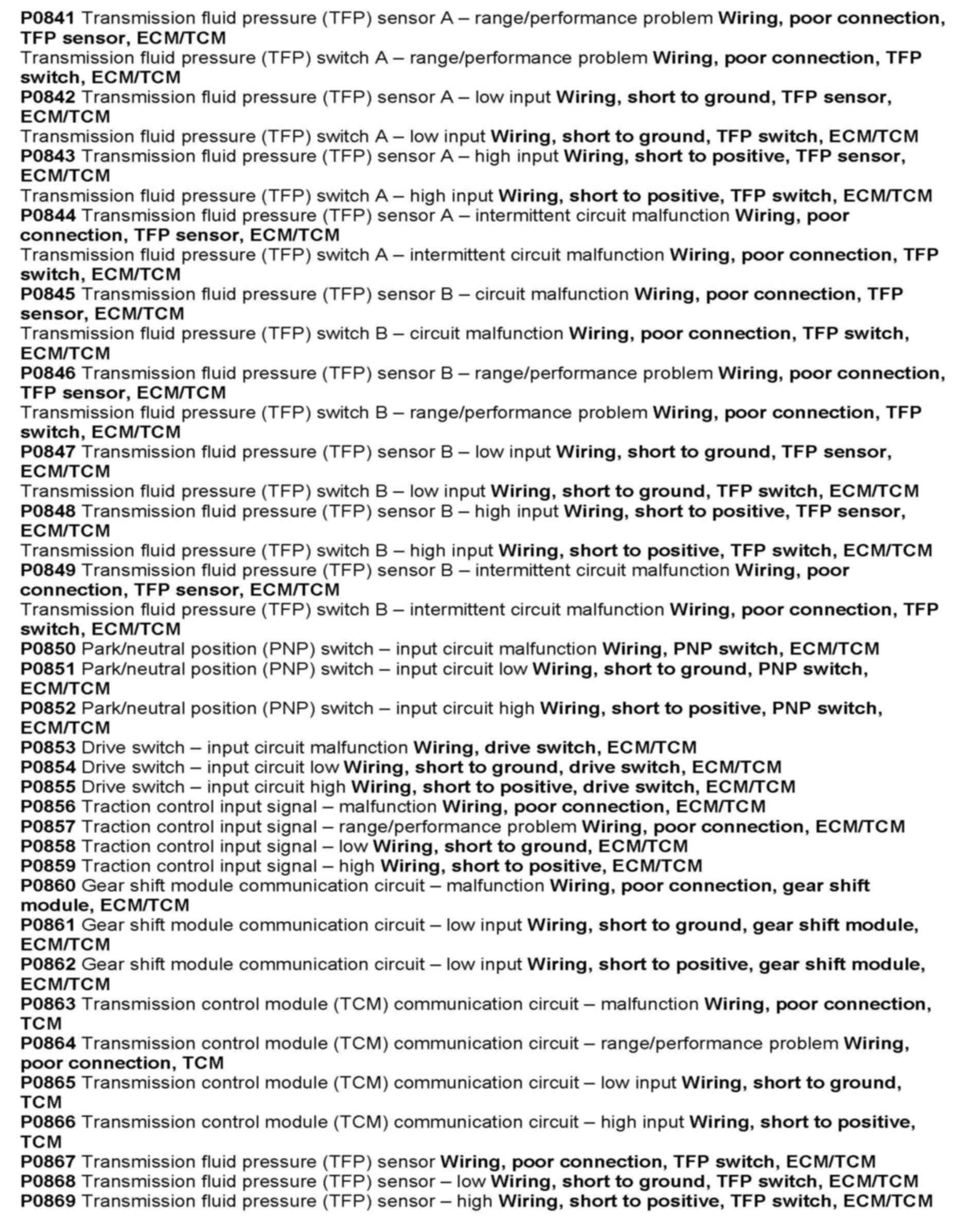

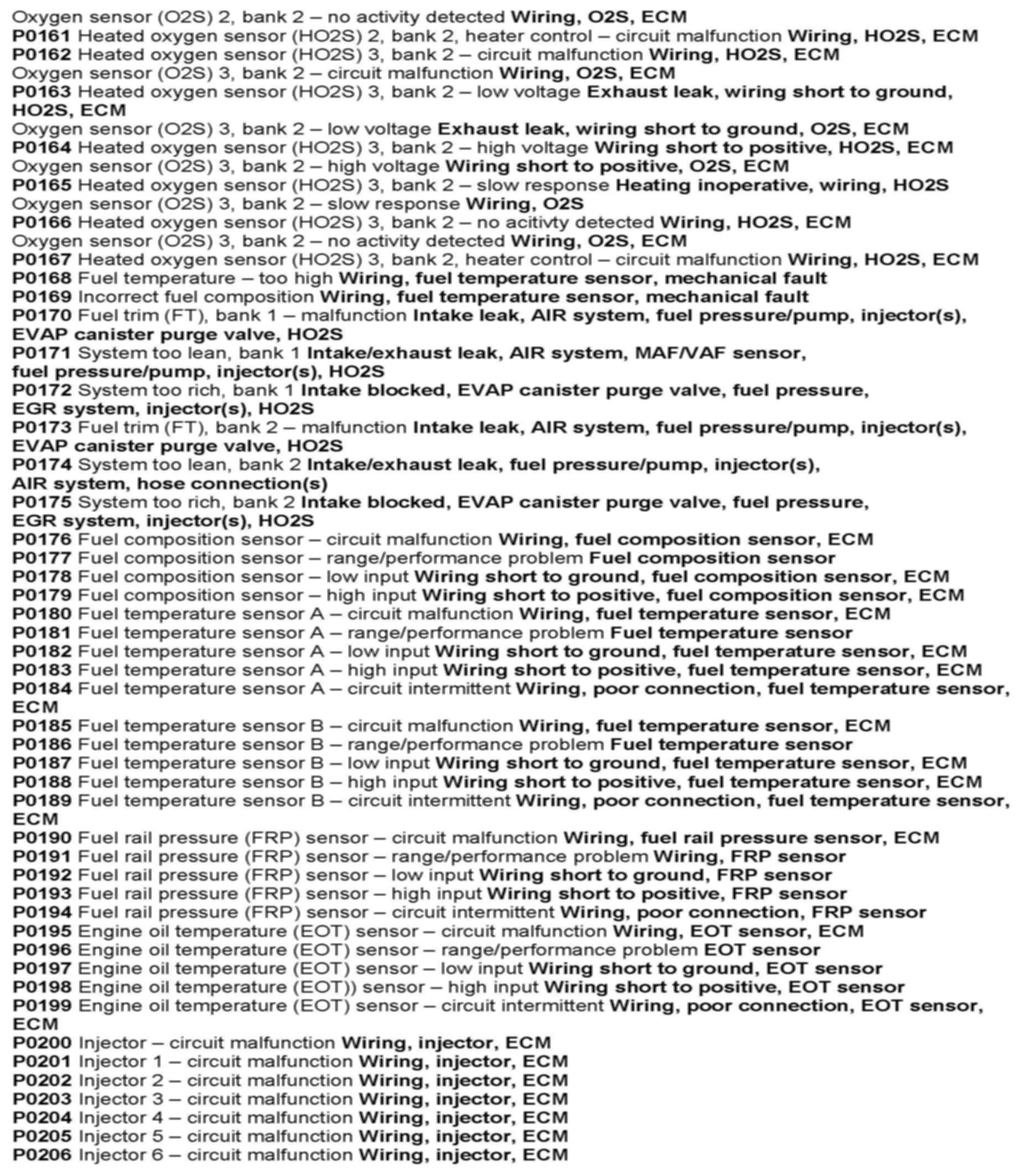

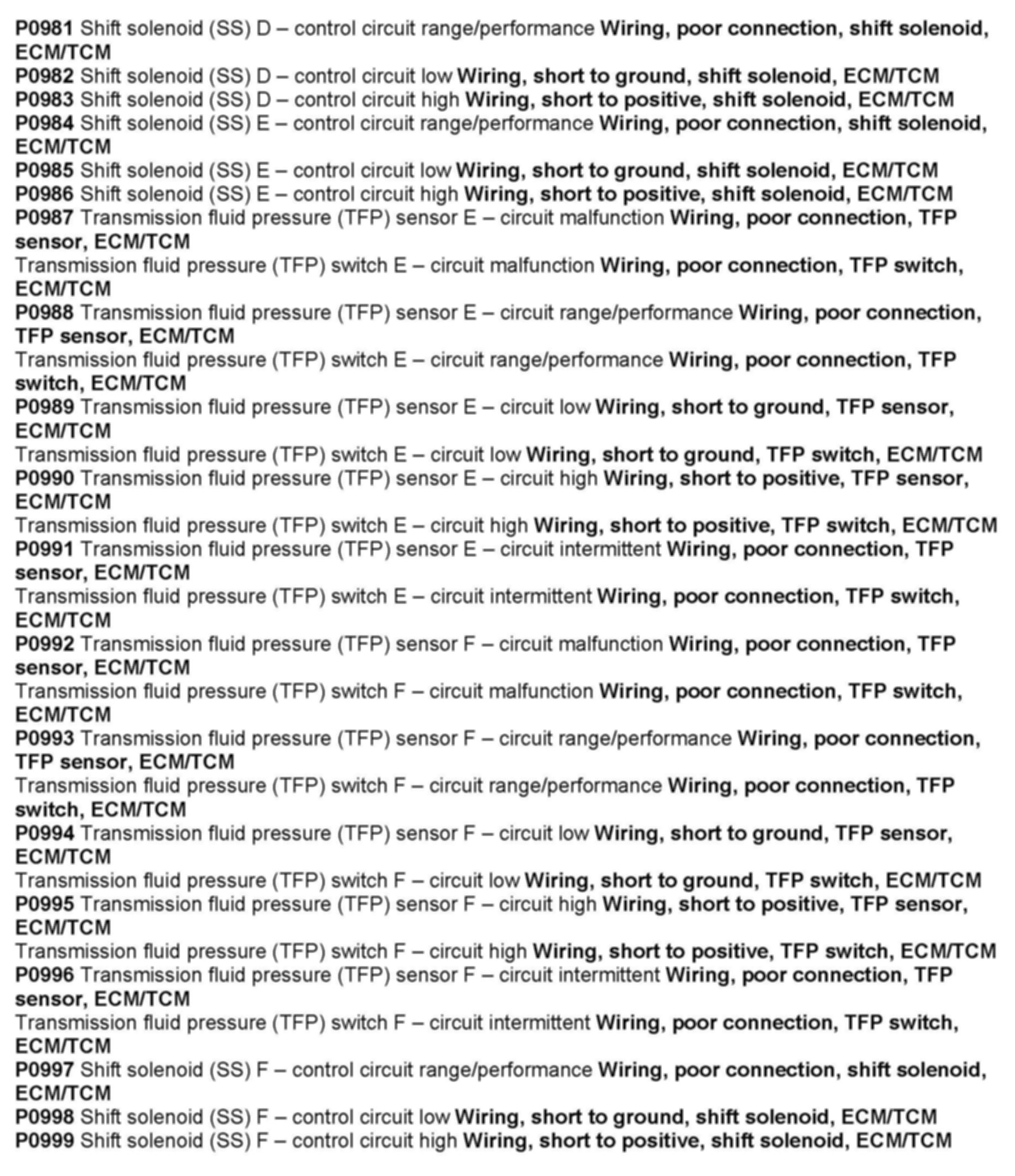

OBD-II trouble code table

This special issue of Tech Net Times features a listing of general Diagnostic Trouble Codes and their explanation. Included in this bulletin is a special Hyundai Diagnostic Trouble Code section. Keep this issue on hand for a handy DTC reference guide. Don't forget to visit www.hmaservice.com for further Hyundai service information.



















































































^ The list above covers all SAE defined standard P zero codes allocated at the time of publication.

^ All OBD-II codes starting with P zero have standard meanings irrespective of vehicle make or model.

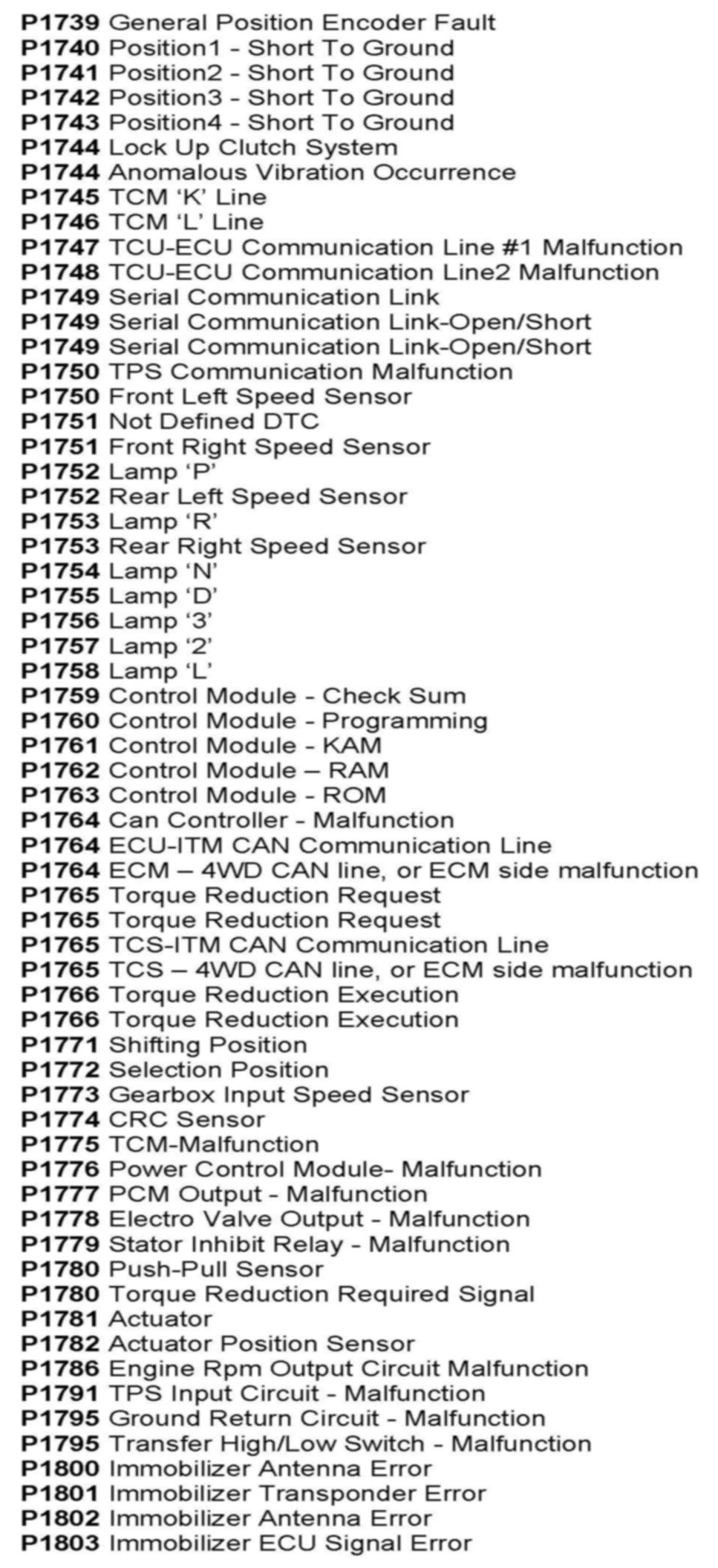

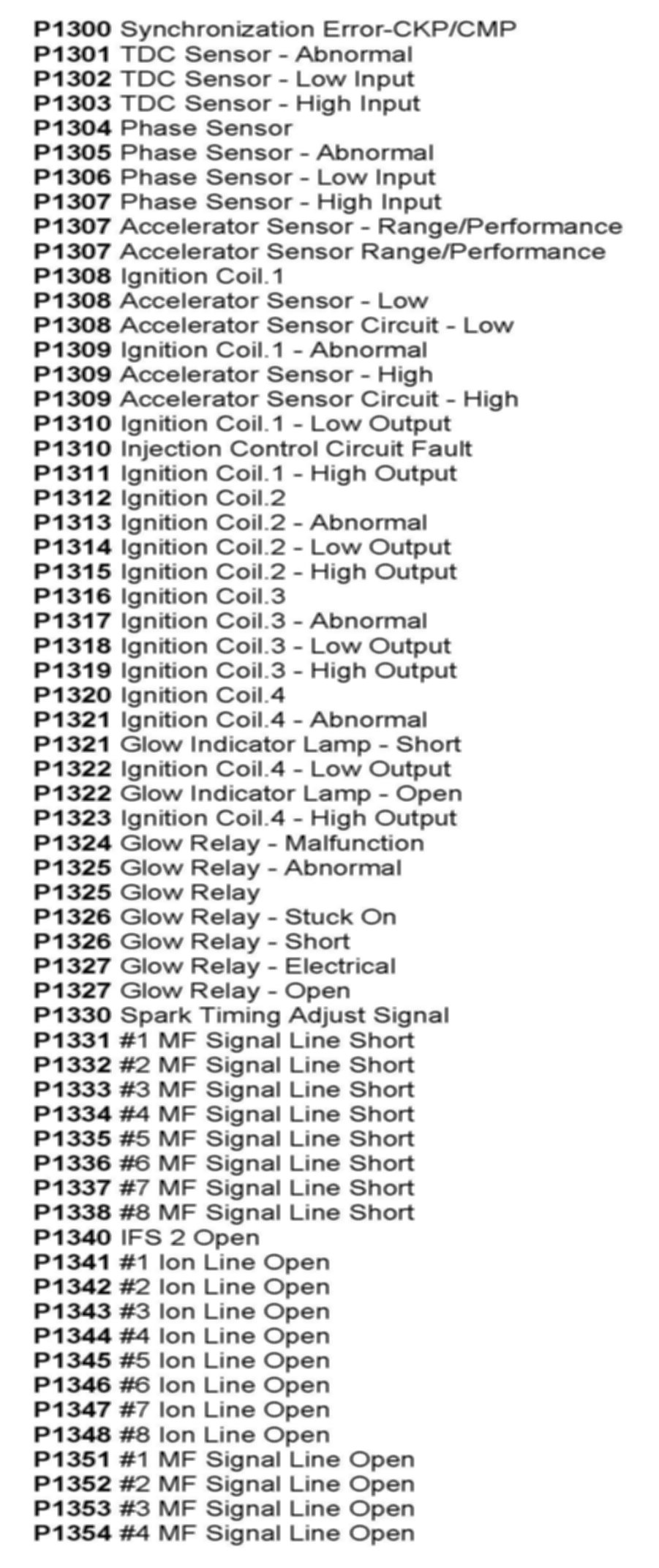

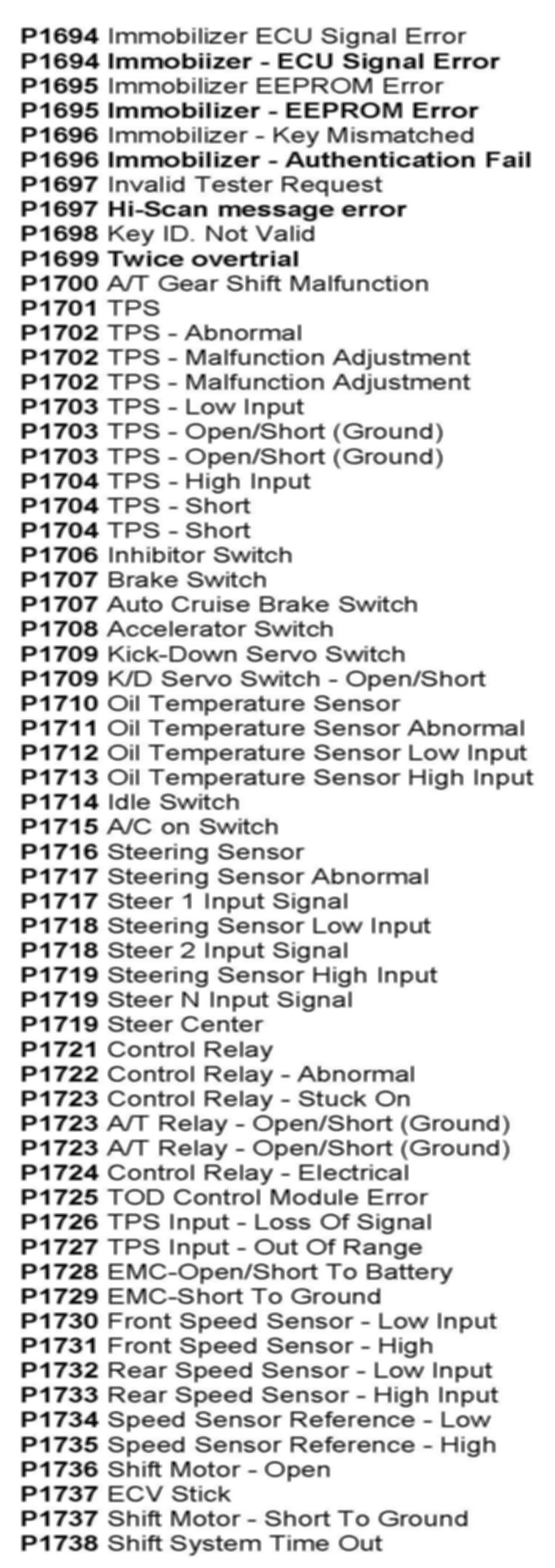

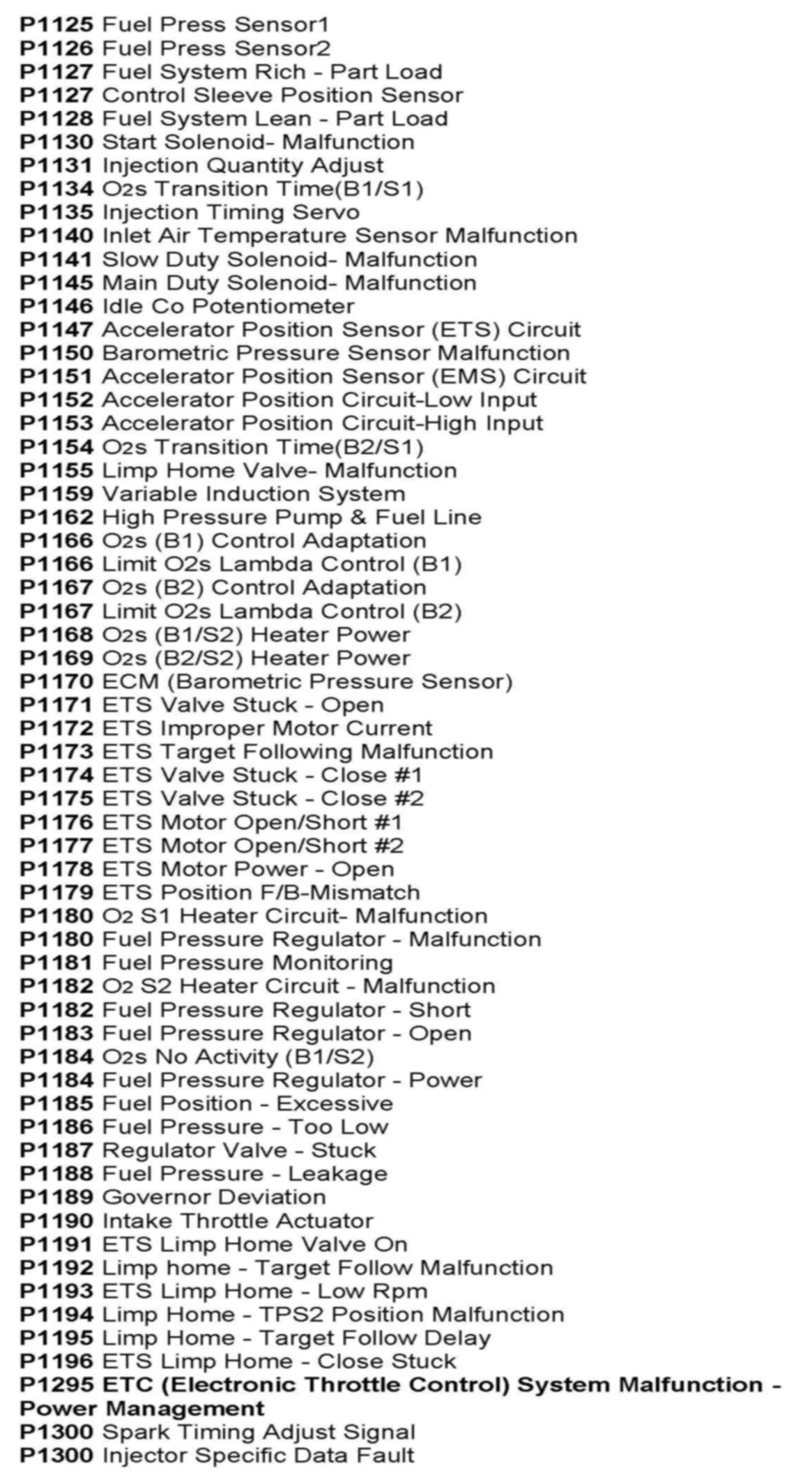

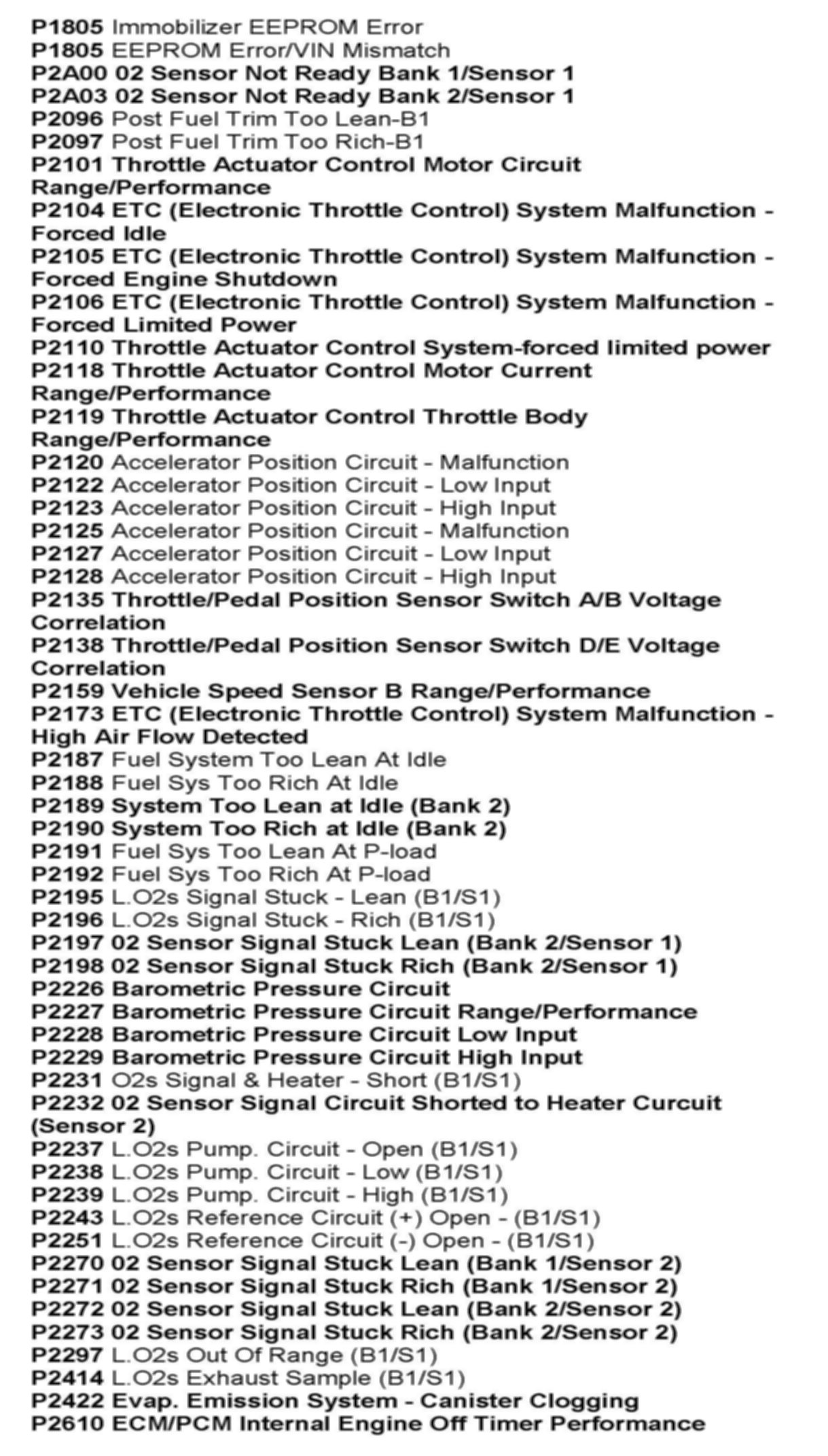

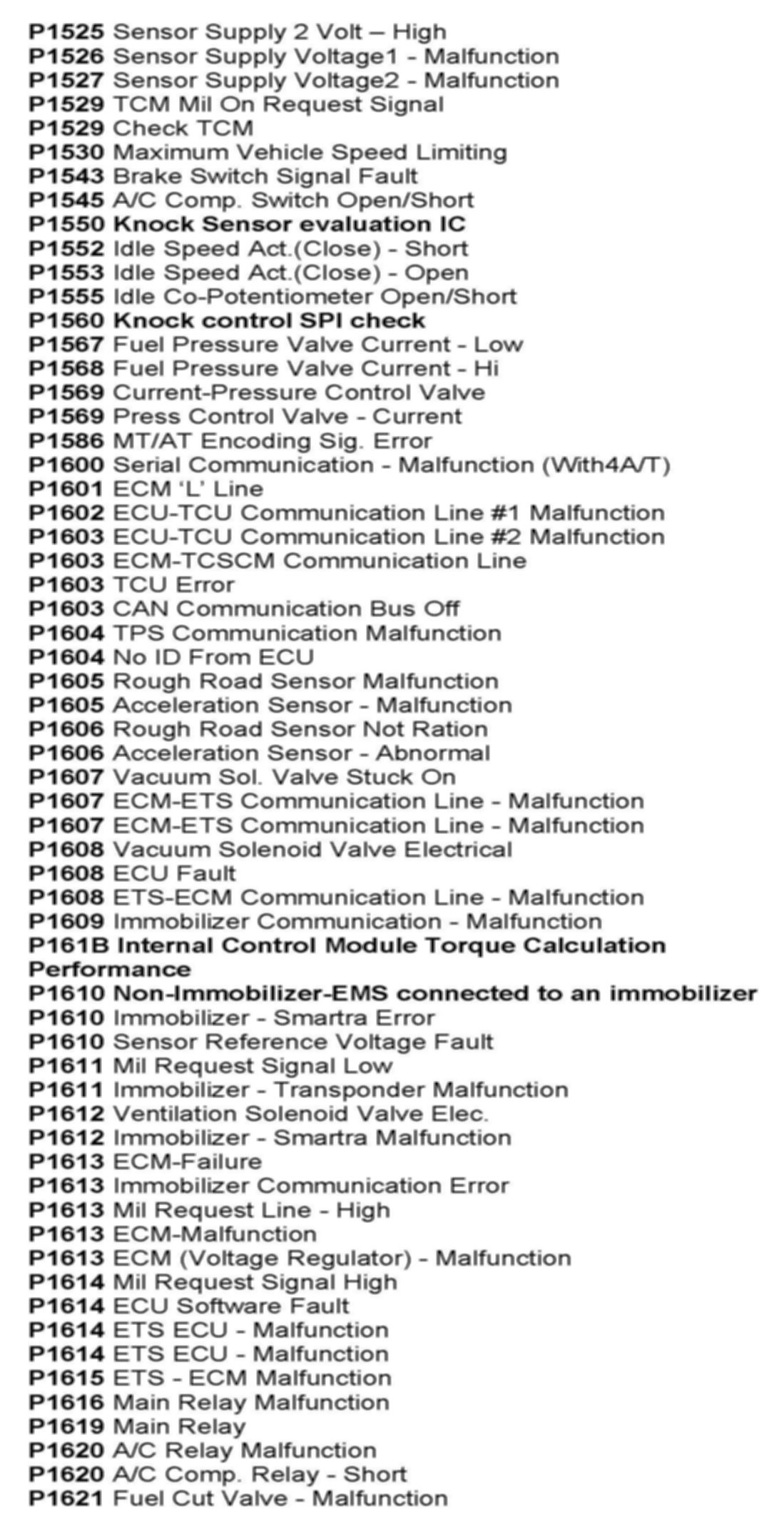

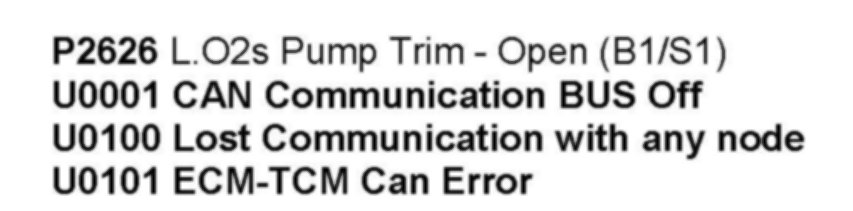

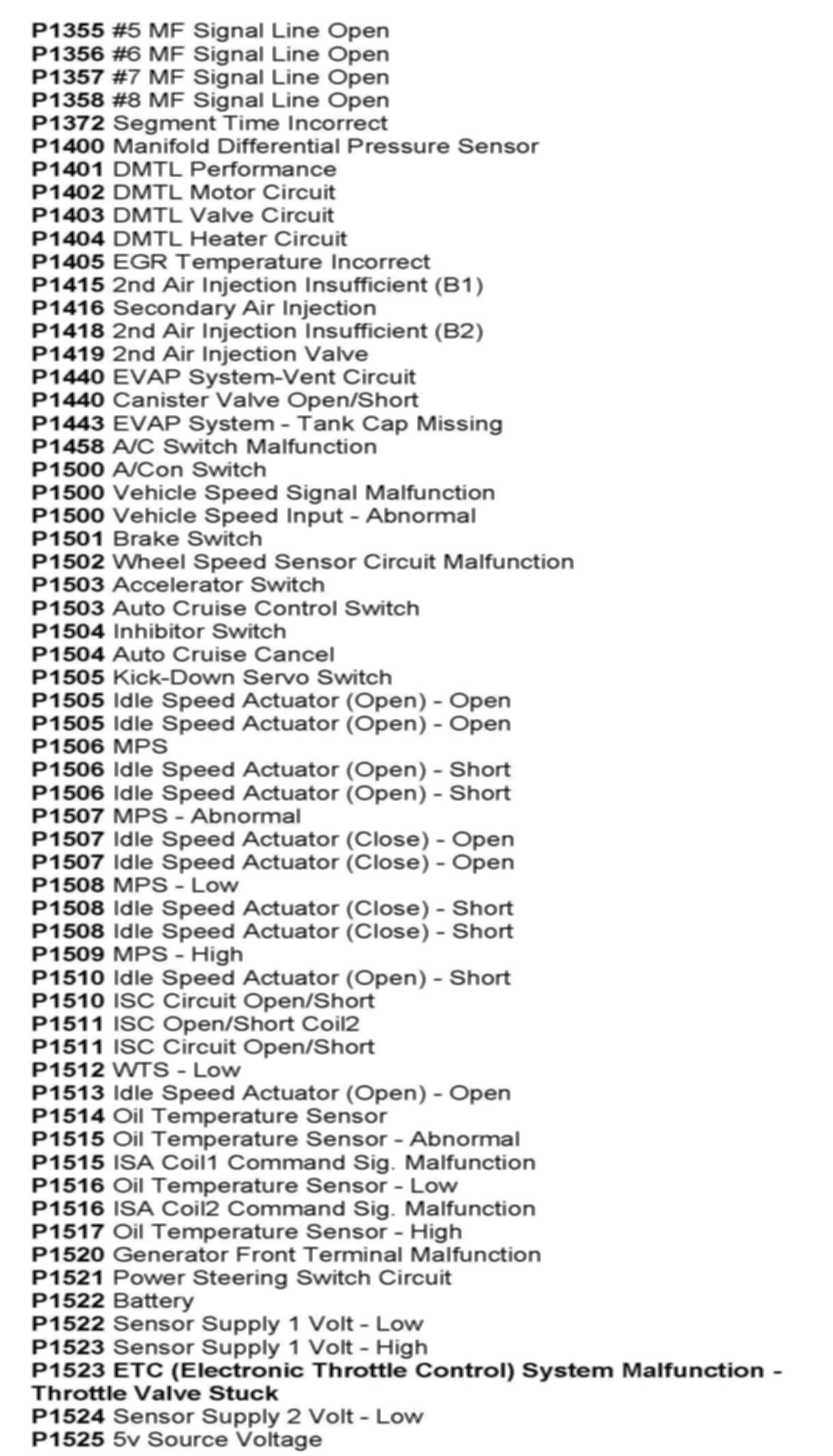

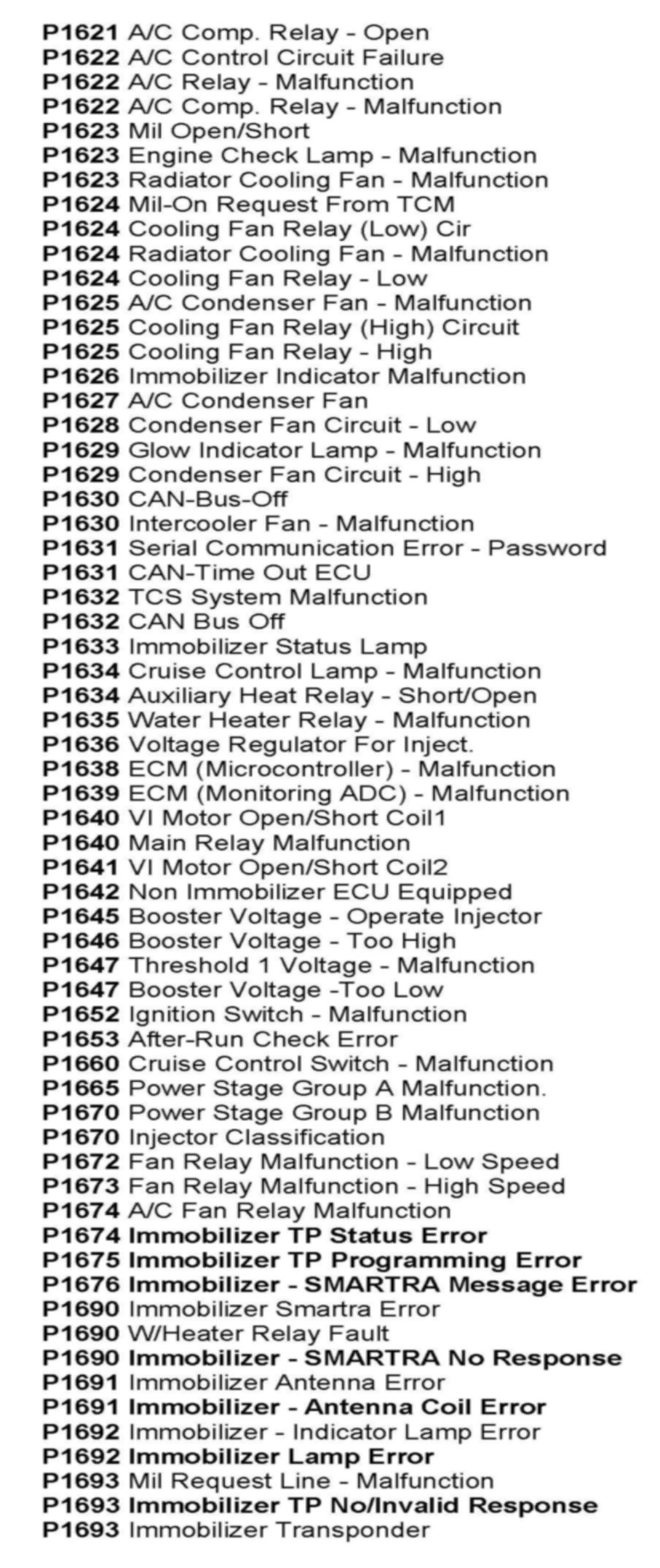

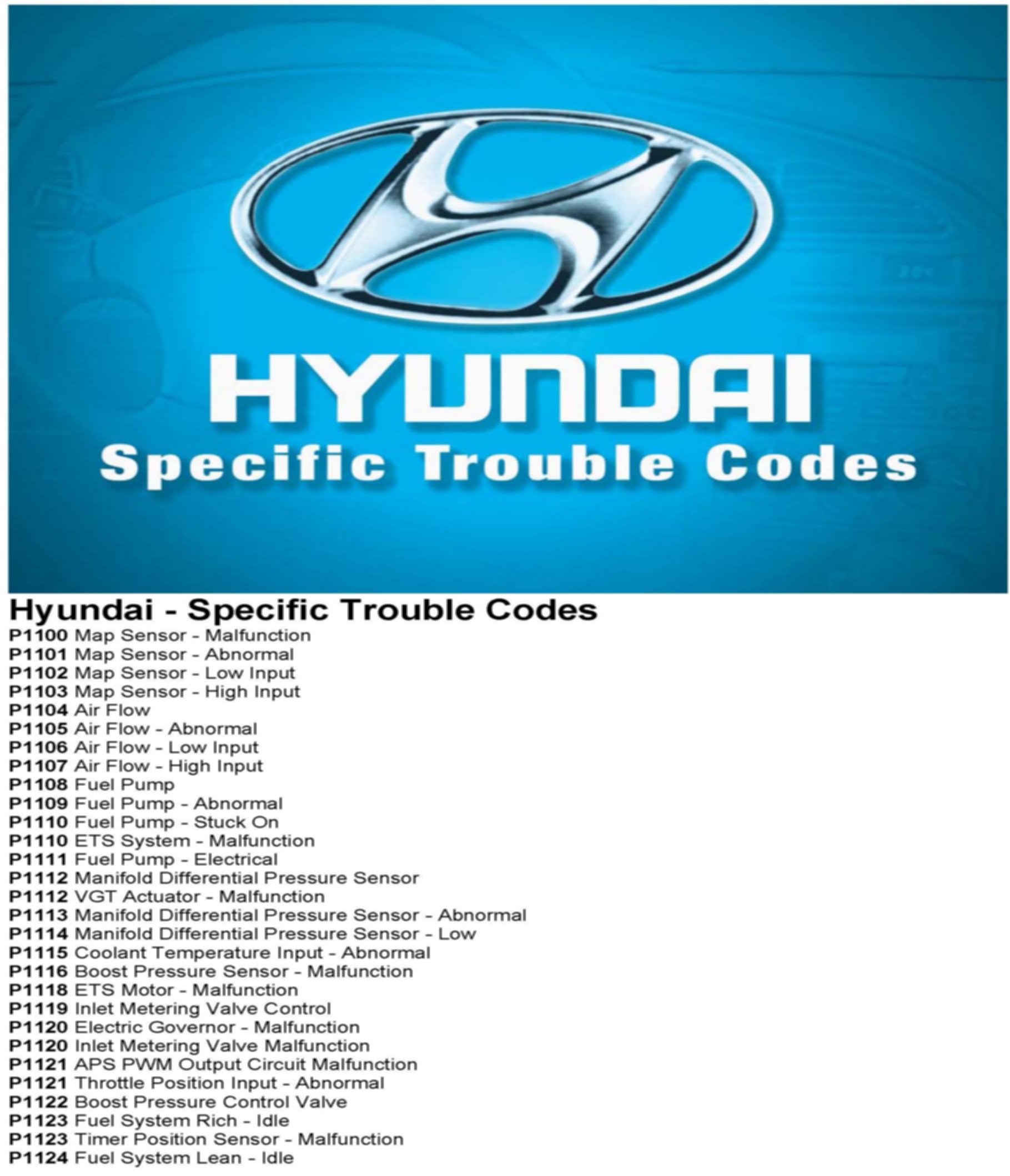

HYUNDAI SPECIFIC TROUBLE CODES

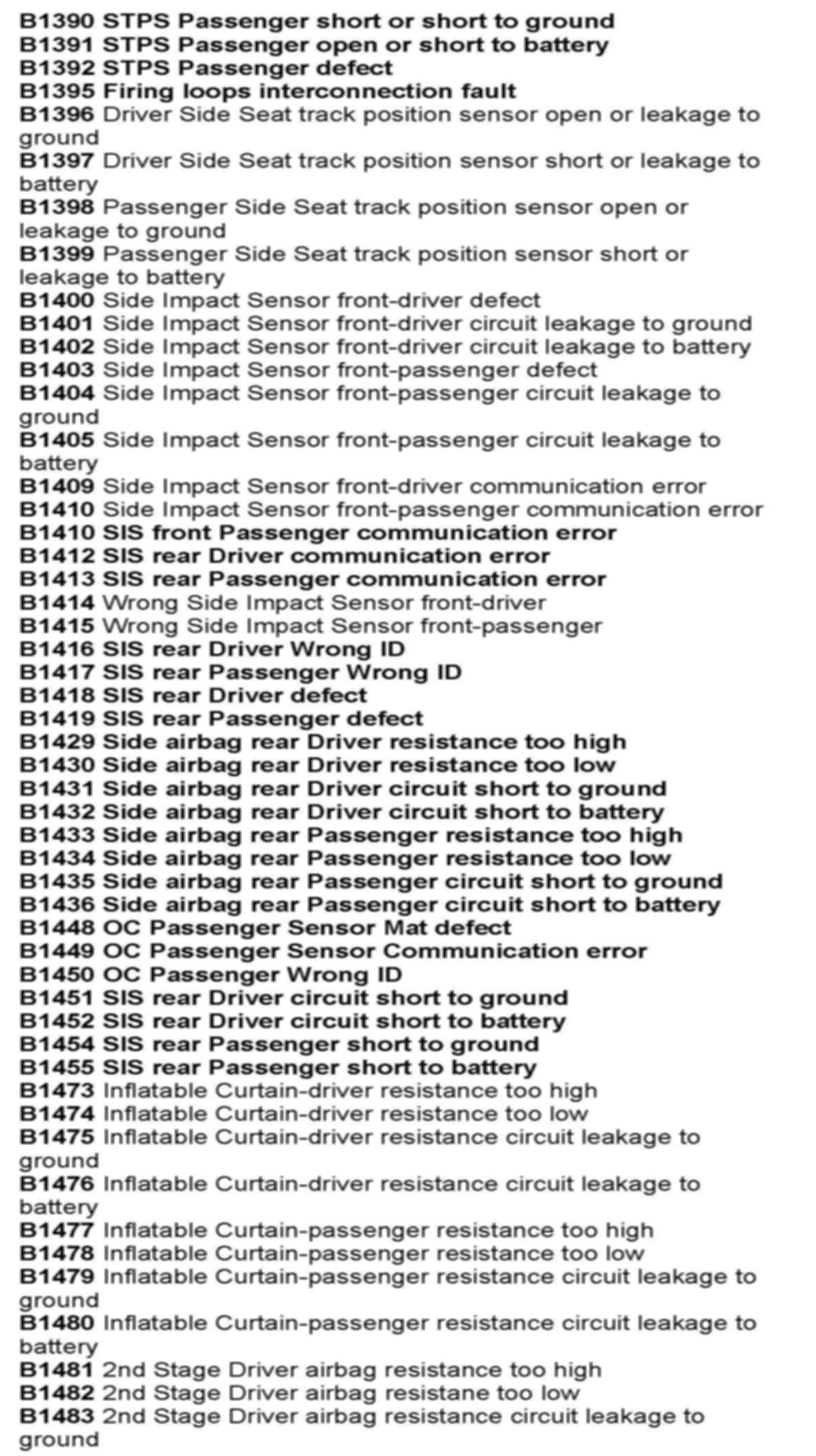

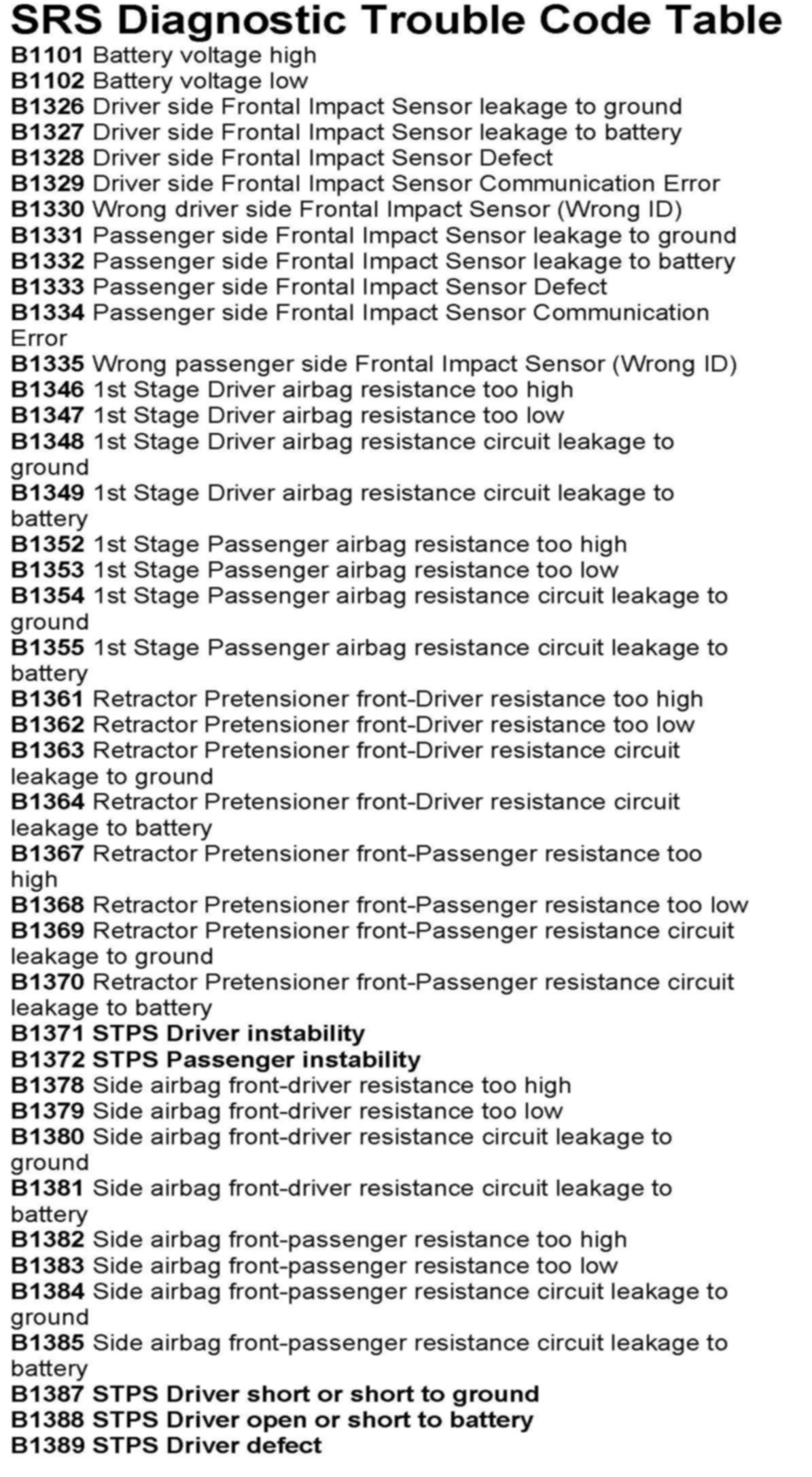

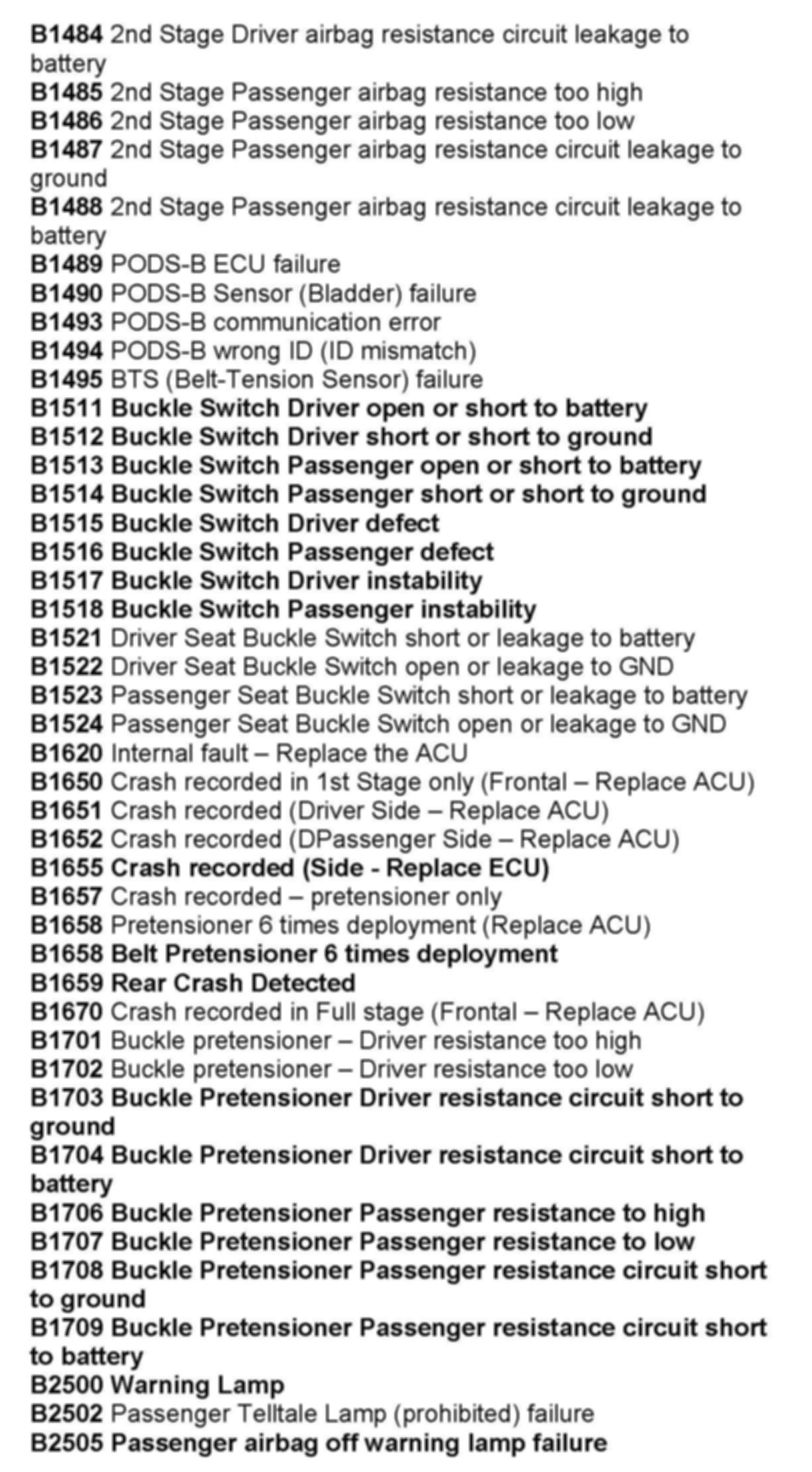

SRS DIAGNOSTIC TROUBLE CODE TABLE

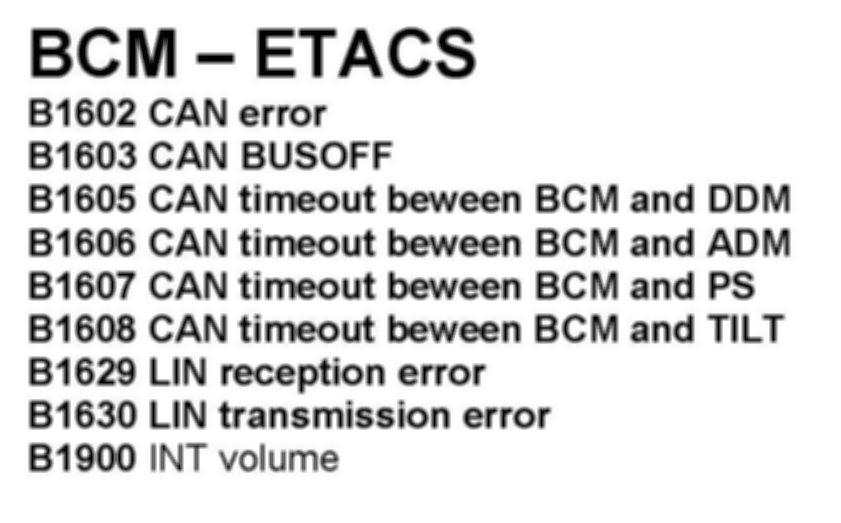

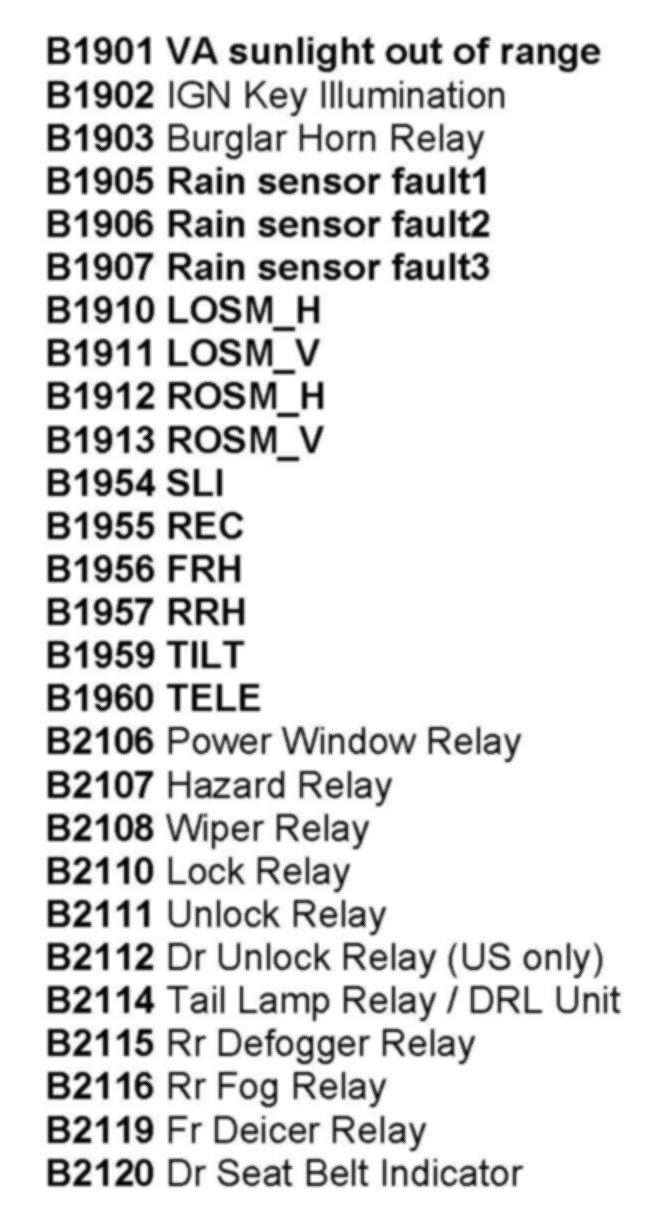

BCM - ETACS

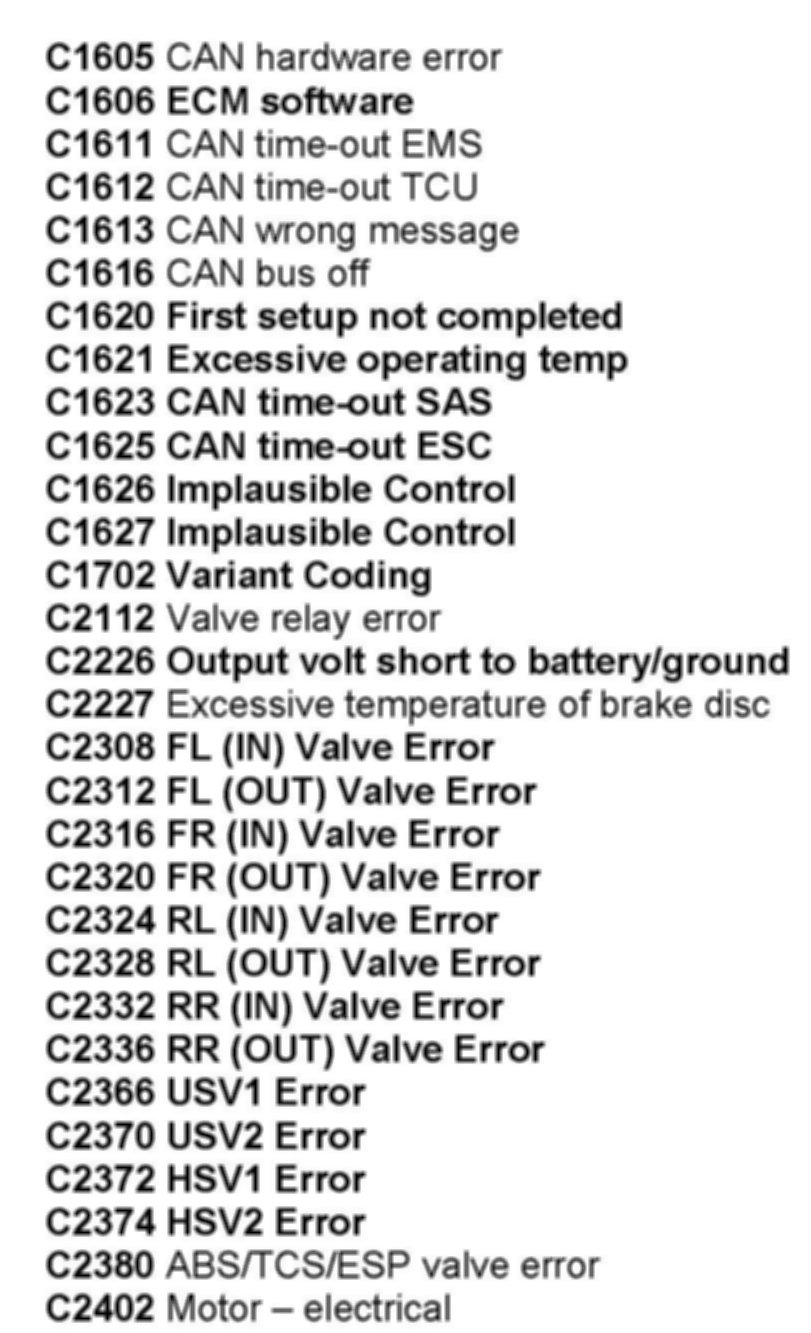

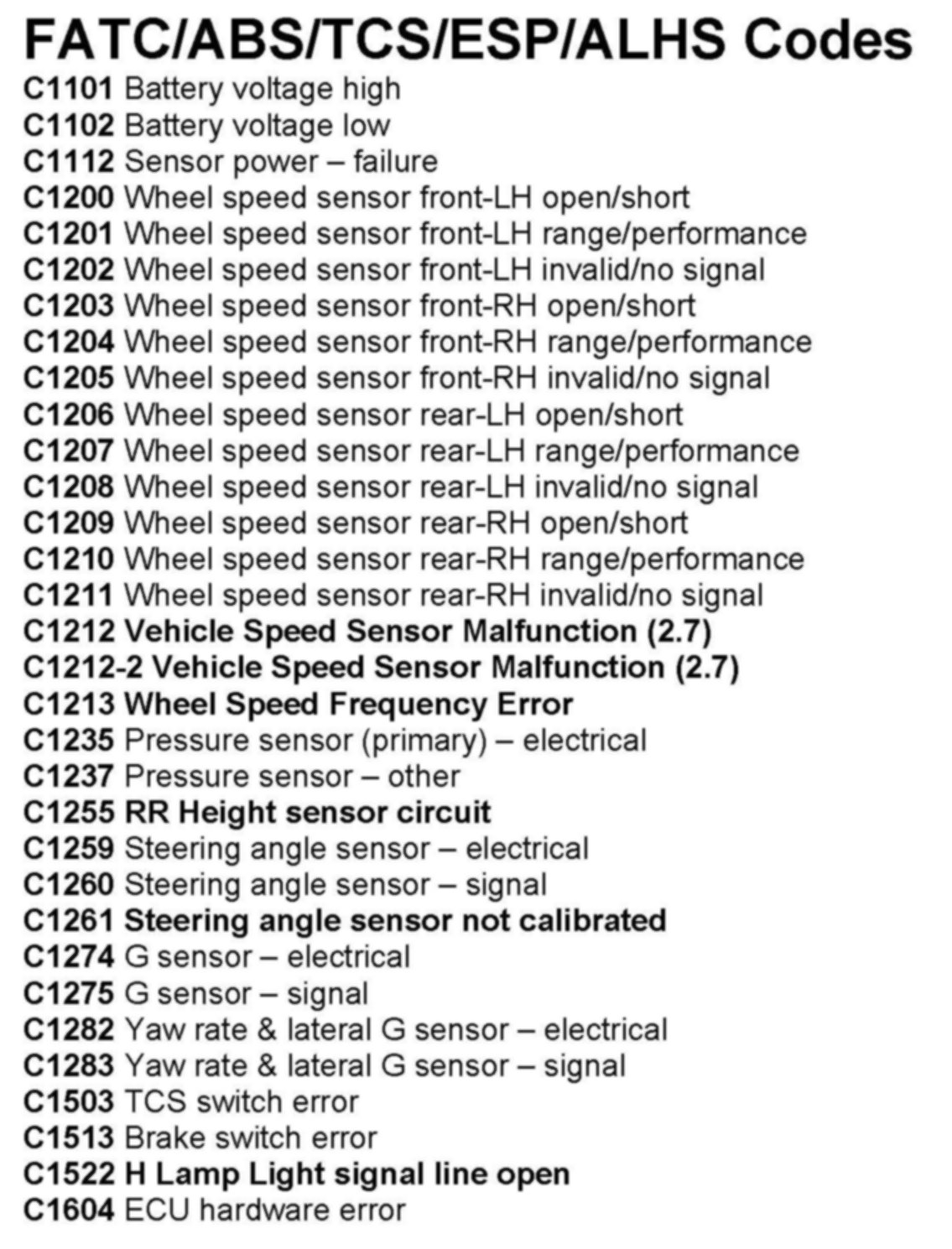

FATC/ABS/TCS/ESP/ALHS CODES

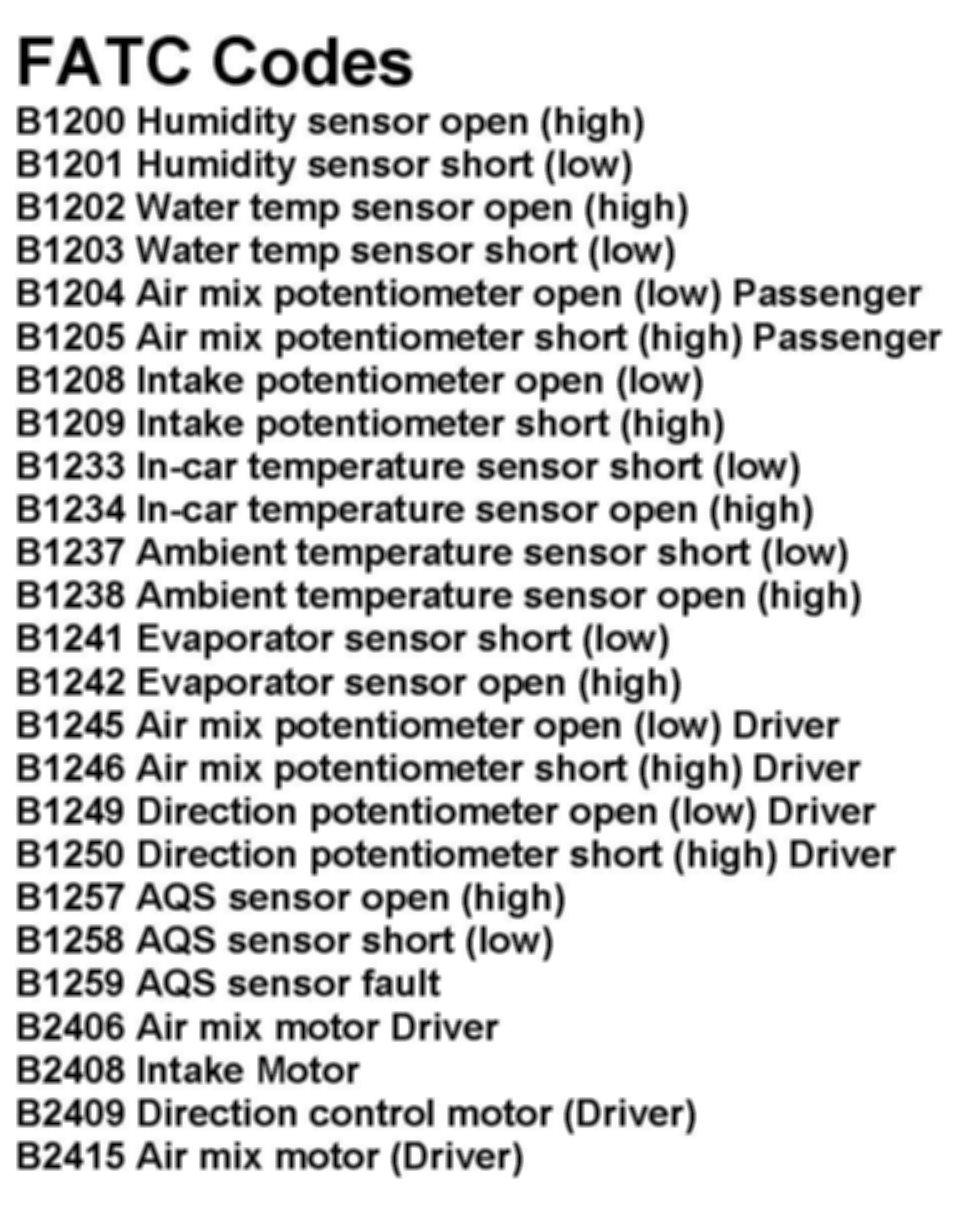

FATC CODES
