Starter Relay: Locations




Located in the Engine Compartment Fuse/Relay Box

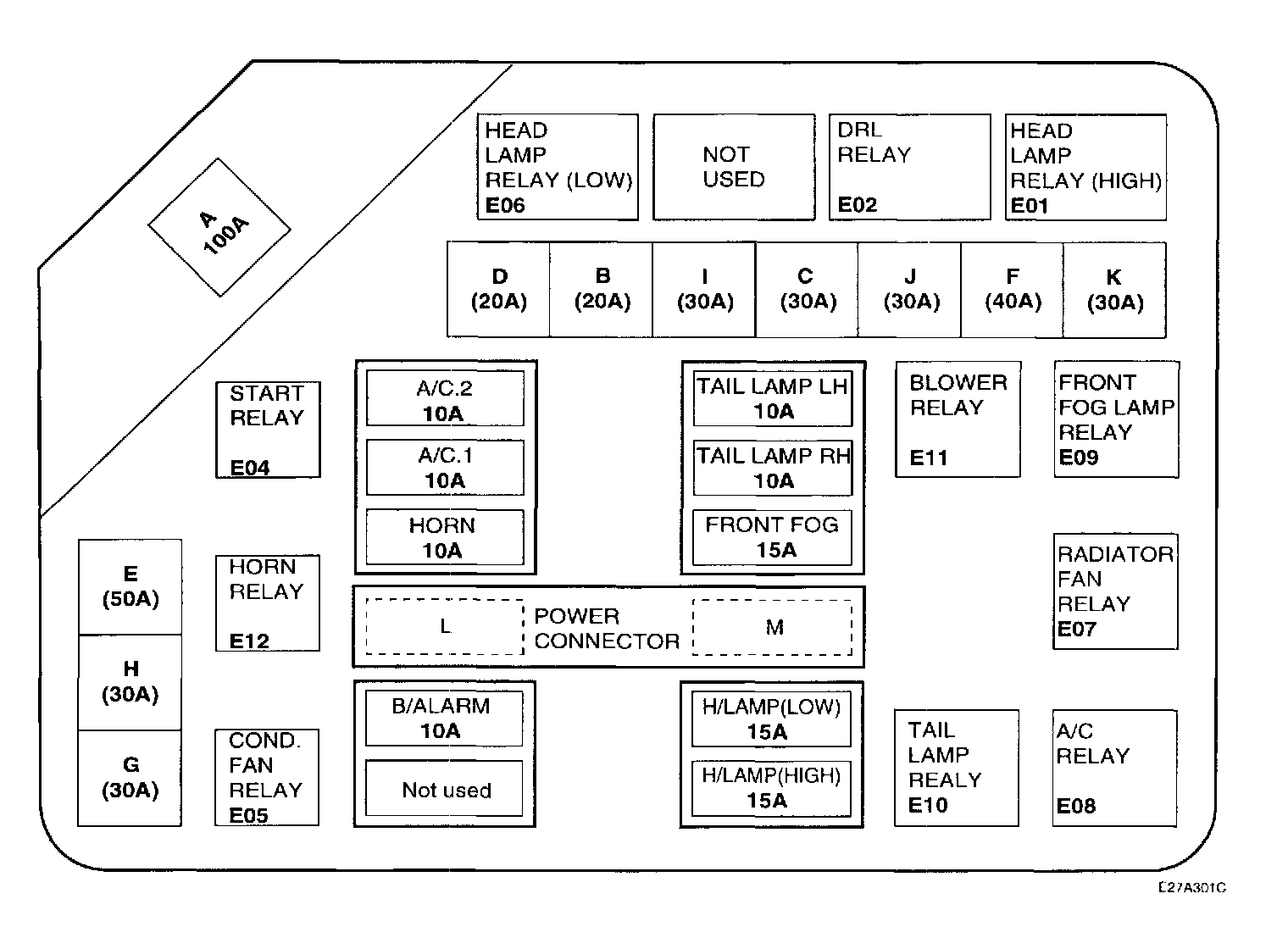

Engine Compartment Relay And Fuse Box (Layout):
