Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module | In right side of trunk, behind trim. |
| A/T Shift & Key Lock Control Module | Behind left side of dash, above kick panel. |
| Cruise Control Module | Below center of dash, in front of console. |
| DRL Control Module | In left front corner of engine compartment, near battery. |
| Electronic Power Steering Control Module (EPSCM) | On left side of luggage compartment. |
| Electronic Time & Alarm Control Module (ETACM) | Below center of dash, in front of console. |

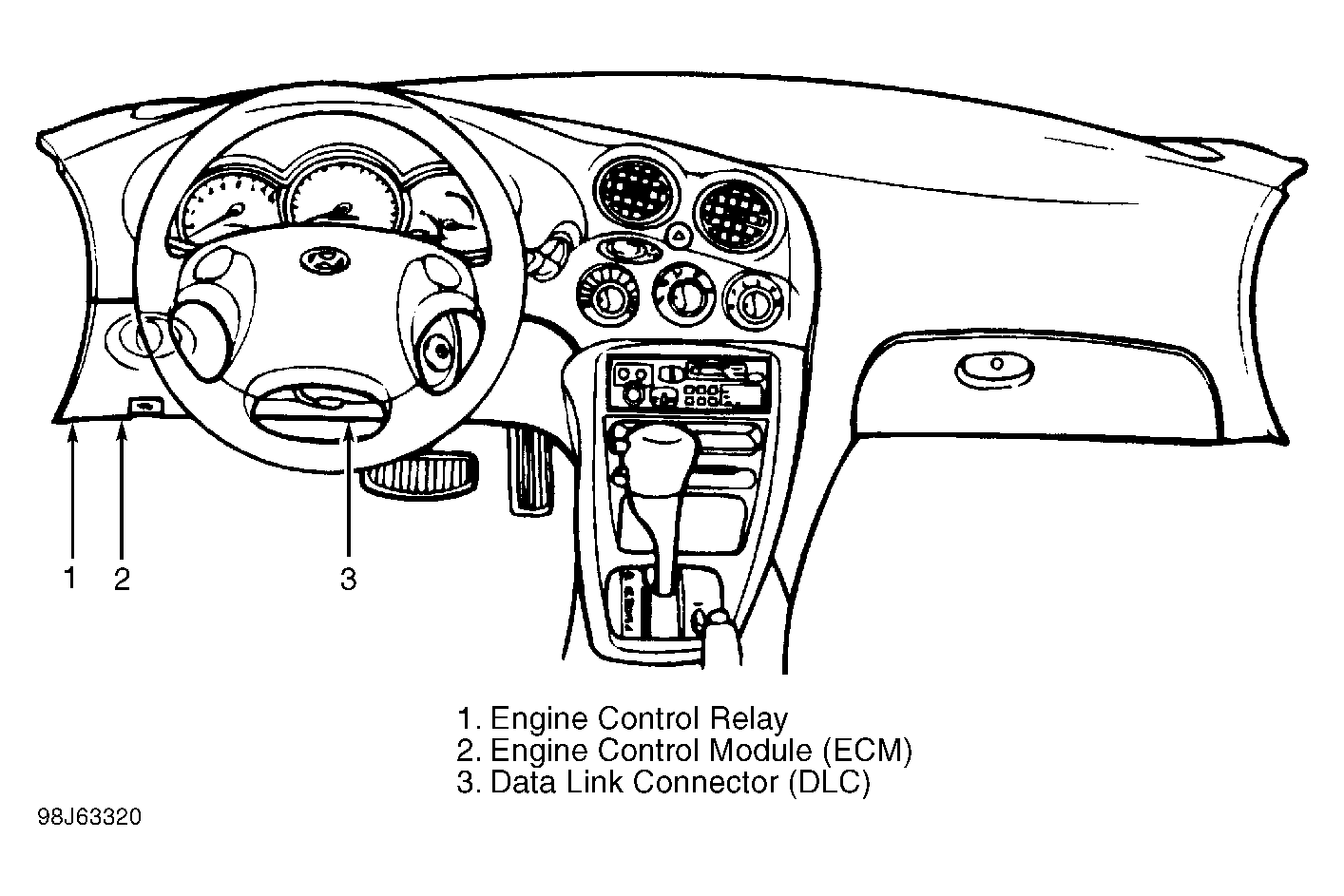

| Engine Control Module (ECM) | Behind left side of dash. See Figure . |
| SRS Control Module (Air Bag) | Below rear of center console. |
| Transaxle Control Module (TCM) | Behind left side of dash. |
