Compressor HVAC: Service and Repair

Compressor:

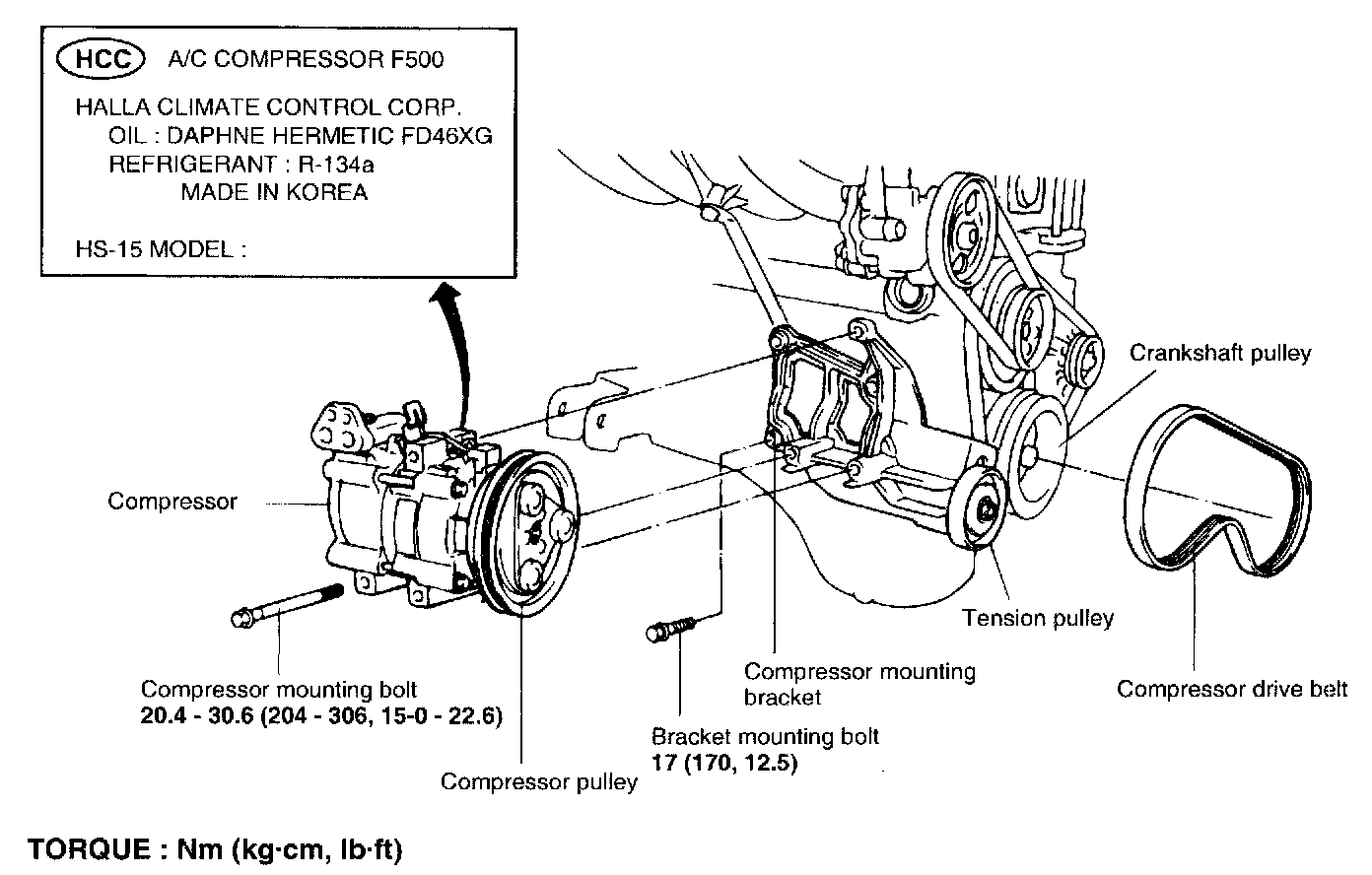

REMOVAL AND INSTALLATION




1. Discharge refrigerant from the refrigerant system.
2. Disconnect the magnetic clutch connector.
3. Raise the car.
4. Loosen the tension pulley and then remove the compressor drive belt.
5. Remove the front muffler mounting bolts. (If necessary)
6. Remove the discharge hose and suction hose.
7. Remove the compressor mounting bolts.




8. Remove the compressor.
9. Installation is the reverse of removal.
