System Relay: Locations

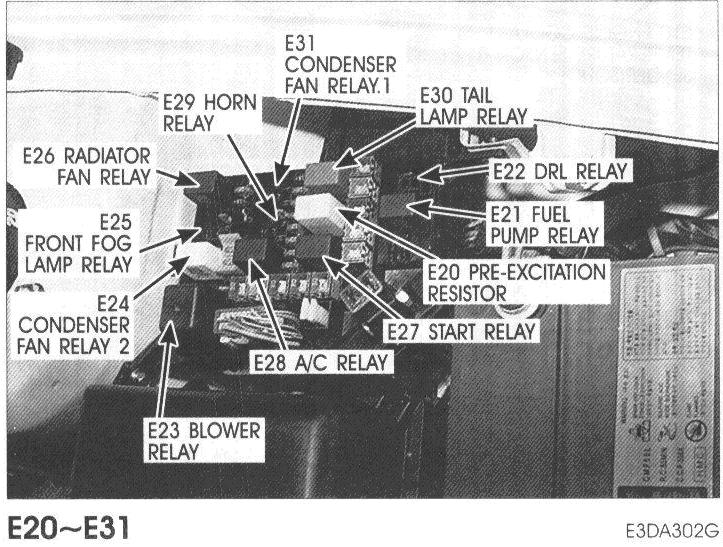

E20-Pre-Excitation Resistor, E21-DRL Relay, E23-Blower Relay, E24-Condenser Fan Relay.2, E25-Front Fog Lamp Relay, E26-Radiator Fan Relay, E27-Starter Relay, E28-A/C Relay, E29-Horn Relay, E30-Tail Lamp Relay, E31-Condenser Fan Relay.1:
