Speedometer Cable Replacement

  1. Correctly insert the adapter into the instrument panel, and fasten the new speedometer cable.

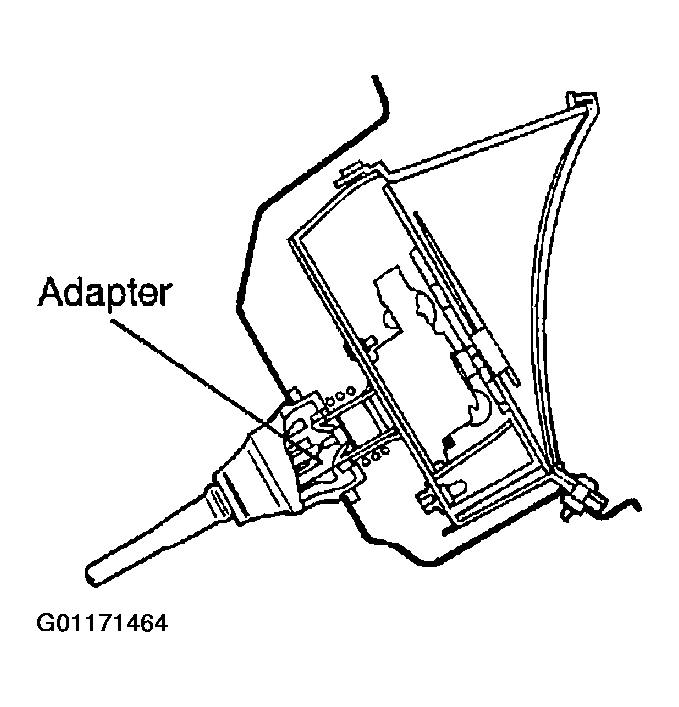

    Fig 1: Inserting Adapter Into Instrument Panel
    G01171464Courtesy of HYUNDAI MOTOR CO.
  2. Install the grommet so that, as shown in the illustration, the cable attachment part and the projection part are horizontal.
    CAUTION: The cable arrangement should be made so that the radius of the cable bend is 150 mm (5.9 in.) or more.

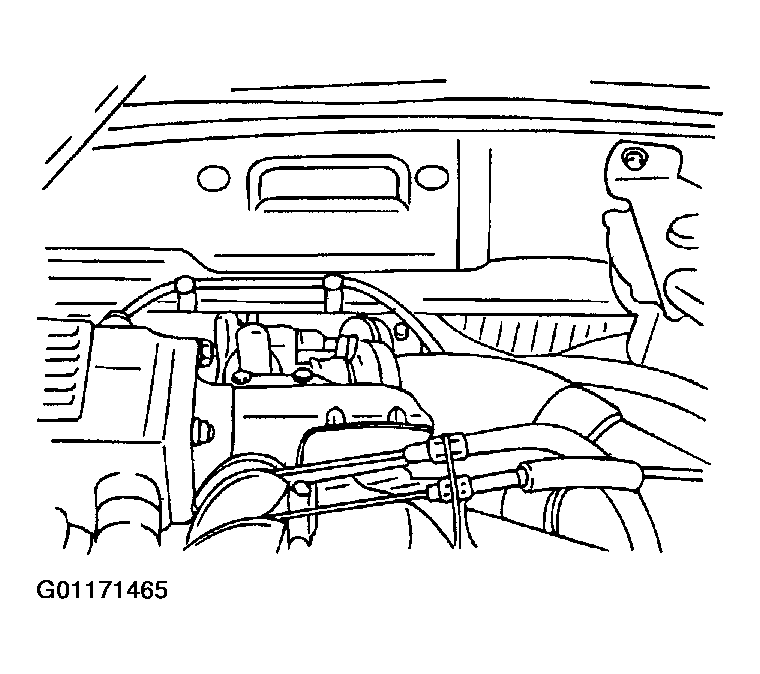

    Fig 2: Installing Grommet
    G01171465Courtesy of HYUNDAI MOTOR CO.
  3. At the transaxle end of the speedometer cable, the key joint should be inserted into the transaxle, and the nut should be securely tightened.
    CAUTION: If the cable is not correctly and securely connected, it may cause an incorrect reading on the speedometer, or abnormal noise. Be sure to connect it correctly.

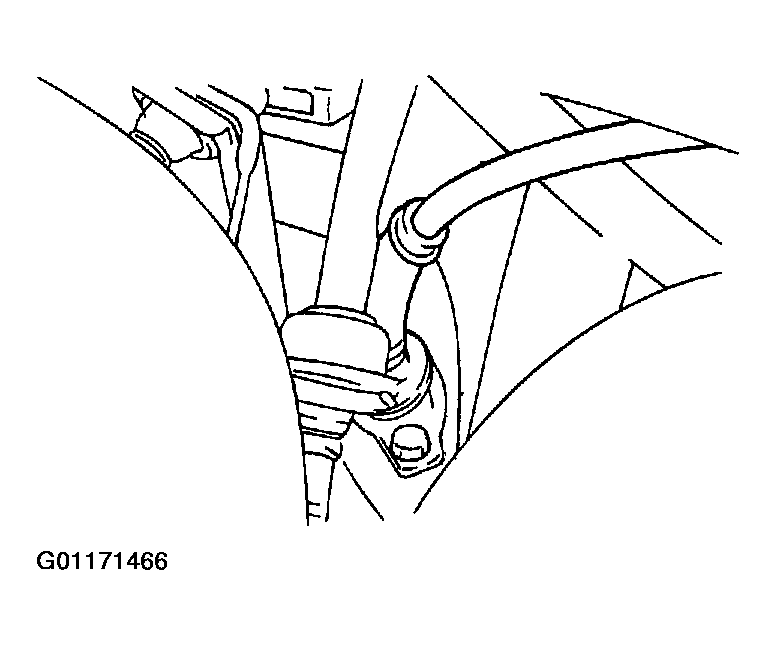

    Fig 3: Connecting Speedometer Cable
    G01171466Courtesy of HYUNDAI MOTOR CO.
