Automatic Transaxle Hydraulic Circuit: Lock

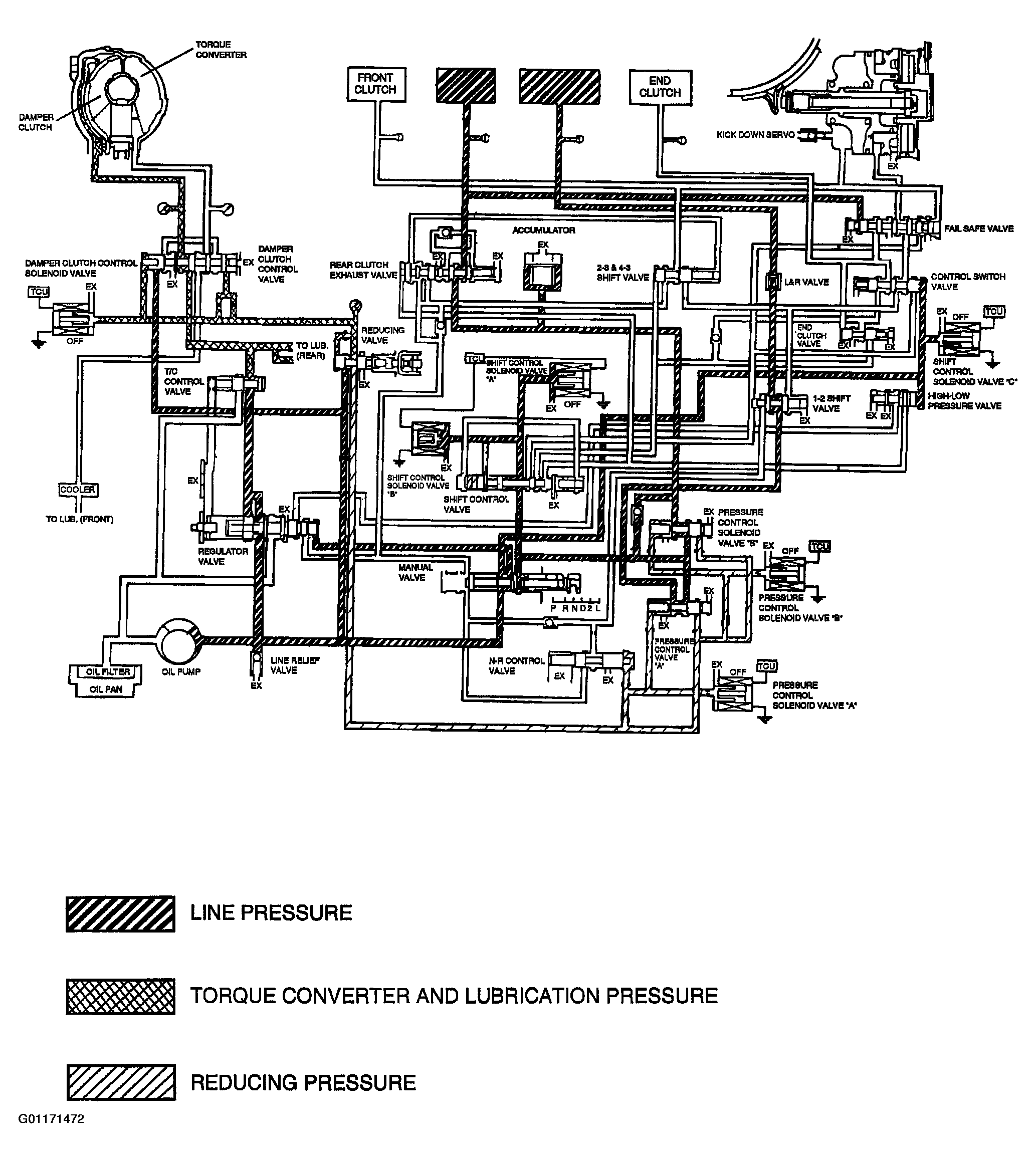

Fig 1: Automatic Transaxle Hydraulic Circuit - Lock
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
