Automatic Transaxle Shift Control: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the console box assembly.
  2. Remove the knob installation screws.
  3. Disconnect the overdrive switch connector, remove the 3 connector pins from connector with small driver, and then remove selector knob assembly.
    Fig 1: Removing Selector Knob Assembly
    G01171489Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the position indicator light connector.
  5. Remove the shift lever indicator assembly.
    Fig 2: Removing Shift Lever Indicator Assembly
    G01171490Courtesy of HYUNDAI MOTOR CO.
  6. Remove self lock pin from the link.
    Fig 3: Removing Self Lock Pin From Link
    G01171491Courtesy of HYUNDAI MOTOR CO.
  7. Remove the clip from the shift lever side.

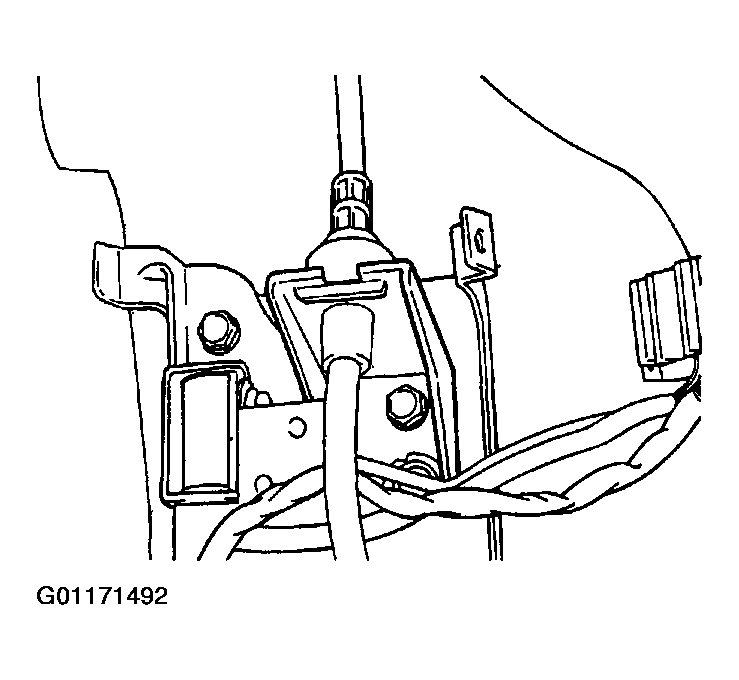

    Fig 4: Removing Clip From Shift Lever Side.
    G01171492Courtesy of HYUNDAI MOTOR CO.
  8. Remove the bolt-washer assembly located on dash panel.
    Fig 5: Removing Bolt-Washer Assembly Located On Dash Panel
    G01171493Courtesy of HYUNDAI MOTOR CO.
  9. Remove the clip from the transaxle side.
  10. Remove the transaxle control cable assembly.

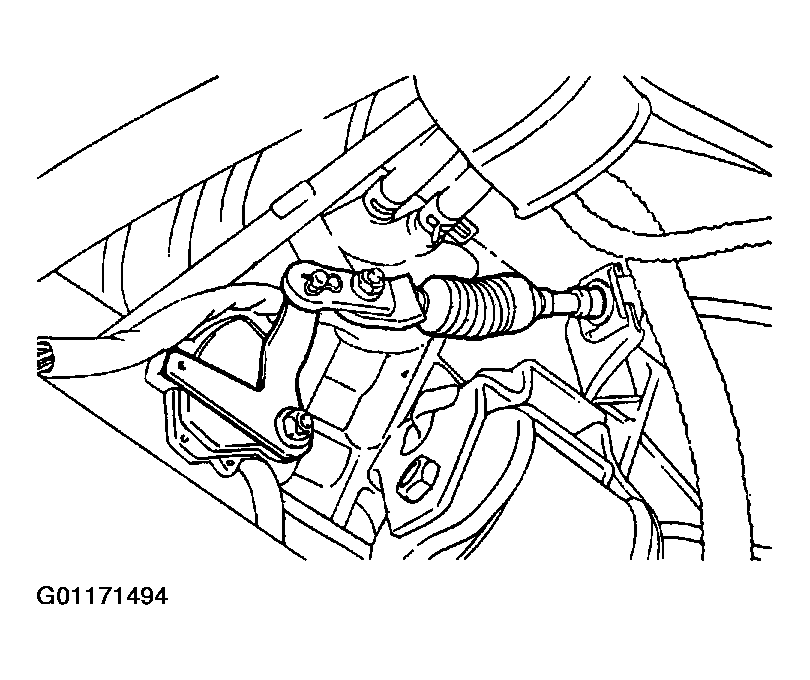

    Fig 6: Removing Transaxle Control Cable Assembly
    G01171494Courtesy of HYUNDAI MOTOR CO.
