Oil Pressure Tests: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Completely warm up the transaxle.
  2. Raise the front of the vehicle so that the front wheels can be rotated.
  3. Connect an engine tachometer and place it in a position where it's easy to see.
  4. Attach the special oil-pressure gauge (09452-21500) and the adapter (09452-21002) to each oil-pressure outlet port.

    When the reverse pressure is to be tested, the 3,000 kPa (400 psi) type of gauge should be used.

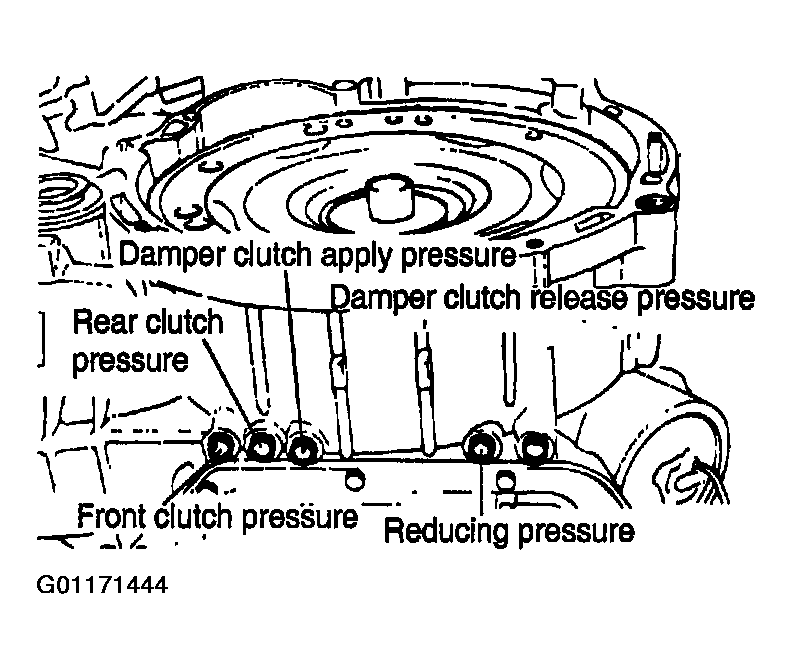

    Fig 1: Locating Oil Pressure Ports (1 Of 2)
    G01171444Courtesy of HYUNDAI MOTOR CO.
  5. Measure the oil pressure under various conditions. Check to be sure that the measured results are within the standard value range shown in the "STANDARD OIL PRESSURE TABLE " below. If the oil pressure is not within the specified range, check and repair as described in PRELIMINARY STEPS IF OIL PRESSURE IS NOT NORMAL .

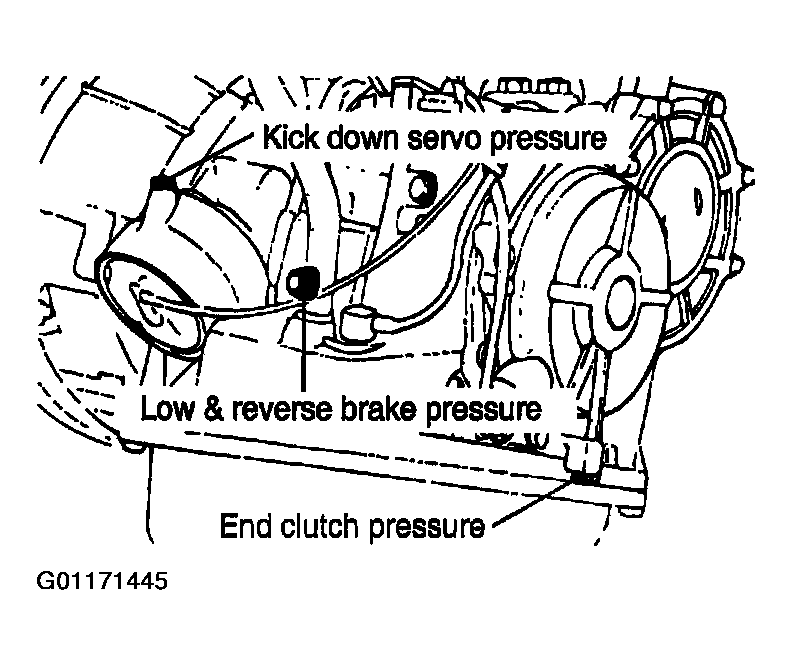

    Fig 2: Locating Oil Pressure Ports (2 Of 2)
    G01171445Courtesy of HYUNDAI MOTOR CO.
