Manual Transaxle Shift Control: Removal

  1. Remove the console assembly. Refer to CONSOLE.
  2. Remove the cotter pins and clips (shift lever side).
  3. Remove the shift lever assembly.
  4. Remove the retainer and bolts.
  5. Remove the cotter pins and clips (transaxle side).
  6. Remove the shift cable and select cable.

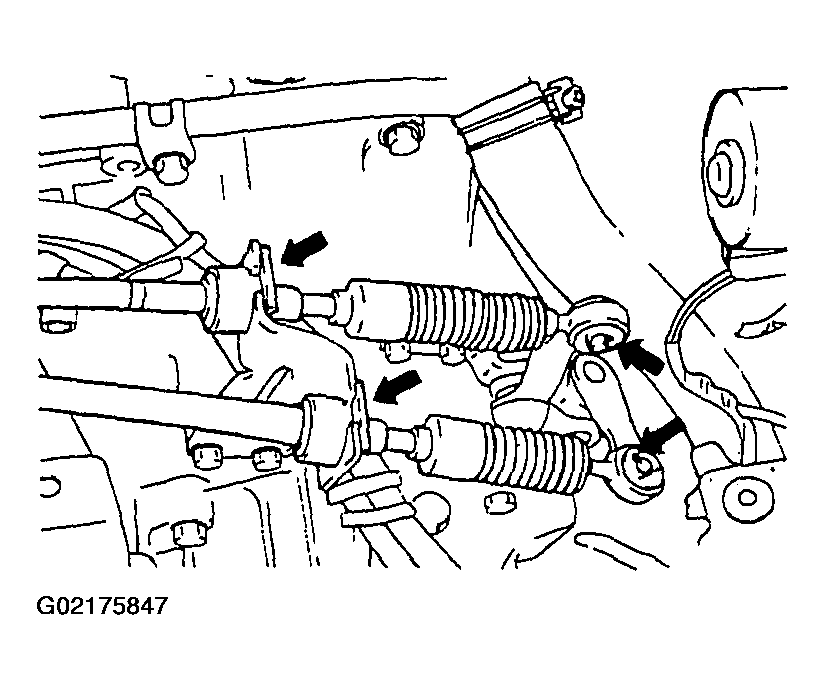

    Fig 1: Removing Shift Cable & Select Cable
    G02175847
