Speedometer Cable Replacement

Correctly insert the adapter into the instrument panel, and fasten the new speedometer cable.

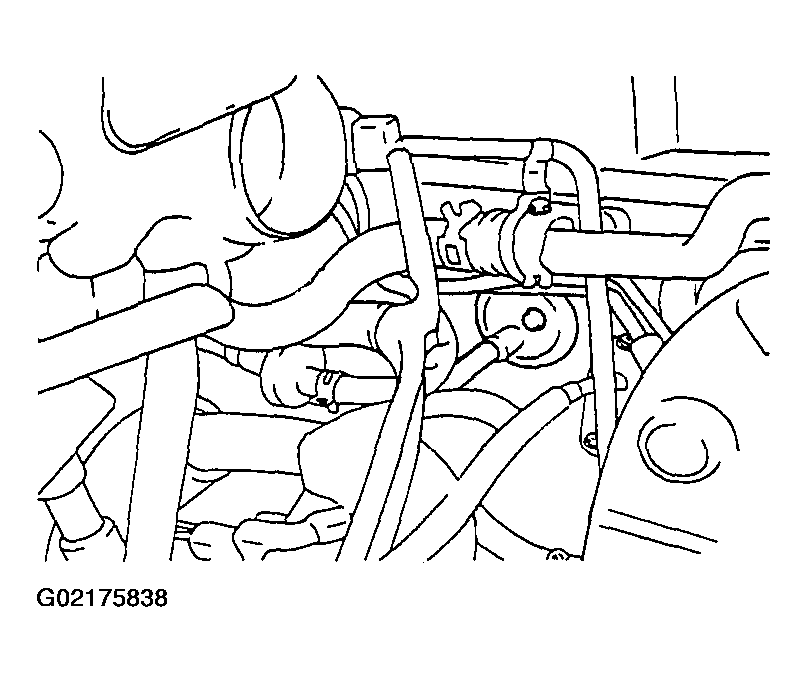

Fig 1: Identifying Adapter
Install the grommet so that the cable and the projecting part of the grommet are horizontal, as shown in the illustration.
CAUTION: The cable should be installed so that the radius of the cable bend is 150 mm (5.9 in.) or more.

Fig 2: View Of Grommet
At the transaxle, the cable should be inserted into the transaxle, and the nut should be securely tightened.
CAUTION: If the cable is not correctly and securely connected, it may cause the speedometer to read incorrectly or it may produce an abnormal noise.
