Multiple Junction Connector: Locations

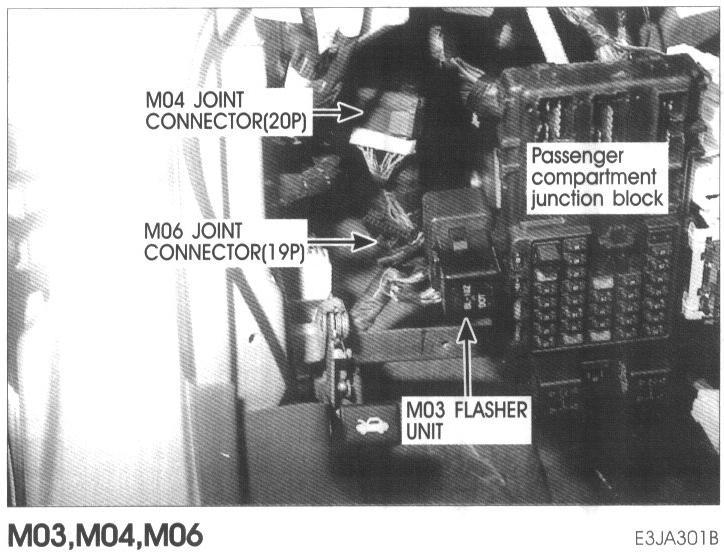

M03 Flasher Unit, M04, M06 Joint Connector,:

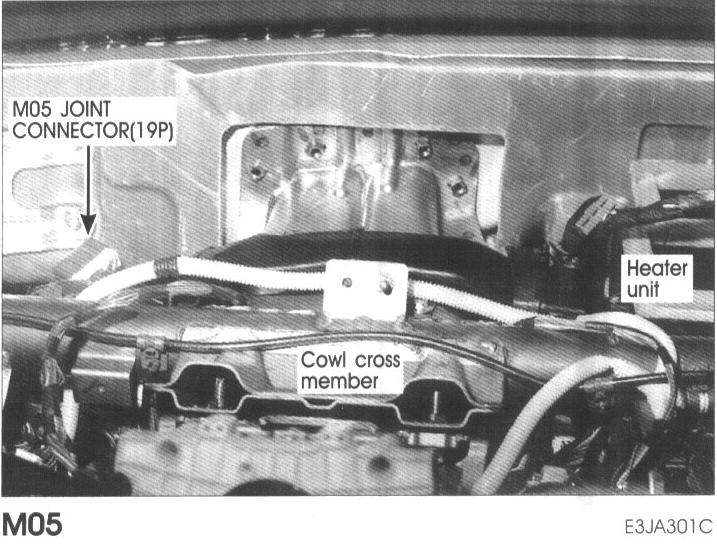

M05 Joint Connector:

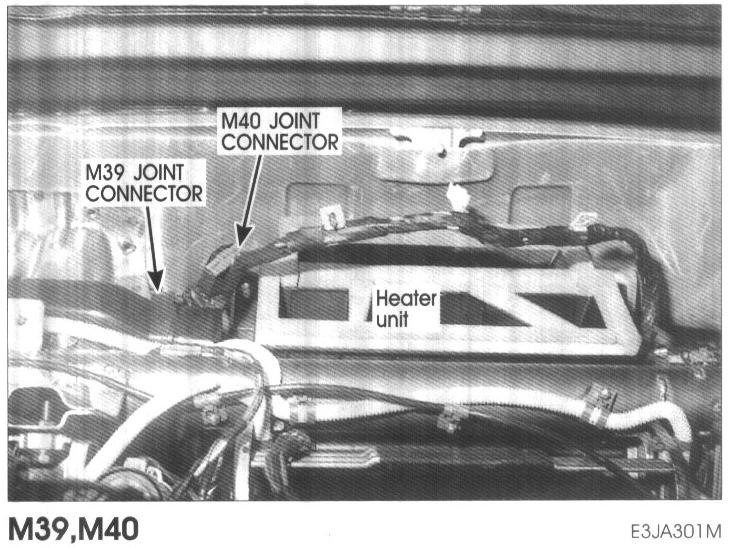

M39 And M40 Joint Connector,:

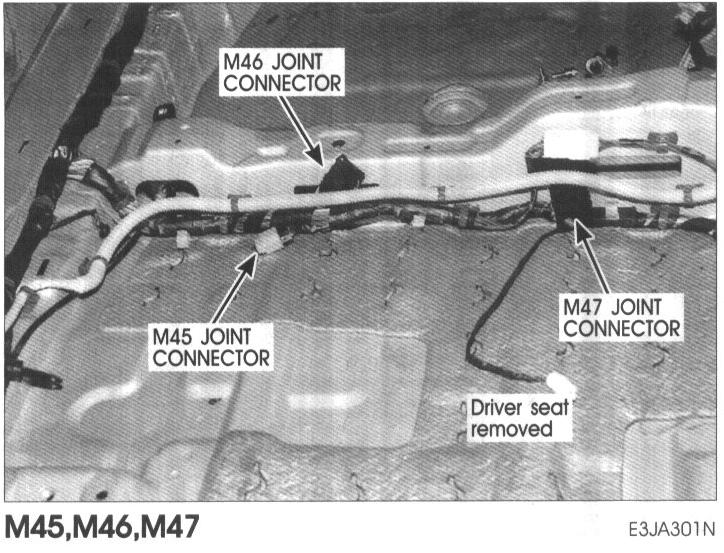

M45, M46, M47 Joint Connector:

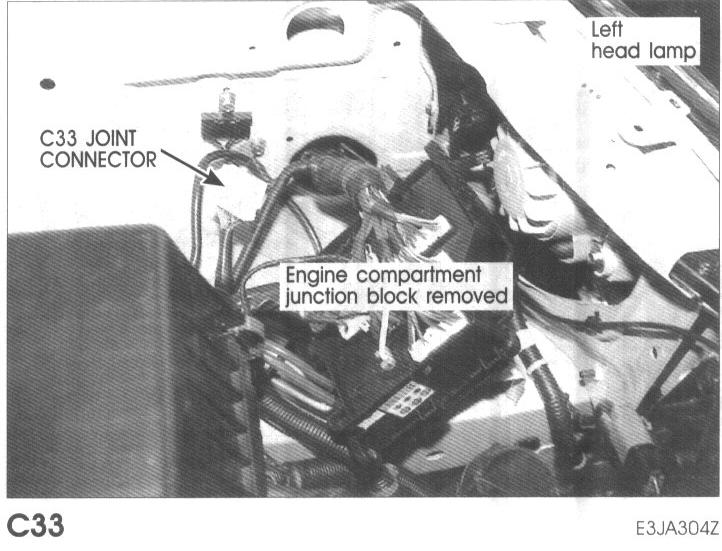

C33 Joint Connector:

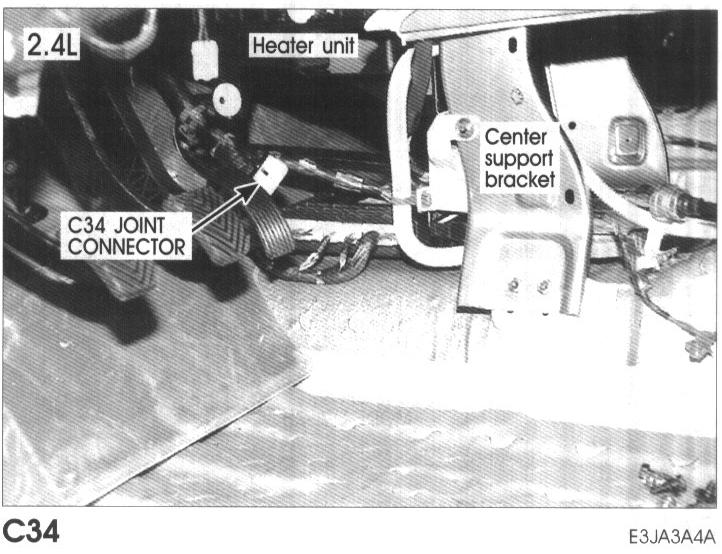

C34 Joint Connector:

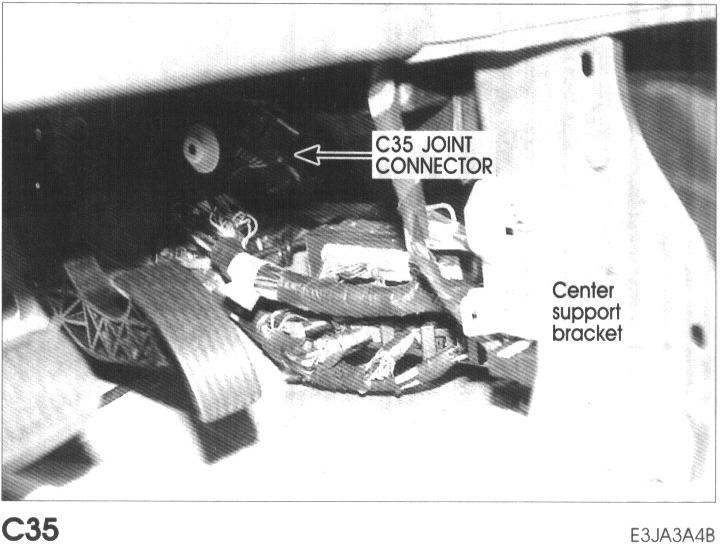

C35 Joint Connector:
