Automatic Transaxle Shift Control: Installation
- Apply a coating of the specified grease to the interior of the adjust bushing.
Specified grease - Chassis grease SAE J310, NLGI No.0
- Move the shift lever and the transaxle range switch to the "N" position, and install the transaxle control cable.

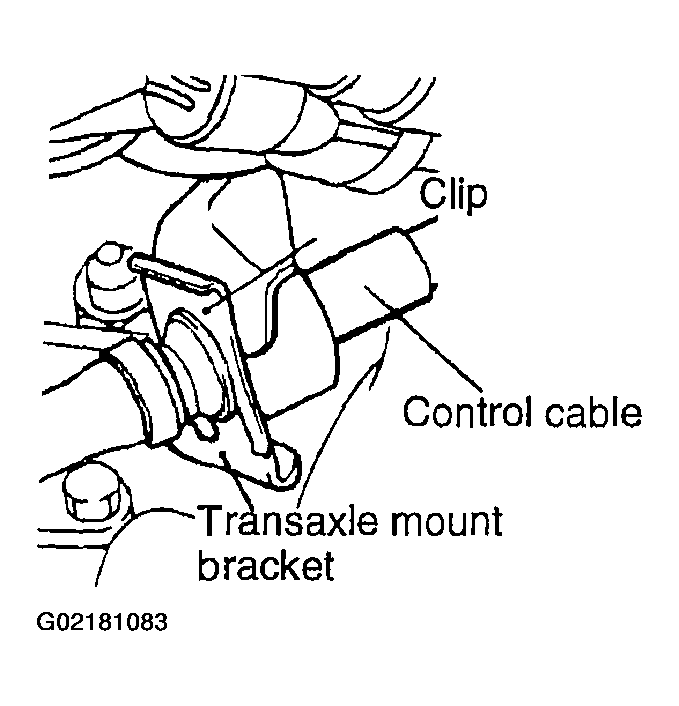

- When connecting the control cable to the transaxle mounting bracket, install the clip until it contacts the control cable, in the position shown in the illustration.

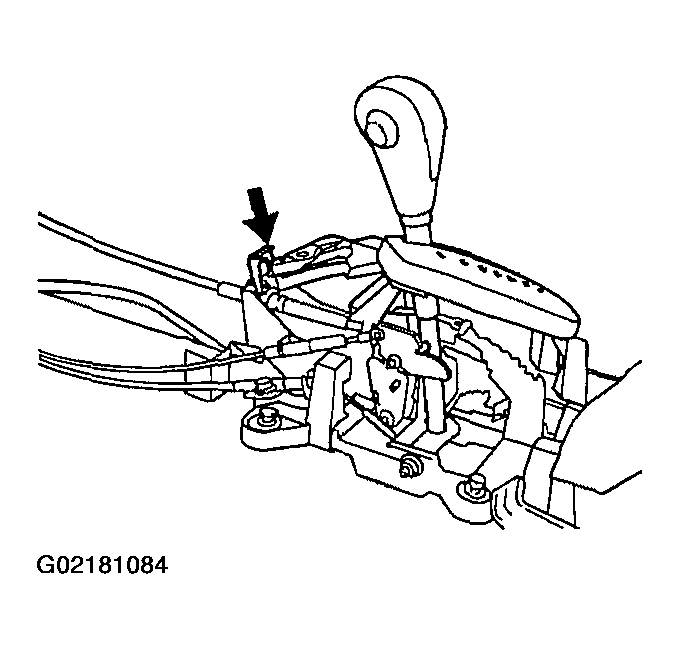

- When connecting the control cable to the shift lever mounting bracket, install the clip until it contacts the control cable.
- Install the control cable, the key lock cable and the shift cable mounting bolt.
- Install the indicator and the bulb connector.
- Install the selector knob.
- Install the shift lever assembly.
- Install the nut and washer.

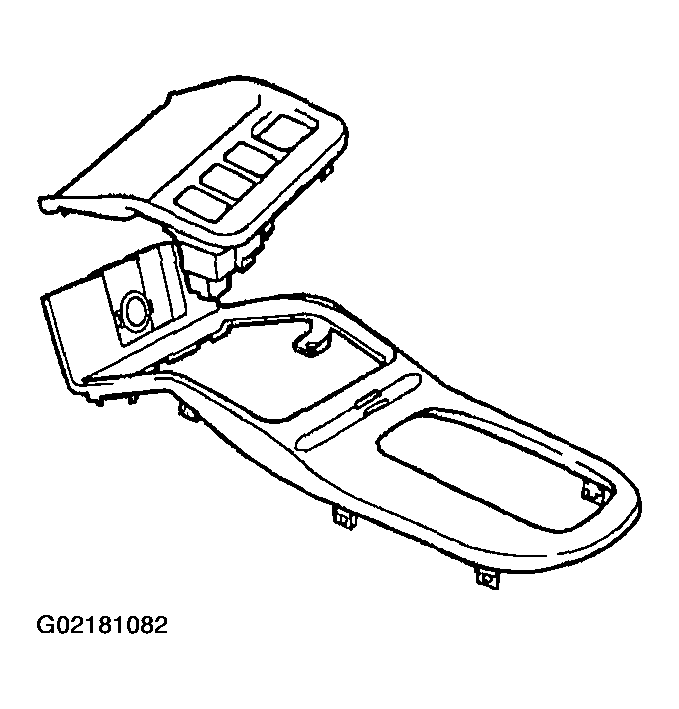

- Install the console cover plate and upper cover.
